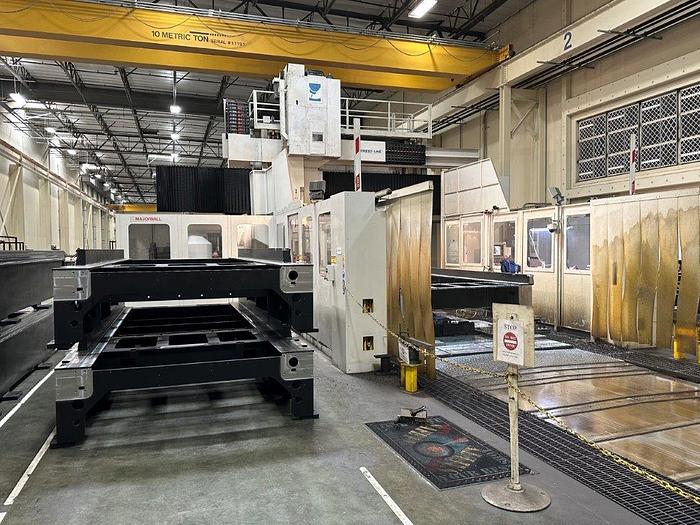

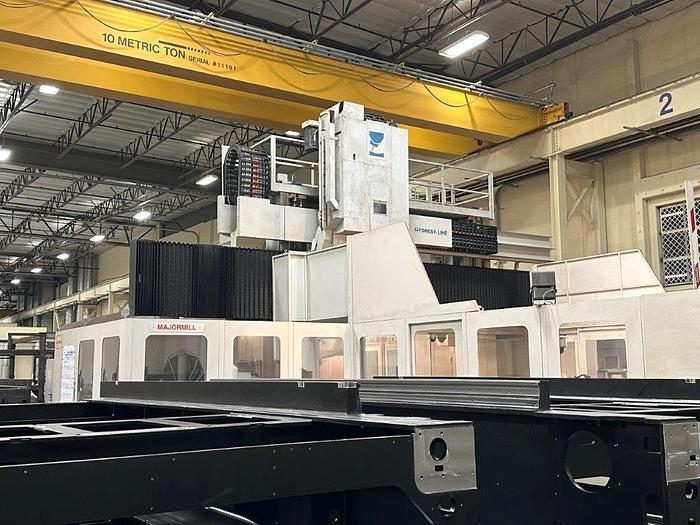

Forest Line MajorMill 350TA CNC Bridge Type Milling Machine with 2 Tables

Forest Line MajorMill 350TA CNC Bridge Type Milling Machine with 2 Tables

orCall 770-509-0744

Description

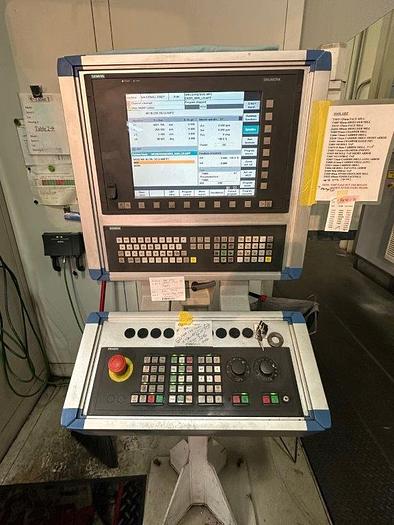

SIEMENS 840D SL CNC CONTROL

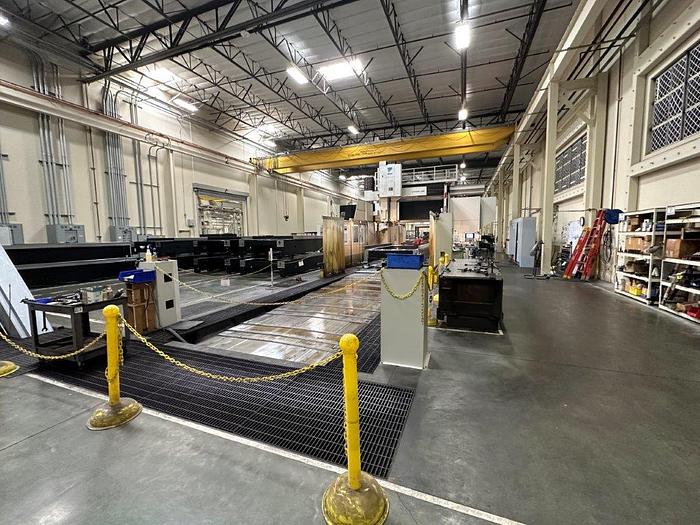

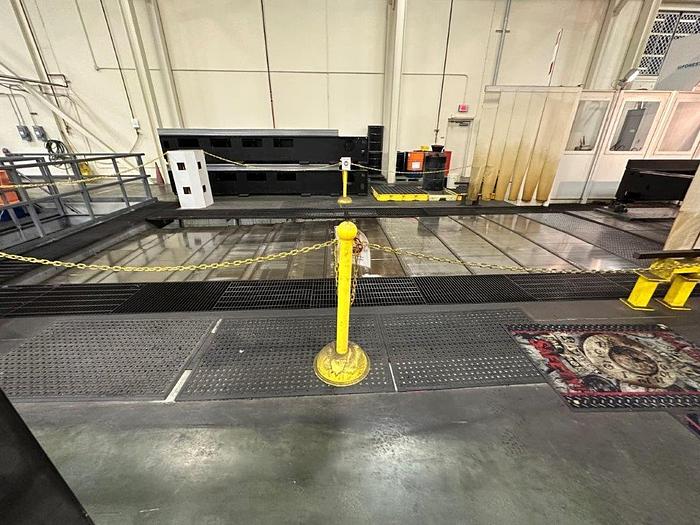

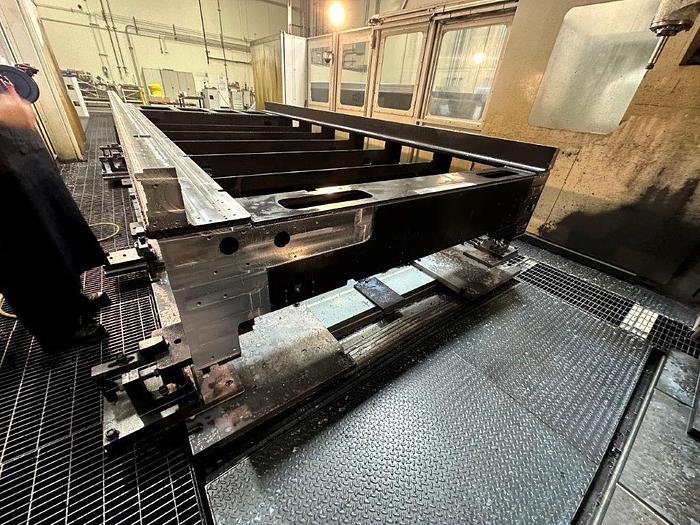

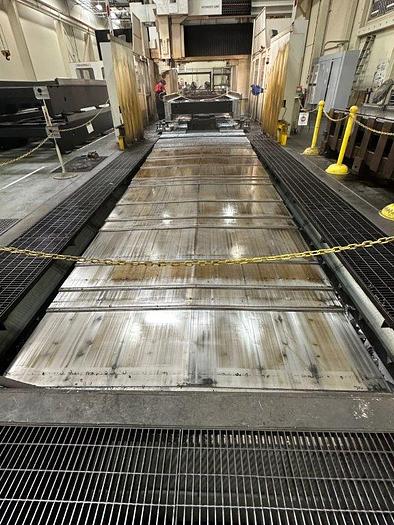

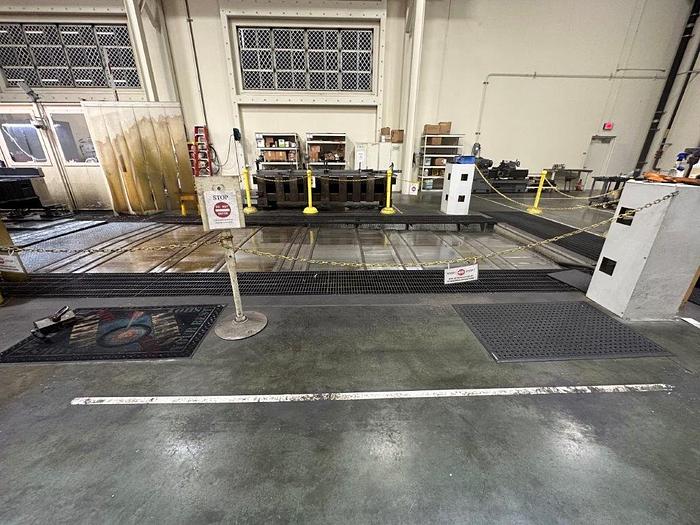

2 CAST IRON TABLES - (each 6,000 x 2,750 mm)

200 POSITION AUTOMATIC TOOL CHANGER

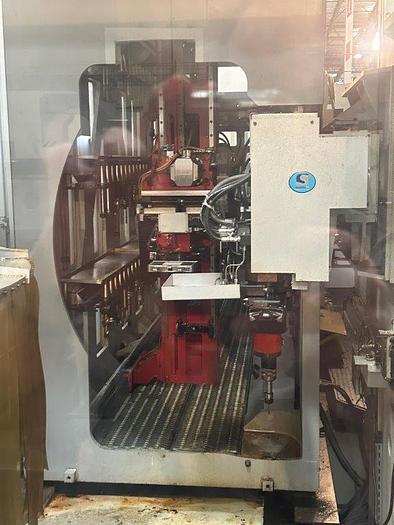

STORAGE OF SPINDLE UNITS (5 STATIONS)

EXTERNAL AND THROUGH SPINDLE COOLANT SYSTEM

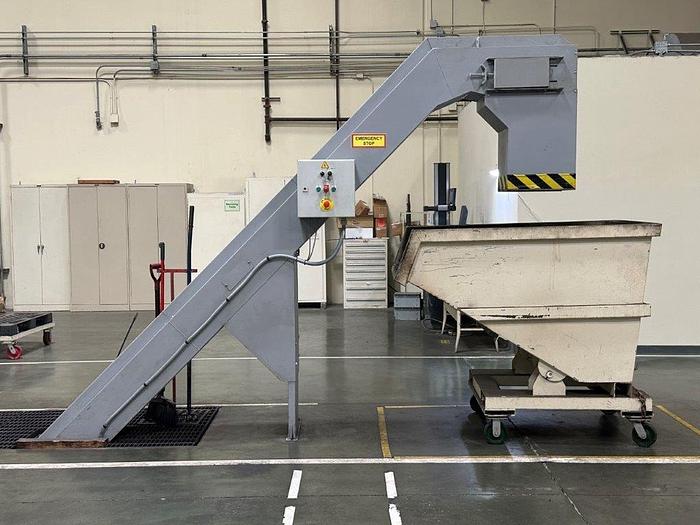

2x CHIP CONVEYORS

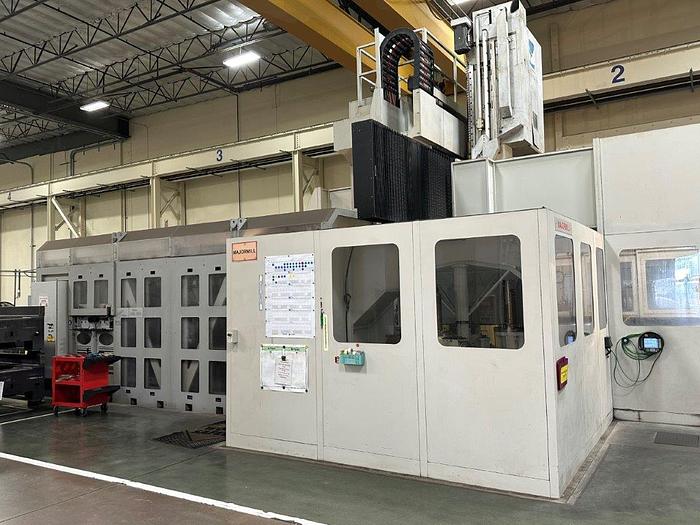

ENCLOSURE OF THE WORKING AREA

TOOL MANAGEMENT AND IDENTIFICATION BALUFF

TOOL BREAKAGE CONTROL RENISHAW TS20

TOUCH PROBE RENISHAW RMP60

AUXILIARY PANEL SIEMENS HT8

WIRELESS HANDWHEEL HUBITRON

AUTOMATION OF THE HOUSING BARRIERS

VIDEO SYSTEM WITH 4 CAMERAS

COALESCENT OIL SEPARATOR OPTIONAL EQUIPMENTS

SMOKE EXHAUST DEVICE / CONNECTED ROOF

TOOL CONTROL AND BREAKAGE LASER BEAM BLUM NT

ANTI-COLLISION SYSTEM UNDER CROSS RAIL


DISTANCE UNDER MILLING SPINDLE 2,600 mm

DISTANCE BETWEEN TABLE & UNDER CROSSRAIL 3,000 mm

X-AXIS TRAVEL (DOUBLE TABLE) 13,300 mm

X-AXIS TRAVEL (SINGLE TABLE) 6,500 mm



SPINDLE ATTACHMENTS:

VERTICAL SPINDLE (B8-856-01996B)

TYPE: BV 40

POWER: 40 kW

TORQUE: 1530 NM

MAX. SPINDLE SPEED: 6000 RPM

UNIVERSAL SPINDLE: (B8-856-01997C)

TYPE: RU SPECIAL

POWER: 20 kW

MAX. SPINDLE SPEED: 2000 RPM

POSITIONING INCREMENT: 5 DEGREE

RIGHT ANGLE SPINDLE (B8-856-01995C)

TYPE: RE 40 LONG

POWER: 40 Kw

MAX. SPINDLE SPEED: 6000 RPM

RIGHT ANGLE SPINDLE: (B8-856-01998B)

TYPE: RE 15

POWER: 15 kW

MAX. SPINDLE SPEED: 6000 RPM

Specifications

ManufacturerForest Line
Year2011
ConditionUsed
Stock Number11082
Between columns3,500 mm
Machining height2,600 mm
X axis travel13,300 mm
Y axis travel4,000 mm
Z axis travel1,500 mm
Table size (x2)6,000 x 2,750 mm
Table capacity20 Ton (30 Ton with coupled tables)
W axis travel1,500 mm (6 Positions - 250 mm each)
Milling head (FA 315 C)425 x 425 mm
Spindle taperISO 50
C axisN x 360°
A axisN x 360°
Feed speed X/Z axes30 m/min
Feed speed Y axis40 m/min
Feed speed W axis1 m/min
Machine dimensions33.1 x 10.43 x 8.045 m
Machine weight155 Ton
