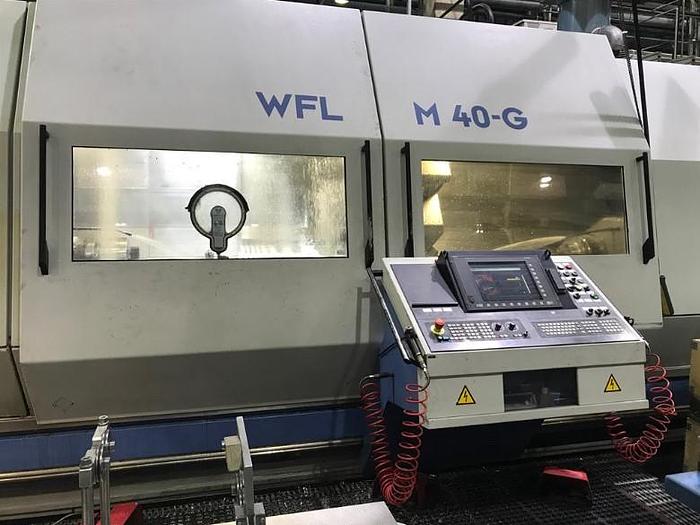

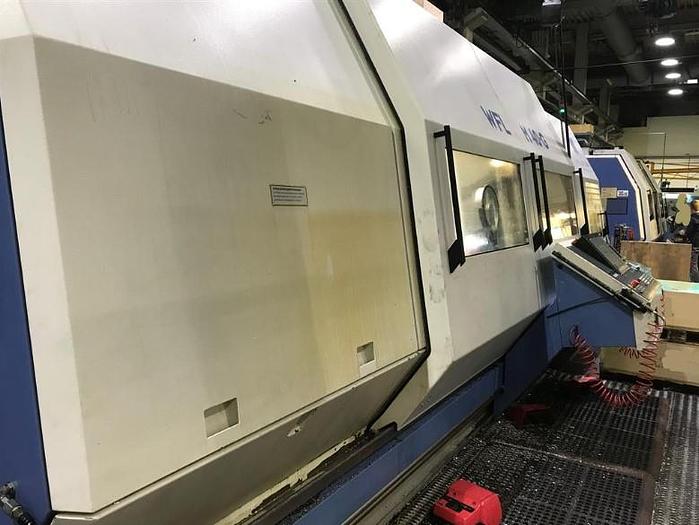

WFL MillTurn M 40 G x 3000 CNC Turning & Milling Center
WFL MillTurn M 40 G x 3000 CNC Turning & Milling Center
or
Call 770-509-0744
Description

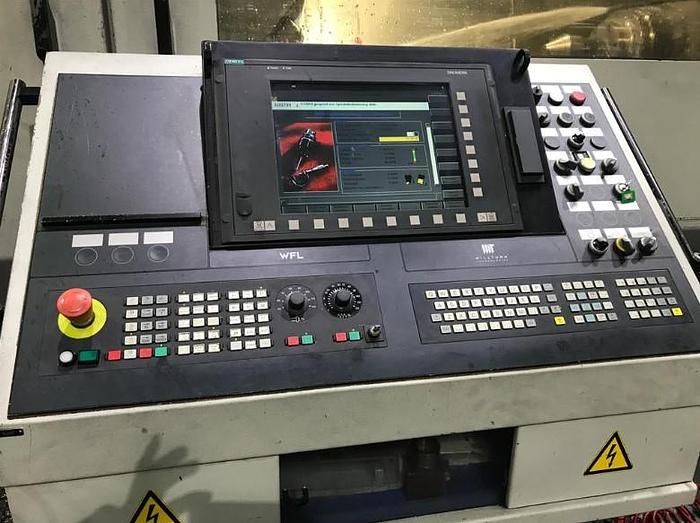

SIEMENS 840 D CNC Control
Left and Right Spindle with Power Chuck SMW 315 mm
Steady Rest SMW
Botton Saddle with 12-fold revolver
C-axis with 0.001° indexing
Y-axis -100/+150 mm
B-axis -110/+110°
100 Position Automatic Tool Changer
Workpiece Measuring Device M+H
Coolant Device with Through Spindle Coolant
Chip Conveyor
Spindle Turning Speed Range 3 - 4,000 rpm
Milling Head Speed 1 - 9,000 rpm
Specifications
| Manufacturer | WFL |
| Model | MillTurn M 40 G x 3000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 11091 |
| Turning length | 3,000 mm |
| Turning diameter | 520 / 350 mm |
| Chuck speed | 4,000 rpm |
| Milling head speed | 9,000 rpm |
| Z axis travel | 3,150 mm |
| X axis travel | 600 mm |
| Spindle bore | 77 mm |
| Spindle drive | 33 kW |
| Milling spindle drive | 27 kW |
| Tool taper | HSK 63 |
| Rapid traverse longitudinal | 40 m/min |
| Rapid traverse cross | 30 m/min |
| Total power requirement | 105 kW |
| Machine dimensions | 9.3 x 4.15 x 3.25 m |
| Machine weight | 24 Ton |
