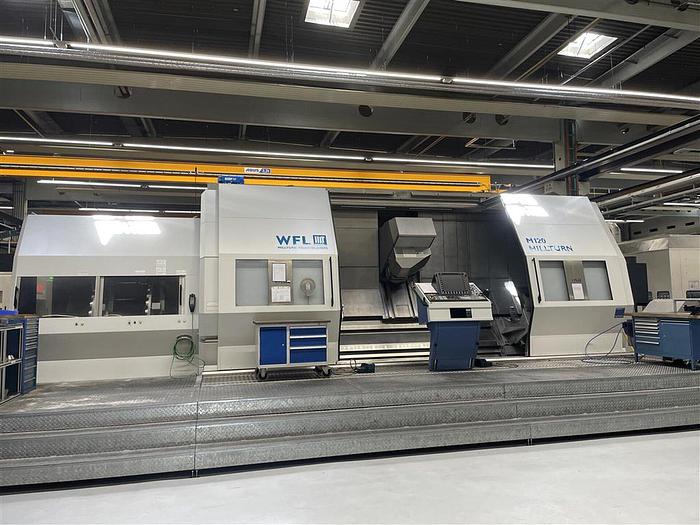

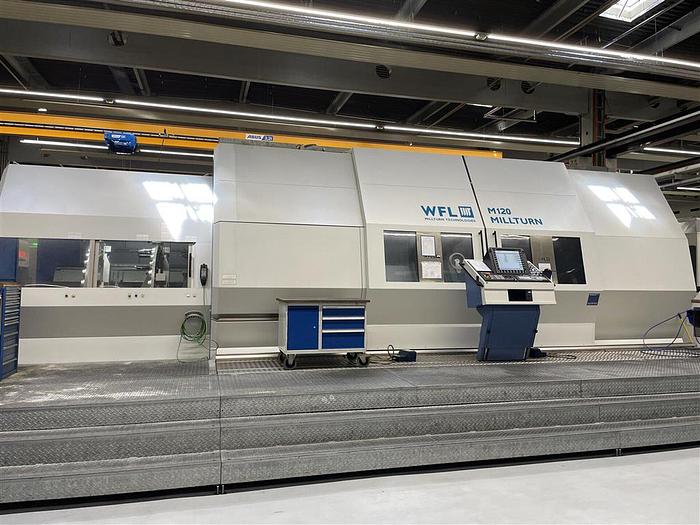

WFL MillTurn M 120 x 3000 CNC Turning & Milling Center
WFL MillTurn M 120 x 3000 CNC Turning & Milling Center
or
Call 770-509-0744
Description

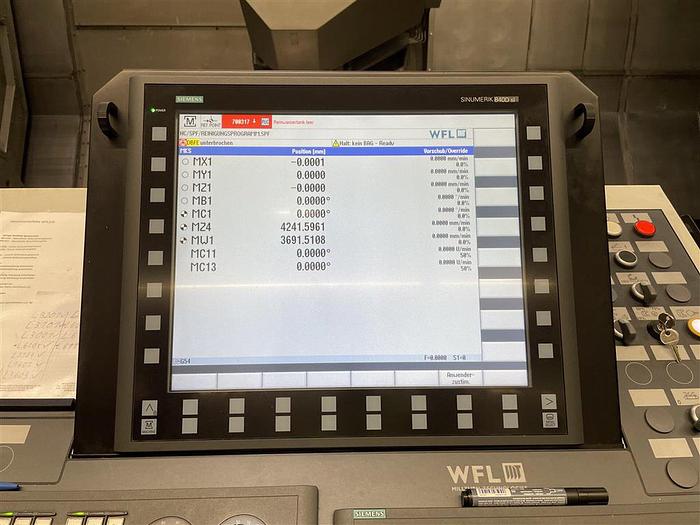

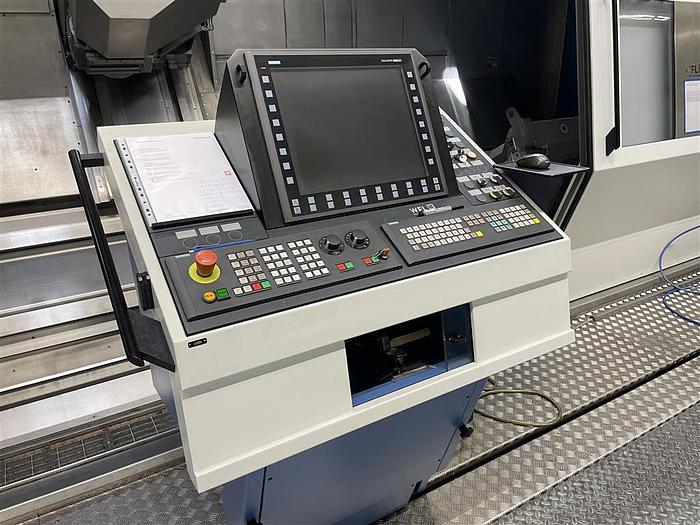

SIEMENS 840 D SL CNC Control for 5-Axis

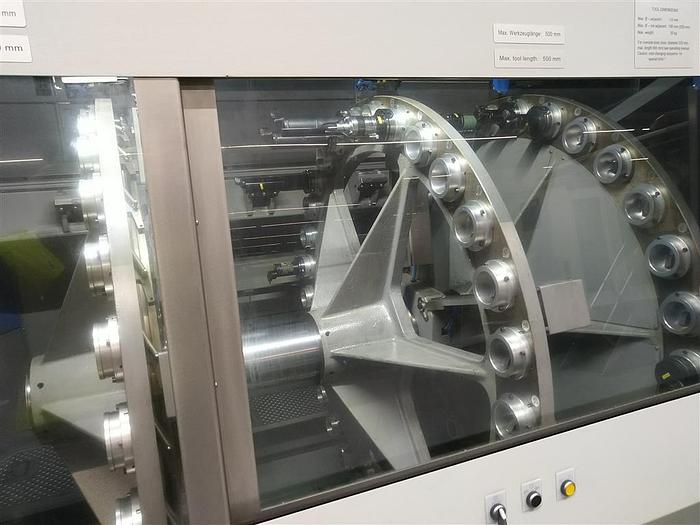

Tool changer for 90 tools
NC tail stock
C-axis for main spindle

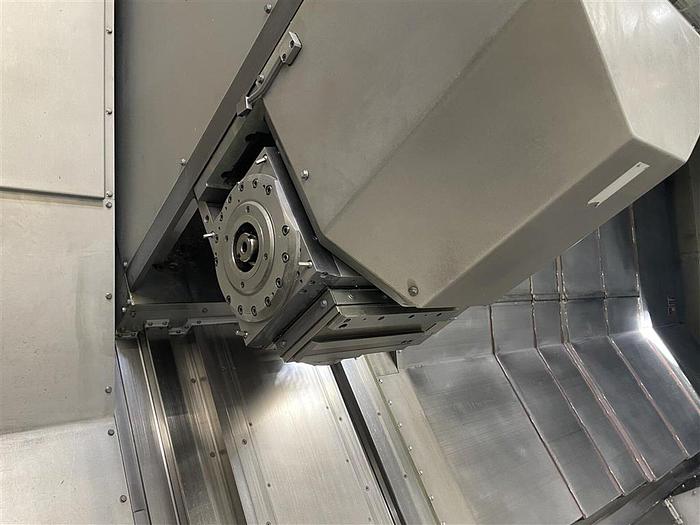

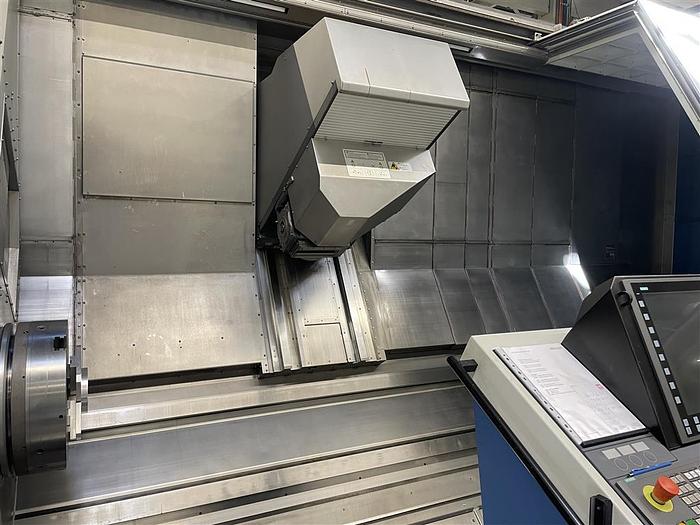

B and Y axis for turning, milling and boring unit

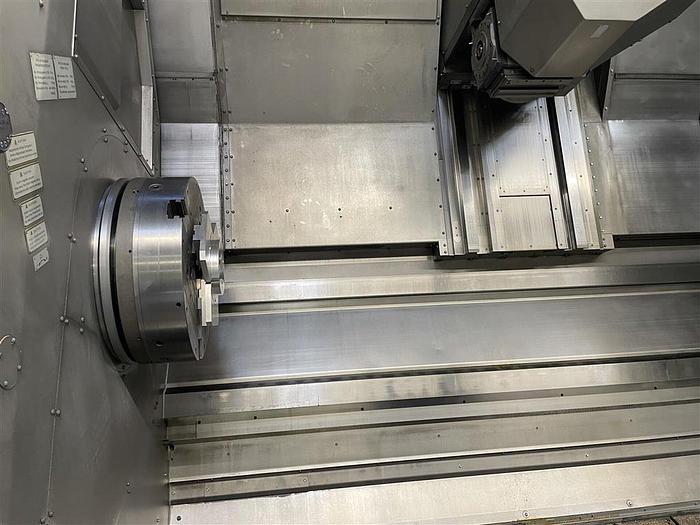

Power chuck 630 mm
Coolant device with coolant through spindle 80 bar
RENISHAW RMP 60 tool measuring

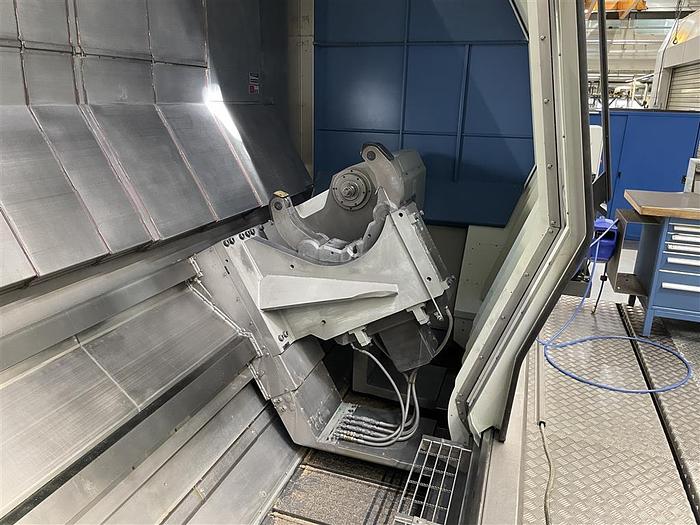

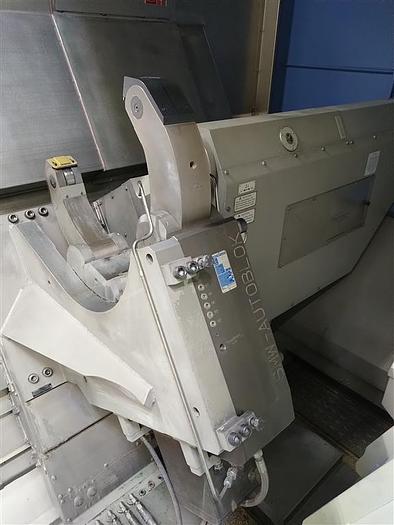

NC steady rest slide with 125 - 460 mm diameter steady rest
Spindle torque converter
Boring bar magazine 2-fold for max. bar length 1700 mm
Spindle Turning Speed Range 10 - 1,000 rpm
Specifications
| Manufacturer | WFL |
| Model | MillTurn M 120 M x 3000 |
| Year | 2021 |
| Condition | Used |
| Stock Number | 11093 |
| Turning length | 3,000 mm |
| Turning diameter | 1,180 mm |
| Chuck speed | 1,000 rpm |
| Milling head speed | 5,000 rpm |
| Z axis travel | 3,350 mm |
| X axis travel | 1,120 mm |
| Main gear-box motor | 100 kW |
| Work piece power | 45 kW |
| Tool taper | HSK 100 |
| C axis | 360,000 x 0.001° |
| Total power requirement | 145 kW |
| Machine dimensions | 12 x 6.5 x 4.2 m |
| Machine weight | 35 Ton |
