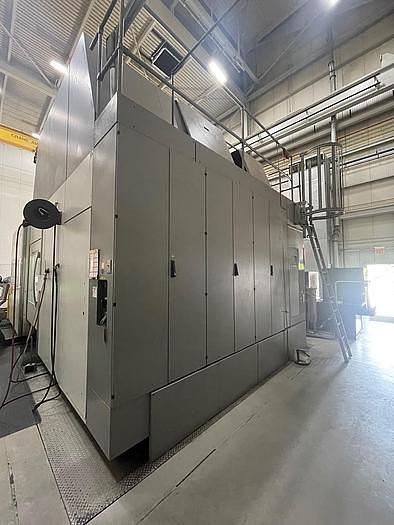

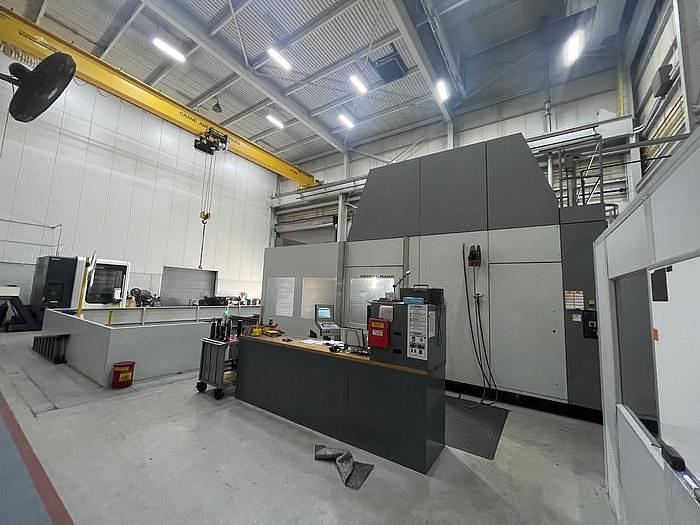

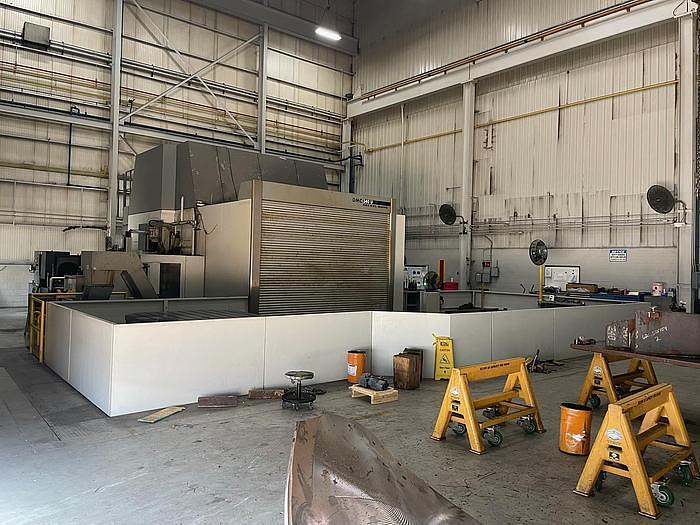

DMG DMC 340U CNC 5-Axis Universal Machining Center with 2 Pallets & Auto Pallet Changer

Highlights:

Automatic pallet-changing system for higher efficiency

2 possibilities of the 5 axes simultaneous processing:

NC-rotary table with controlled B-axis or A-axis

Thermo-symmetrical construction, as well as 3-point support for quick installation

Gantry design with vertically traversable crossbeam with hydraulic weight compensation for high precision and dynamics

Short and continuous throat depth of the milling head (not plunger construction)

Feed and rapid traverse up to 60 m/min and machining of workpieces of up to 10 t

Machine accuracy: X-, Z-axis P = 0.015 mm / 0.00059 in (according to VDI/DGQ 3441) Y-axis P = 0.020 mm / 0.00078 in

Featuring:

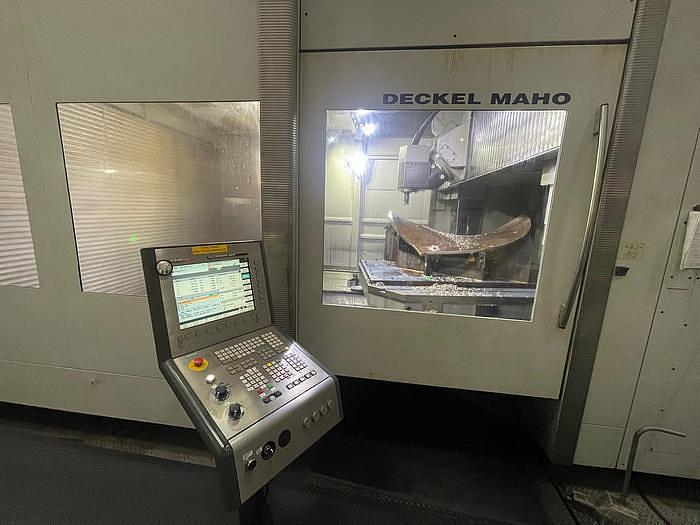

Siemens 840D Powerline 3D CNC Control

Universal Milling Head with Controlled B-Axis

60 Position Double Gripper Automatic Tool Changer - SK 50

NC Rotary Table with Pallet Carrier

Linear Pallet Changer

2 Pallets - 2,000 x 2,500 mm

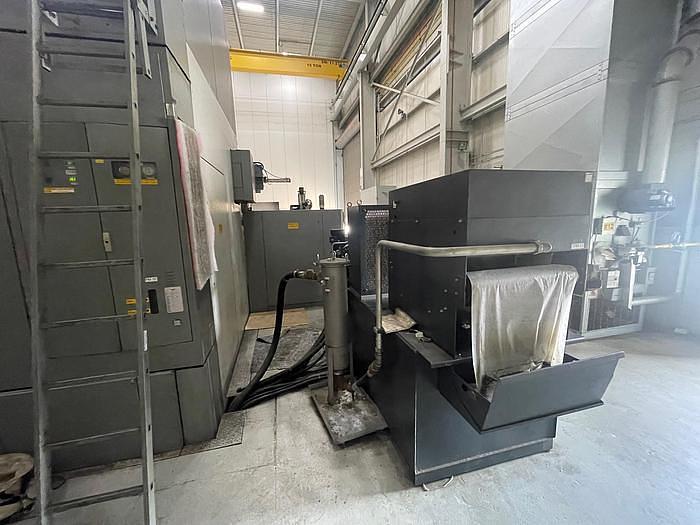

Coolant Tank 2,500 L

Internal Coolant Supply 40 bar

Through Spindle Center

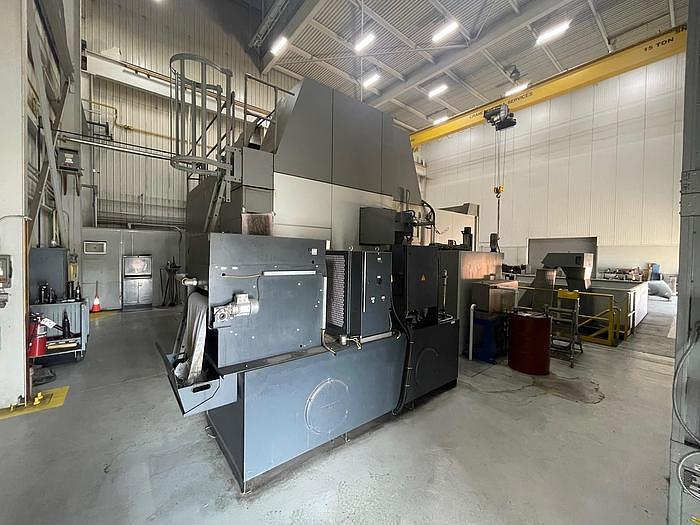

Chip Conveyor

Rotating Clear-View Window

Electronic Handwheel

3D Contouring Control

Renishaw OMP 60 Infared Measuring Probe

Blum Laser NT-Hybrid Tool Measuring

3D quickSET Tool Kit

Balluff Tool Identification System

OMATIVE Advanced Adaptive Control for Milling & Turning

Hydro-Mechanical Tool Clamping for Draw Bolt DIN 69872

Roller Guideways in All Linear Axes

Universal milling head:

with controlled B-axis SK 50

Continuously positioning universal milling head (B-axis) with integrated motor spindle for 5 axes positioning and simultaneous machining as well as automatic changeover from vertical to horizontal machining

drive B-axis

digitally controlled AC motor, liquid-cooled

preloaded transmission gear

swivel momentum: 4,400 Nm / 3,245 ft lbs (at spindle nose - 100% duty cycle)

holding momentum: 4,400 Nm / 3,245 ft lbs (100% duty cycle)

swivel angle: from horizontal position to max. 210° (30° past vertical position in direction of tool magazine - left)

rapid feed B-axis: 14 rpm

NC rotary table with pallet:

clamping surface 2,000 mm x 2,500 mm (DIN 55201 - A2)

center bore: d 100 mm H6 / d 4 in H6

level bush: d 25 mm H6 / d 0.9 in H6

Number of T-slots: 1x 22 H7 (alignment groove, table center) 8x 22 H12 (clamping grooves)

Distance between T-slots: 200 mm

drive C-axis: digitally controlled AC motor, liquid-cooled

max. torque: 25,000 Nm (40% duty cycle)

holding momentum: 30,000 Nm (hydraulic table clamping)

rapid traverse rotary axis: 5 rpm

feed rotary axis: 1,800°/min

input and display resolution: 0.001°

max. table load (table center): 10,000 kg

max. moment of inertia: 6,800 kgm²

positional uncertainty: P = 8 arc s (according to VDI/DGQ 3441)

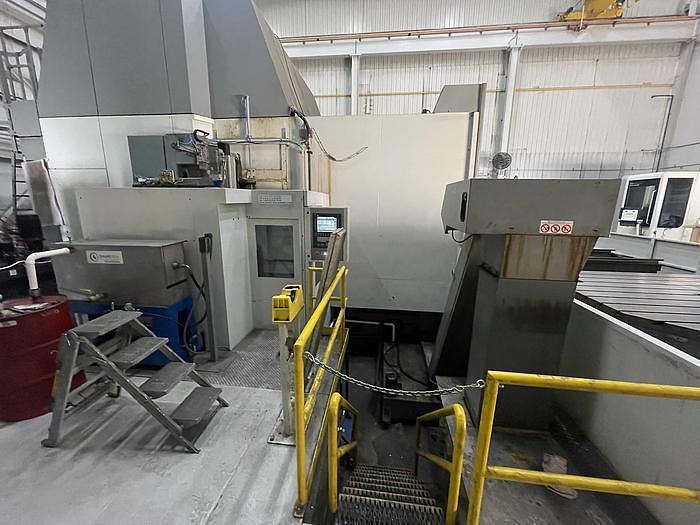

linear pallet changer: for 2 pallets

set-up station: pallet 4x 90° rotatable by motor, lift-off pallet
