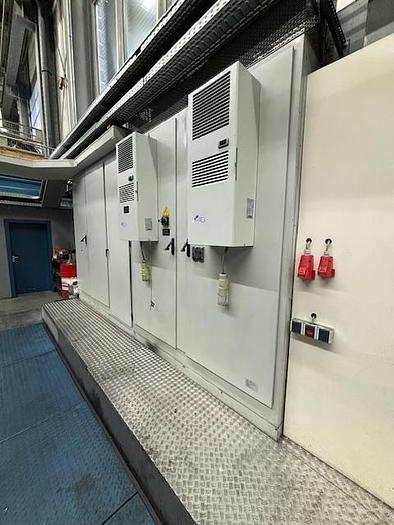

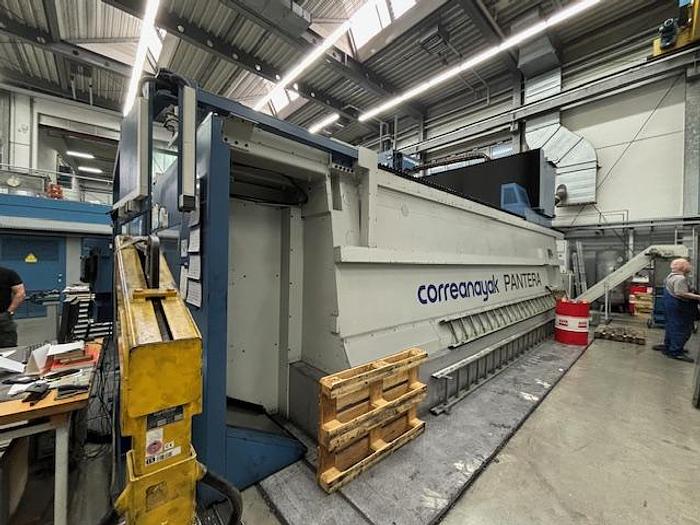

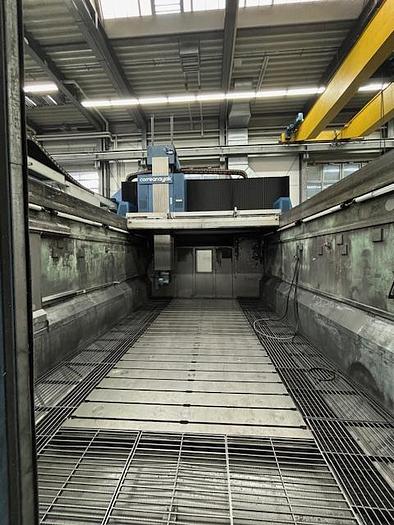

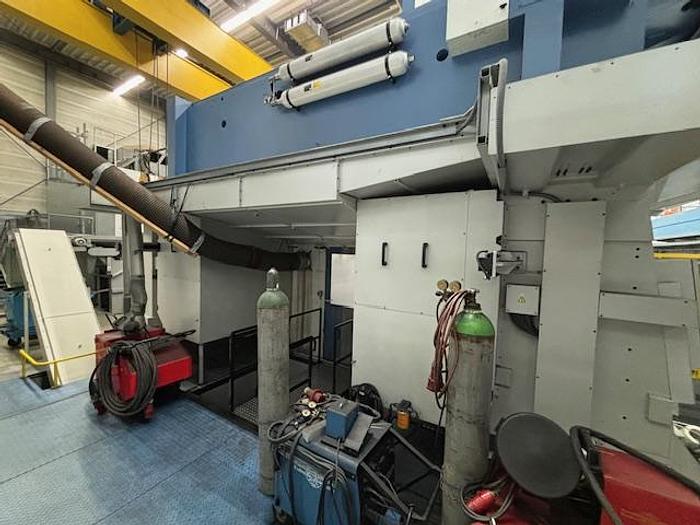

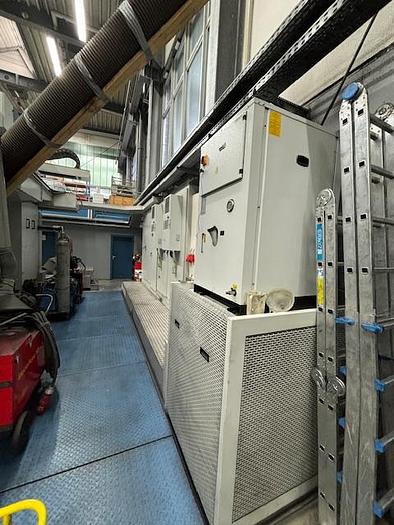

Description

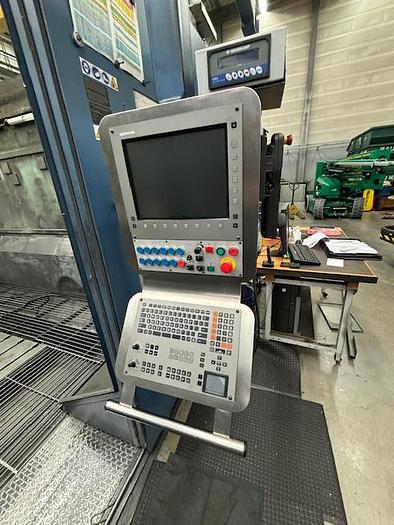

Heidenhain TNC 530 control

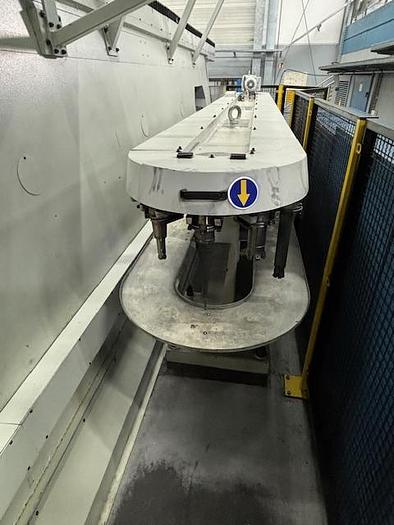

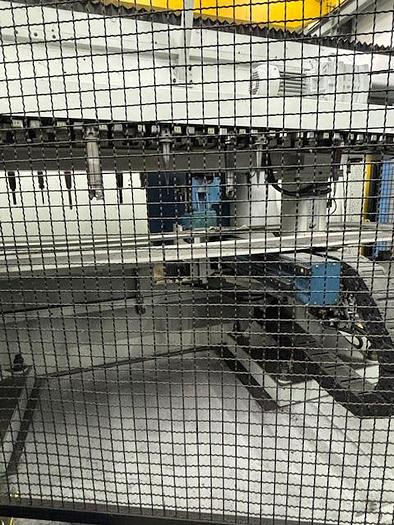

80 Position Automatic Tool Changer
40 Position ISO SK-50
40 Position HSK-63A

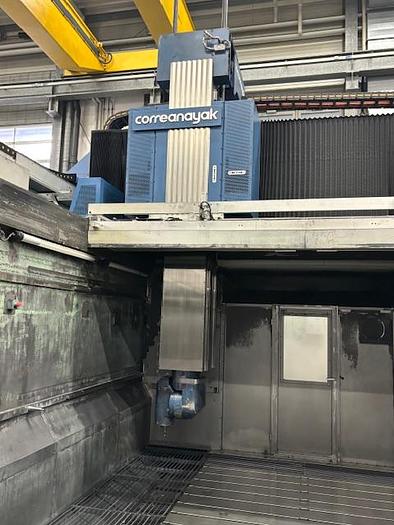

4-Way Automatic Head Changer
2 pieces of orthogonal milling head OAD with:
Tool holder ISO SK-50
Spindle speed: 20-6000 rpm
Drive power 46kW (100% ED S1)
1 piece 2-axis fork milling head E5E (CAC II) with:
Tool holder HSK-63A
Swivel range C-axis: +/- 200°
Swivel range B axis: +/- 100°
Drive power 37kW
Spindle speed max. 24,000 rpm
1 piece vertical spindle F-400
Spindle speed 4,000 rpm
Drive power 25kW

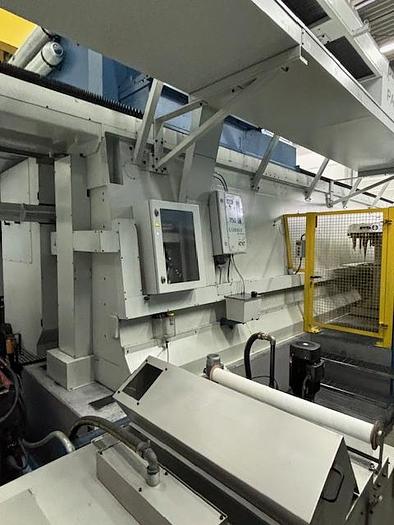

IKZ 38bar with paper band filter

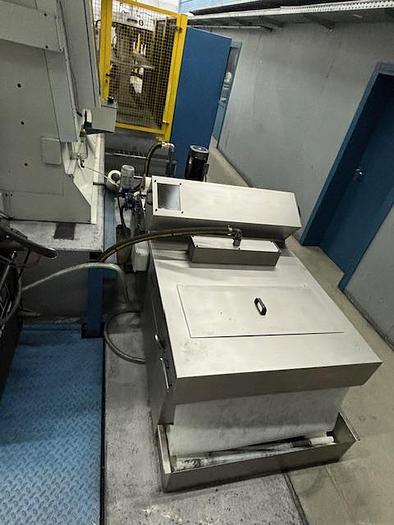

2 pieces of chip conveyor (longitudinal hinged belt conveyor)
1 piece cross conveyor
Heidenhain longitudinal measuring rods in all three axes
Z-axis with 4-fold linear guide
Wireless measuring probe M&H 20.41
Multi BRANKAM machine protection system CMS-100 (collision protection)
Work area cover (roof) can be opened at the back and front
Tool measurement BLUM
Radio handwheel Heidenhain HR 550 FS
Specifications
| Manufacturer | Correanayak |
| Model | Pantera |
| Year | 2012 |
| Condition | Used |
| Stock Number | 11096 |
| Between columns | 4,700 mm |
| Spindle speeds | 24,000 rpm |
| X axis travel | 6,800 mm |
| Y axis travel | 3,400 mm |
| Z axis travel | 2,000 mm |
| Table dimensions | 6,000 x 2,500 mm |
| Table capacity | 10 Ton |
| Machine weight | 80 Ton |
| Machine space requirement | 12 x 11 x 7 m |
