Soraluce FMT 4000 CNC Turning Milling & Grinding Center

Features & Benefits:

Milling, turning & grinding on one machine

Extremely large work surface with integrated NC rotary table/vertical rotary table

Universal milling head with main spindle clamping for turning - T design

Milling head for machining at any angle

Integrated, water cooled 43 kW inline main spindle motor

Complete splash/chip guards including chip management system

INA linear guiding system with hydro mechanical damping slides

Compact design for installation on a block foundation

Machining of complex workpieces in one set-up

Large X Axis travel range of 4,000 mm for machining large parts

Low foundation costs thanks to block foundation

User-friendly and innovated technology

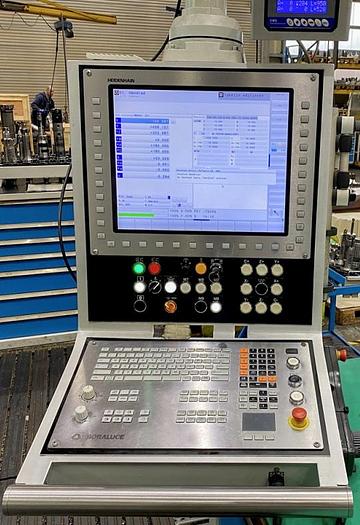

Heidenhain TNC 640 HSCI CNC Control

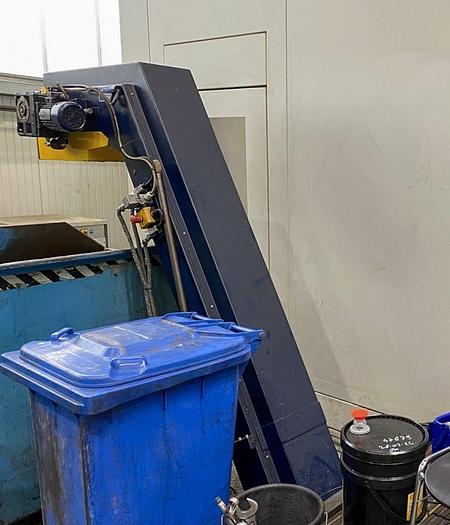

Chip Conveyor

Rigid table with integrated rotary table

Internal cooling lubricant supply

High pressure pump

Laser tool measurement for measuring tool length and diameter

Camera surveillance system

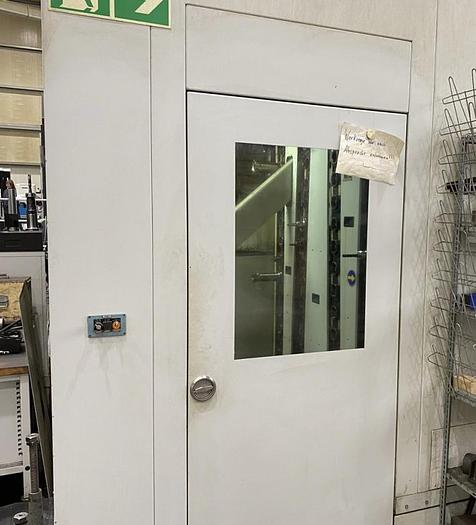

Closed cabinet

Portable electronic hand control unit HR 520

BRANKAMP CMS collision monitoring with two measurement channels

SCHUNK zero-point clamping system

Tool breakage control via touch probe

Henninger special angle milling head

Milling/turning Table NC:

Table dimensions: Ø1.600 mm

Max. workpiece weight: 3.000 - 8.000 kg

Table rotation speed: 250 rpm

Max. Torque: 2.787 Nm

Drive power: 53 kW

Spindle:

Spindle speed: 5,000 rpm

Spindle drive power: 43 kW

Spindle torque: 900 Nm

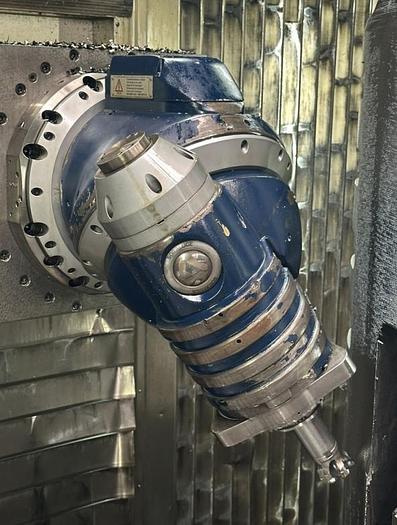

Automatically indexing milling head in diagonal design: 0.001º A and B Axis, 360,000 Positions

Machine Worktable:

Clamping table with integrated carousel rotary table: 4,000 x 1,240 x 760 mm

T-Slot version: 22 H12

Cooling:

Cooling through the Spindle Center bar

Tank capacity: 1.000

High-pressure bar: 5/20

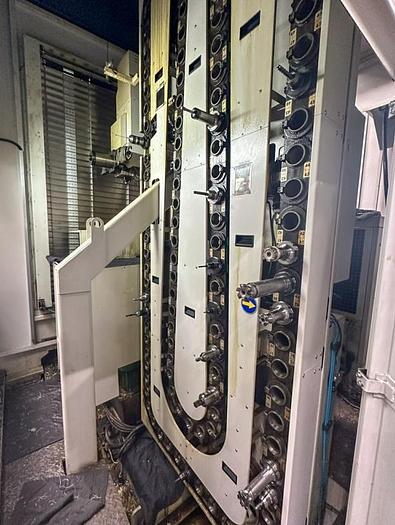

Automatic Tool Changing System:

Tool magazine slots: 120 (30 Capto C8, 90 SK50)

Max. Tool Diameter: 125 mm

With free neighboring places: 250 mm

Max. Tool Length: 400 mm

Max tool weight: 20 kg

Tool-to-tool time: 10 s
