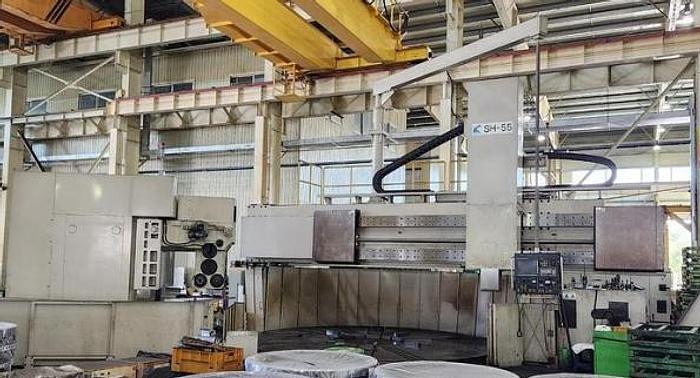

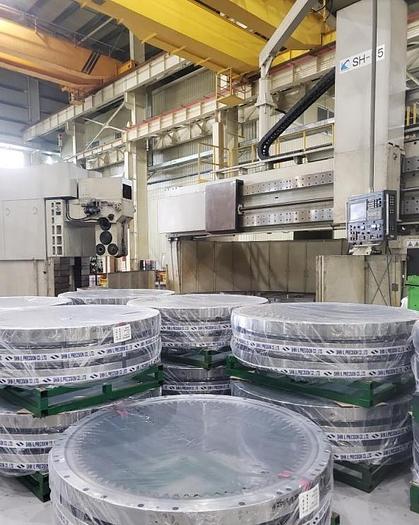

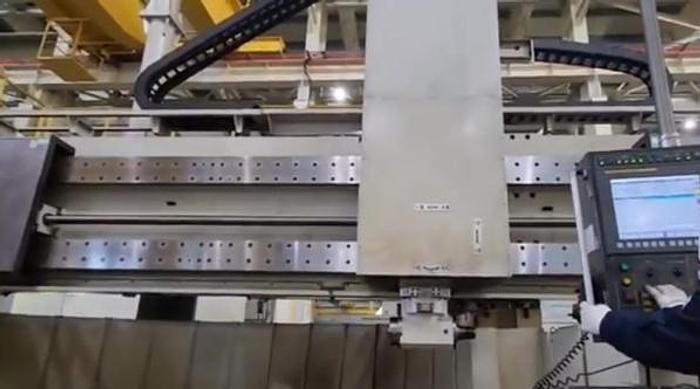

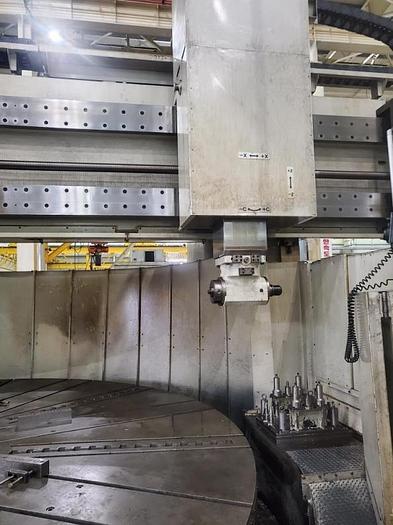

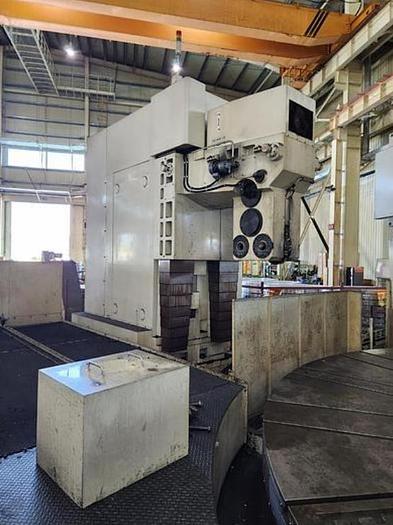

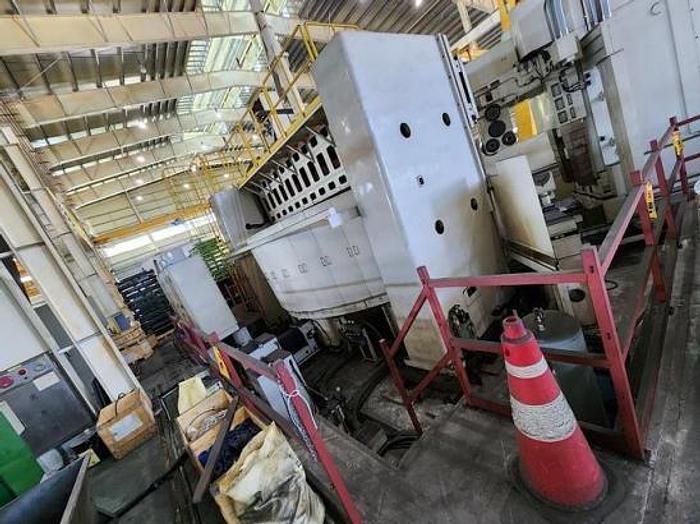

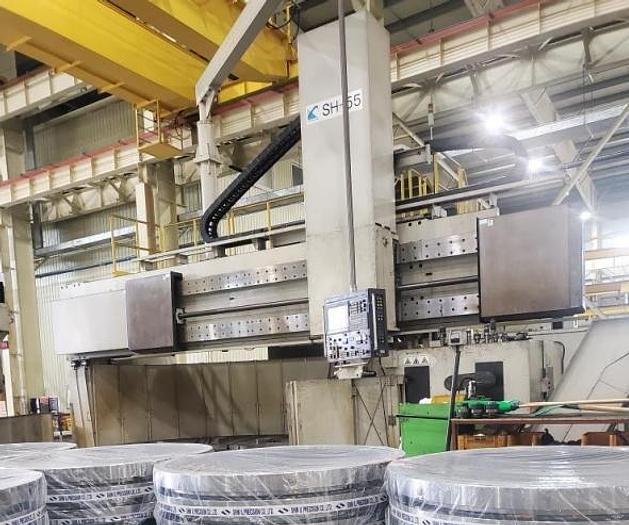

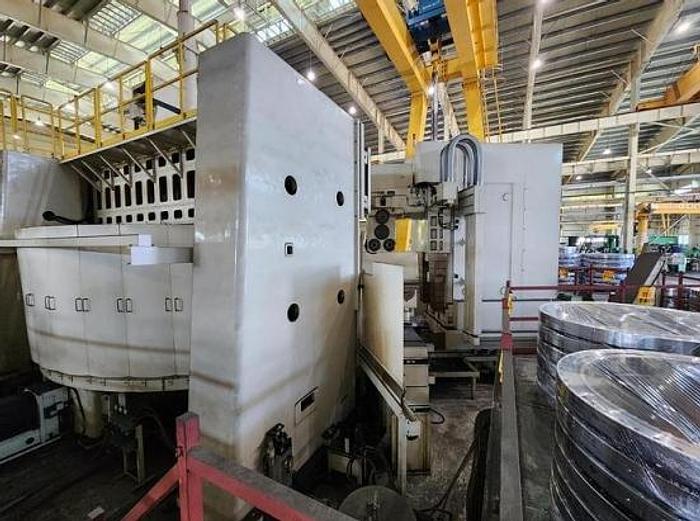

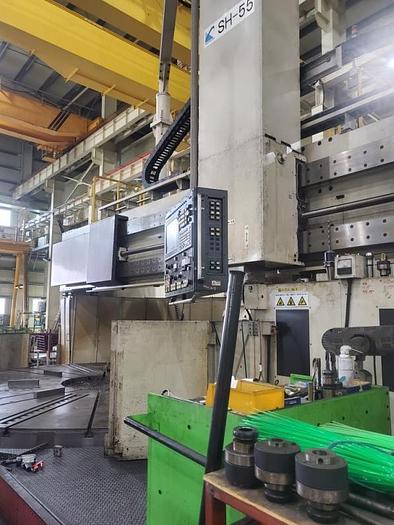

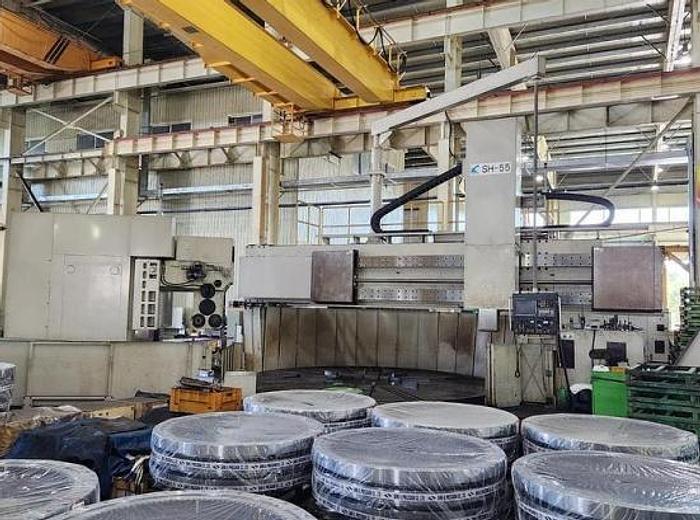

Kohchiyama SH-55 CNC Gear Cutting & Turning/Milling Machine
Kohchiyama SH-55 CNC Gear Cutting & Turning/Milling Machine
or
Call 770-509-0744
Description

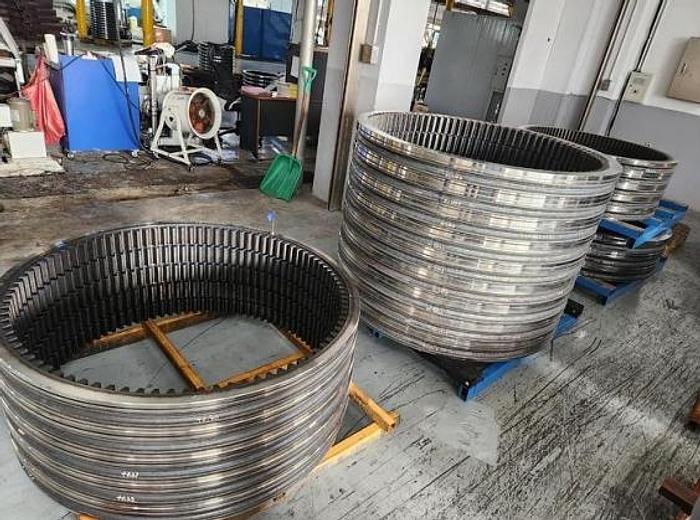

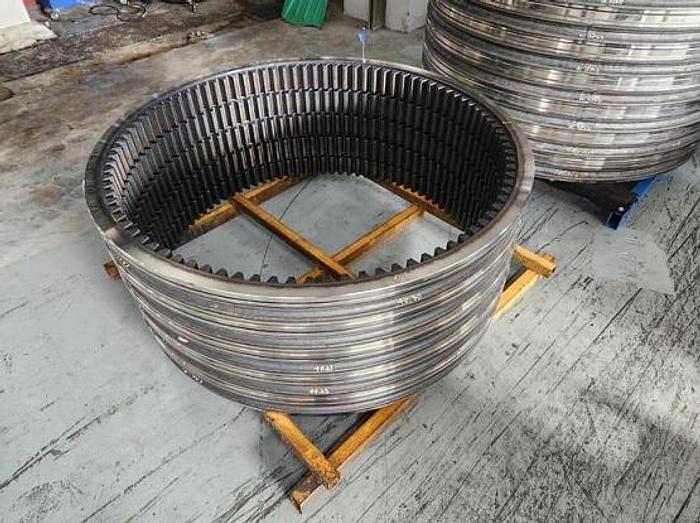

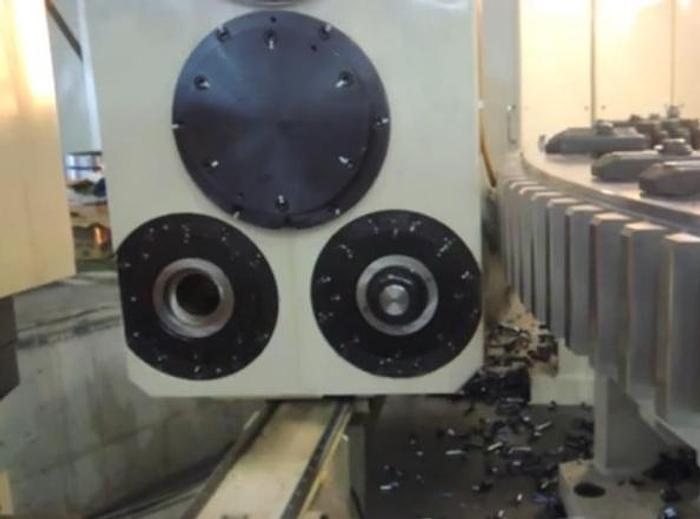

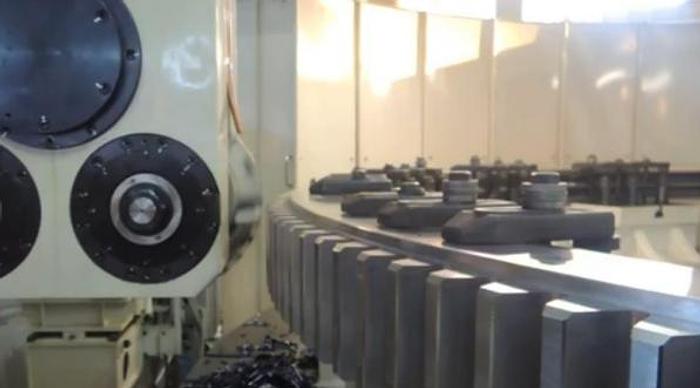

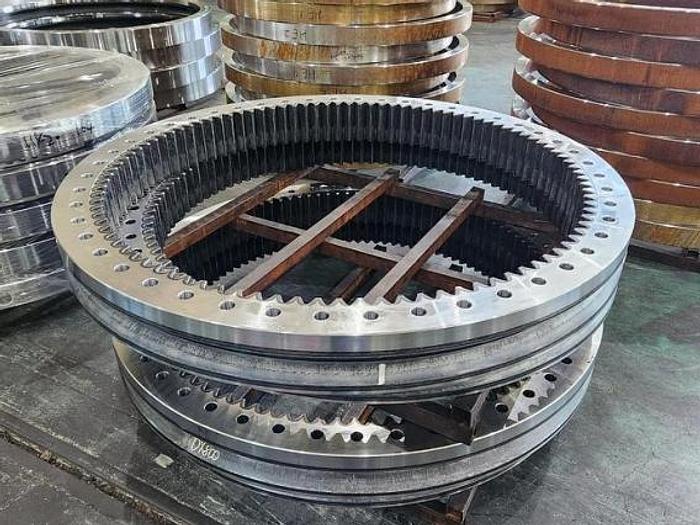

This machine is a combination machine of a single-tooth indexing type fully automatic gear cutting machine and a vertical lathe (with milling) for cutting straight internal and external gears with high efficiency using a carbide milling cutter under numerical control.

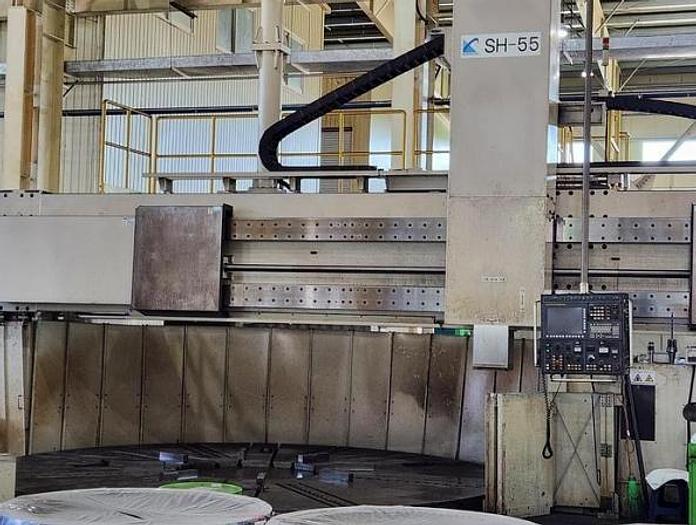

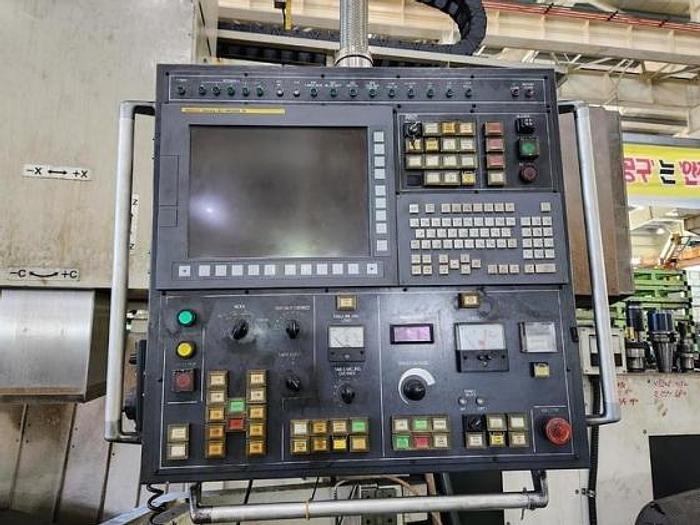

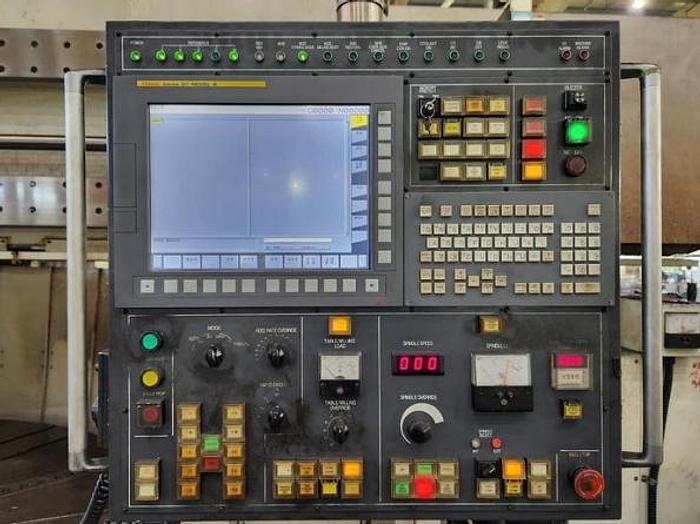

Fanuc FS 31iB CNC Control
Specifications
| Manufacturer | Kohchiyama |
| Model | SH-55 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 11101 |
| Max cutting external gear | 5,500 mm |
| Max cutting internal gear | 5,500 mm |
| Max thickness of gear by cutting | 500 mm |
| Max module of gear by cutting | M32 |

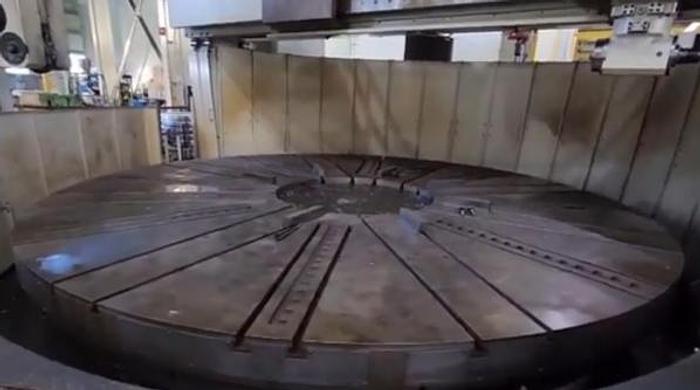

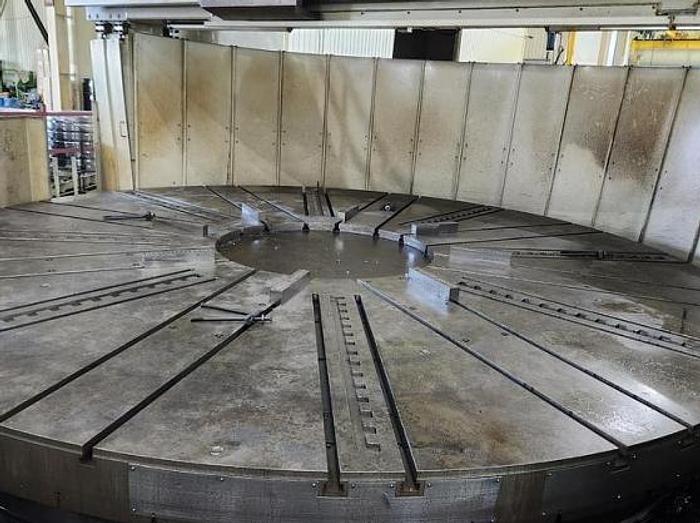

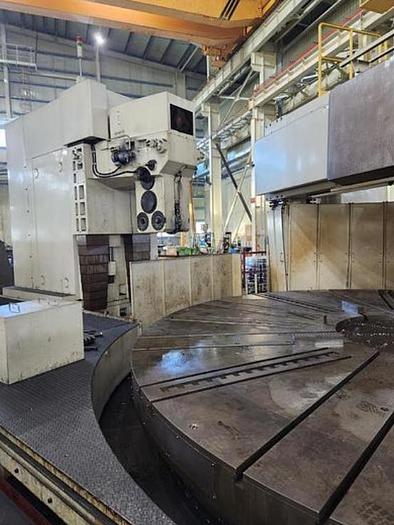

| Main table diameter | 3,740 mm |
| Degree of gear by cutting | 0 Degree |
| Max workpiece weight on table | 39.4 Ton |
| Speed of cutter (stepless) | 10 - 150 rpm |
| Max diameter/thickness of cutter | 450 / 110 mm |
| Max internal diameter of the cutter | 80 mm |
| Max working diameter | 5,500 mm |
| Max working height | 1,200 mm |
| Rotation speed, table | 3 - 15 rpm |
| Rotation speed, spindle | 15 - 1,500 rpm |

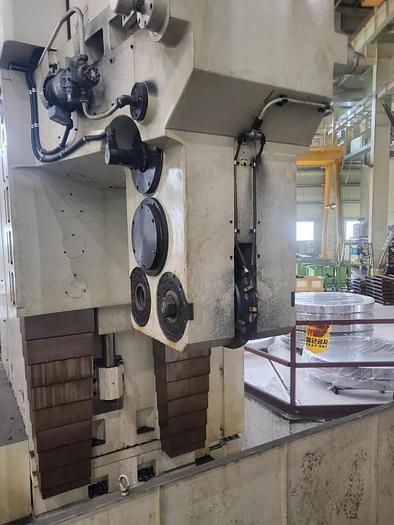

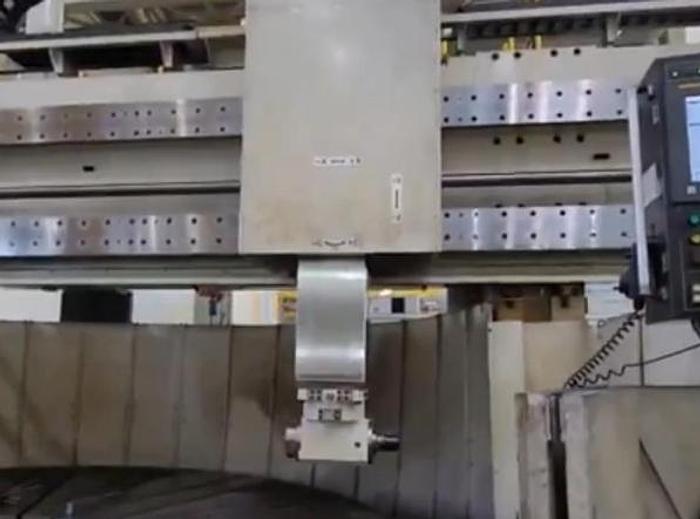

| Ram size | Square 350 mm |
| Machine dimensions | 14.67 x 12 m |
