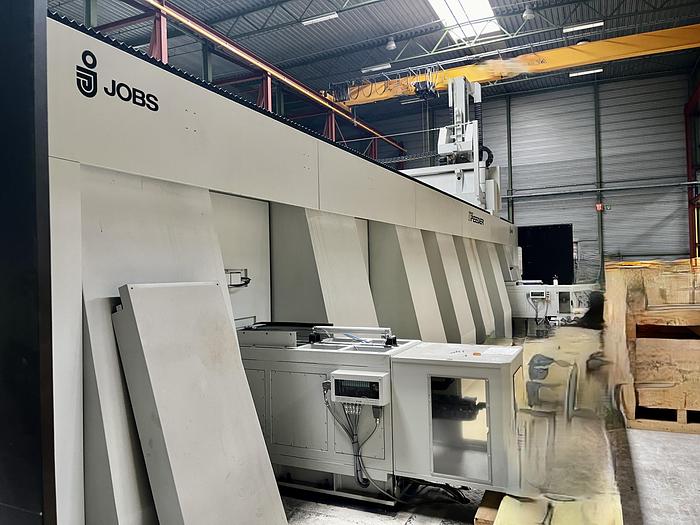

Jobs Grand Speeder CNC 5-Axis Gantry-Type Milling Machine
Jobs Grand Speeder CNC 5-Axis Gantry-Type Milling Machine
Description

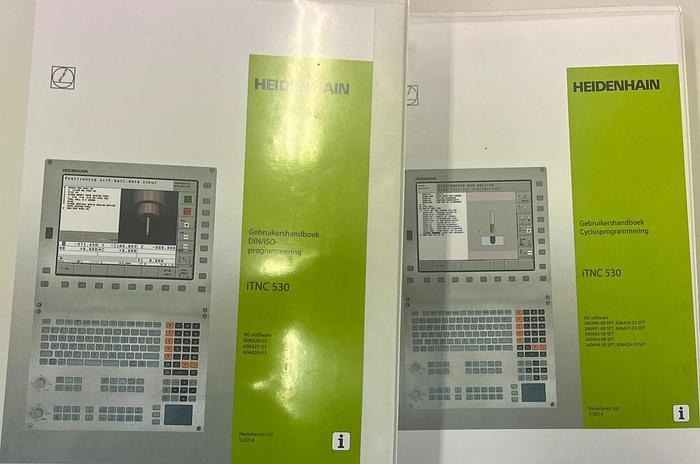

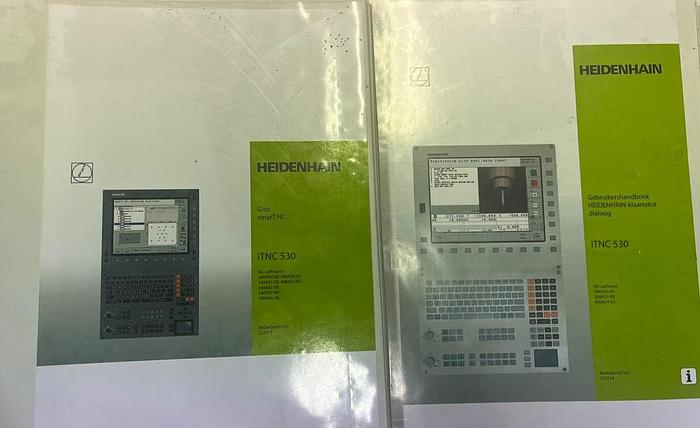

Heidenhain iTNC 530 CNC Control

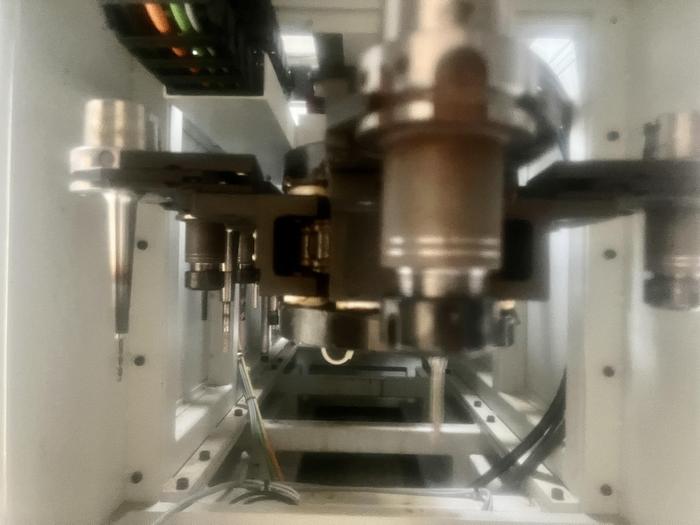

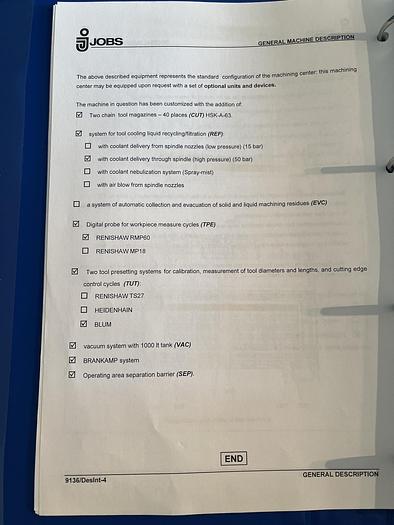

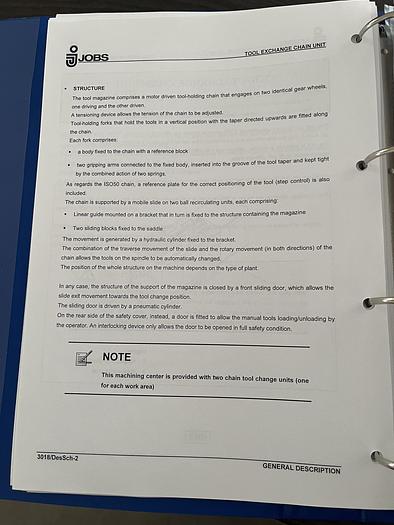

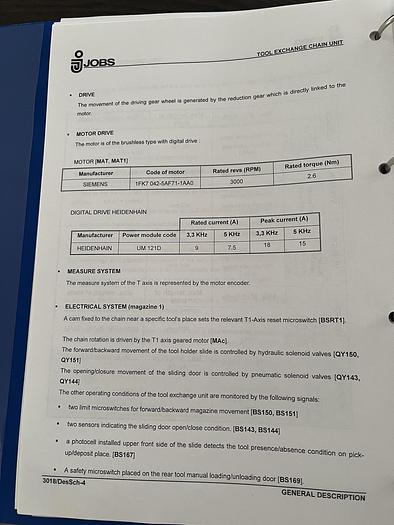

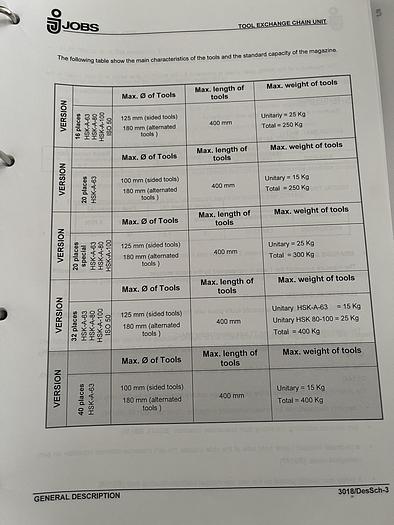

40 Position Two Chain Magazine Automatic Tool Changer (HSK A63)
Tool external diameter 170 mm
Total length 533 mm

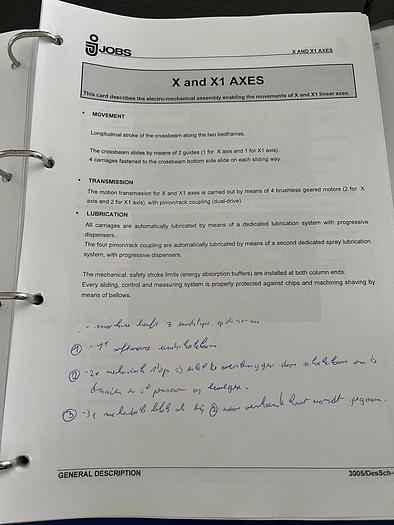

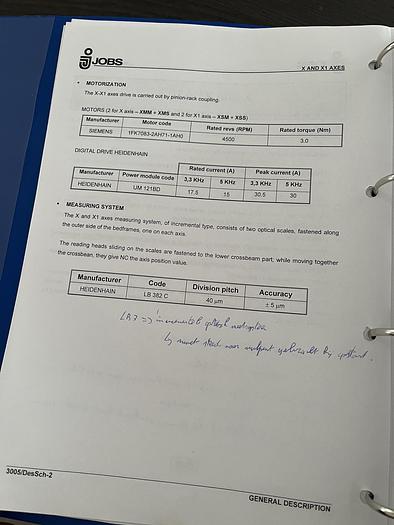

X, X1 Axes
Longitudinal stroke of the crossbeam along the 2 bedframes
The crossbeam slides by means of 2 guides (1 for X axis and 1 for X1 Axis)
Motion transmission carried out by 4 brushless geared motors with pinion/rack coupling

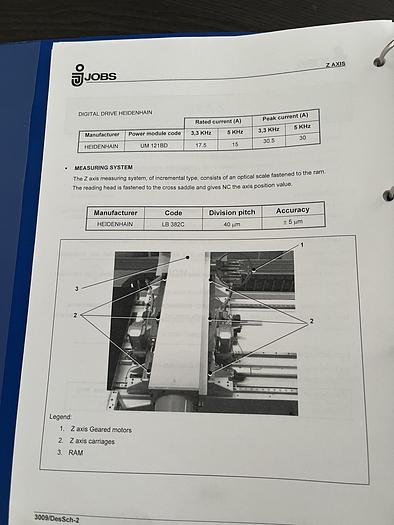

Heidenhain optical scales measuring system

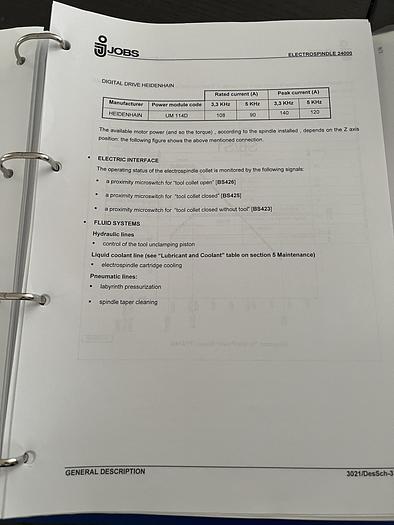

Coolant Through Spindle - 50 bar
Renishaw RMP60 Digital Probe - Workpiece Measure Cycles

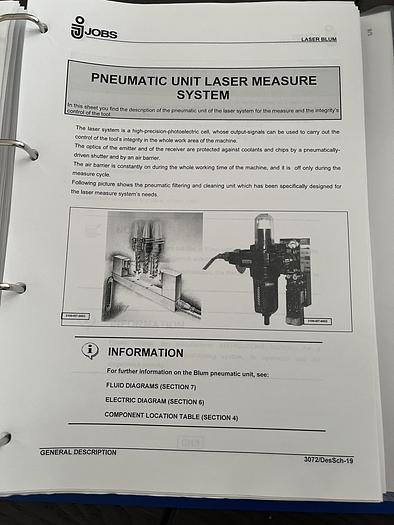

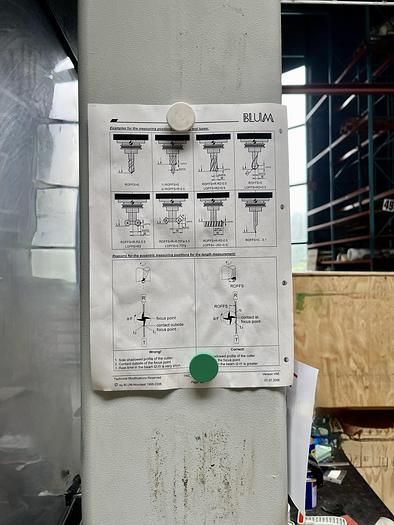

BLUM Two Tool Presetting System for Calibration, Measurements, & Cutting-Edge Control Cycles

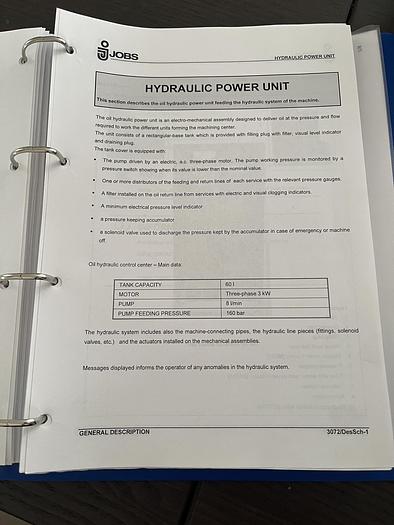

Hydraulic Oil Power Unit - 60 L - 3 Phase 3 kW - 8 L/min Pump - 160 bar

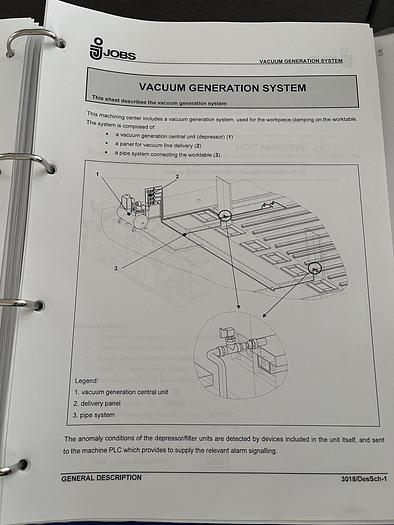

Vacuum System with 1,000 L Tank
BRANKAMP System

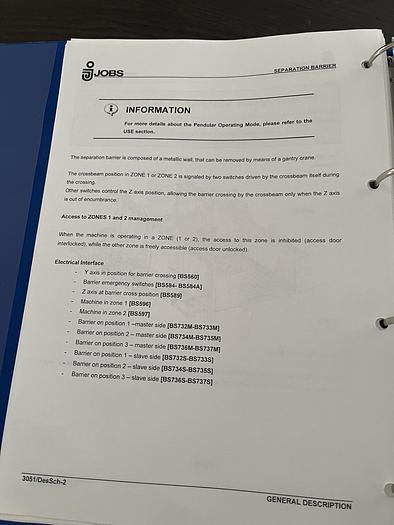

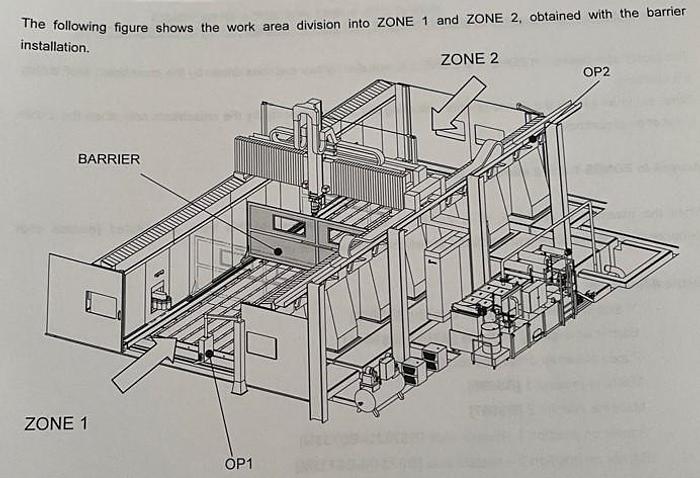

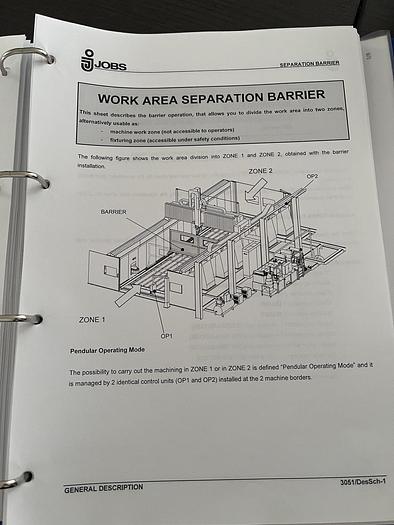

Operating Area Separation Barrier

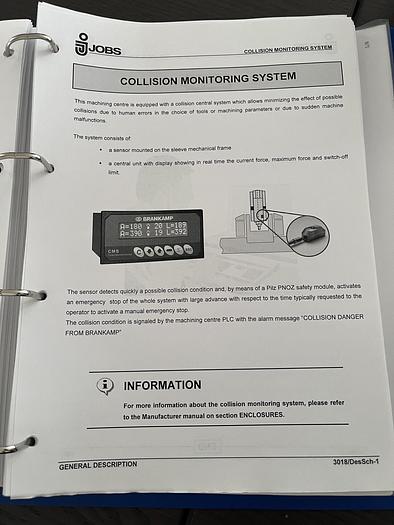

Collision Monitoring System
Specifications
| Manufacturer | Jobs |
| Model | Grand Speeder |
| Year | 2015 |
| Condition | Used |
| Stock Number | 11105 |

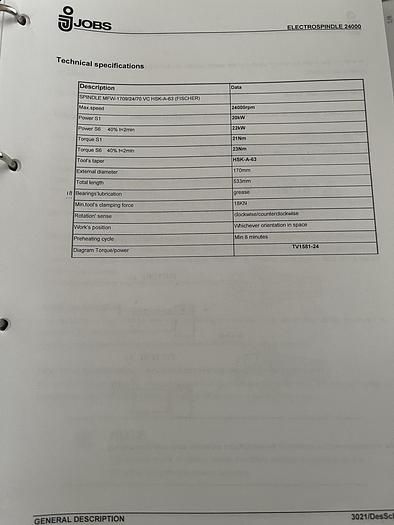

| Spindle speeds | 24,000 rpm |
| X axis travel | 14,000 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 2,500 mm |

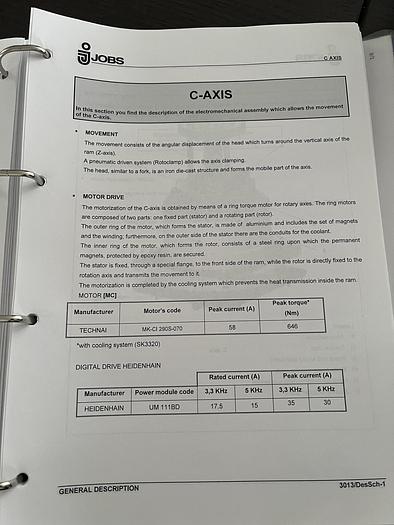

| C axis | 400° (±200°) |

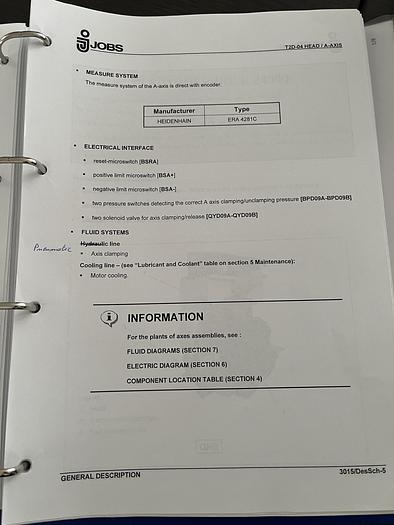

| A axis | 220° (±110°) |

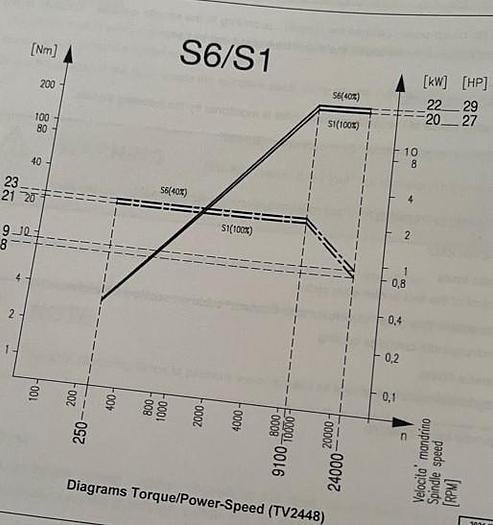

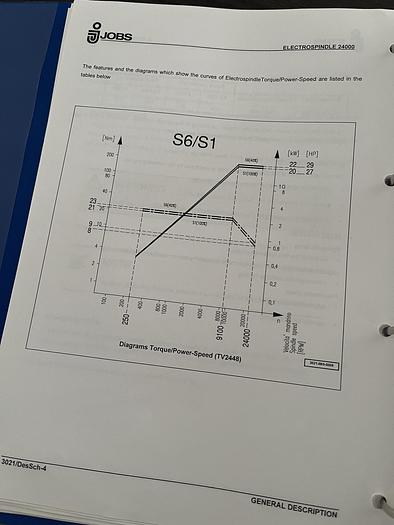

| Spindle power (S1/S6 40%) | 20/22 kW |
| Spindle torque (S1/S6 40%) | 21/23 Nm |

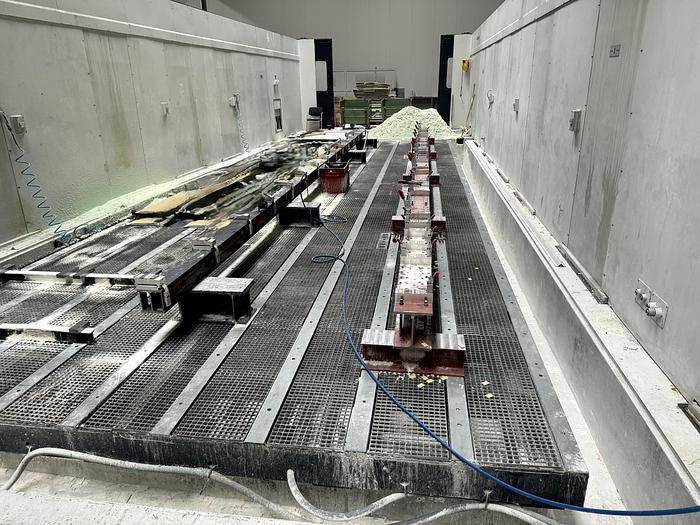

| Table dimensions | 13 x 2.5 x 0.25 m |
| Table capacity | 1,000 kg/m² |
| Spindle taper | HSK 63A |
| Machine weight | 70.83 Ton |
| Working voltage | 400V |
| Frequency | 50 Hz |
| Auxiliary Voltage | 24 Vdc |
| Rated current | 150A |
| Power supply: TN net | 3PH + PE |
