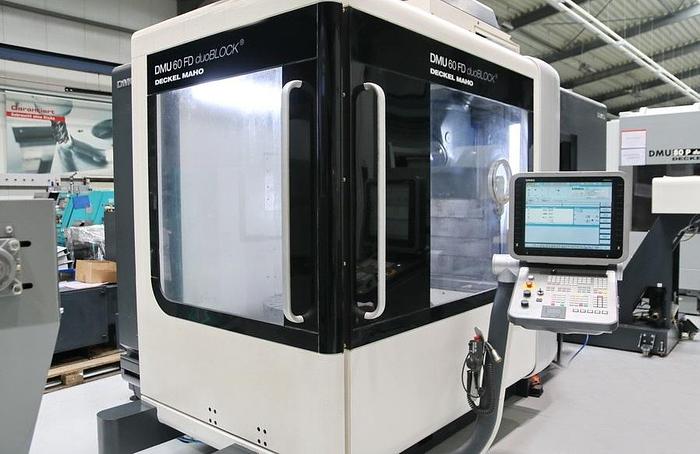

DMG DMU 60 FD duoBLOCK CNC 5-Axis Universal Machining Center
DMG DMU 60 FD duoBLOCK CNC 5-Axis Universal Machining Center
orCall 770-509-0744
Description

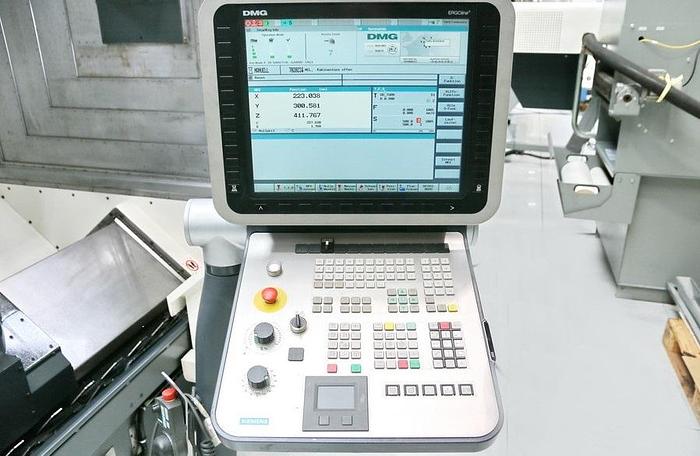

Siemens Sinumerik 840D SL CNC Control

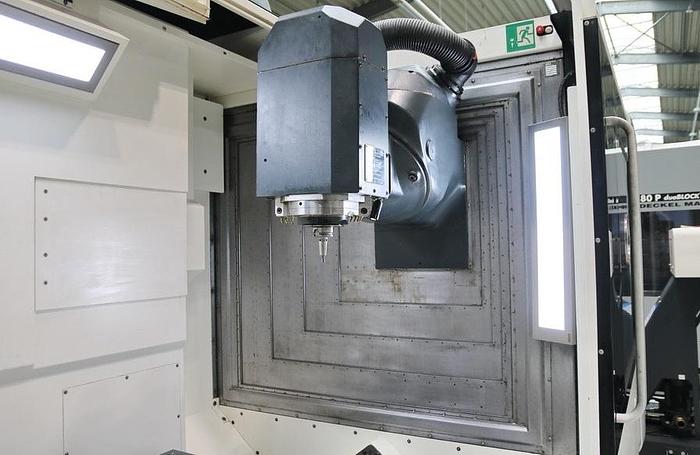

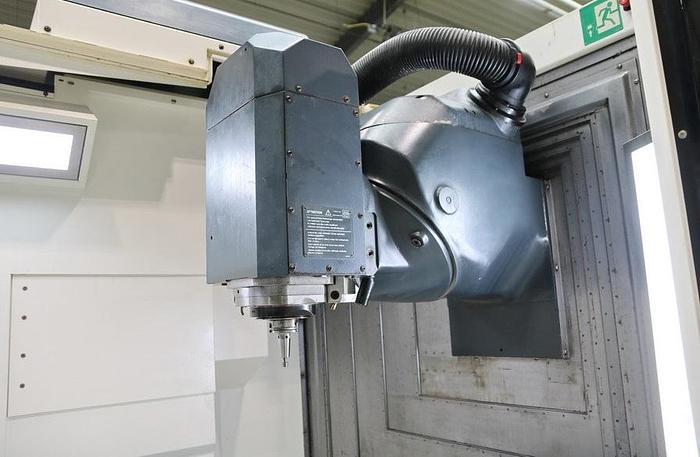

Swivel-Milling-Head

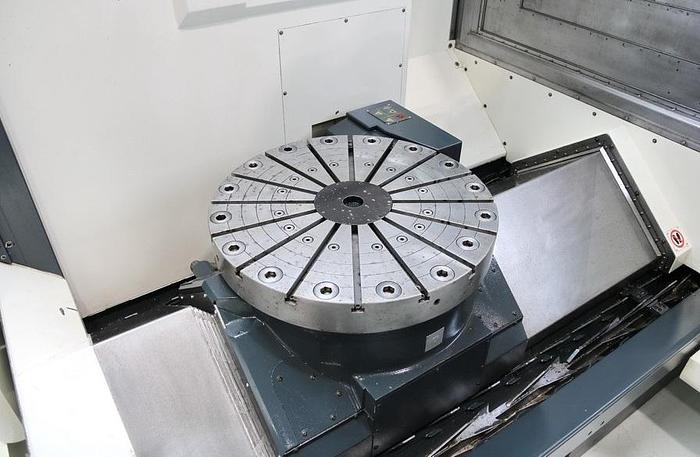

NC-Rotary Table (C-Axis)
Milling-Turning Function
Only 1,500h Spindle-Runtime-Hours
Power-On: 13,500h
60 Position Tool Presetter - HSK A63
Documents
Coolant System

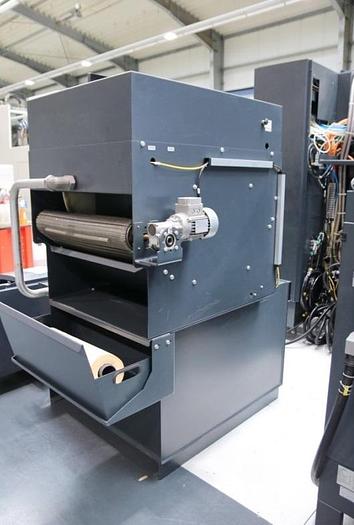

Chip Conveyor
Spray Gun
Air blow through center of spindle
Electronic Hand Wheel
Rotary Screen
BLUM Laser 3D Tool Setting
TS 649 Test Probe
High Pressure Coolant - 40 bar
Specifications
| Manufacturer | DMG |
| Model | DMU 60 FD duoBLOCK |
| Year | 2010 |
| Condition | Used |
| Stock Number | 11117 |
| Spindle speeds | 12,000 rpm |
| X axis travel | 600 mm |
| Y axis travel | 700 mm |
| Z axis travel | 600 mm |
| Table diameter | 700 mm |
| Table load | 600 kg |
| Table speed | 1,200 rpm |
| Spindle power | 28 / 19 kW |
| Max torque | 121 Nm |
| Tool taper | HSK A63 |
| B axis swivel range | -30° / +180° |
| C axis rotation | 360° |
| Distance spindle to table horizontal | 20 - 620 mm |
| Distance spindle to table vertical | 120 - 820 mm |
| Rapid traverse X/Y/Z | 60 m/min |
| Rapid B axis | 30 rpm |
| Acceleration | 6 m/s² |
| Feed force X/Y/Z | 10 kN |
| Machine weight | 12 Ton |
| Machine dimensions | 6.5 x 4.5 x 3.5 m |
| Total power requirement | 68 kVA |
