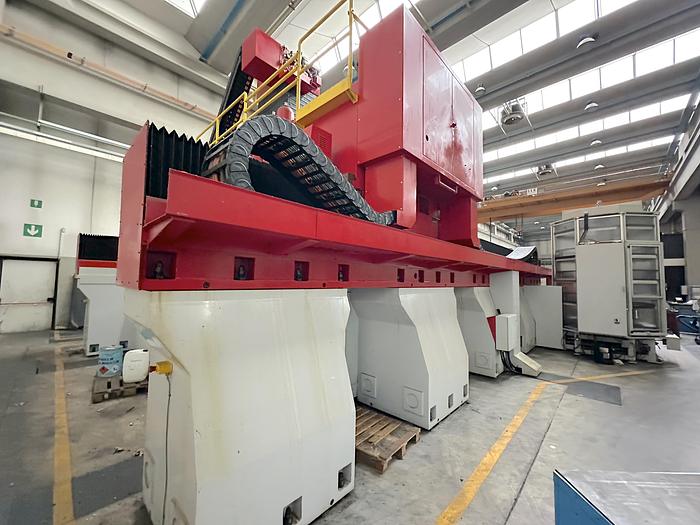

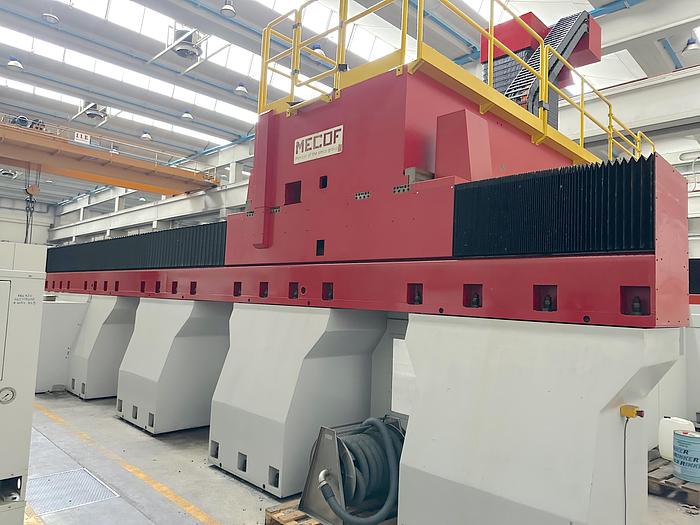

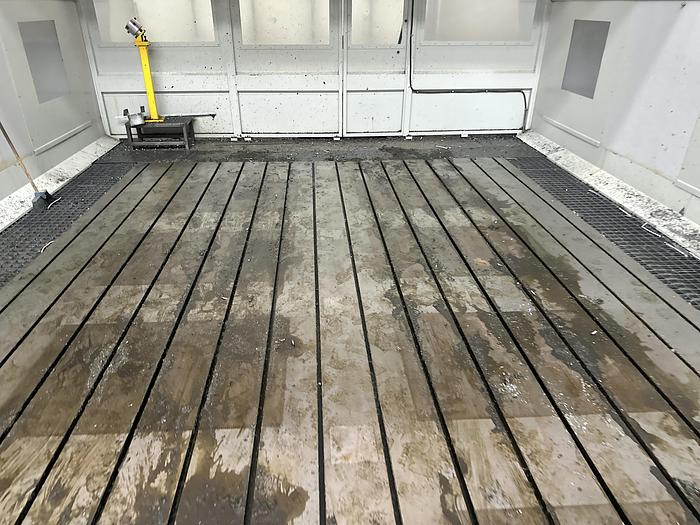

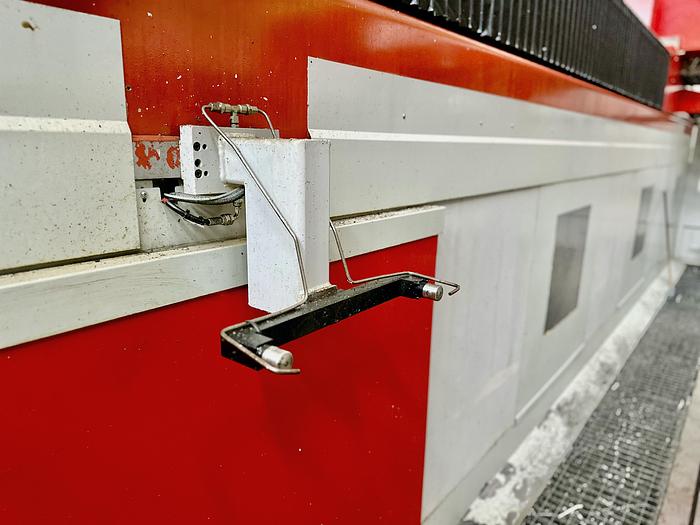

Mecof MEGAMILL FP5 5-Axis CNC Gantry Type Milling Machine

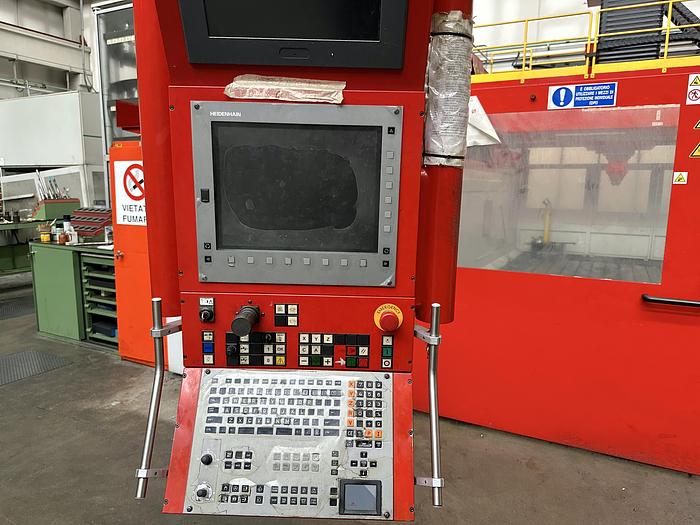

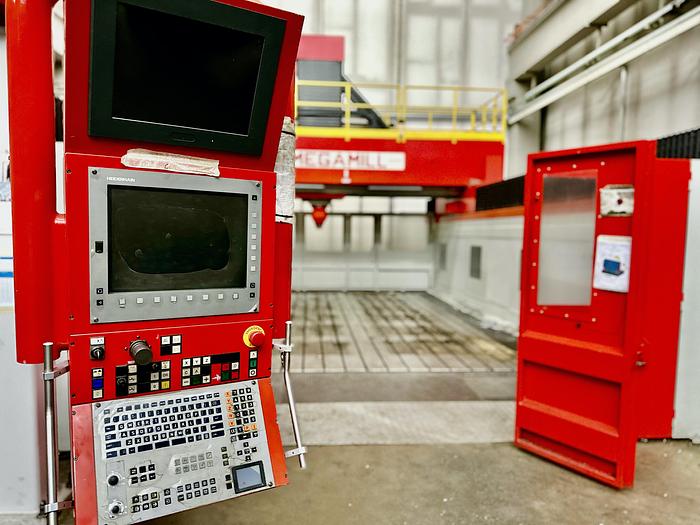

Heidenhain TNC 530 CNC Control

SmarT.NC

11 controlled axes + spindle

5 axes interpolation

circular interpolation

helical interpolation

axis feed override: 0 - 150 %:

spindle speed override: 50 - 150 %

RS 232-C/RS422 connection interface

Ethernet interface

Electric Handwheel

Automatic Head Changer Pickup - 2 Positions

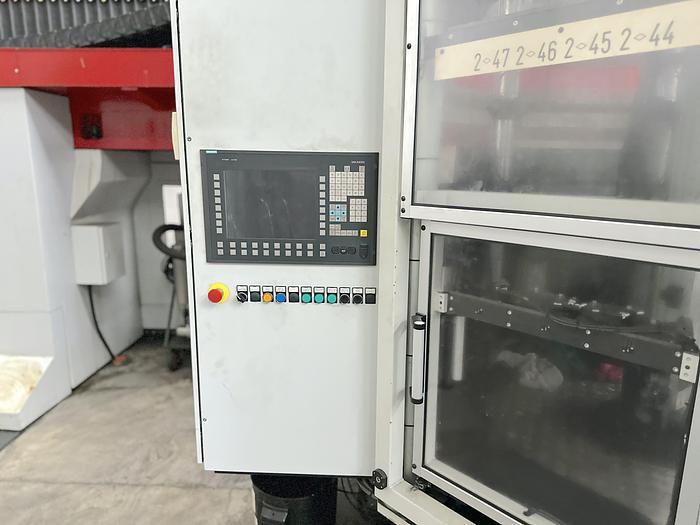

180 Position Automatic Tool Changer - ISO 50 + 40 HSK 63A

CU180 - 180 positions

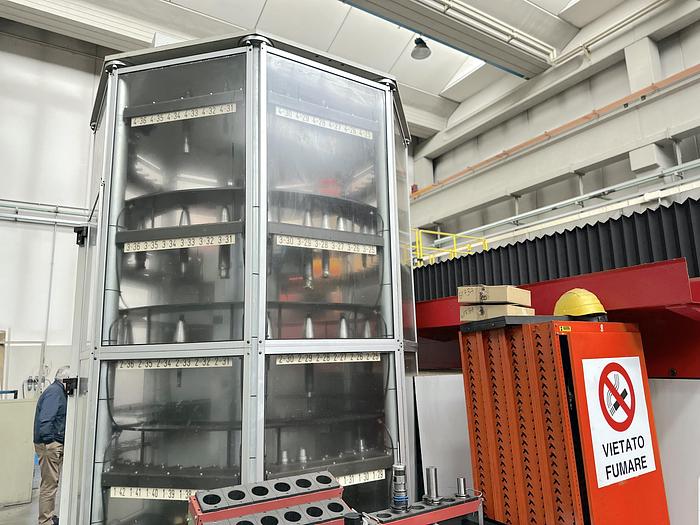

The system consists of a tower that contains the tools arranged on circular planes

Manual loading takes place via a loading or unloading door

number of tools: 180

tool attachment: ISO 50 and HSK 63-E

Max diam of adjacent tools: 100 mm

Max diam with free adjacent position: 240 mm

Max. Tool length: 400 mm

Max. tool weight: 35 kg

Coolant Through Spindle

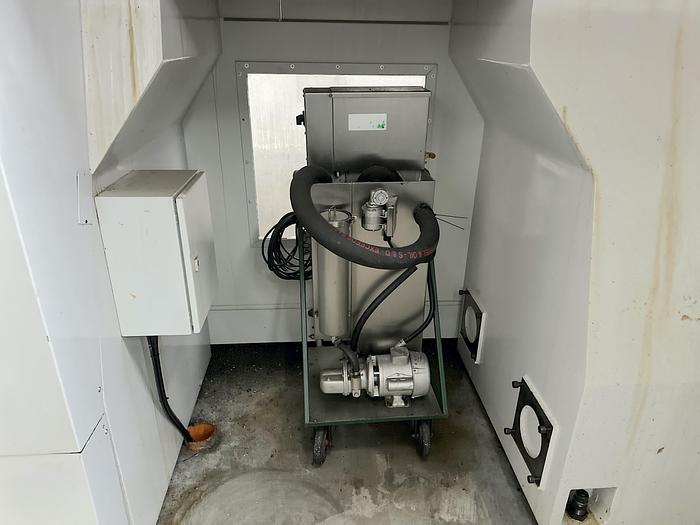

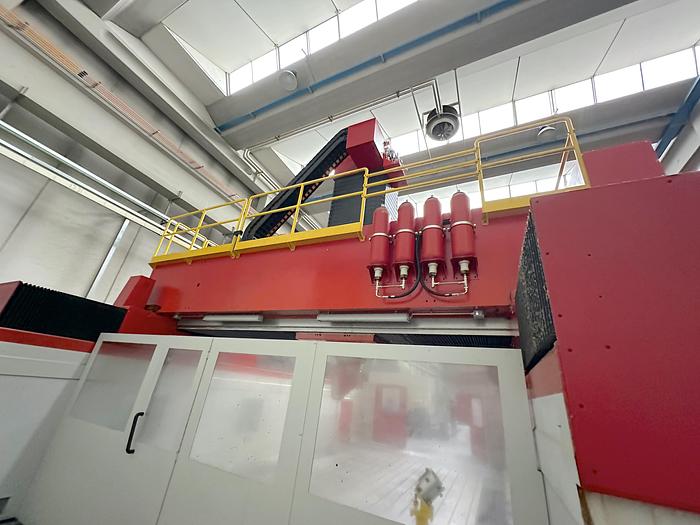

High Pressure - 40 bar - 1,000 L tank

Filtering System - 30/60μm

Touch Probe Piece

Tool Setter

CE Marks

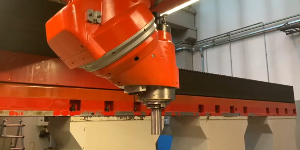

2 Heads:

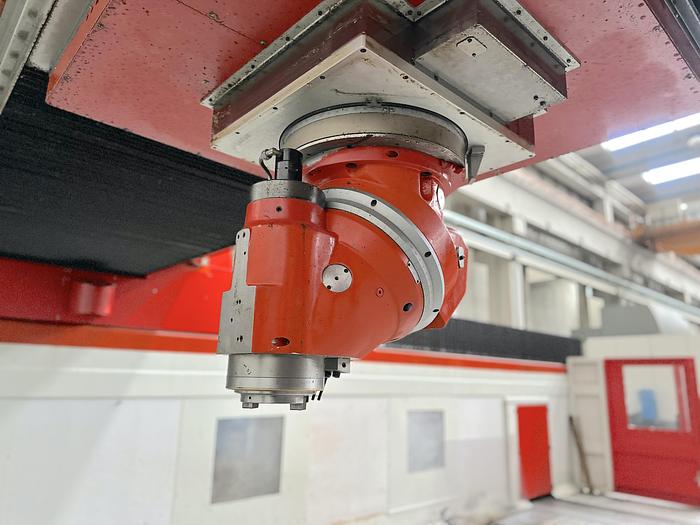

Head 1:

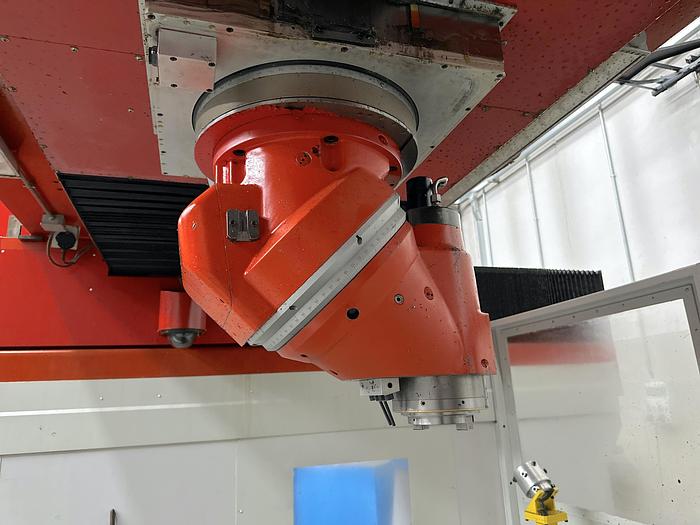

DW54 - E54 Electrospindle Twin Head

Spindle Taper - HSK63E

A-Axis - 0.001°

C-Axis - 0.001°

Max Torque - 35.4 Nm

Max Speed - 26,000 rpm

Max Power - 38/57 kW

Refrigerant - External 6 bar - Internal 40 bar

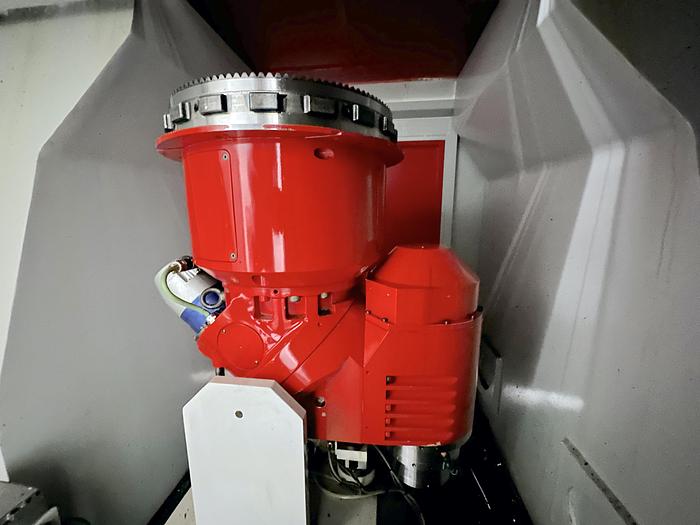

Head 2:

DCB6 with automatic millesimal positioning

Spindle Taper - ISO 50

A-Axis - 360,000 x 0.001°

C-Axis - 360,000 x 0.001°

Max Torque - 1000/1500 Nm

Max Speed - 6,000 rpm

Max Power - 38/57 kW

Refrigerant - External 6 bar - Internal 40 bar

Extra Options Included with the Machine:

OMHK - Cinematic Optimization Milling Heads

CAPR - adaptive control for tool life

TASR - radio touch probe

CMPS - tool presetting RENISHAW NC4

SUVT - tool life and twin tool groups

TTR7 - chip conveyor

IRDD - CTS 40 bar, external coolant 6 bar, 1000lt. tank with 30/60µm filters

RRDD - coolant regulations

SENT - remote warning sentinel "sms"

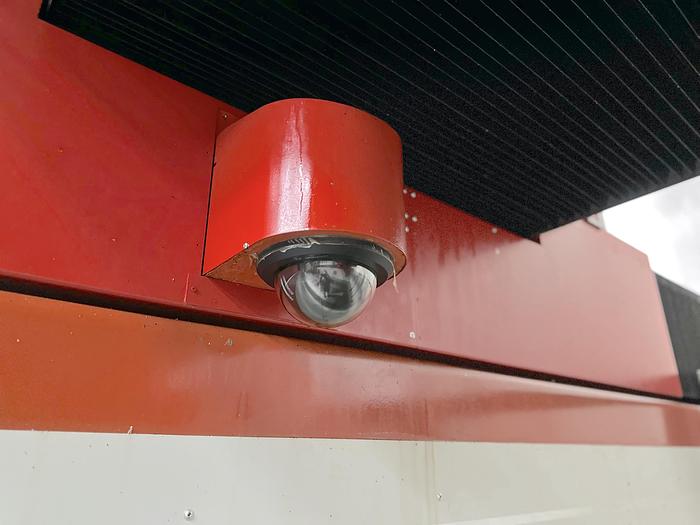

TVCC - 2 internal inspection cameras
