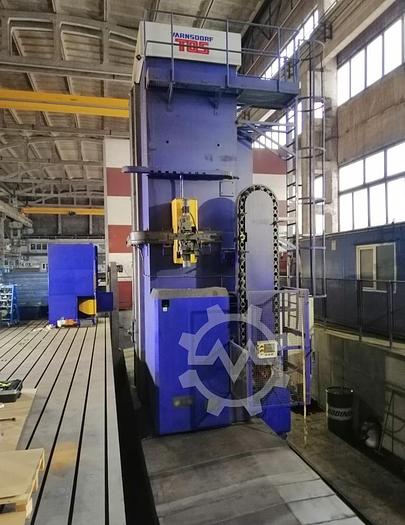

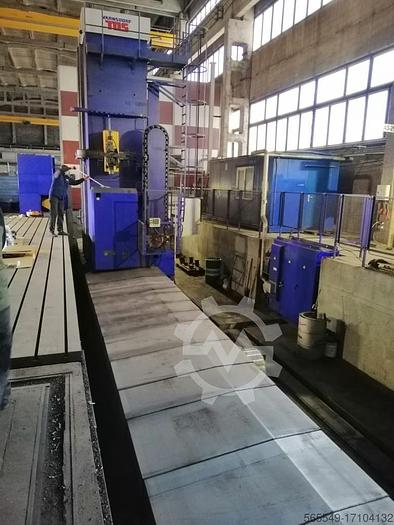

Tos Varnsdorf WRD 150Q CNC Floor-Type Horizontal Boring Machine
Tos Varnsdorf WRD 150Q CNC Floor-Type Horizontal Boring Machine
Description
Only 4,943 Spindle Hours
Heidenhain iTNC 530 CNC Control
60 Position Automatic Tool Changer
Interchangeable station with MASTERCAM software
6 x Clamping Plates - 4,000 x 2,000 mm
Chip Conveyor

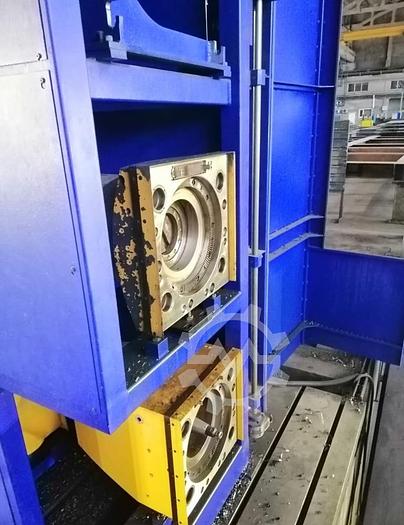

Head Changer
2 Heads:
HOI50 milling head
The orthogonal, automatically indexed HOI 50 milling head consists of three compactly connected basic parts with the ability to rotate each other in the A and C axes to achieve the required overall position of the head's working spindle. Positioning of the rotating parts is provided by mechanical drive from the machine spindle and allows ±185° positioning in the C axis, ±120° in the A axis.
Number of axes: 2
Speed: 4,000 rpm
Power: 37 kW
Torque: 1,200 Nm
Positioning: 1° index
Weight: 1,100 kg
HUI 50 head
The HUI 50 milling head is automatically indexed in both planes in 2.5° increments, thus enabling higher efficiency when rotating the head spindle relative to the orthogonal coordinate of the machine system.
Number of axes: 2
Speed: 3,000 rpm
Power: 32 kW
Torque: 1,000 Nm
Positioning: index 2.5°
Weight: 440 kg
Specifications
| Manufacturer | Tos Varnsdorf |
| Model | WRD 150Q |
| Year | 2014 |
| Condition | Used |
| Stock Number | 11120 |
| Spindle diameter | 150 mm |
| Spindle speeds | 2,500 rpm |
| X axis travel | 15,000 mm |
| Y axis travel | 4,500 mm |
| Z axis travel | 1,000 mm |
| Floor Plating | 6 Plates - 4,000 x 2,000 mm |
| W axis travel | 800 mm |
| Z + w - ram + spindle travel | 1,800 mm |
