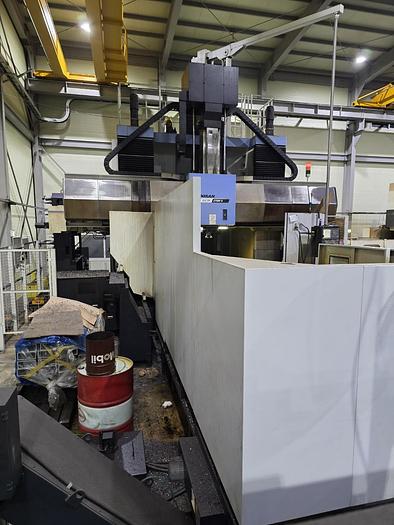

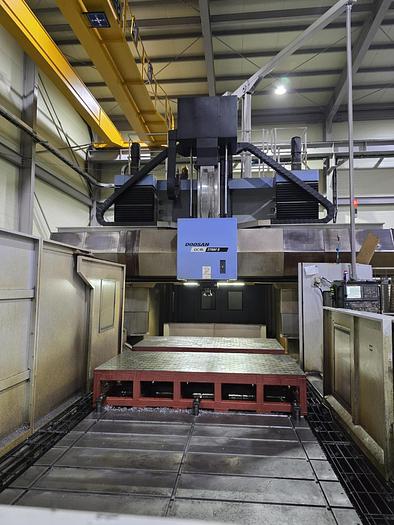

Doosan DCM 2750-FII CNC Double Column Machining Center
Doosan DCM 2750-FII CNC Double Column Machining Center
or
Call 770-509-0744
Description

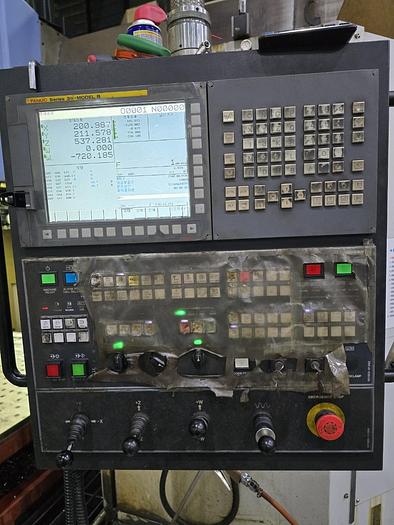

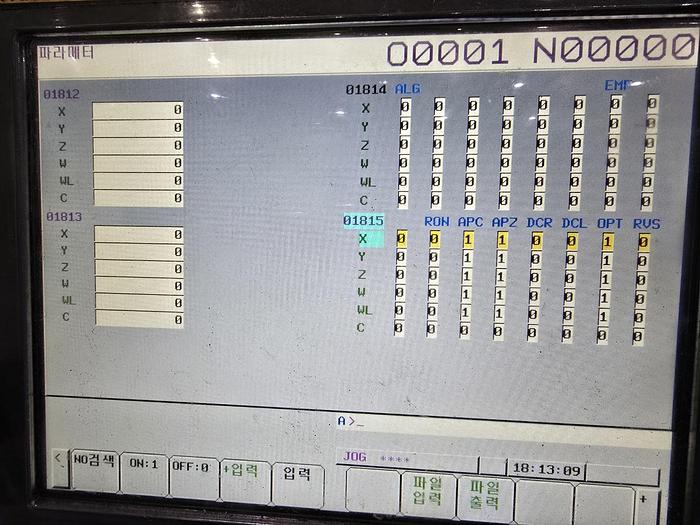

Fanuc 31iB control

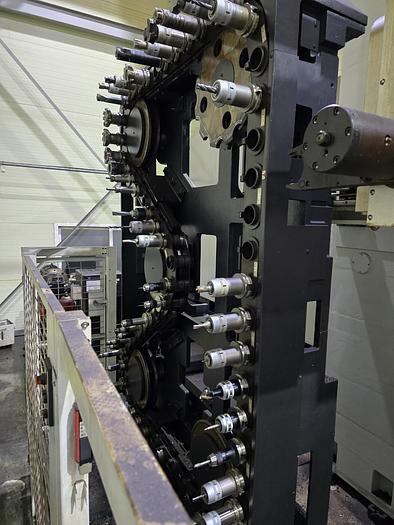

60 Position Automatic Tool Changer
90-degree angle head (1 degree indexing)

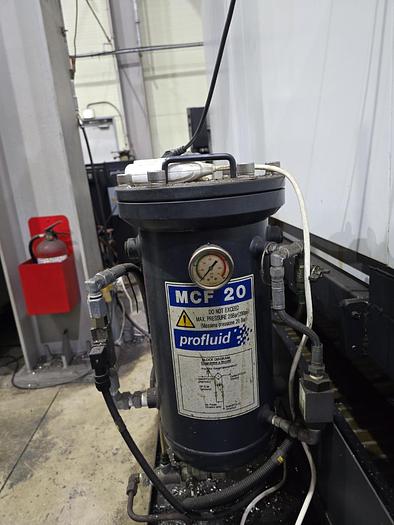

Spindle through coolant - 20 bar
Chip conveyor
Scales XYZW
Specifications
| Manufacturer | Doosan |
| Model | DCM 2750FII |
| Year | 2018 |
| Condition | Used |
| Stock Number | 11124 |
| Between columns | 2,700 mm |
| Spindle speeds | 6,000 rpm |
| Table to spindle nose | 1,650 mm |
| X axis travel | 5,250 mm |
| Y axis travel | 3,200 mm |
| Z axis travel | 700 mm |
| Table size | 2,200 x 4,500 mm |
| Table capacity | 25 Ton |
| W axis travel | 1,100 mm |
| Z + w axis (ram + crossrail) | 1,800 mm |
| Spindle drive motor | 25 kW |

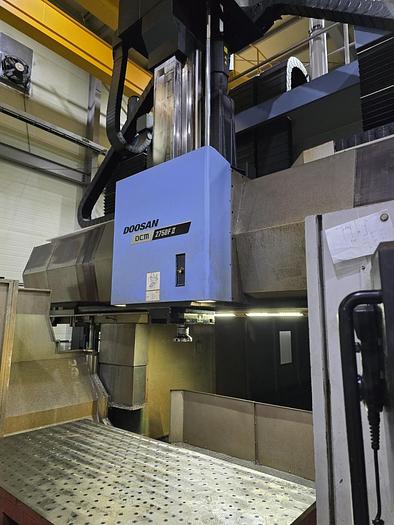

| Ram size | 380 x 380 mm |
| Electrics | AC 220 V - 3 P - 50/60 HZ |
| Machine weight | 68 Ton |
