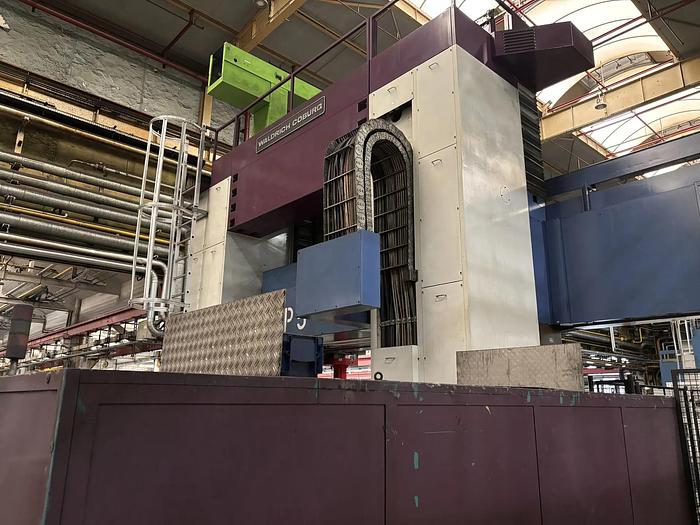

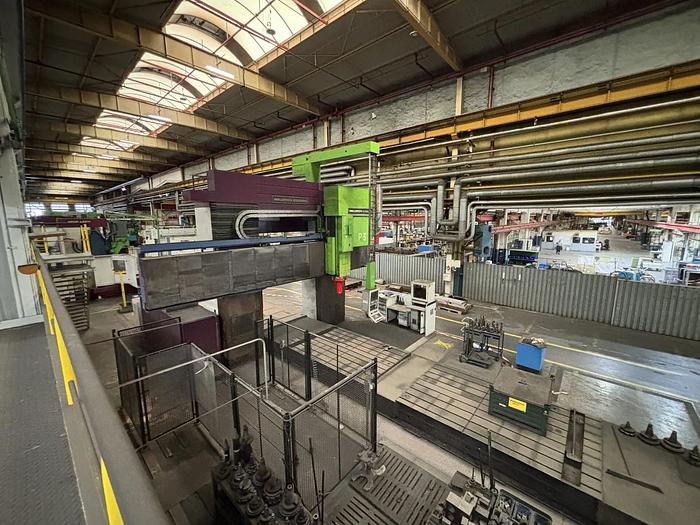

Waldrich Coburg 17S-10 FP 225 NC Portal Milling Machine with Double Table

Waldrich Coburg 17S-10 FP 225 NC Portal Milling Machine with Double Table

or
Call 770-509-0744

Description

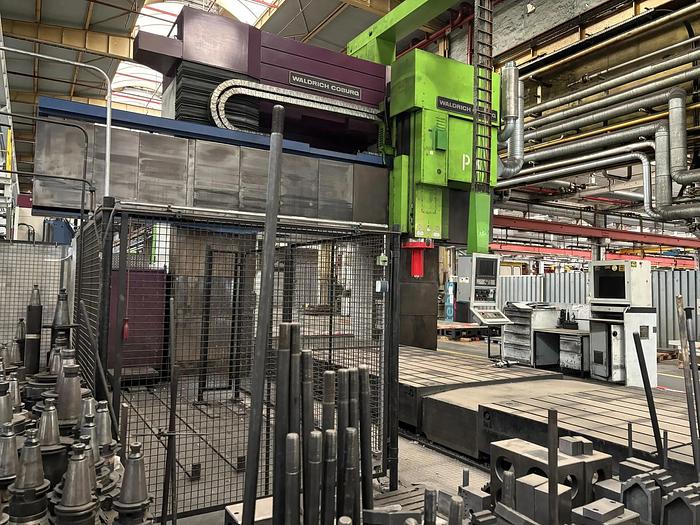

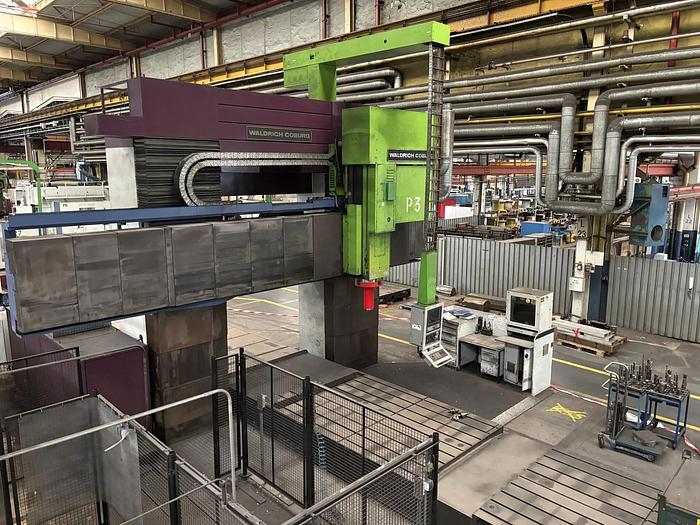

WALDRICH-COBURG MC 2500 Portal milling machine with double exchange table for demanding tool and mold making.

Highlights

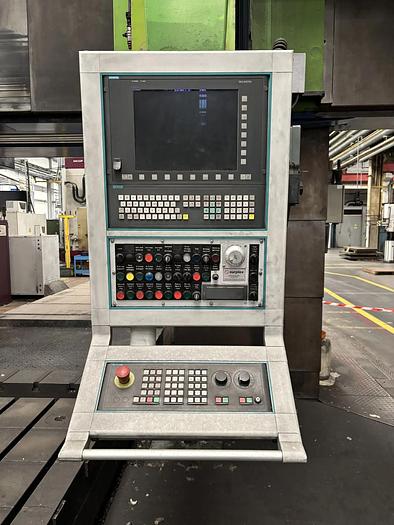

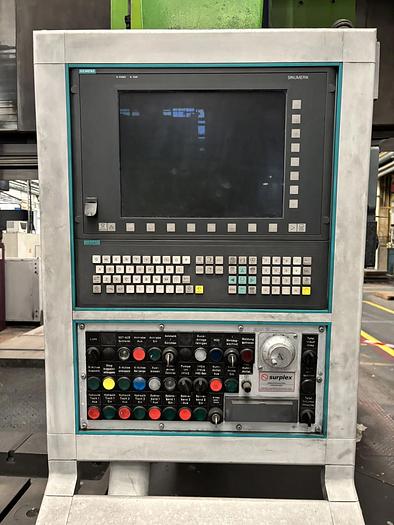

  • Siemens Sinumerik 840D overhauled in 2008
  • Various interchangeable heads
  • Extremely stable and good machine construction quality

Workspace

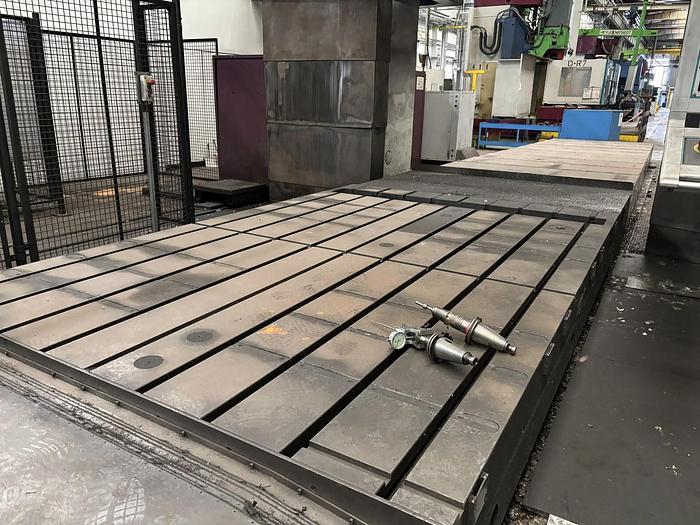

  • Clamping area plate field: 2x 3,000 x 2,500 mm

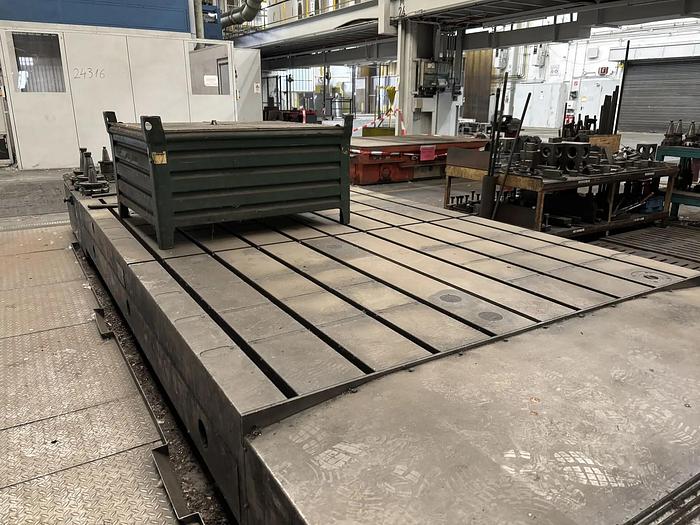

  • Exchange tables
  • Table load per table max.: 20 t per table

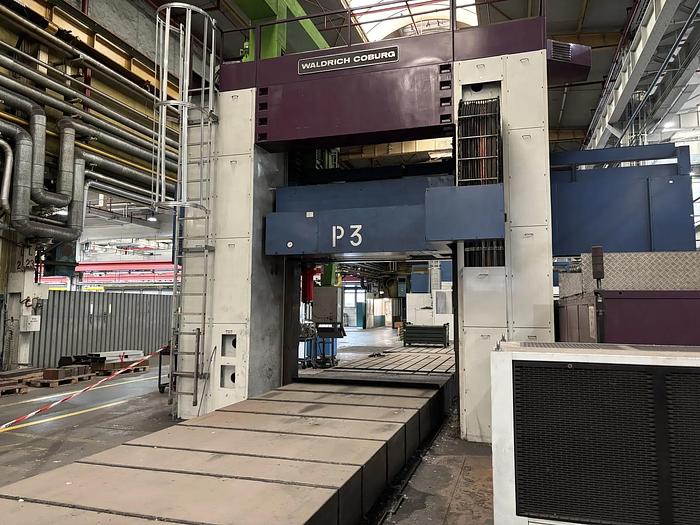

  • Passage between the stands: 2,550 mm
  • Passage plate field to milling spindle front end max.: 2,500 mm
  • Feed range: 0 - 10,000 mm/min

C- and B-axis

  • C-axis swivel plane of the milling and drilling unit M3: 1 - 3,600 °/min
  • B-axis swivel plane
  • Head changer and tool changer

General data

  • Detailed documentation
  • Accessory package

Specifications

ManufacturerWaldrich Coburg
Model17S-10 FP 225
Year1990
ConditionUsed
Stock Number11126
Distance between columns2,250 mm
X axis travel11,000 mm
Y axis travel2,600 mm
Z axis travel2,000 mm
Table surface area (2 tables)3,000 x 2,500 mm
Distance table to spindle2,500 mm
Machine dimensions20 x 10 x 9 m
