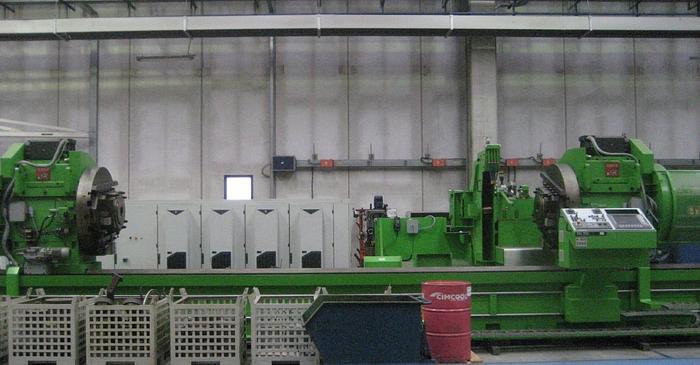

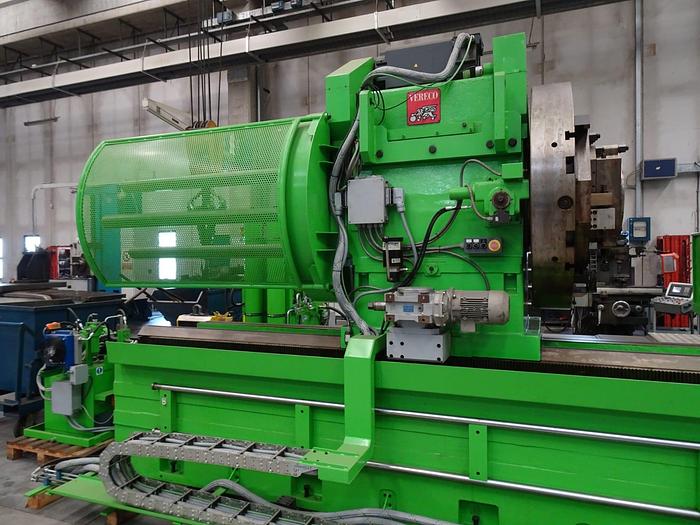

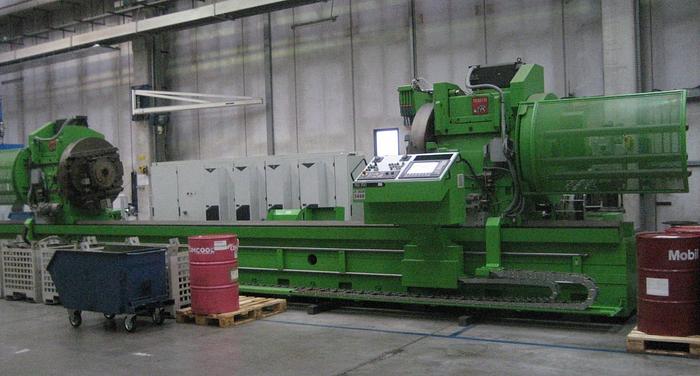

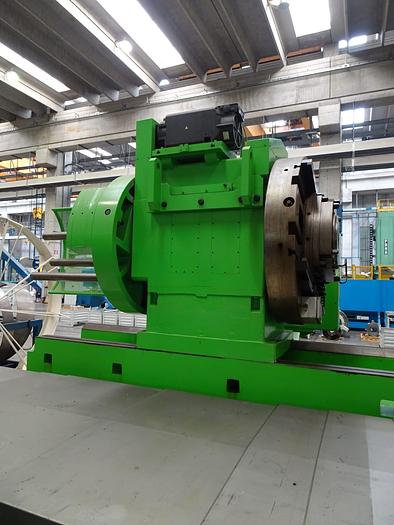

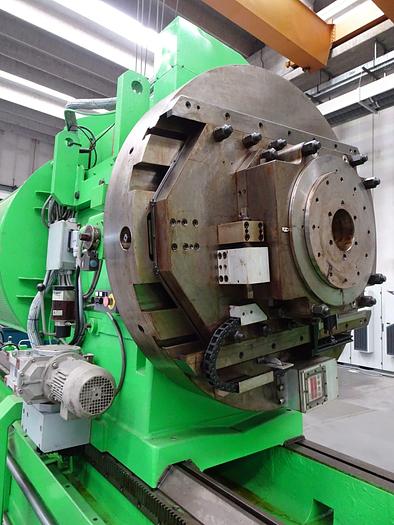

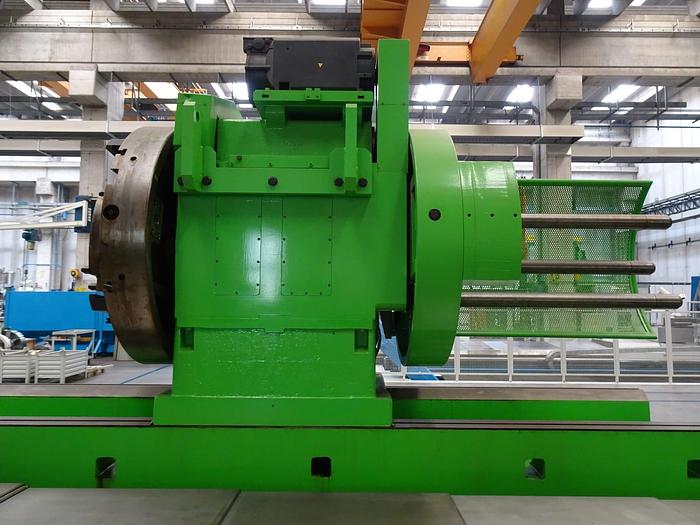

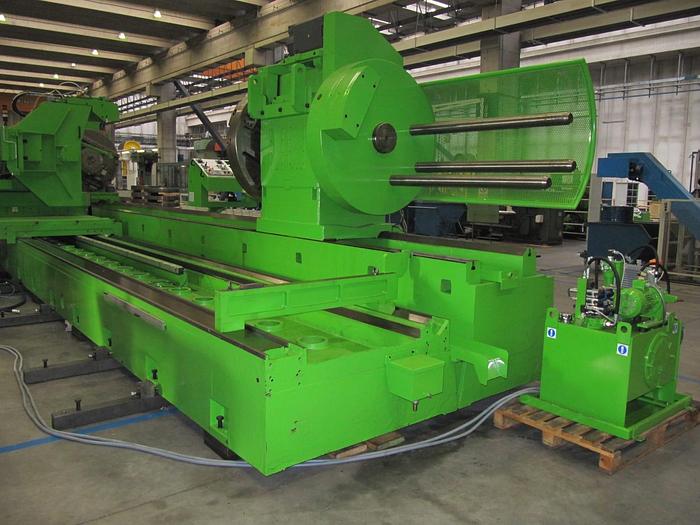

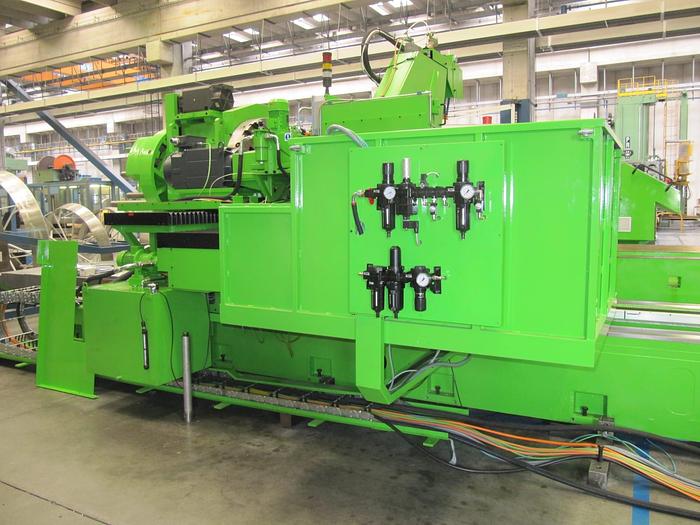

Vereco RG 700/8500 CNC Crankshaft Grinding Machine

The VERECO RG 700/8500 NEW CNC grinding machine is designed for the batch production of bench pins and connecting rod pins of crankshafts in a fully automatic cycle, or, for the production of individual parts in manual.

It operates by means of a mobile grinding wheel unit both on the X axis and on the Z axis: this allows the grinding of different diameters in a single positioning of the piece.

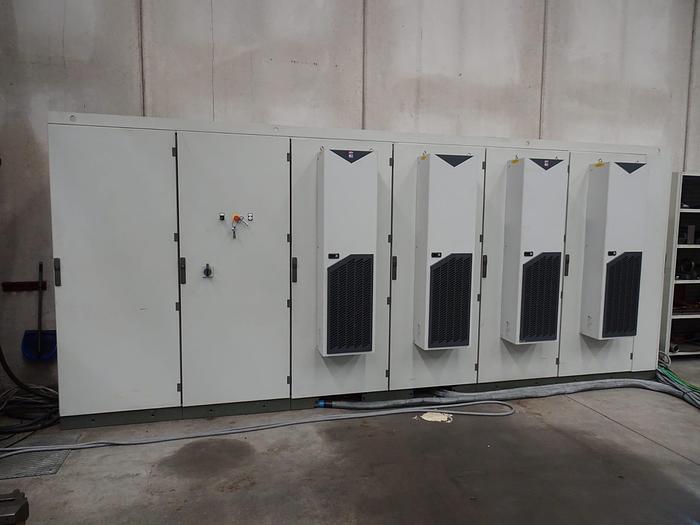

Siemens 840D PL CNC Control

The Siemens 840D electronic numerical control system allows you to work manually or automatically, independently managing:

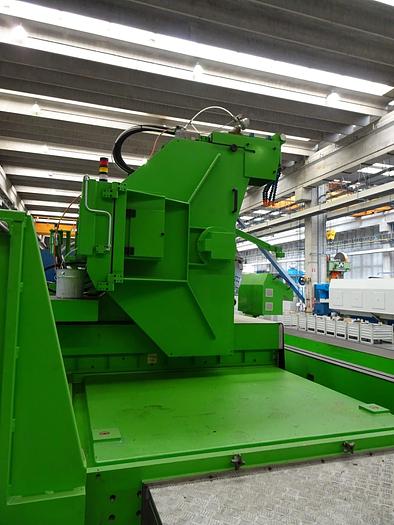

• the transverse movement of the upper grinding wheel wagon (X axis).
• the longitudinal movement of the lower grinding wagon (Z axis).
• the constant speed of the grinding wheel.
• the speed of rotation of the part in work.

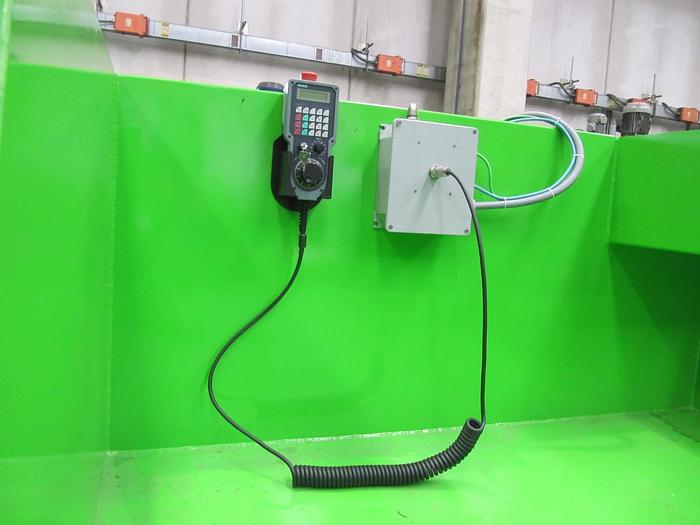

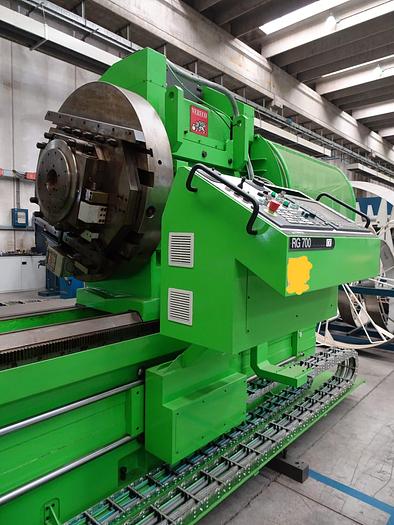

REMOTE CONTROL PANEL

• The keypad of the panel is mobile, on sliding guides fixed to the workpiece base, for the length of the piece to be machined.
• From this panel you can control all the functions and movements of the machine.
• Two electronic handwheels allow the micrometric positioning of the two main axes (X and Z).

SOME TECHNICAL SOLUTIONS WITH WHICH THE ETTIFICATRICE IS EQUIPPED:

• dimension detection system with linear transducer (Heidenhain optical line) on the longitudinal axis Z and on the transverse axis X.
• advancement of the longitudinal Z-axis wagon obtained through two motors and two sprockets, managed directly by the Siemens numerical control to eliminate the clearance between the sprockets and the rack.

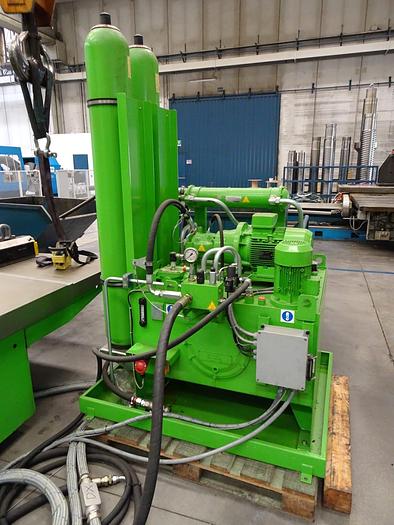

• hydrostatic support spindle.

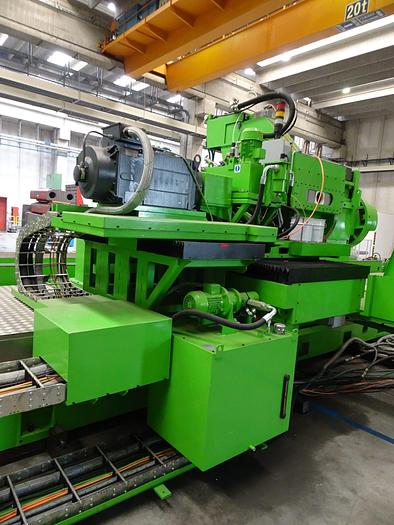

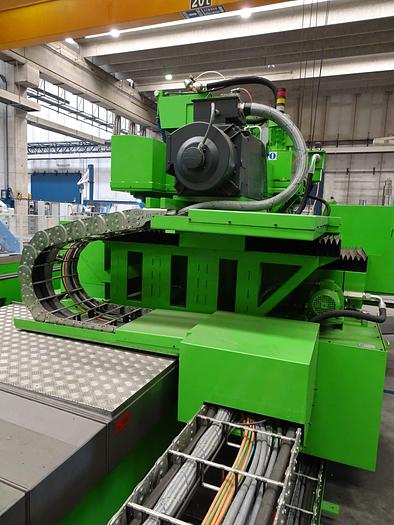

• grinding wheel motor mounted on the wagon of the longitudinal axis Z.

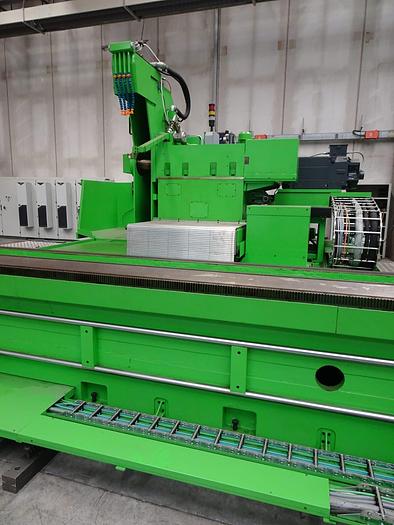

• telescopic guards of the longitudinal Z and transverse X axes in stainless steel with first walkable element.
• execution with automatic retraction of the grinding wheel and maintenance of the synchronism of the workpiece heads in case of sudden lack of tension.

STANDARD EQUIPMENT

• Spindle for balancing the grinding wheel.
• Grinding wheel lifting arm.

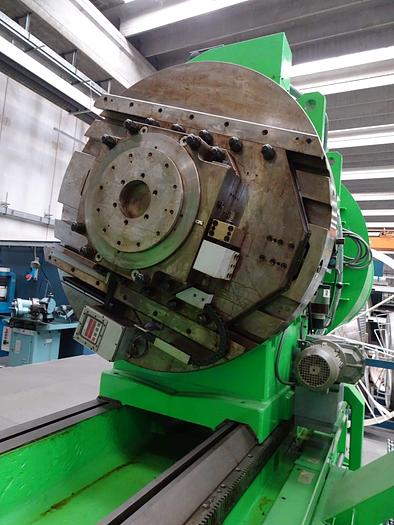

• Series of two devices for lifting control on eccentric heads complete with centesimal comparator.
• Device for measuring connecting rods between axes.
• Series of two centering truschini with centesimal comparator.
• Series of counterweights to balance trees weighing up to 10000 kg.
• Series of anchoring devices and screws for leveling the machine.
• Series of two copies of the instruction manual of the machine complete with electrical, hydraulic and pneumatic diagrams and PLC program (one copy on paper and one copy on floppy disk).
• Execution in accordance with CE legislation with related documentation.
• Painting in green RAL 6018.

ACCESSORIES INCLUDED

• nr. 1 Grinding wheel flange unit, complete with counter-flange and balancing dowels for grinding wheel with a hole of 304.8 mm.
• nr. 1 Static balancer of the grinding wheel with rotating plates.
• Execution with automatic retraction of the grinding wheel and maintenance of the synchronism of the workpiece heads in case of sudden lack of tension.
