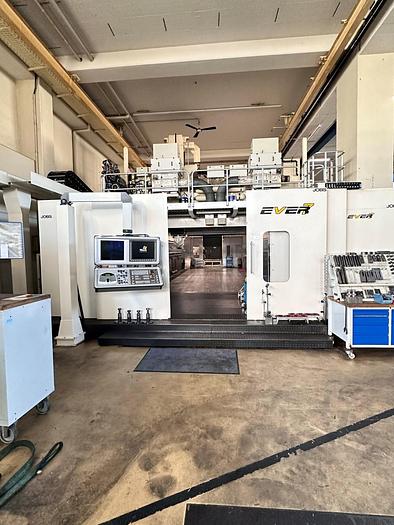

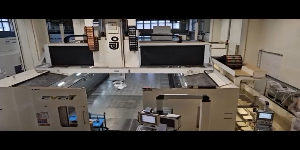

Jobs Ever 7 CNC Double Column Gantry Milling Machine
Jobs Ever 7 CNC Double Column Gantry Milling Machine
or
Call 770-509-0744
Description

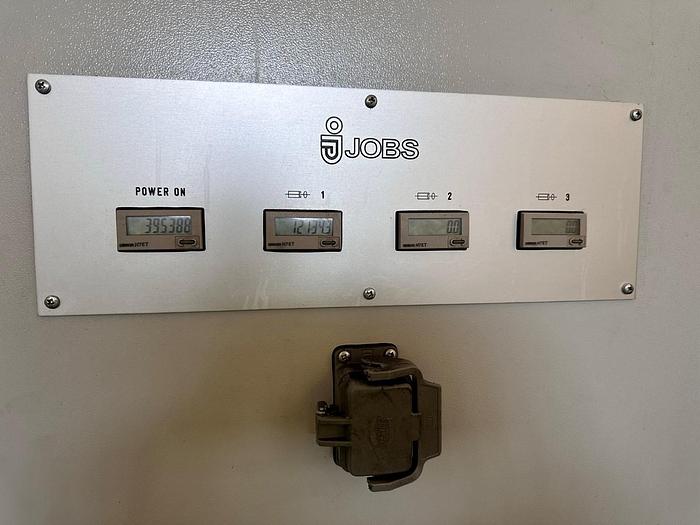

Only 12,134 Spindle Hours

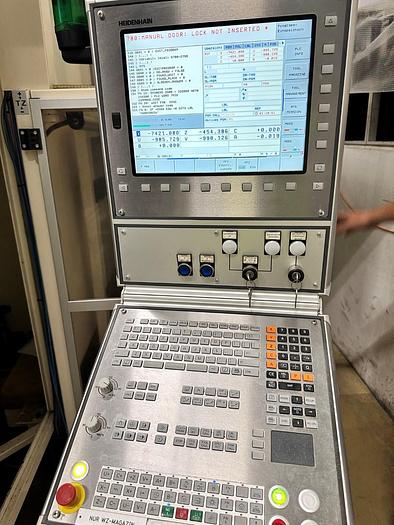

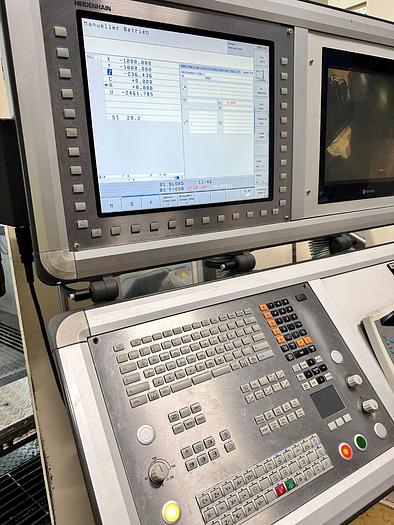

Heidenhain iTNC 530 HSC

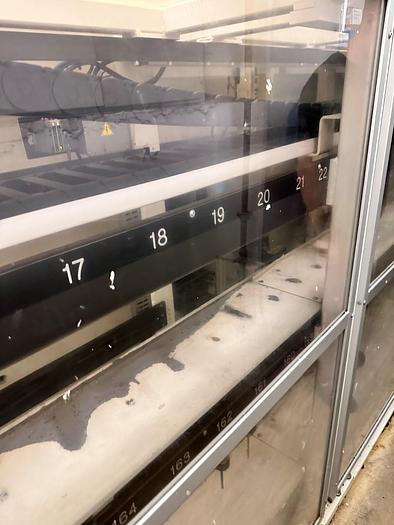

180 Position Automatic Tool Changer
Chip Conveyor
Through Spindle Coolant

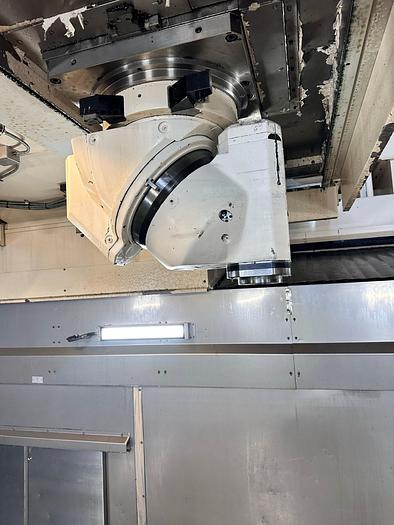

Programmable Milling Head - 0.02°

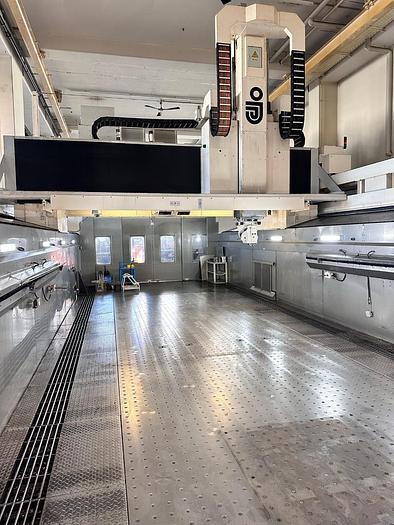

Floor Plates - (2x) 5,000 x 3,000 mm

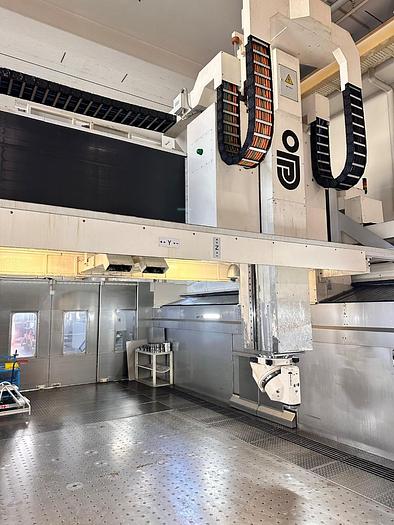

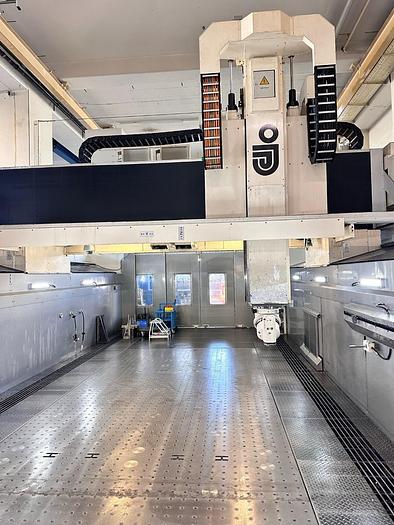

eVer 7 is a medium-size mobile-gantry milling center for 3/3+2/4/5 axes machining with high dynamic performance and chip removal capacity featuring:
- Minimized hourly costs
- Reduced operating costs
- Overhead gantry structure with high dynamics and chip removal capacity
- Crossbeam structure with multi-triangle section "MT-frame"
- Dual drive traction on all axes
- Sliding on oversize multi-pads guaranteeing maximum rigidity
- Excellent enclosure for efficient chip containment and other machining residue
- Wide range of interchangeable heads, tool changing systems and other accessories
The high dynamic performances thanks to the minimized mobile masses makes eVer 7 mainly oriented to applications in the moulding and aerospace sectors.
Motion kinematics obtained through Jobs innovative technology:
- Dual drive by rack and pinions on X,Y,Z axes
- Guideways with recirculating roller pads
- Machine ram with symmetric structure
Specifications
| Manufacturer | Jobs |
| Model | Ever 7 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 11132 |
| Between columns | 5,000 mm |
| Spindle speeds | 5,000 rpm |

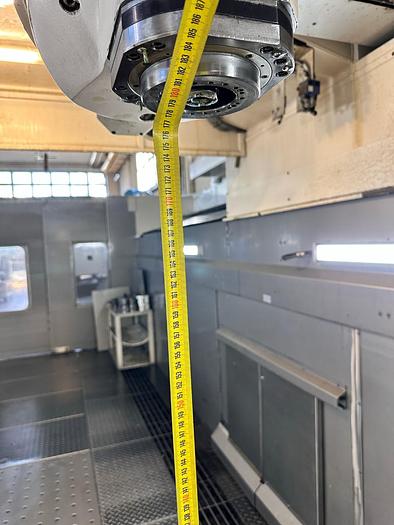

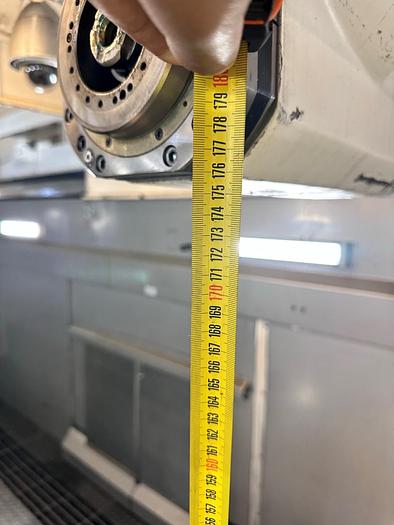

| Machining height | 1,800 mm (Can be extended as per your requirements) |
| X axis travel | 10,000 mm |
| Y axis travel | 4,000 mm |
| Z axis travel | 1,750 mm |
| Table dimensions | 10,000 x 3,000 mm |
| Table capacity | 5 Ton/m² |
| Rapid feeds | 36 m/min |
| Spindle taper | HSK-A 100 |
| Spindle torque | 1,005 Nm |
