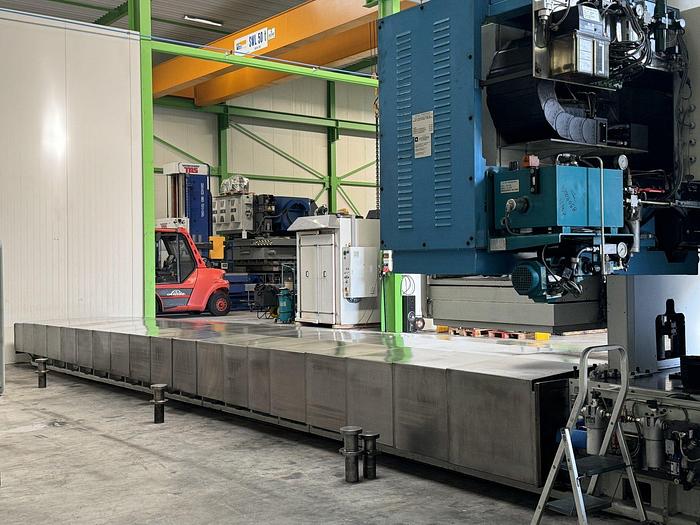

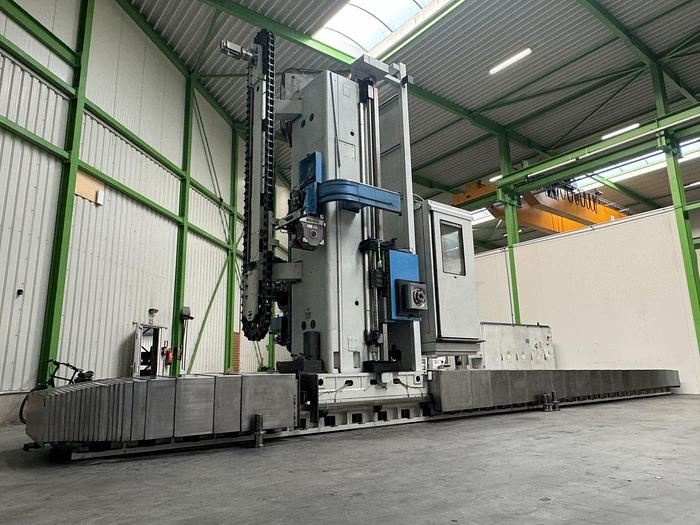

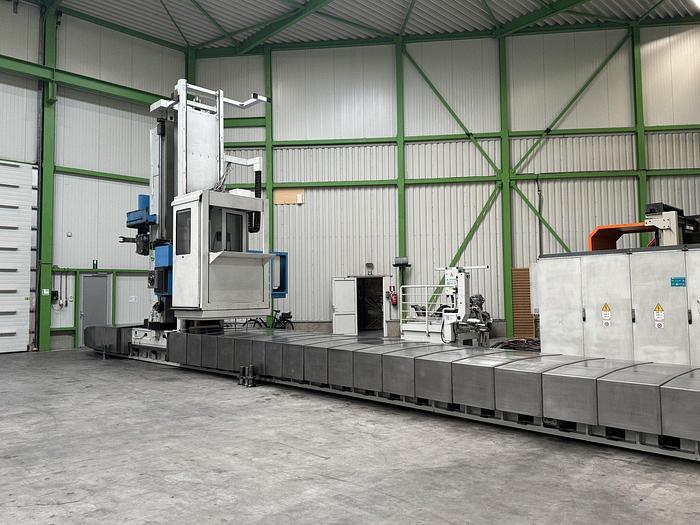

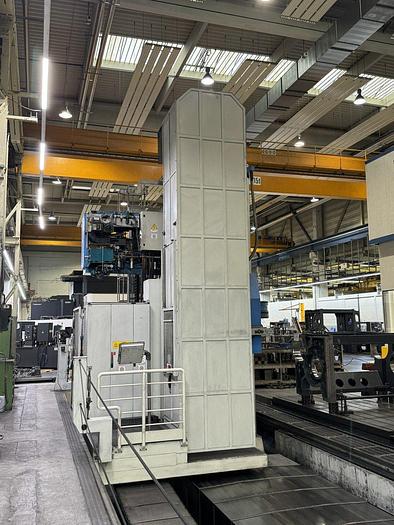

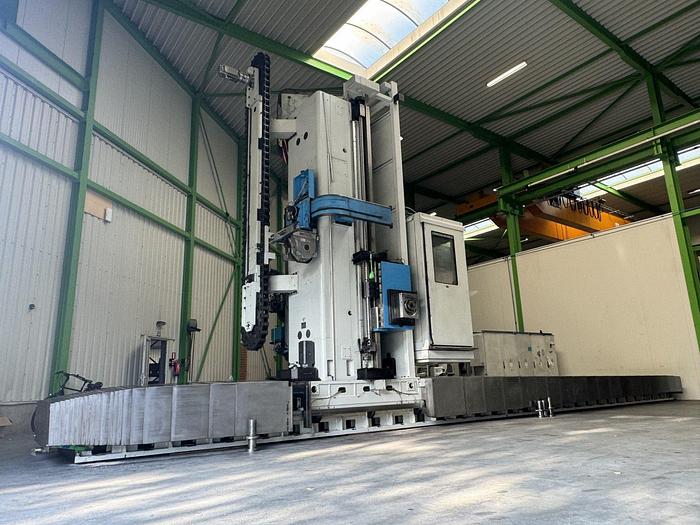

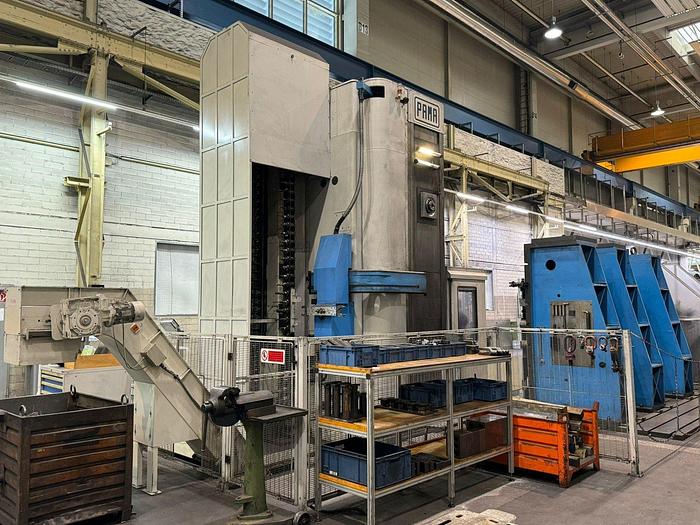

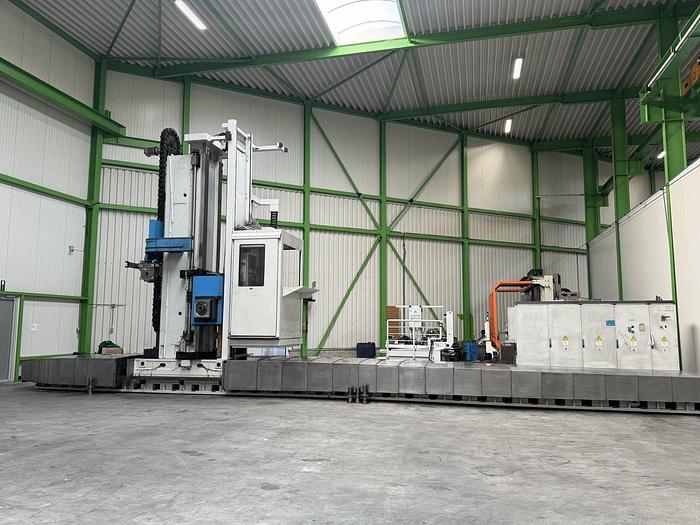

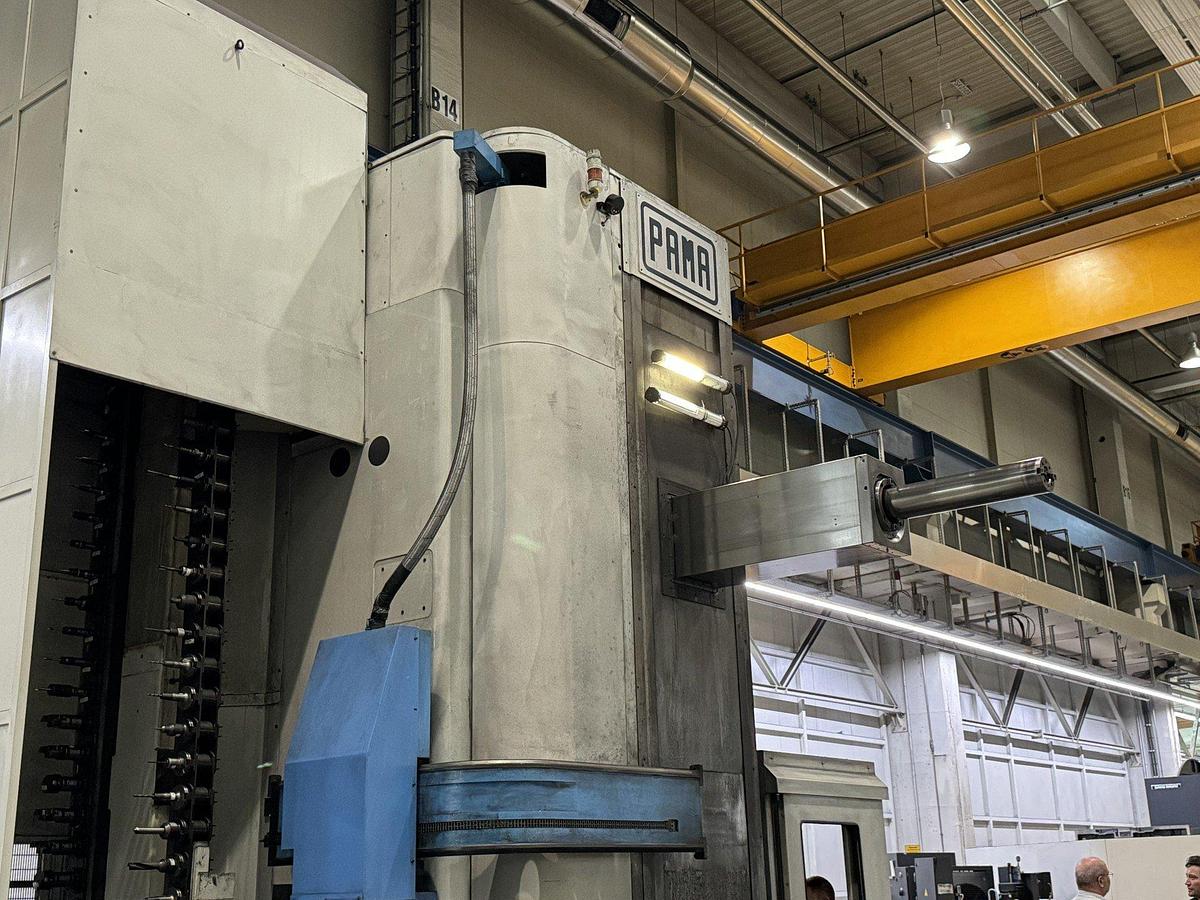

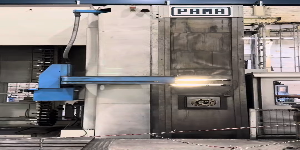

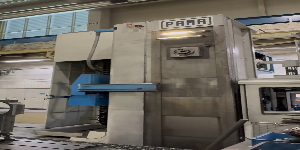

Pama Speedram 1000 CNC Floor/Ram Type Horizontal Boring Mill

Pama Speedram 1000 CNC Floor/Ram Type Horizontal Boring Mill

or
Call 770-509-0744

Description

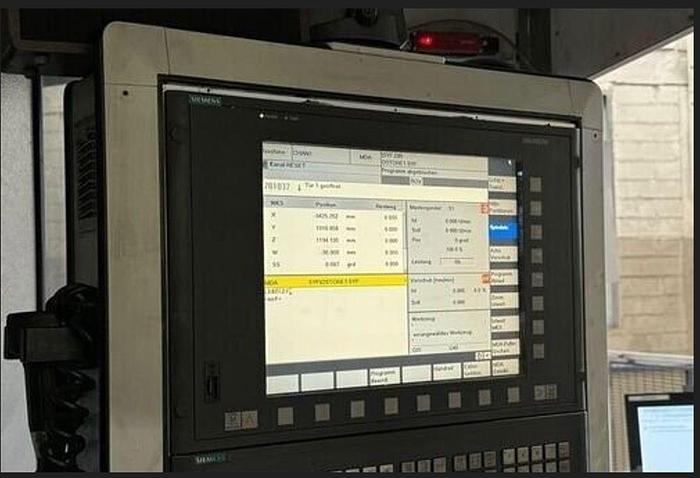

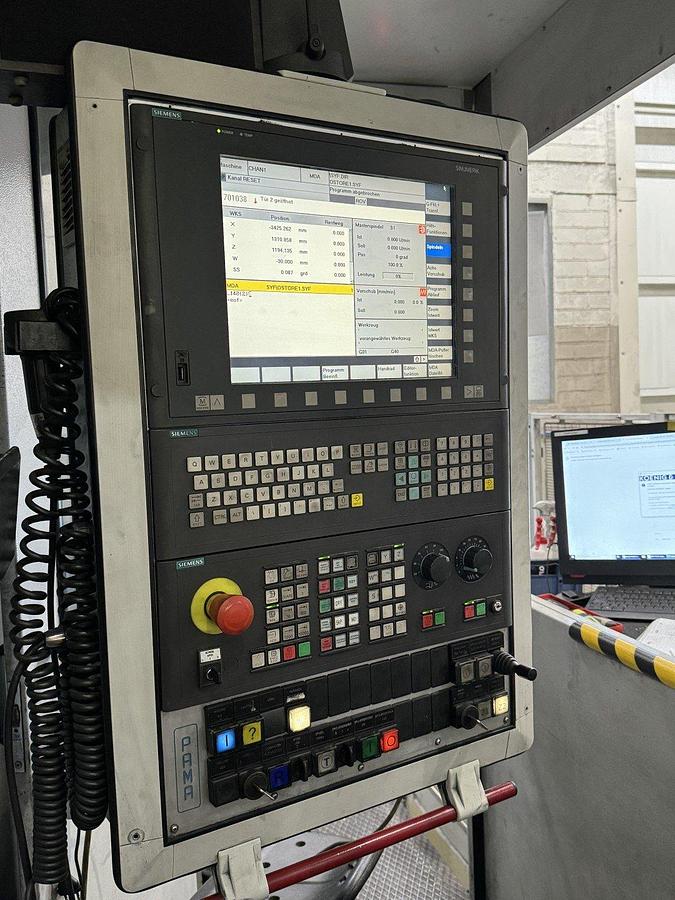

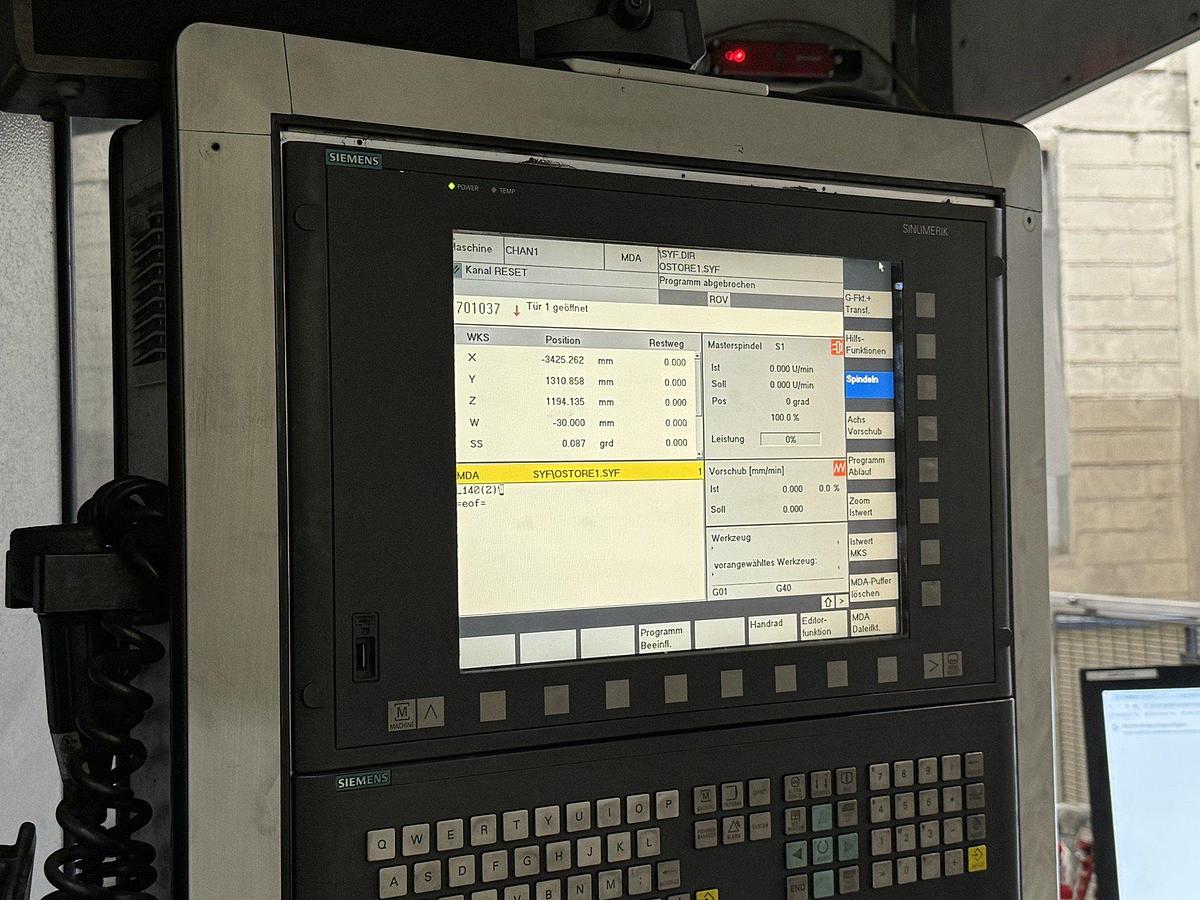

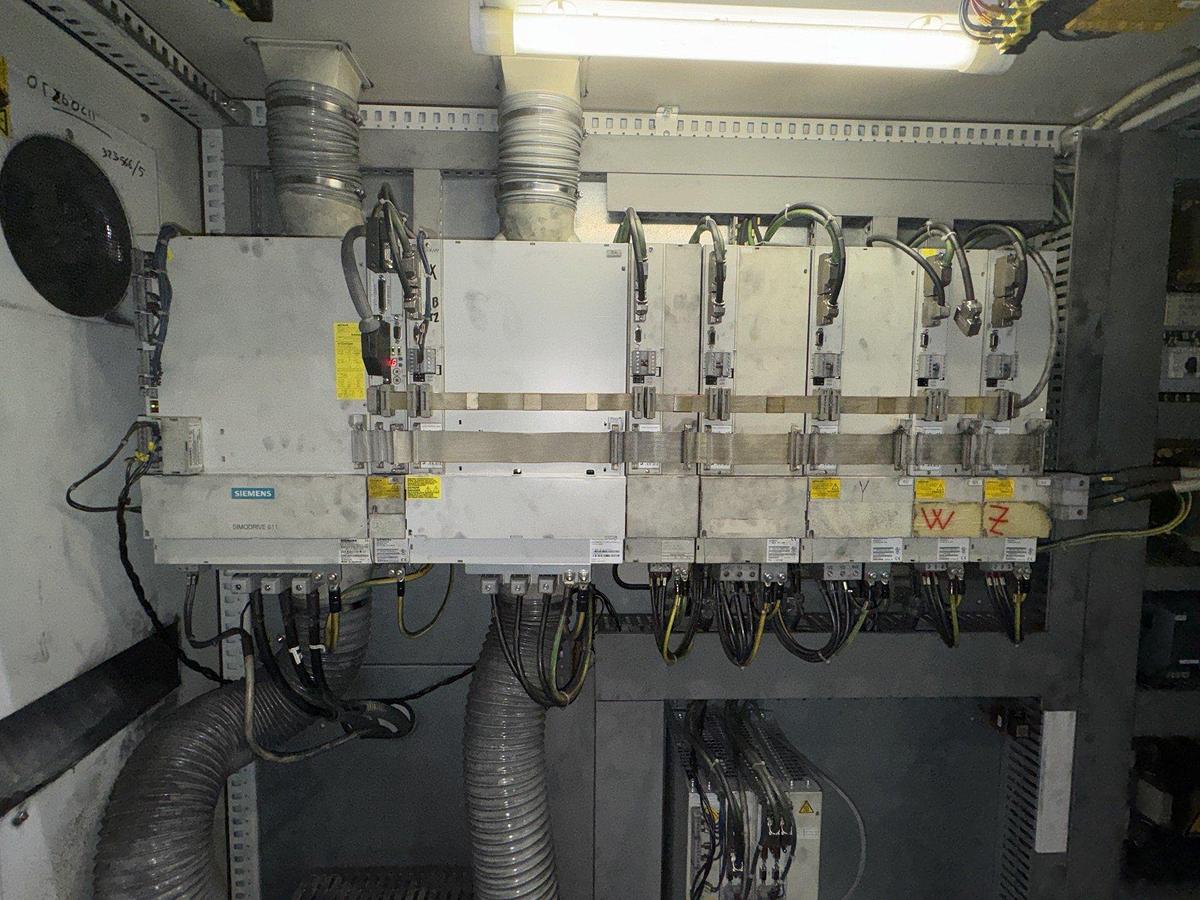

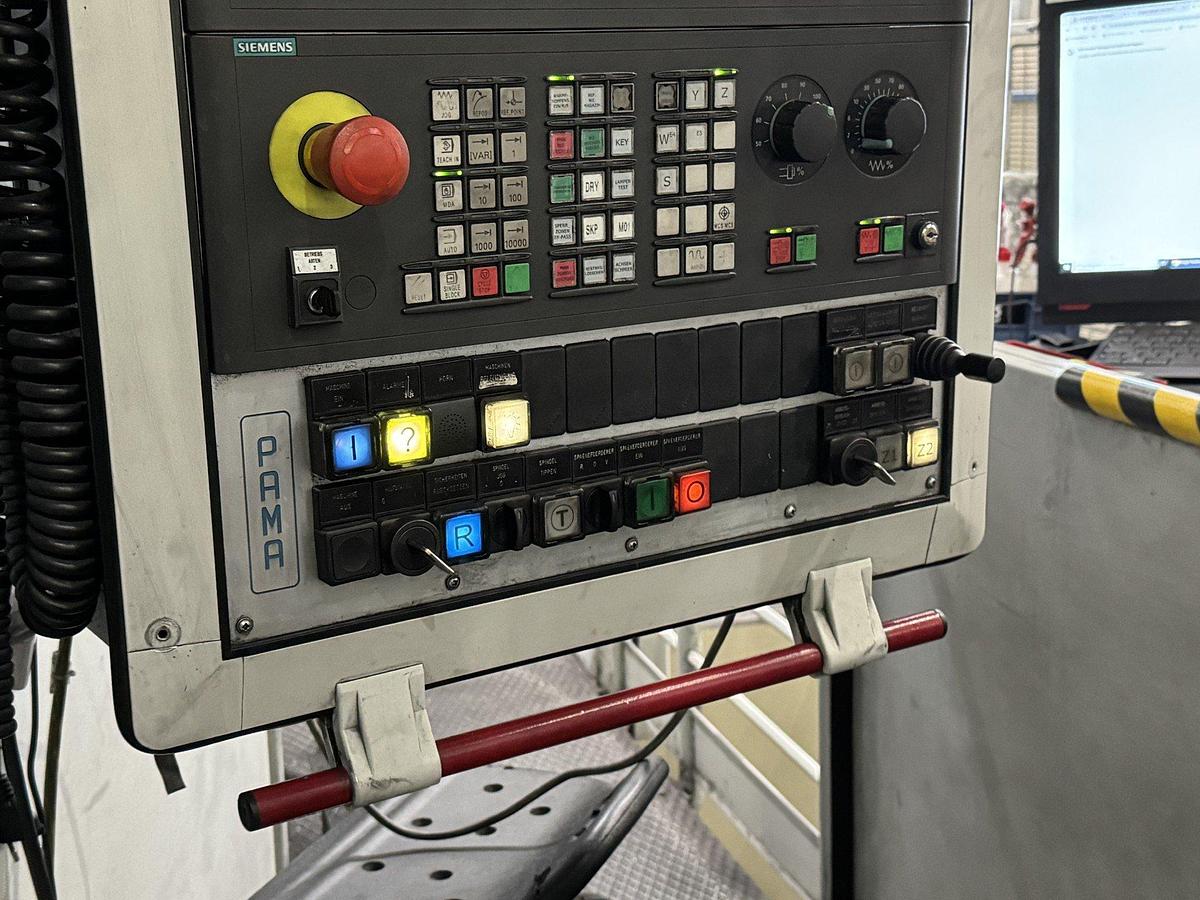

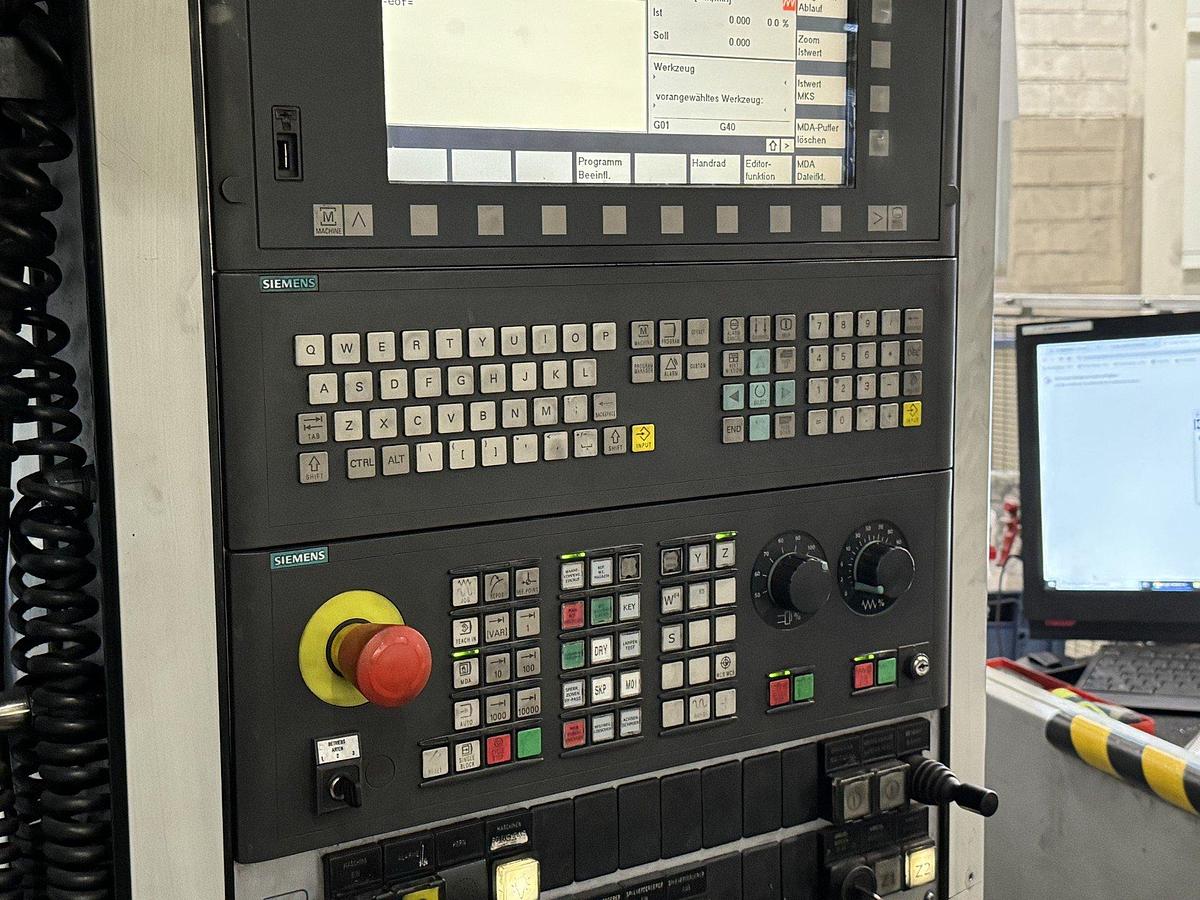

  • Siemens 840D CNC Control
  • 4 Controlled Axes
  • 90 Position PAMA Automatic Head Changer System

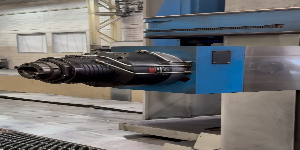

  • PAMA MG4 High Speed Head 8000 RPM & 20 kW

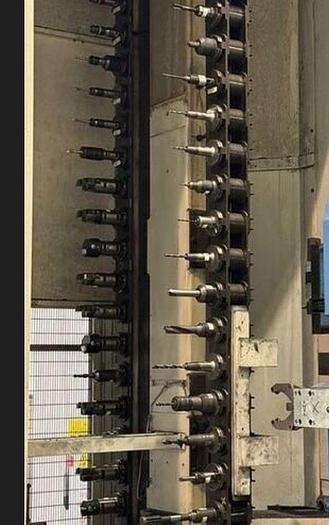

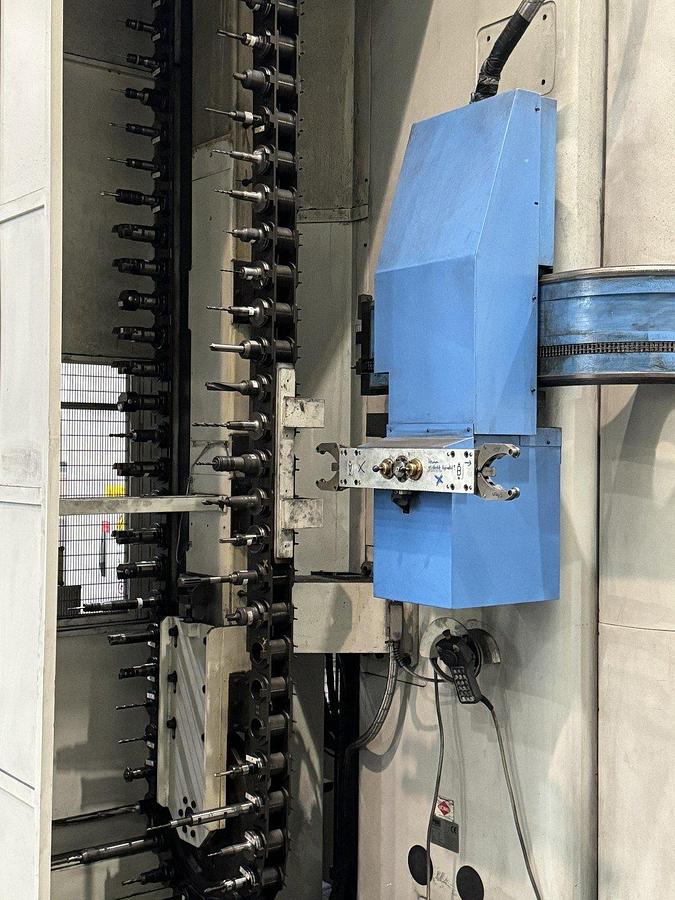

  • PAMA CU130-90S Tool changer up to 1300 Kg tool weight
  • Chip conveyor 235 mm and 1200 mm output height
  • Double Floorplate 4000 x 2500 & 4000 x 2500 mm
  • Torque on spindle 1525 Nm


Specifications

ManufacturerPama
ModelSpeedram 1000
Year2006
ConditionUsed
Stock Number11133
Spindle diameter150 mm
Spindle speeds3,500 rpm
High speed head8,000 rpm
X axis travel13,000 mm
Y axis travel3,500 mm
Z axis travel1,000 mm
W axis travel700 mm

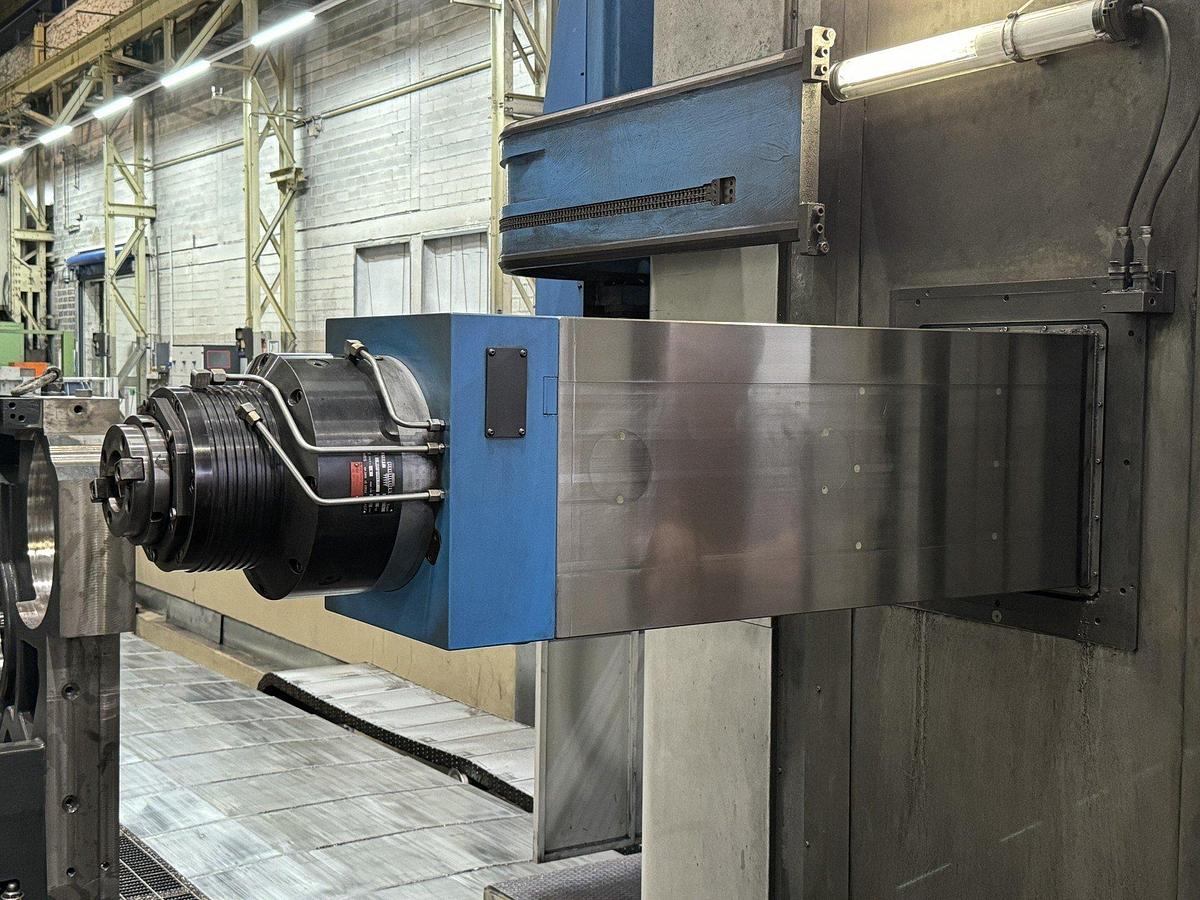

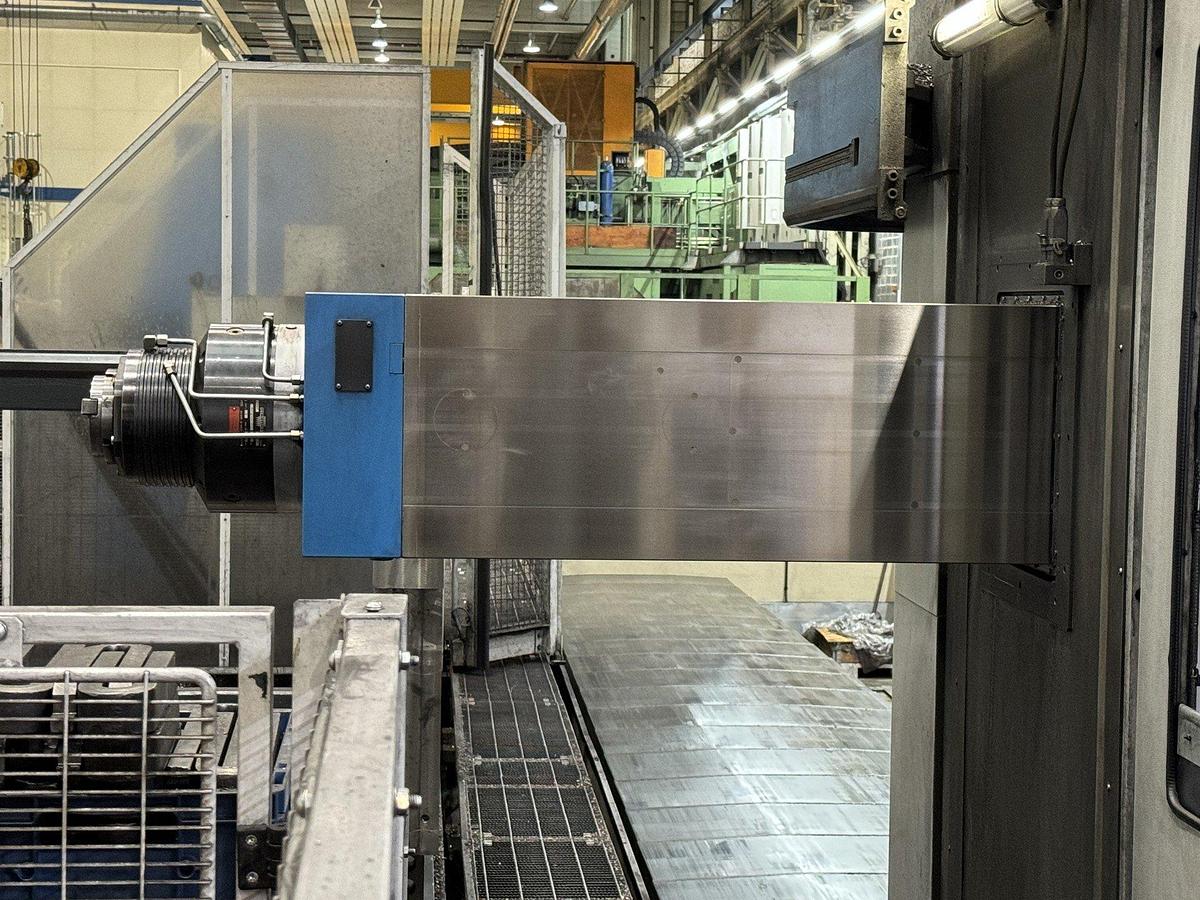

Ram dimensions360 x 400 mm
Spindle motor power37 kW
Spindle torque1525 Nm
Taper of boring spindleISO 50
Z + w - ram + spindle travel1,700 mm
Feed rate X, Z, W 30 m/min
Feed rate Y20 m/min
Machine dimensions21 x 7 x 5.1 m
Machine weight80 Ton
