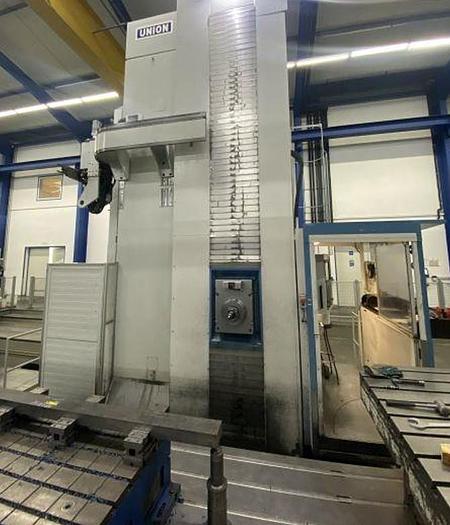

Union PCR 150 CNC Ram-Floor Type Hydrostatic Horizontal Boring Machine

Robust and highly versatile PR series drilling and milling machine with large floor plate

• 3D CNC control HEIDENHAIN iTNC530
• Hydrostatically guided spindle system with Ø150mm quill and internal coolant supply
• Generously dimensioned hydrostatic bearings for optimum guidance of the support beam, cross-section of the support beam 450 x 550mm
• X-axis triple linear guide (size 65), drive via gear rack and preloaded double pinion
• Y-axis double linear guide (size 65), drive via two geared motors (master-slave) and two powerful ball screws

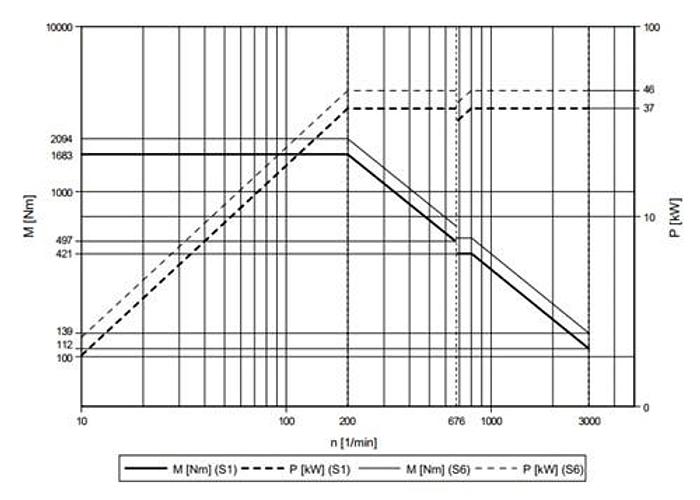

• Main spindle 46kW and 3,000 rpm, max. torque 2,094 Nm
• Heidenhain direct path measuring systems
• Moving tool chain magazine 80-fold with automatic changer
• Moving control panel for machine operator for best overview
• 2 chip conveyors, 1x along the X-axis, 1x sideways as lifting conveyor along the Z-axis
• Lifting pump for coolant delivery
• Coolant system with belt filter and large tank (approx. 980 l), equipped with two cooling circuits, 1x low-pressure pump 80 l/8 bar and 1x high-pressure pump 38 l/20 bar to provide the internal coolant supply
• Head changing station for automatic head change with 4 storage locations
• Hubitron HBG410-RF electronic radio handwheel
• Electronic 3D radio measuring probe Marposs with receiver unit WRI
• Very well-maintained condition with <10,000 operating hours

The UNION PCR150 is the ideal machine tool for the machining of large components. In addition to stable heavy-duty machining, high-precision 5-sided machining of voluminous and heavy workpieces is also possible on this machine. The boring mill can be supplemented with additional units (rotary sliding table, boring head, etc.) on request and tailor fitted to your production needs.

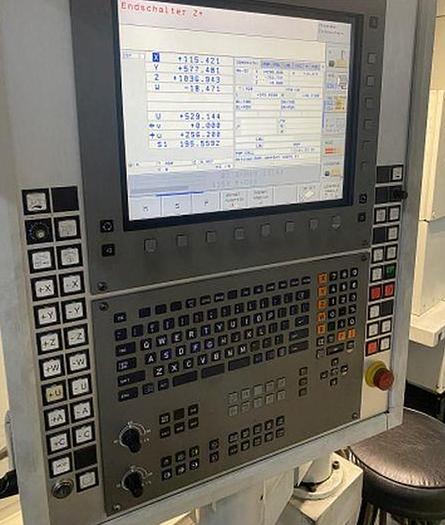

Heidenhain iTNC 530 CNC Control

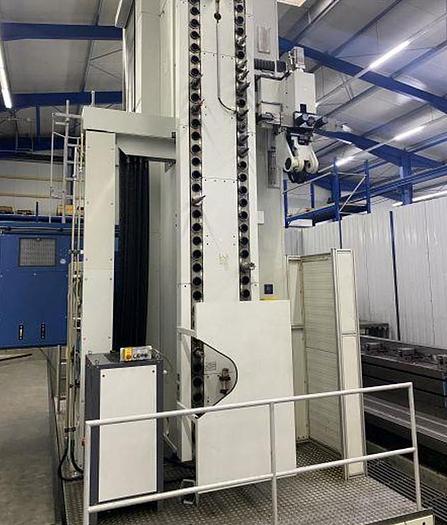

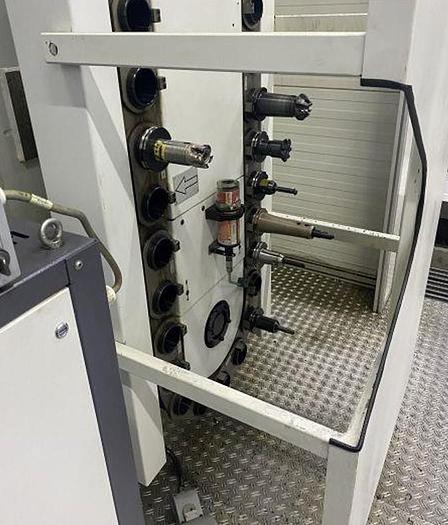

80 Position Automatic Tool Changer - SK50 - Chain Type Mounted at Column

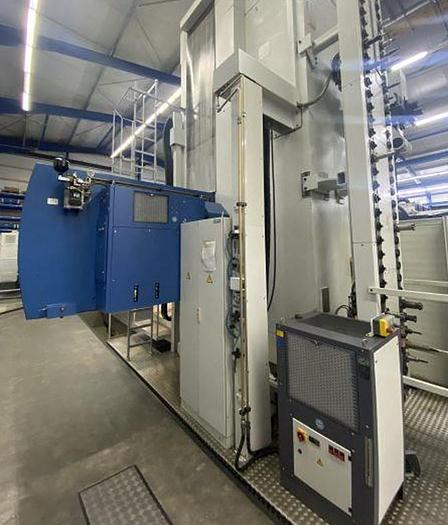

Coolant & Filtration Unit Tank 980 L - 2 Coolant Circuits

PS1

Max Volume External Coolant - 80 L/min

Max Pressure External Coolant - 8 bar

PS2

Max Volume Internal Coolant - 38 L/min

Max Pressure Internal Coolant Supply - 20 bar

Filter Fleece Fineness 30 - 40 µm

4 Position Head Pickup Station Mounted on Floor Plates (Cover Plate & 1 Head Included)

Union Fork Milling Head KFU NC 4/90

Power Milling Spindle (S1) 37 kW

Torque S1 800 Nm

Max Speed 3,000 rpm

Swiveling Range C-Axis ± 185°

Swiveling Range A-Axis ± 95°

Max Tangential Torque C-Axis 6,000 Nm

Max Tangential Torque A-Axis 5,000 Nm

Swivel Axis Drive - Servomotor with planetary & Worm Gears

Axis Clamping Hydraulically

Max Feed Force in the Spindle Axis Direction 8,400 N

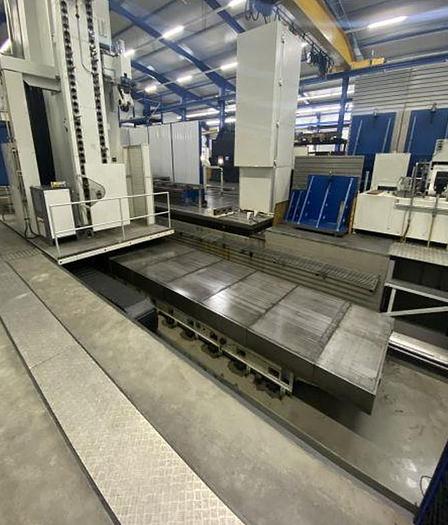

Floor Plates - T-Slot 2 Piece

Total Dimensions 10,000 x 3,000 mm

Single Plate Dimensions 5,000 x 3,000 mm

Height of Plate 300 mm

Slot Size 36H12 mm

Slot Distance 250 mm

Max Uniform Load 15 kg/m²

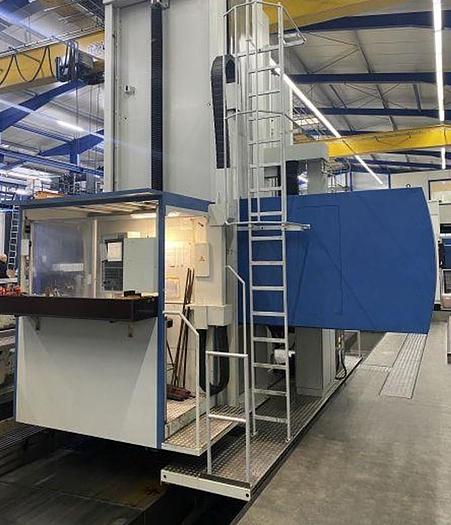

Movable Operator Platform

Vertical Travel 2,800 mm

Horizontal Travel 700 mm

Vertical Drive - electromechanical

Lifting Speed 3.5 m/min

Horizontal Drive - pneumatical
