HNK HPM-30M CNC Double Column Planer-Type 5-Face Machining Center
HNK HPM-30M CNC Double Column Planer-Type 5-Face Machining Center
or
Call 770-509-0744
Description

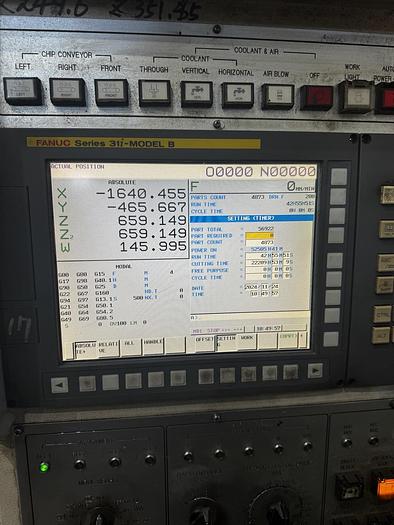

Fanuc 31iB CNC Control
Linear Scales XYZW

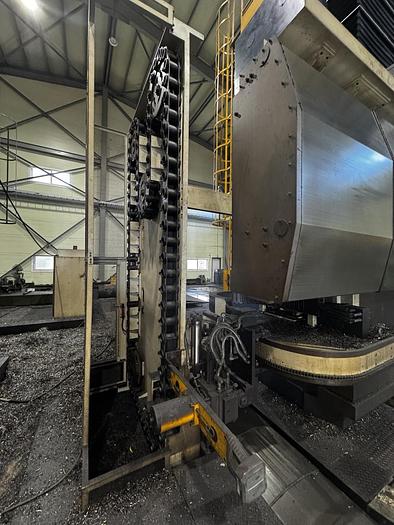

90 Position Automatic Tool Changer

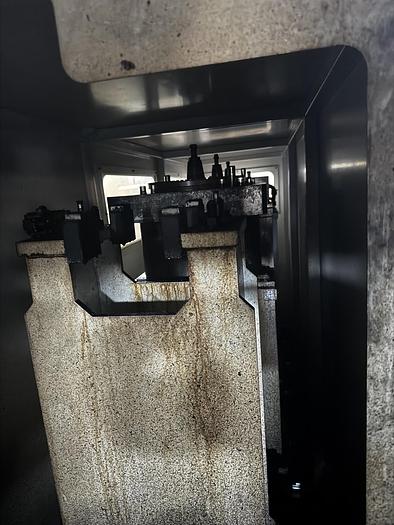

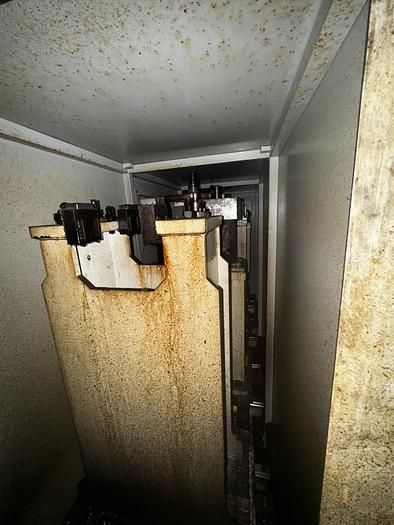

Automatic Attachment Changer
(1) 90-degree Angle Head L-350 mm, 5° Indexing
(1) Extension Head L= 600 mm
Spindle Thru Coolant - 30 bar
External Coolant Unit
Chip conveyors
Hydraulic Pump & Coolant System
Specifications
| Manufacturer | HNK |
| Model | HPM-30M |
| Year | 2014 |
| Condition | Used |
| Stock Number | 11137 |
| Between columns | 4,000 mm |
| Spindle speeds | 2,500 rpm |
| Table to ram face | 3,550 mm |
| X axis travel | 10,250 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 1,000 mm |
| Table size | 3,000 x 10,300 mm |
| Table capacity | 50 Ton |
| W axis travel | 2,500 mm |
| Z + w axis (ram + crossrail) | 3,500 mm |
| Spindle drive motor | 37 kW |
| Spindle taper | BT 50 |

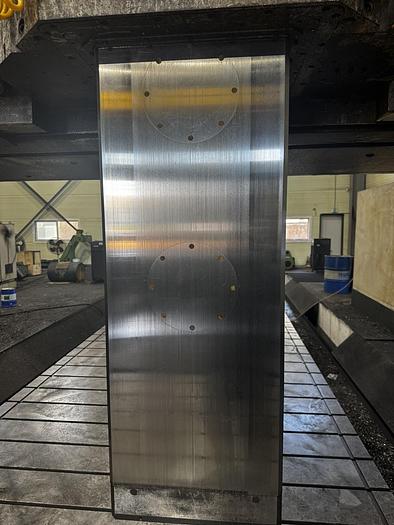

| Ram size | 400 x 400 mm |
| Rapid traverse X,Y | 10 m/min |
| Rapid traverse Z,W | 3 m/min |
| Feed speed X,Y | 3.6 m/min |
| Feed speed Z,W | 3 m/min |
| Machine weight | 172 Ton |
