Doosan BM 2740M CNC Bridge Type Machining Center
Doosan BM 2740M CNC Bridge Type Machining Center
orCall 770-509-0744
Description

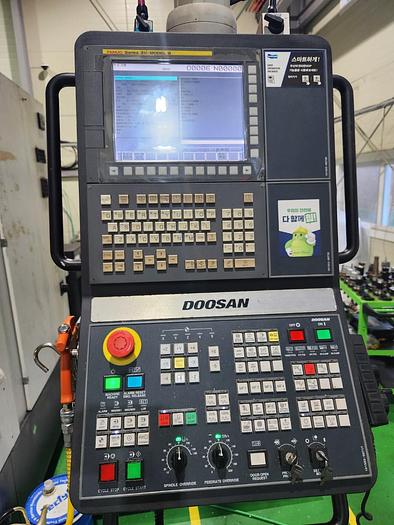

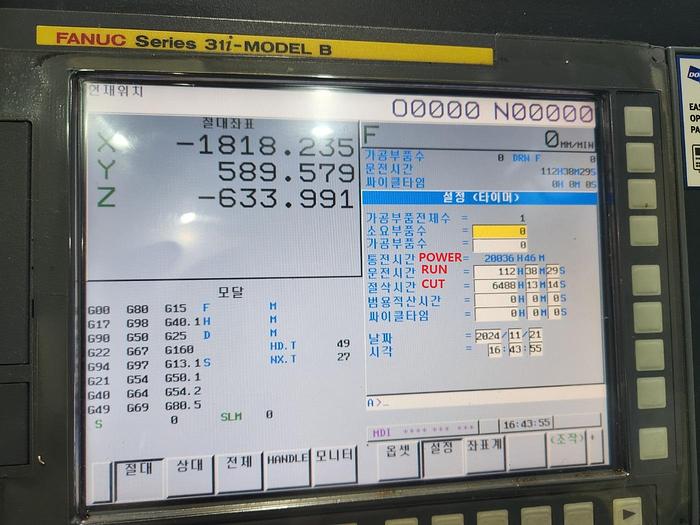

Fanuc 31iB CNC Control
60 Position Automatic Tool Changer
Linear Scales for XYZ axis
Spindle Thru Coolant
Coolant Gun
Full cover with top
Chip conveyor
Distance Table to Spindle Nose 150 - 950 mm
Table Load Monitoring
MPG
Helical Interpolation
Air Blower
Specifications
| Manufacturer | Doosan |
| Model | BM 2740M |
| Year | 2018 |
| Condition | Used |
| Stock Number | 11143 |
| Between columns | 2,700 mm |
| Spindle speeds | 12,000 rpm |
| Machining height | 950 mm |
| X axis travel | 4,000 mm |
| Y axis travel | 2,700 mm |
| Z axis travel | 800 mm |
| Table size | 2,500 x 4,000 mm |
| Table capacity | 15 Ton |
| Spindle drive motor | 25 / 30 kW |
| Spindle taper | BT 50 |
| Electrics | AC 220V, 3Ph. 50/60 Hz |
| Machine weight | 48 Ton |
