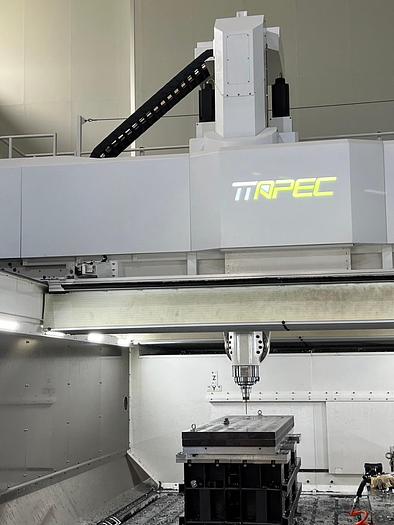

APEC G 3060-5L CNC 5-Axis Gantry Type Machining Center
APEC G 3060-5L CNC 5-Axis Gantry Type Machining Center
orCall 770-509-0744
Description

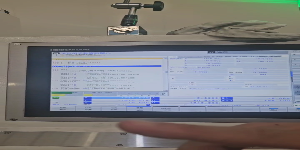

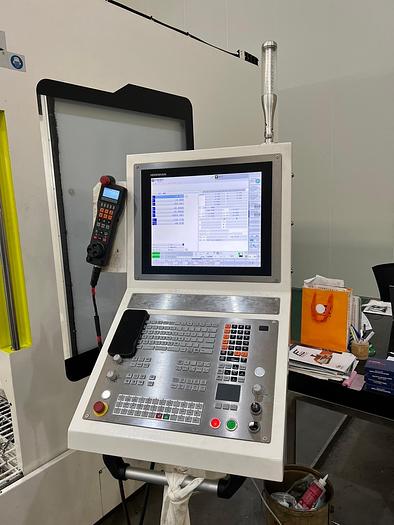

Heidenhain TNC640 CNC Control
X/Y/Z Linear guide way

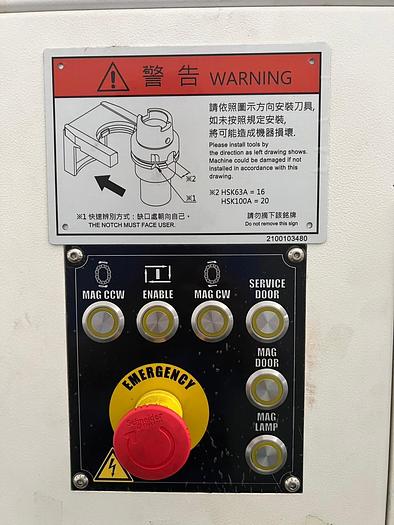

40 Position Automatic Tool Changer
Spindle coolant system
Through spindle coolant system

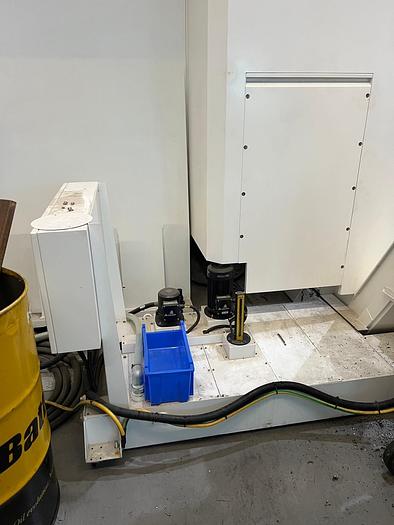

Tool length measurement (BLUM)
Work piece measurement (BLUM)

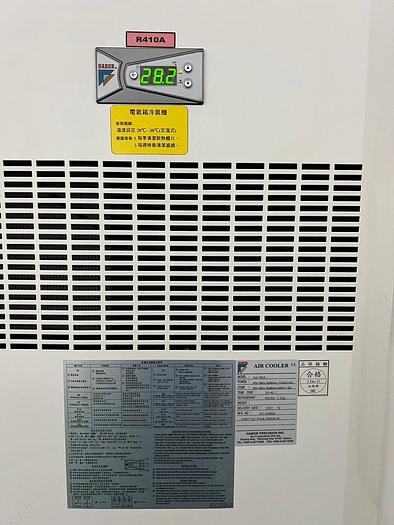

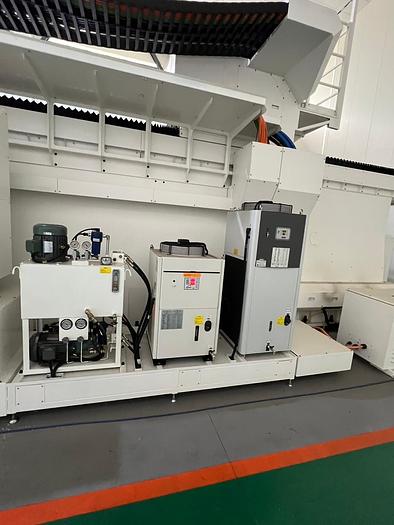

Air conditioner for electrical cabinet
Heidenhain Linear scale

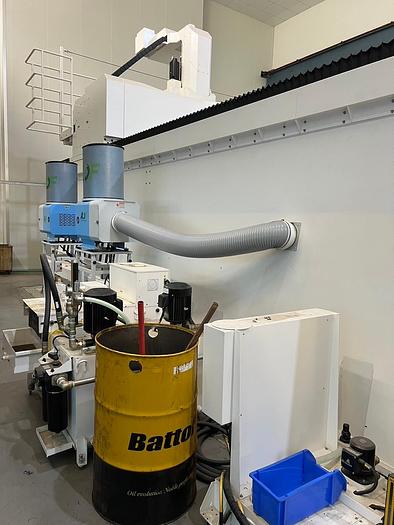

Chip conveyor + bucket
5 axis auto compensation system
Main water tank: 850L
Filter water tank: 650L
Spindle Nose to Table Surface 280 - 1,280 mm
Specifications
| Manufacturer | APEC |
| Model | G 3060-5L |
| Year | 2022 |
| Condition | Used |
| Stock Number | 11145 |
| Spindle speeds | 15,000 rpm |
| Machining height | 1,280 mm |
| X axis travel | 6,000 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,000 mm |
| Table dimensions | 6,000 x 3,000 mm |
| Table capacity | 8,000 kg/m² |

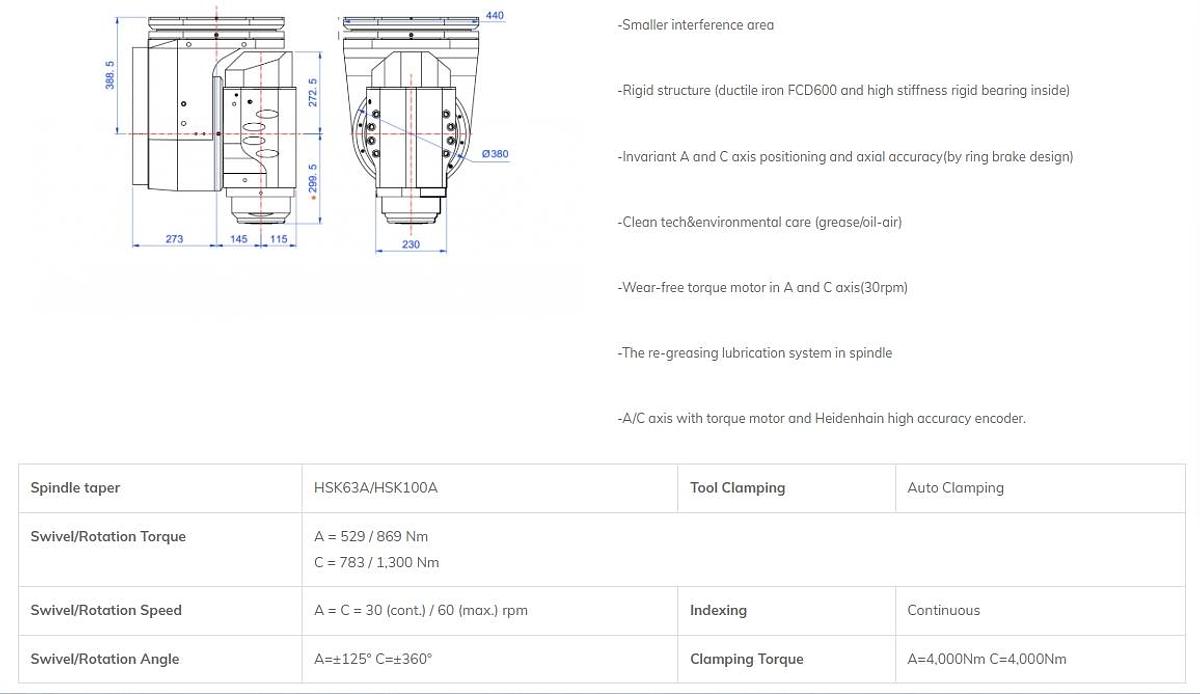

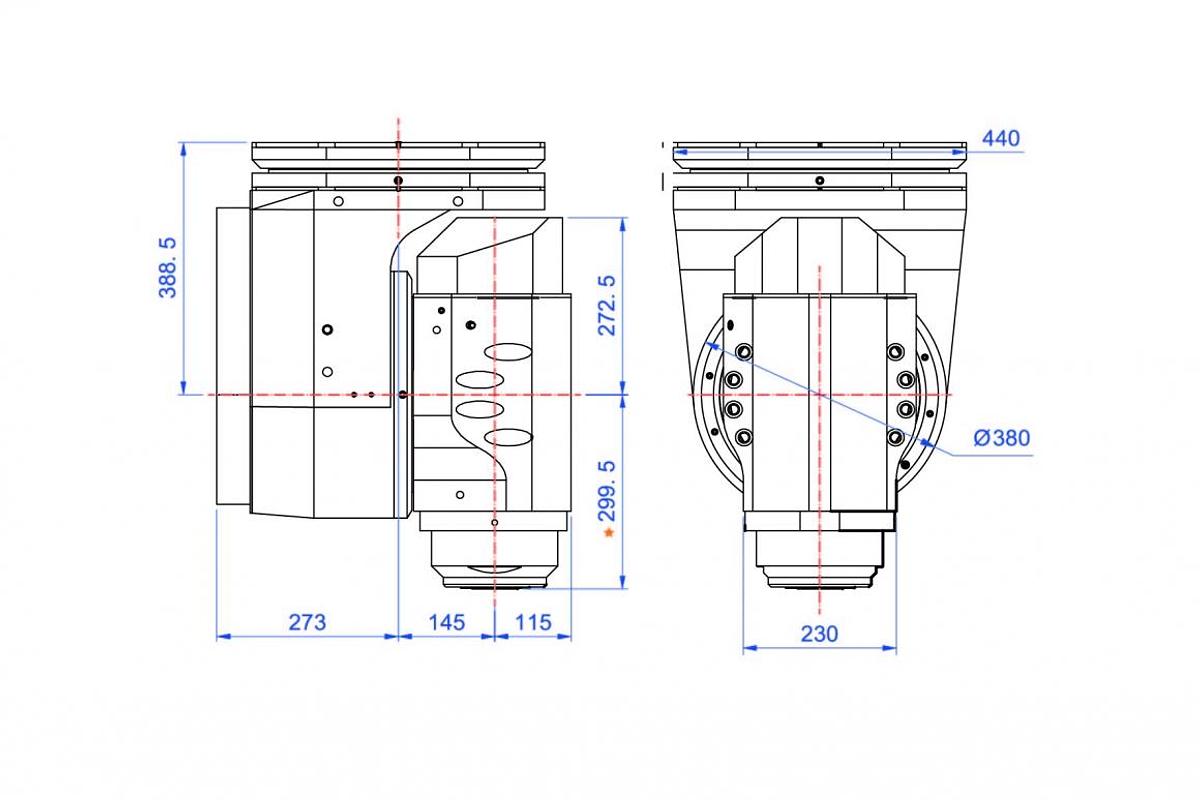

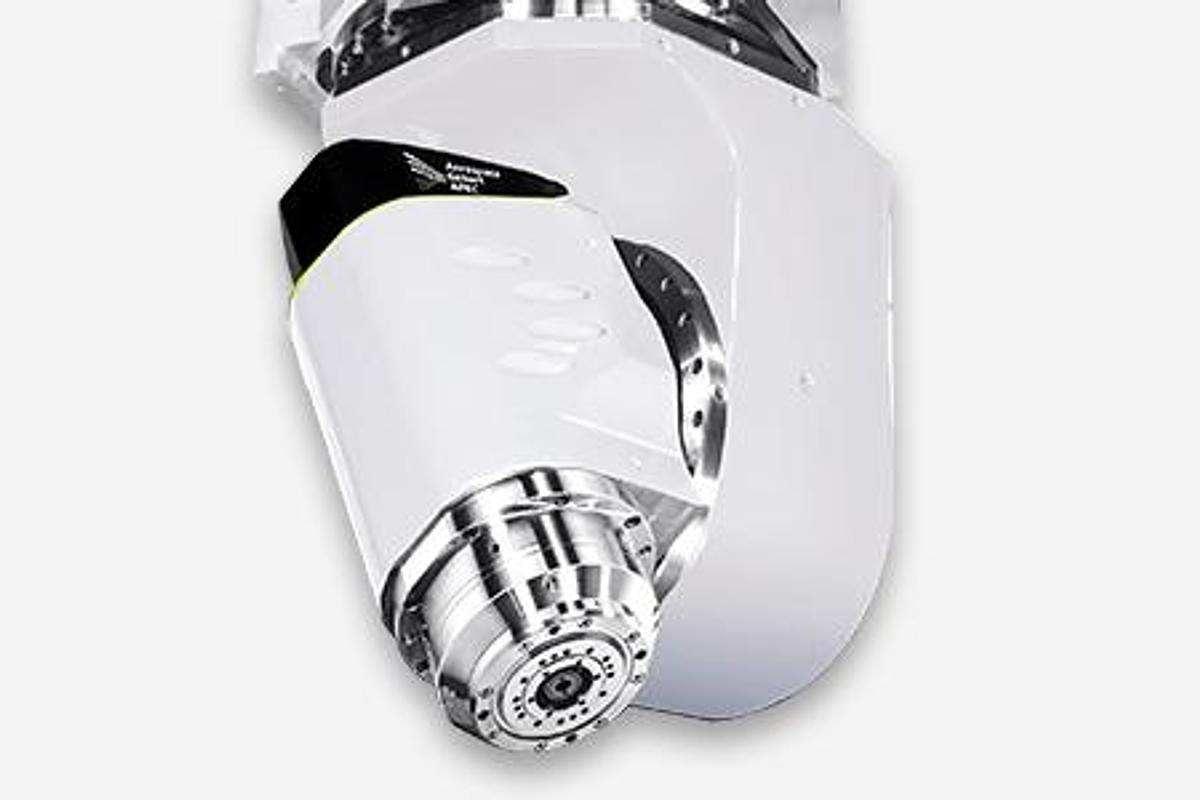

| A Axis swivel range | +125° ~ -125° |
| C axis swivel range | 360° |
| Spindle taper | HSK 100A |
