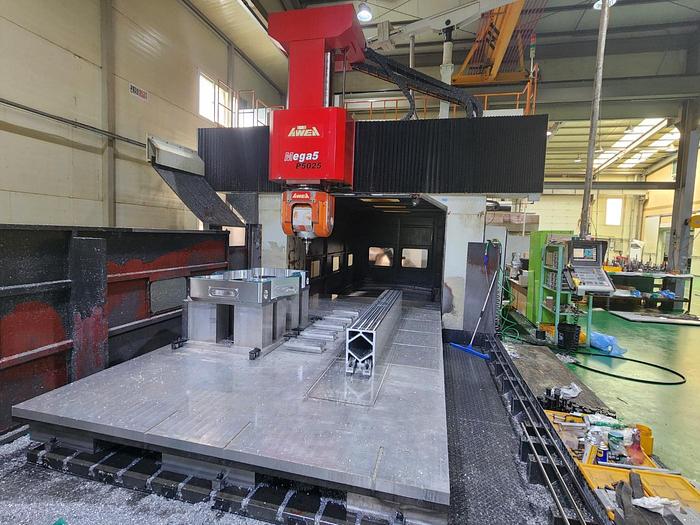

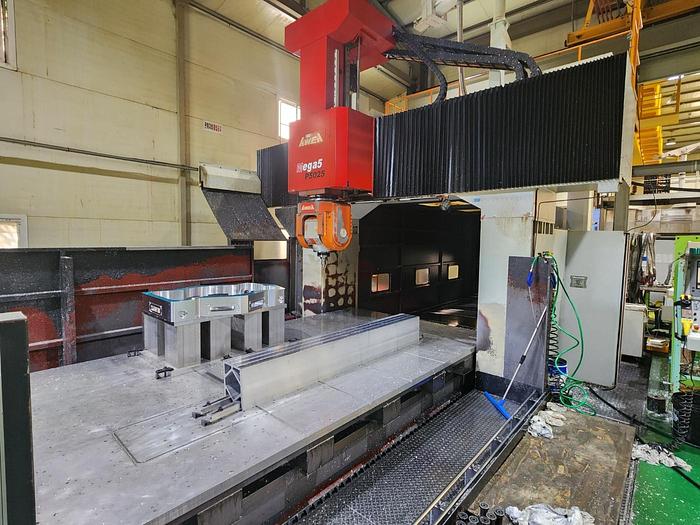

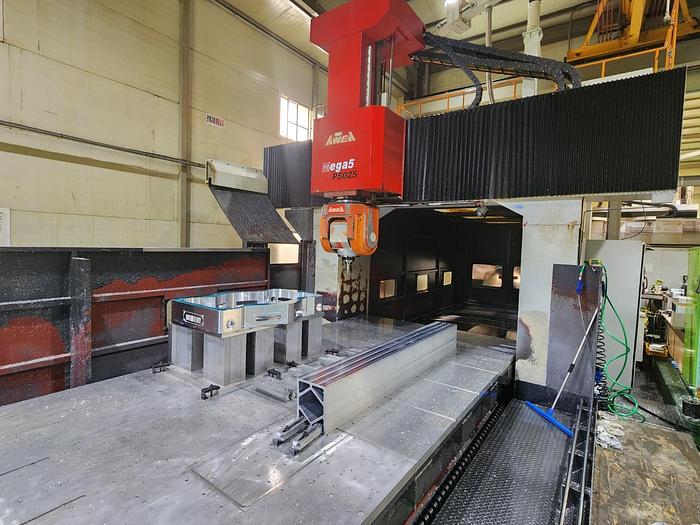

AWEA MEGA 5 P5025 CNC 5-Axis Bridge Type Machining Center
AWEA MEGA 5 P5025 CNC 5-Axis Bridge Type Machining Center
or
Call 770-509-0744
Description

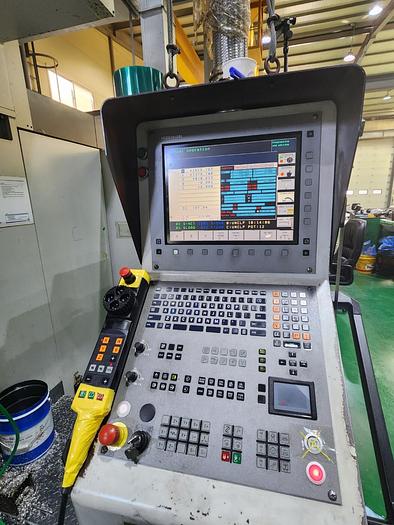

Heidenhein CNC Control
40 Position Automatic Tool Changer
Spindle thru coolant
Chip conveyor
Distance Spindle Nose to Table 200 - 1,200 mm

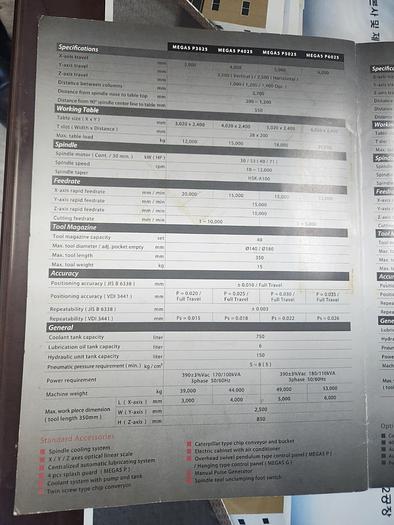

Specifications
| Manufacturer | AWEA |
| Model | MEGA 5 P5025 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 11146 |
| Between columns | 2,700 mm |
| Spindle speeds | 12,000 rpm |
| Machining height | 1,200 mm |
| X axis travel | 5,000 mm |
| Y axis travel | 32,000 mm |
| Z axis travel | 1,000 mm |
| Table size | 2,400 x 5,020 mm |
| Table capacity | 18 Ton |
| Spindle drive motor | 30 / 53 kW |
| Spindle taper | HSK A-100 |
