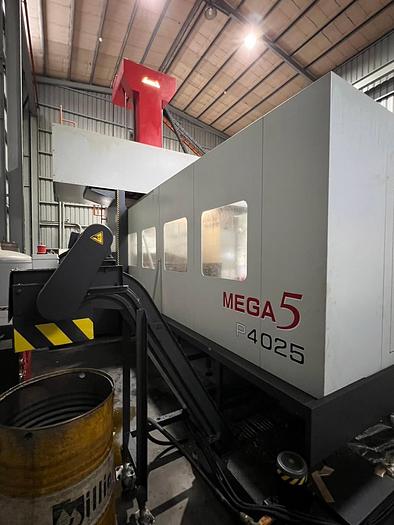

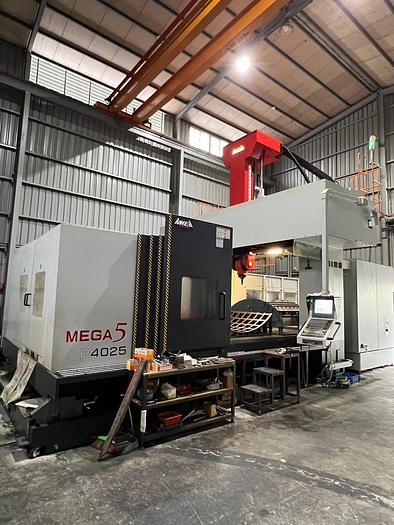

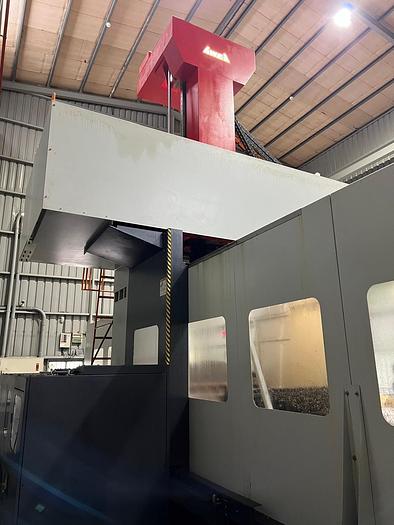

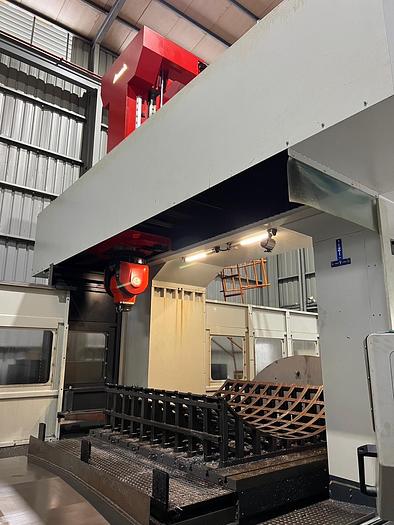

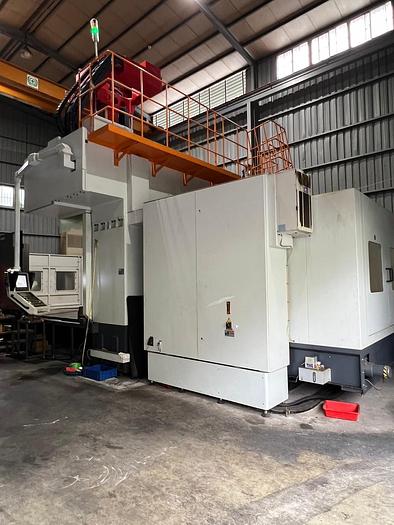

AWEA Mega 5 P4025 CNC 5-Axis Bridge Type Machining Center

AWEA Mega 5 P4025 CNC 5-Axis Bridge Type Machining Center

orCall 770-509-0744

Description

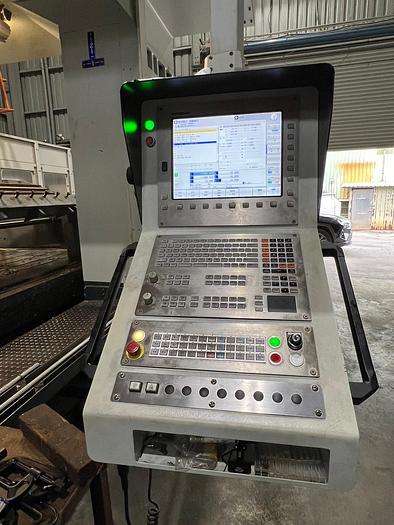

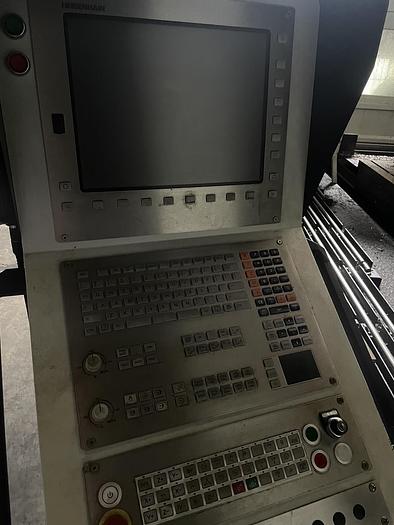

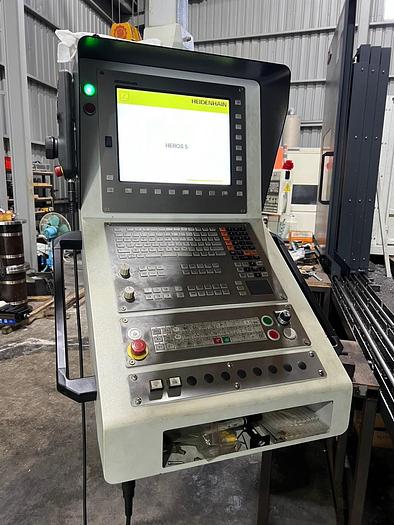

Heidenhain TNC640 CNC Control

40 Position Automatic Tool Changer

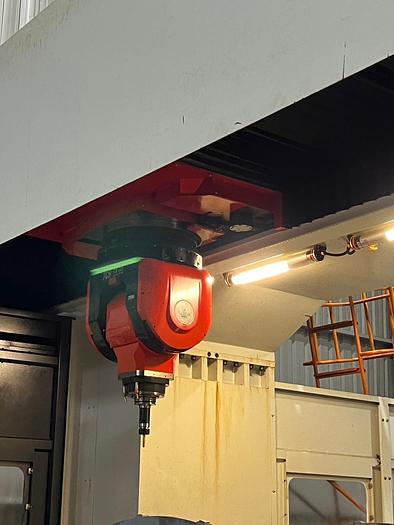

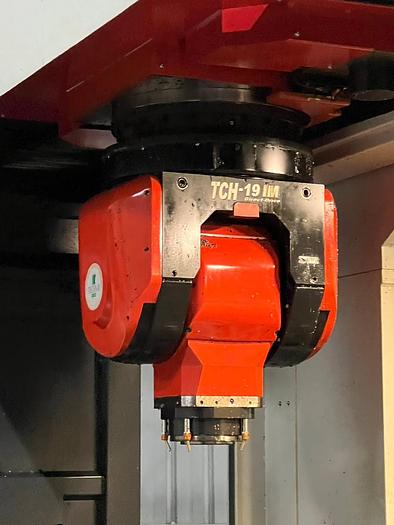

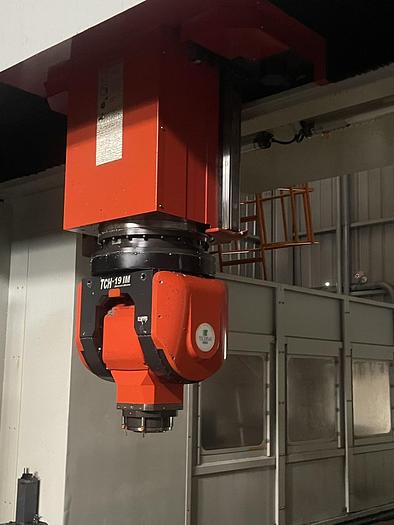

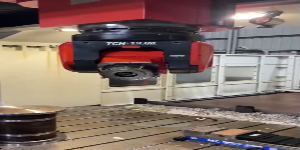

Italy Technai TCH-19F two-axis head

A/C Max. speed - 50 rpm

B/C Max. torque/clamping torque:

C axis-1,300/4,000 Nm

B axis-1,400/4,000 Nm

X/Y/Z axis Heidenhain linear scales

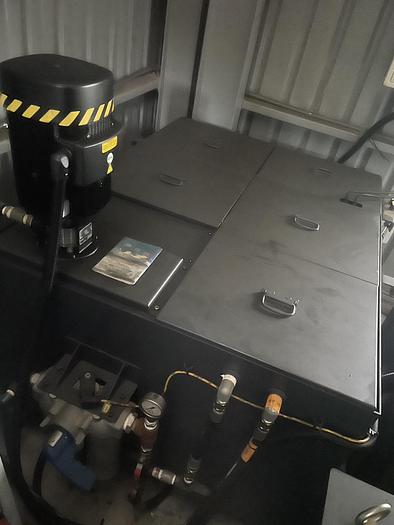

Coolant thru spindle 20bar + water tank

Tool off set

Part setter

Oil Skimmer

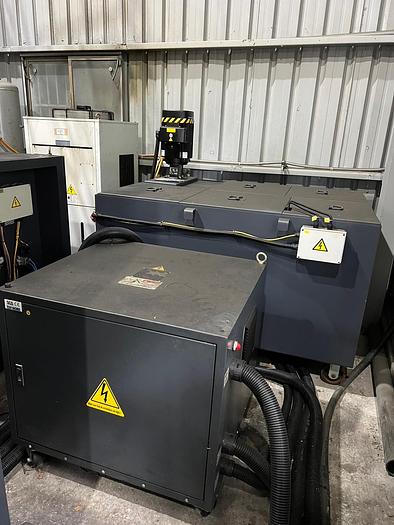

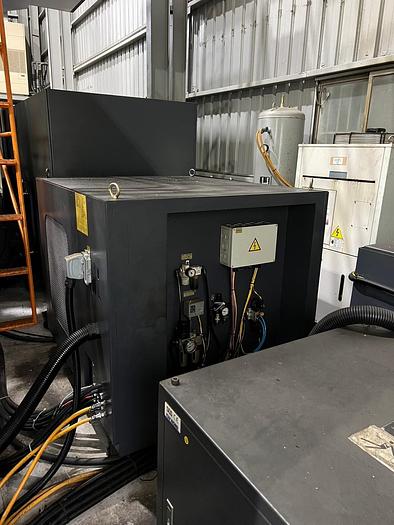

Air conditioner for electrical cabinet

Chip conveyor + bucket

Distance Spindle Nose to Table 200 - 1,400 mm

Specifications

ManufacturerAWEA
ModelMega 5 P4025
Year2019
ConditionUsed
Stock Number11147
Between columns2,700 mm
Spindle speeds15,000 rpm
Machining height1,400 mm
X axis travel4,000 mm
Y axis travel3,200 mm
Z axis travel1,200 mm

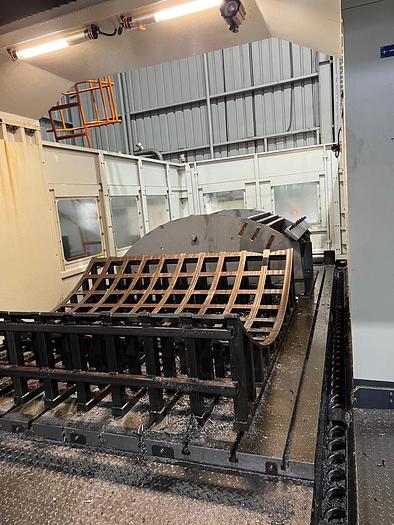

Table dimensions4,020 x 2,400 mm
Table capacity15 Ton
Spindle drive motor50 / 65 kW
Spindle taperHSK A100
