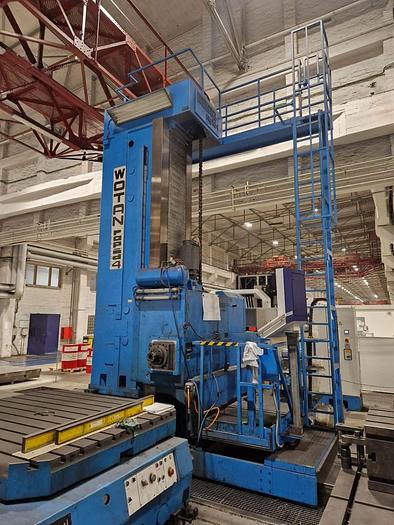

Wotan RAPID 4 CNC Floor Type Horizontal Boring & Milling Machine
Wotan RAPID 4 CNC Floor Type Horizontal Boring & Milling Machine
or
Call 770-509-0744
Description
Machine new in 1981. Rebuilt & Retrofitted In 2018

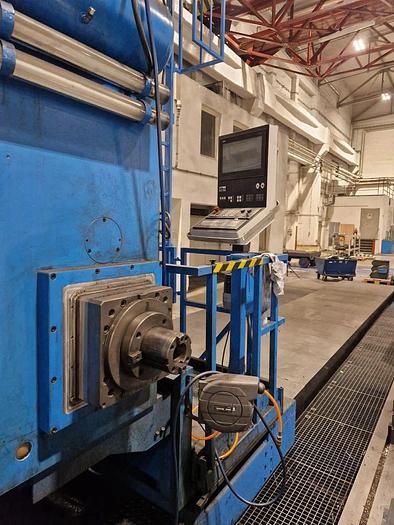

Siemens SINUMERIK 840D CNC Control
Angular Milling Head 45 kW
Specifications
| Manufacturer | Wotan |
| Model | RAPID 4 |
| Year | 2018 |
| Condition | Refurbished |
| Stock Number | 11152 |
| Spindle diameter | 130 mm |
| Spindle speeds | 1,200 rpm |
| X axis travel | 11,000 mm |
| Y axis travel | 2,900 mm |
| Z axis travel | 600 mm |
| Table dimensions | 1,800 x 2,000 mm |
| Table capacity | 12 Ton |
| W axis travel | 600 mm |
| Ram dimensions | 340 x 340 mm |
| Spindle motor power | 63 kW |
| Taper of boring spindle | SK 50 |
| Electrics, AC 3 Phase | 400 V, 50 Hz |
