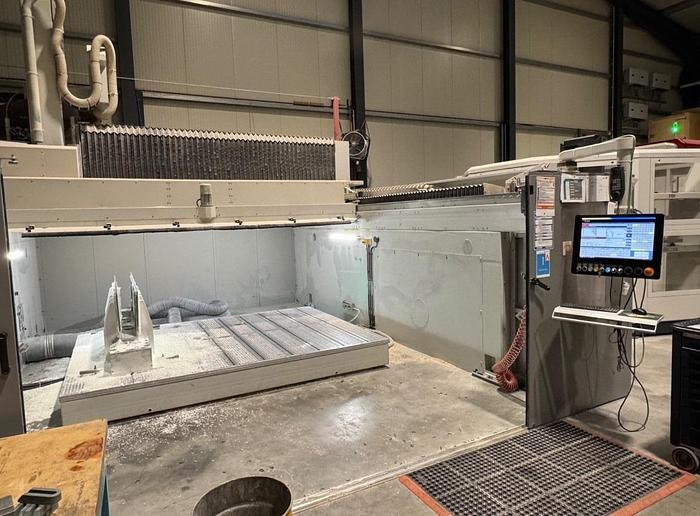

CMS MX5 30/38 Z1400 PX5 CNC Gantry Type Milling Machine
CMS MX5 30/38 Z1400 PX5 CNC Gantry Type Milling Machine
orCall 770-509-0744
Description
- Siemens 840D SL CNC Control
- HT2 manual control unit, PC in the control cabinet, 21.5 inch, TFT keyboard with mouse
- Operator console is mounted on a swivel arm on the right-hand side

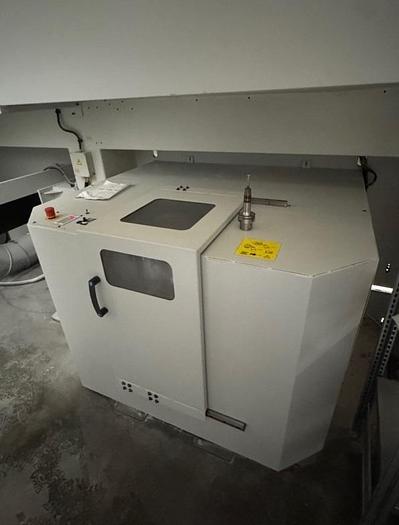

- 30 Position Disc Tool Magazine Automatic Tool Changer

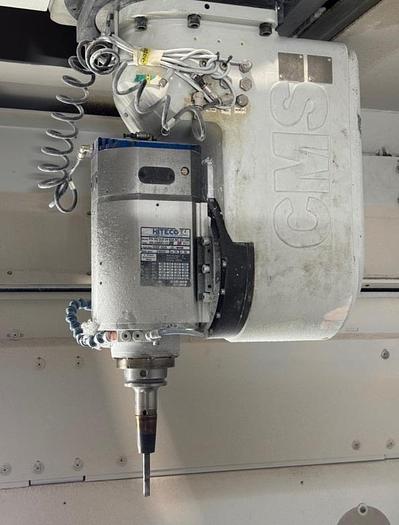

- The synchronized electro-spindle is controlled by a CNC integrated drive
- Operator console is mounted on a swivel arm on the right-hand side

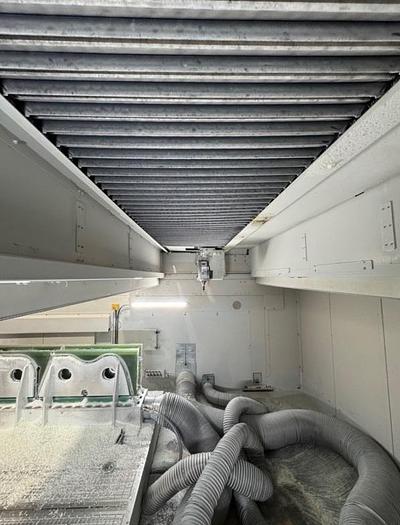

- Work area cover covered by two bellows in X and Y incl. LED work area lighting
- LED work area lighting covered from above
- Increased dust protection, minimum quantity lubrication, electronic
- Renishaw RMP 60 electronic measuring probe
- Renishaw NC4-F230 tool measuring system, TS27R rotary axis measuring unit, prepared for extraction at the spindle,
- Preparation for room extraction
- 1 Becker glanded pump
- Compressed air system
- Centralized lubrication
- Standard switch cabinet
- 1 spare HSK 63A milling spindle available
Specifications
| Manufacturer | CMS |
| Model | MX5 30/38 Z1400 PX5 CNC |
| Year | 2019 |
| Condition | Used |
| Stock Number | 11156 |
| Spindle speeds | 24,000 rpm |
| X axis travel | 3,000 mm |
| Y axis travel | 3,800 mm |
| Z axis travel | 1,400 mm |
| Table dimensions | 2,400 x 3,200 mm |
| Spindle drive | 20 kW |
| Rapid traverse longitudinal & cross | 54 m/min |
| Rapid traverse z axis | 35 m/min |
| Spindle taper | HSK 63A |
| C axis | ±270° |
| Head swivability | ±120° |
| Machine dimensions | 6,500 x 7,500 x 4,800 mm |
