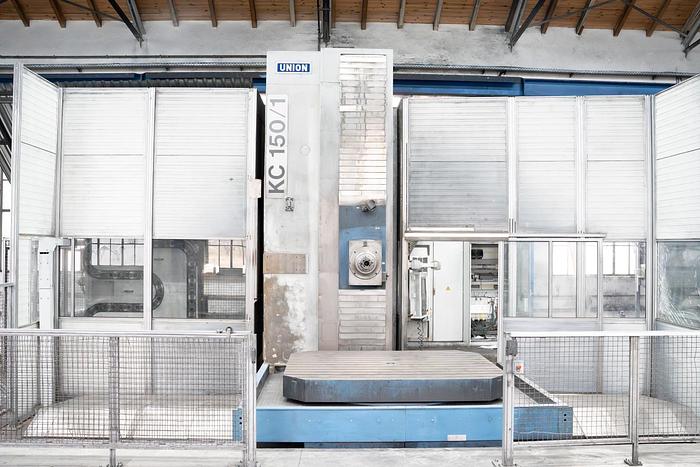

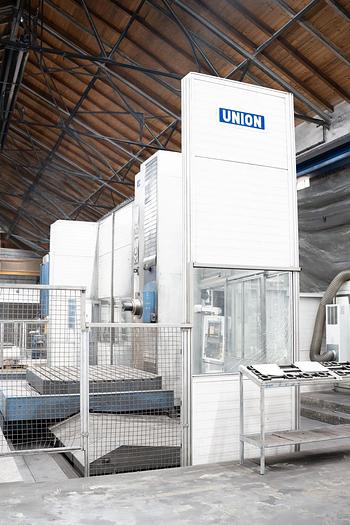

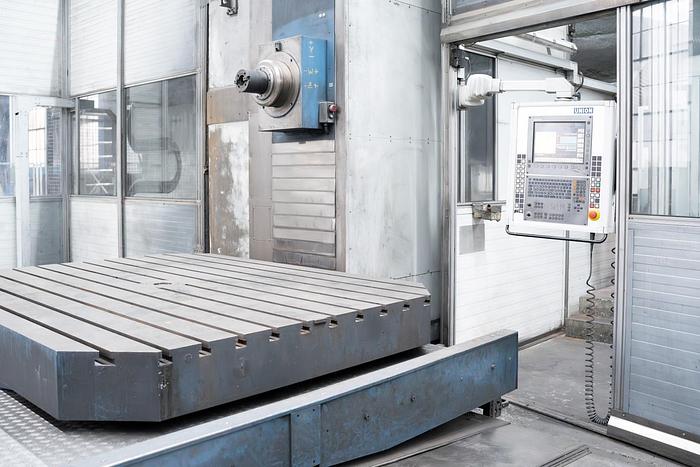

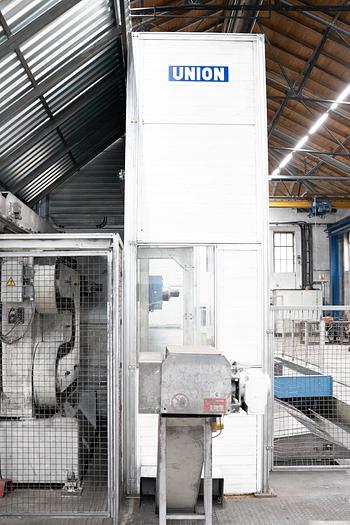

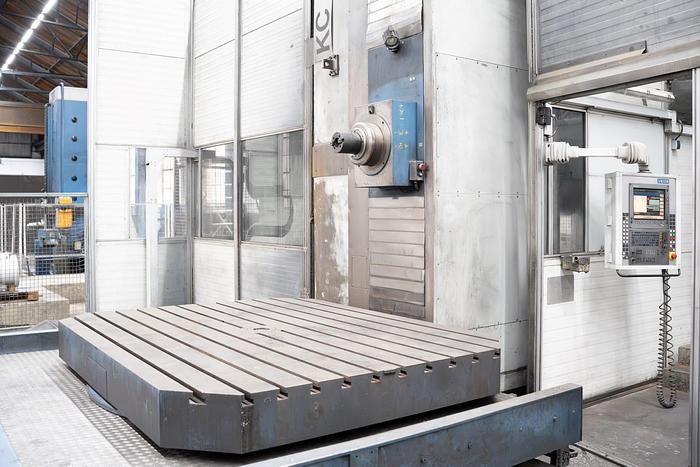

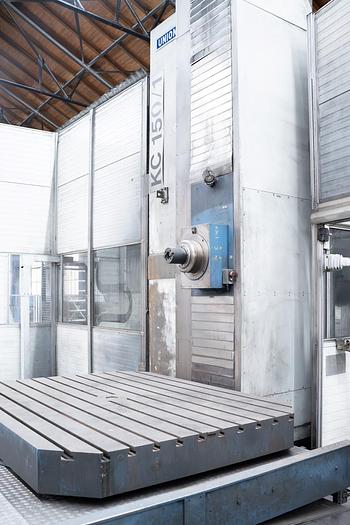

Union KC 150 CNC Table Type Horizontal Boring Machine
Union KC 150 CNC Table Type Horizontal Boring Machine
or
Call 770-509-0744
Description

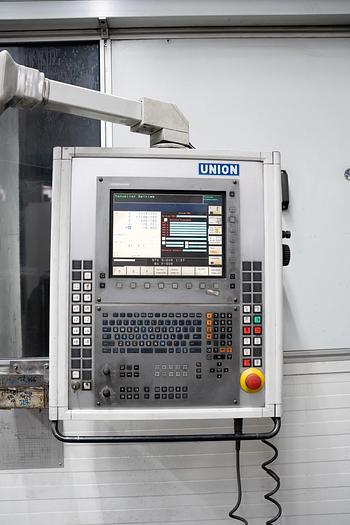

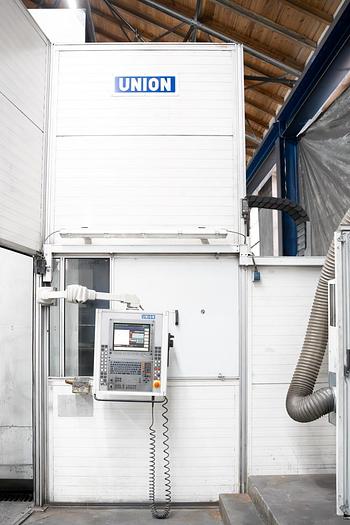

Heidenhain iTNC 530 CNC Control
60 Position Automatic Tool Changer

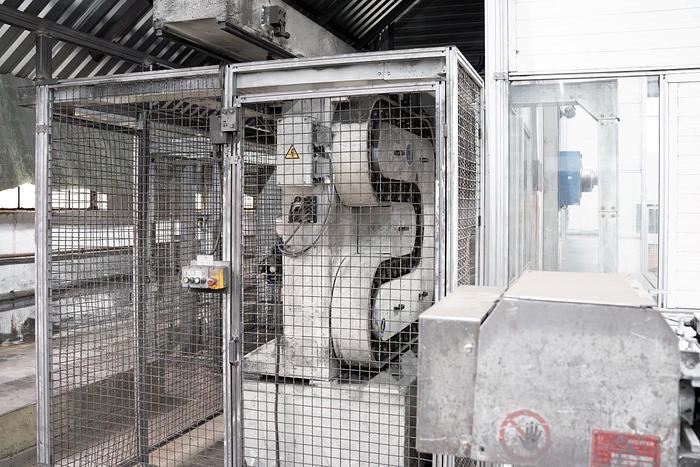

Chip conveyor

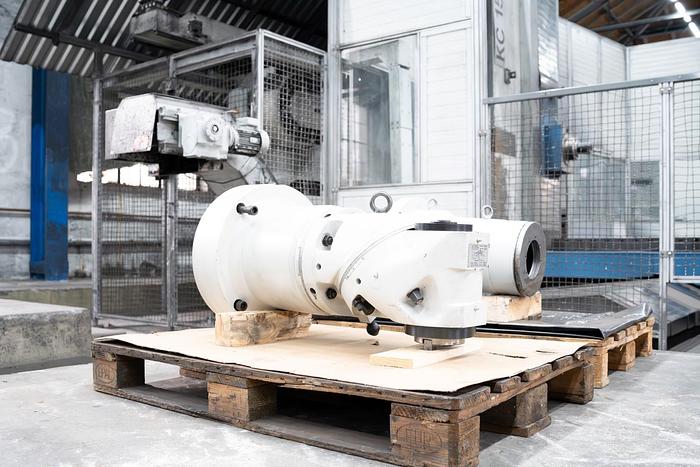

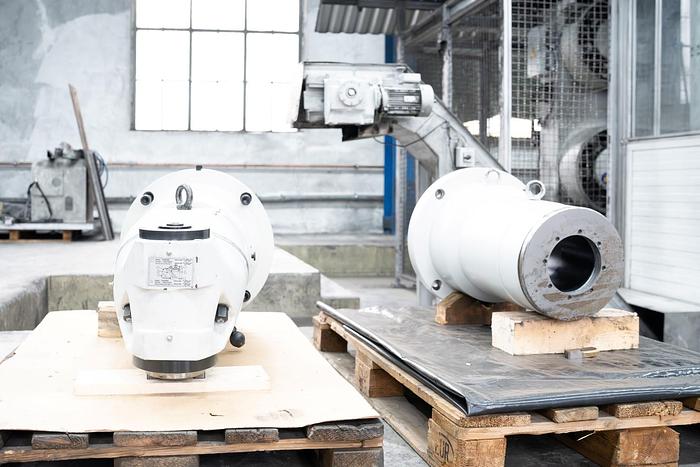

Universal manual Milling Head
Spindle sleeve
Specifications
| Manufacturer | Union |
| Model | KC 150 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 11157 |
| Spindle diameter | 150 mm |
| Spindle speeds | 2,800 rpm |
| X axis travel | 4,000 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,500 mm |

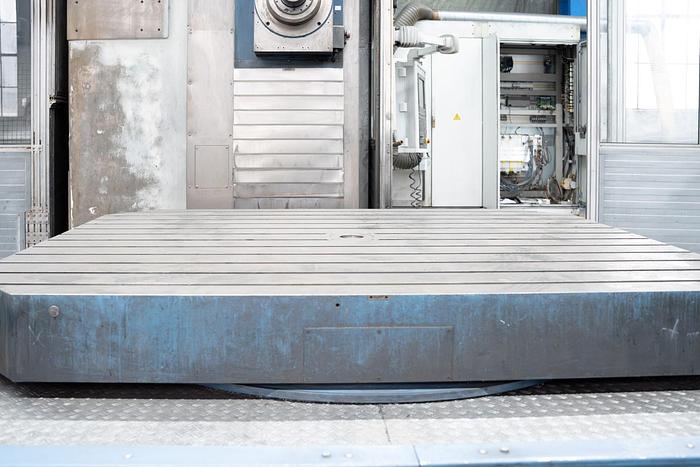

| Table dimensions | 2,500 x 2,000 mm |
| Table capacity | 20 Ton |
| W axis travel | 750 mm |
| Spindle power | 46 kW |
| Spindle torque | 2179 Nm |
| Spindle taper | ISO 50 |
| Cutting feed | 6,000 mm/min |
| Rapid feeds | 15 m/min |
