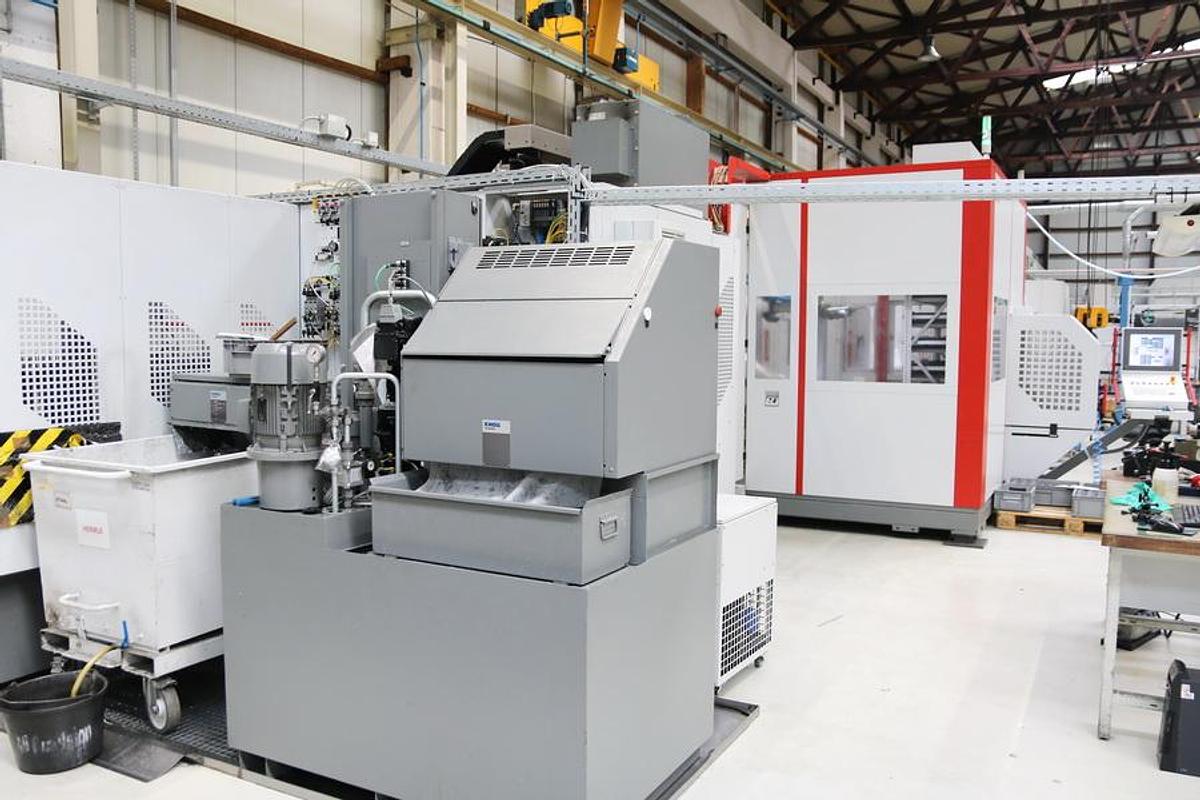

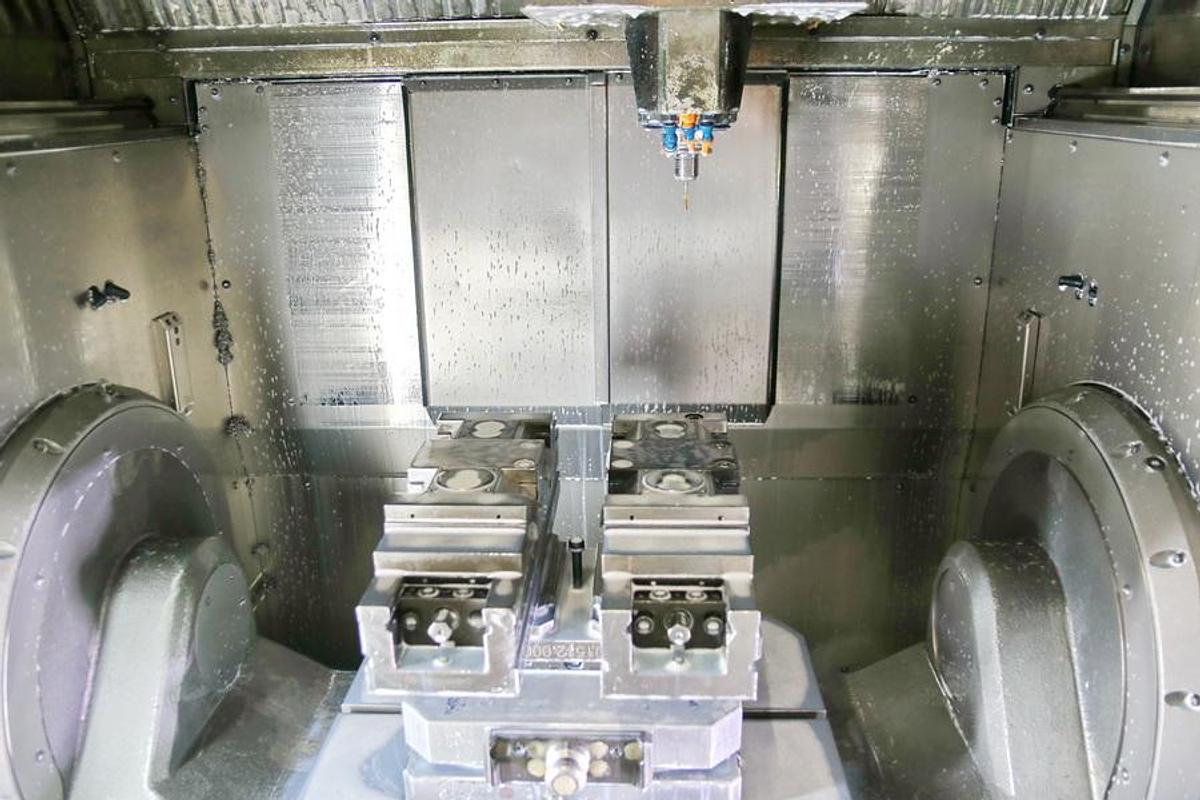

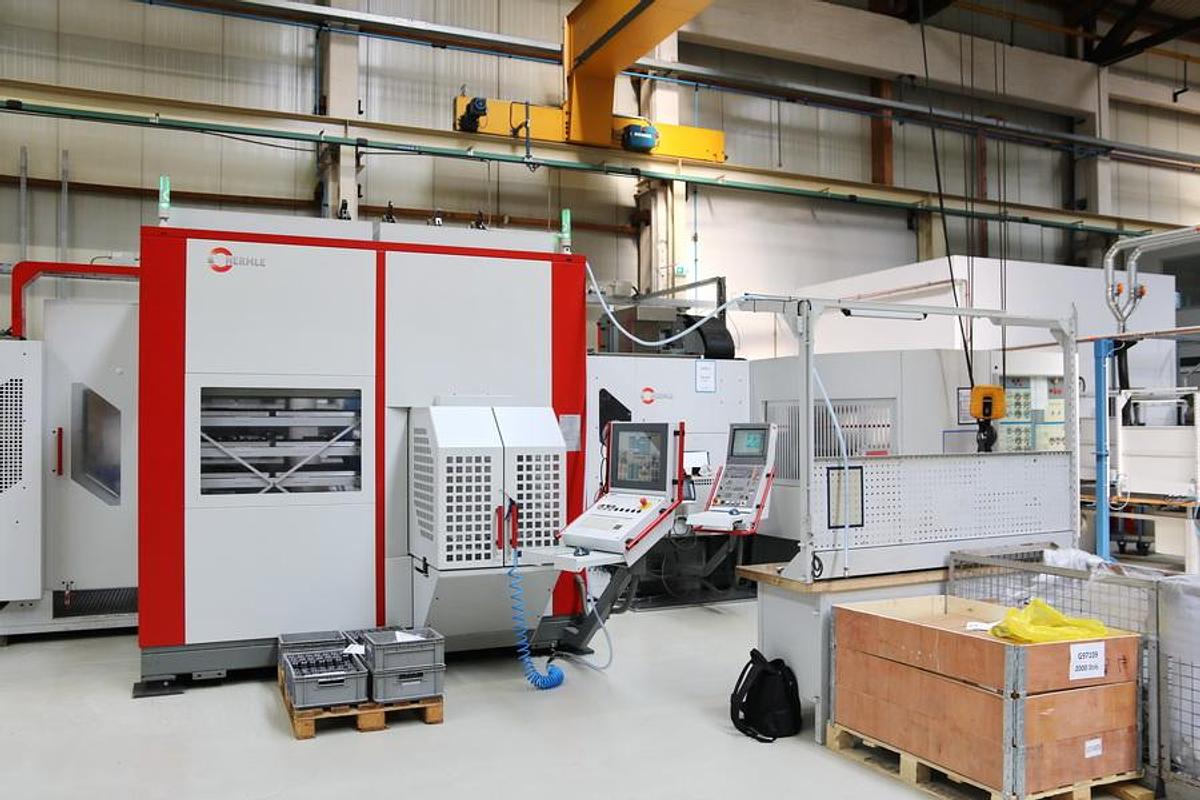

Hermle C 30 U CNC 5-Axis Universal Machining Center
Hermle C 30 U CNC 5-Axis Universal Machining Center
Description

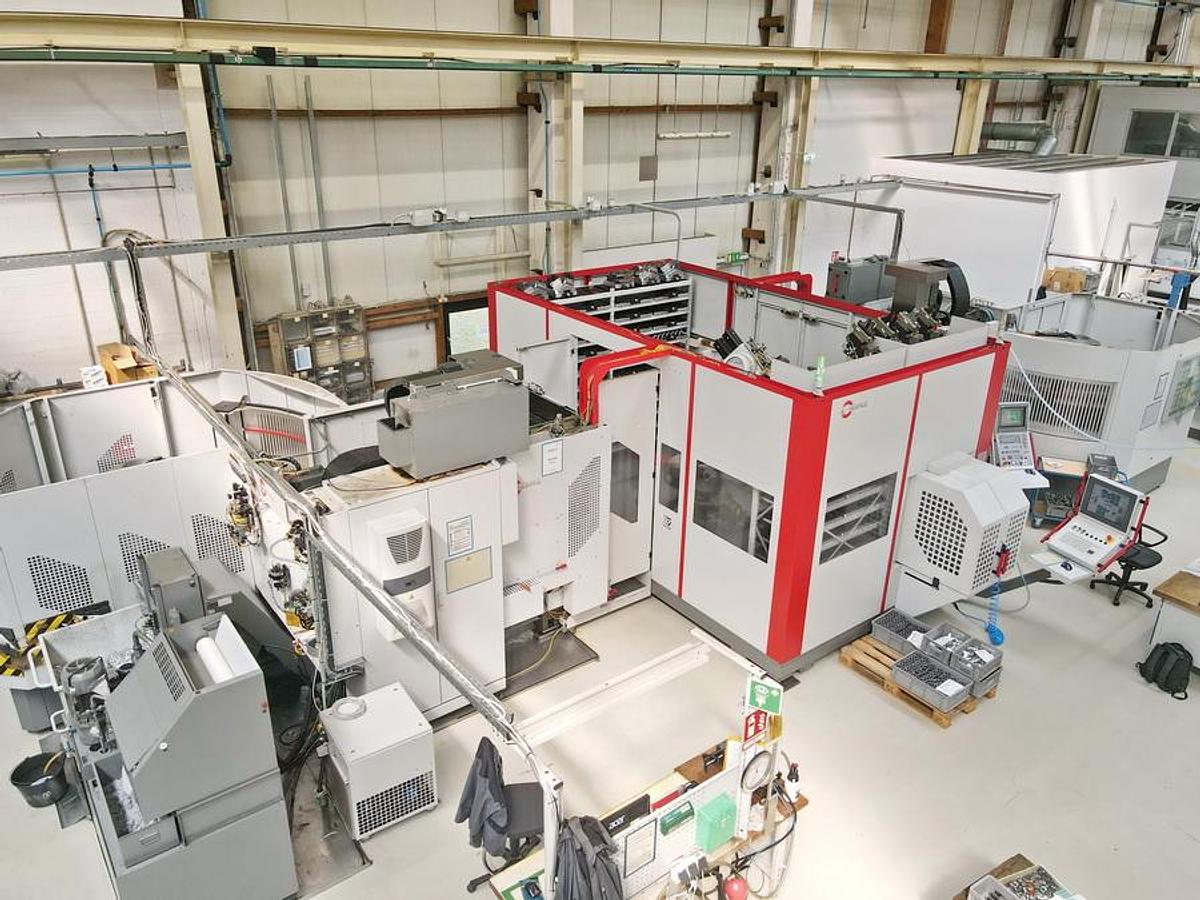

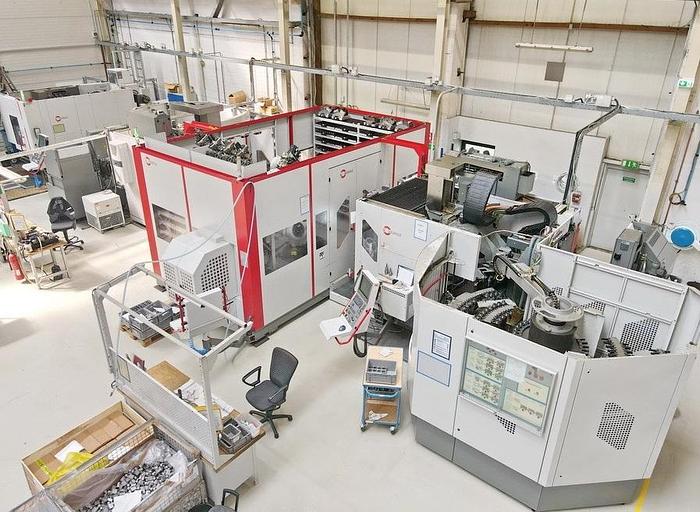

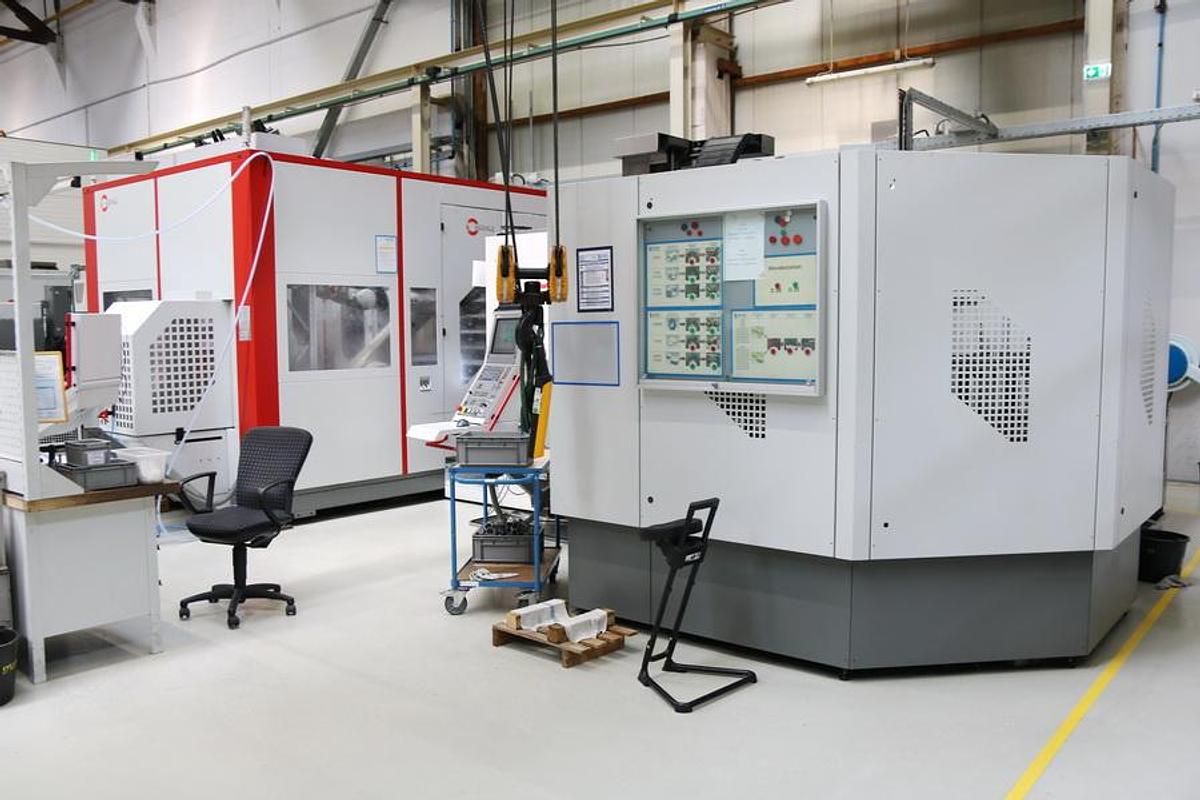

Includes 2x Hermle C30 U Machines + 1x Kuka KR 180R2900 Prime Pallet Changer

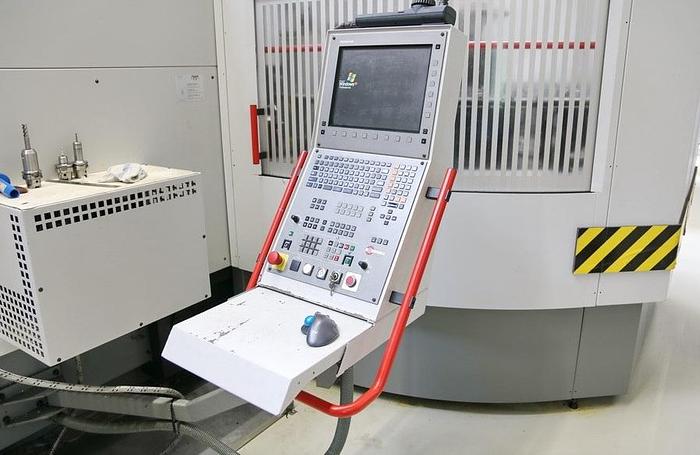

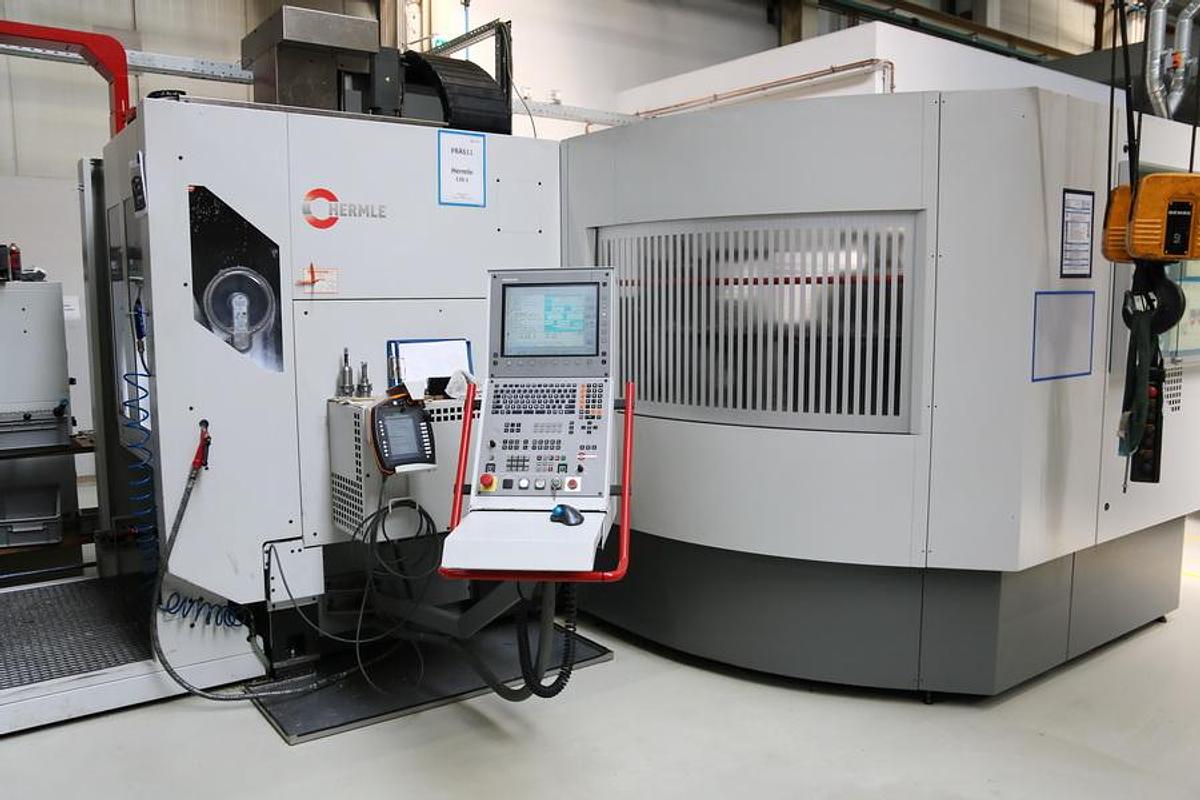

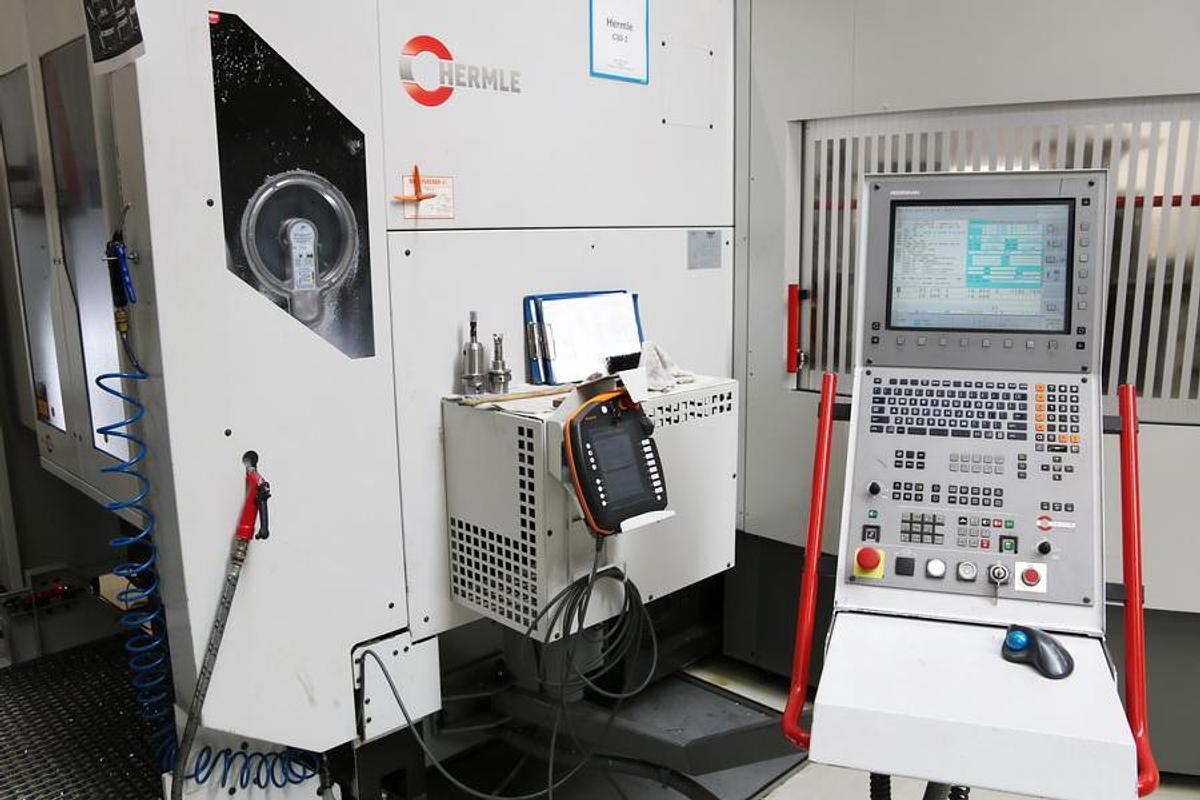

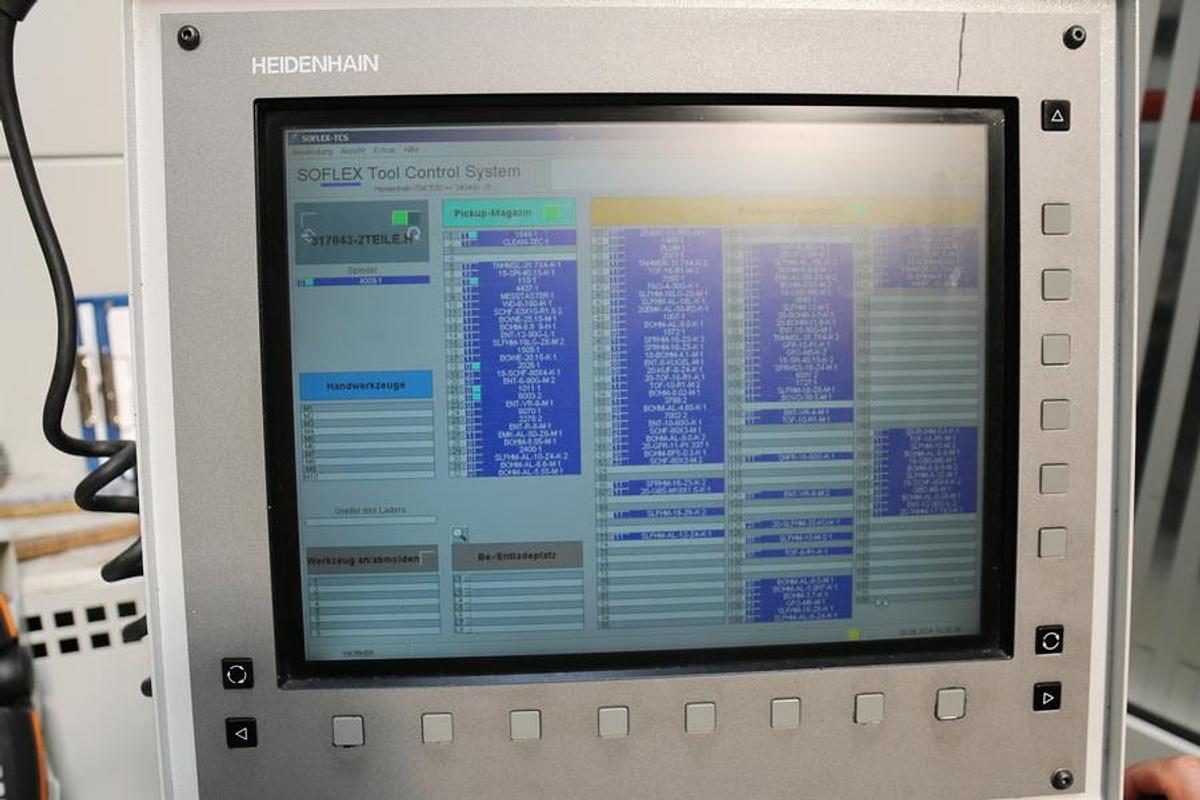

Heidenhain iTNC 530 CNC Control
5 Axis - CNC Machining Center Universal

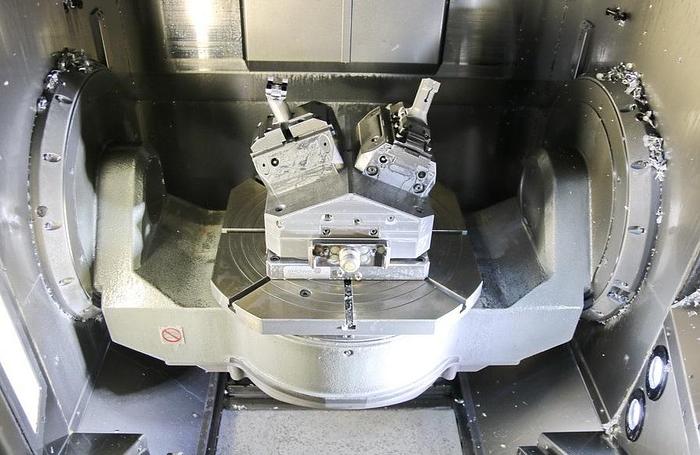

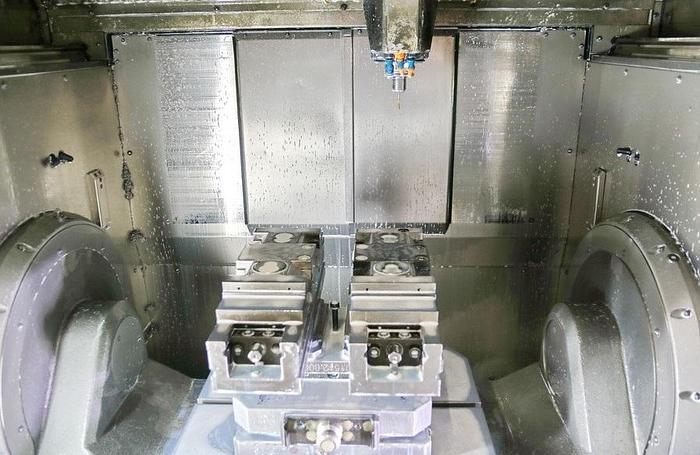

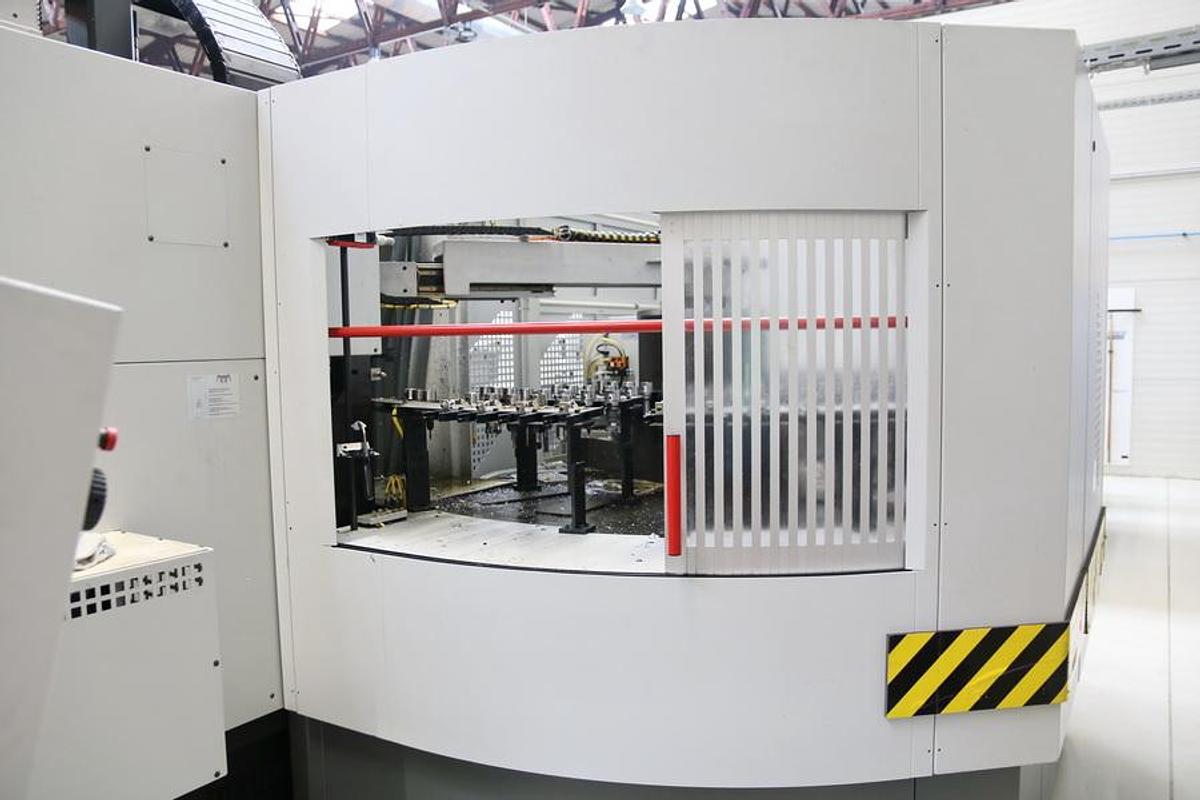

NC-Rotary Swiveling Table

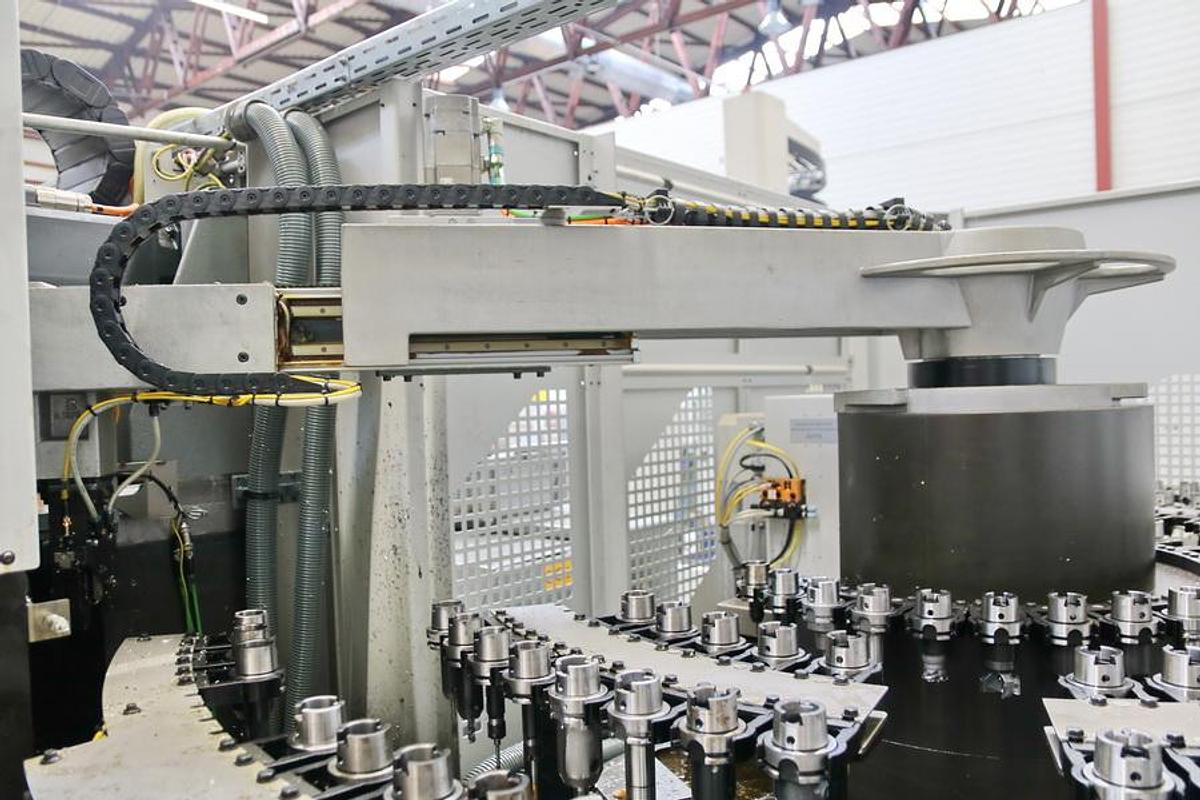

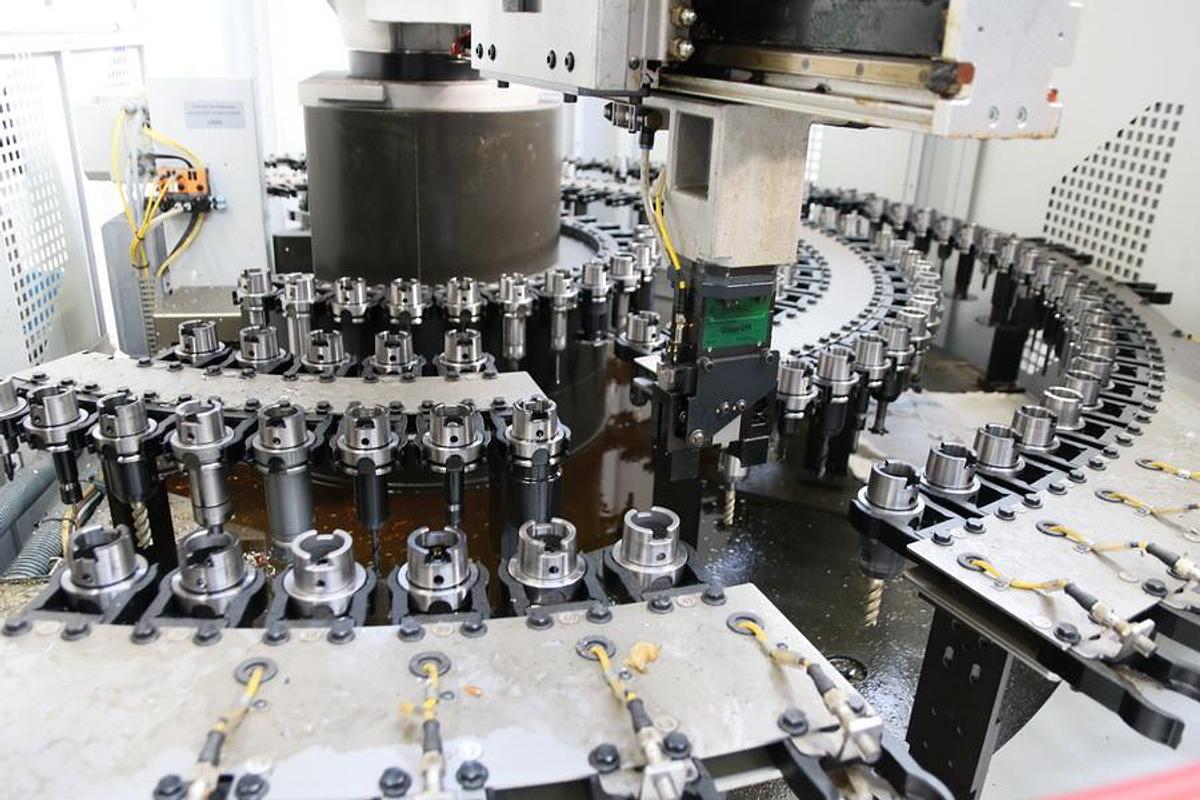

Automatic Tool Changer 32 pos. + 157 pos. extern
Coolant System
Through spindle coolant
High pressure coolant 80 bar
Chip conveyor
Oil mist extraction
Signal-Light

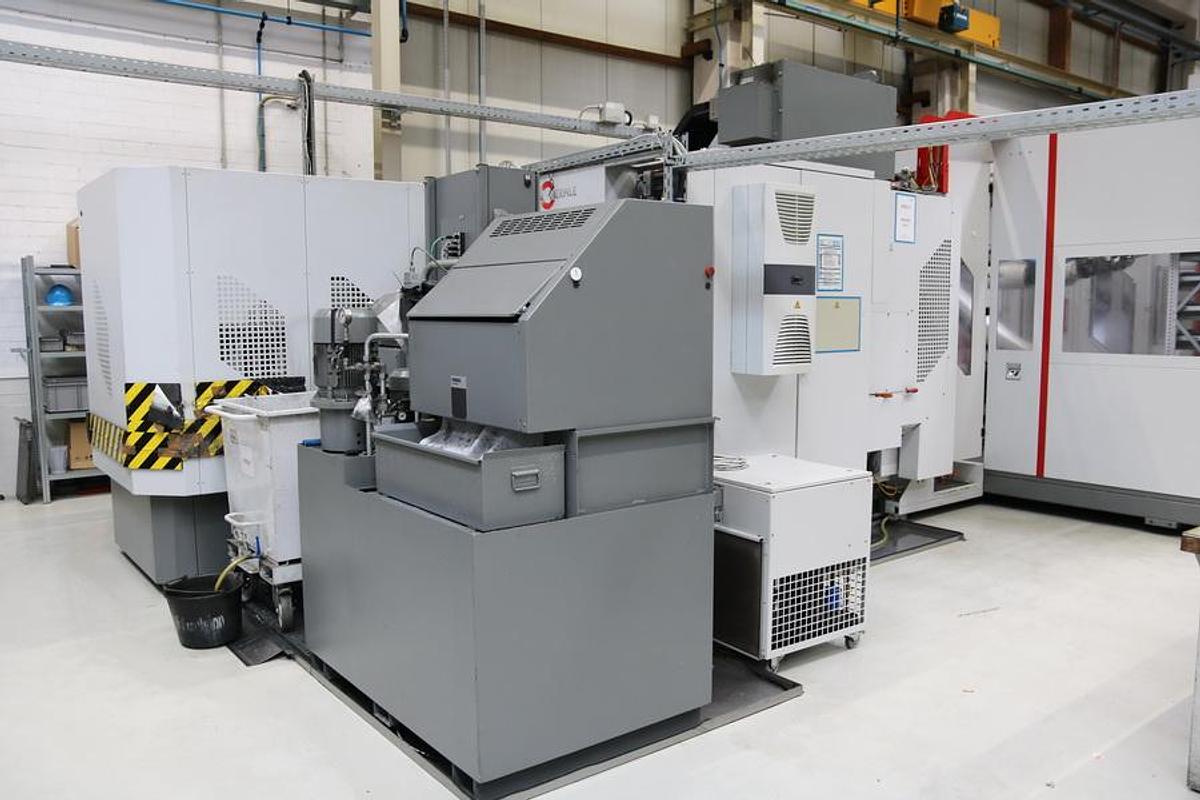

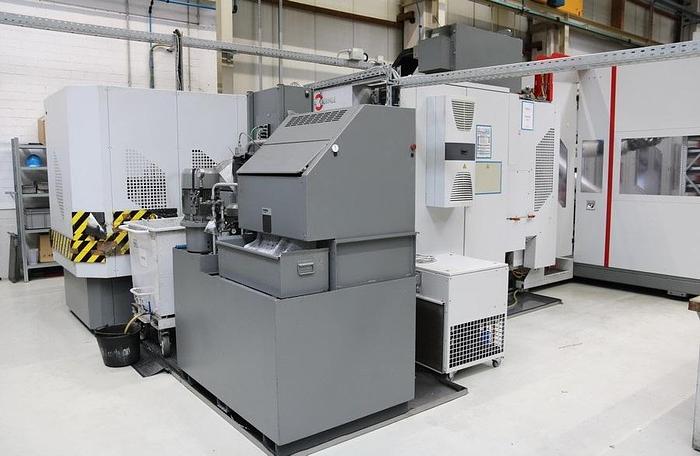

Paper band filter
Spindle oil cooler
Pallet changer 66 pos.
Tool setting

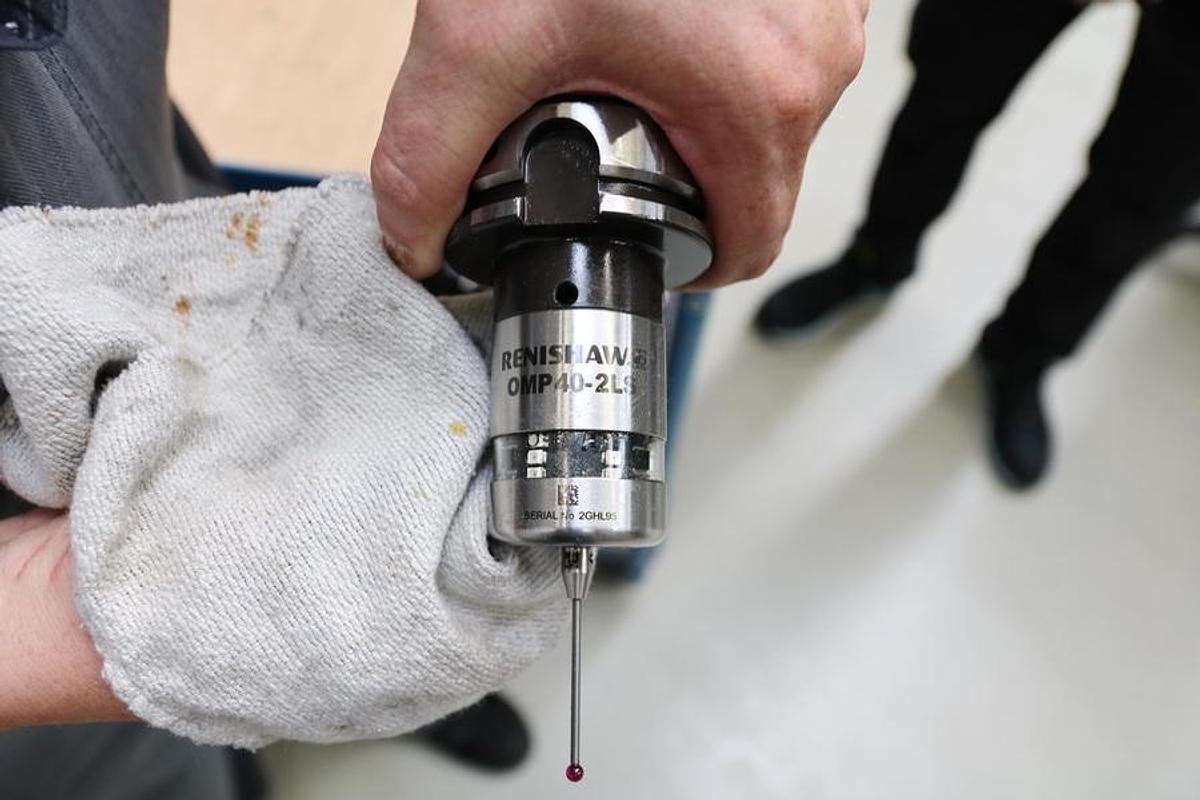

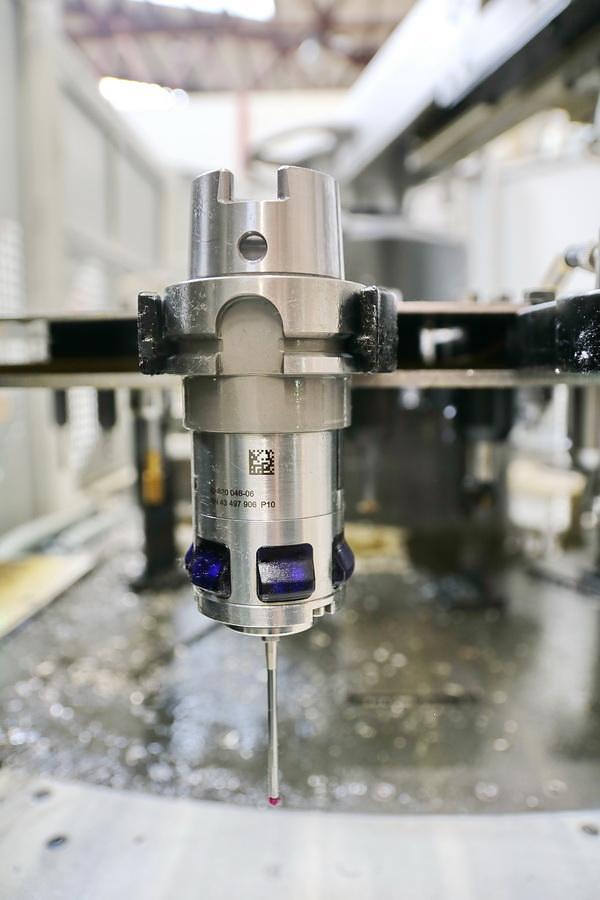

Test probe Renishaw OMP 40-2LS
Test probe Heidenhain TS 440

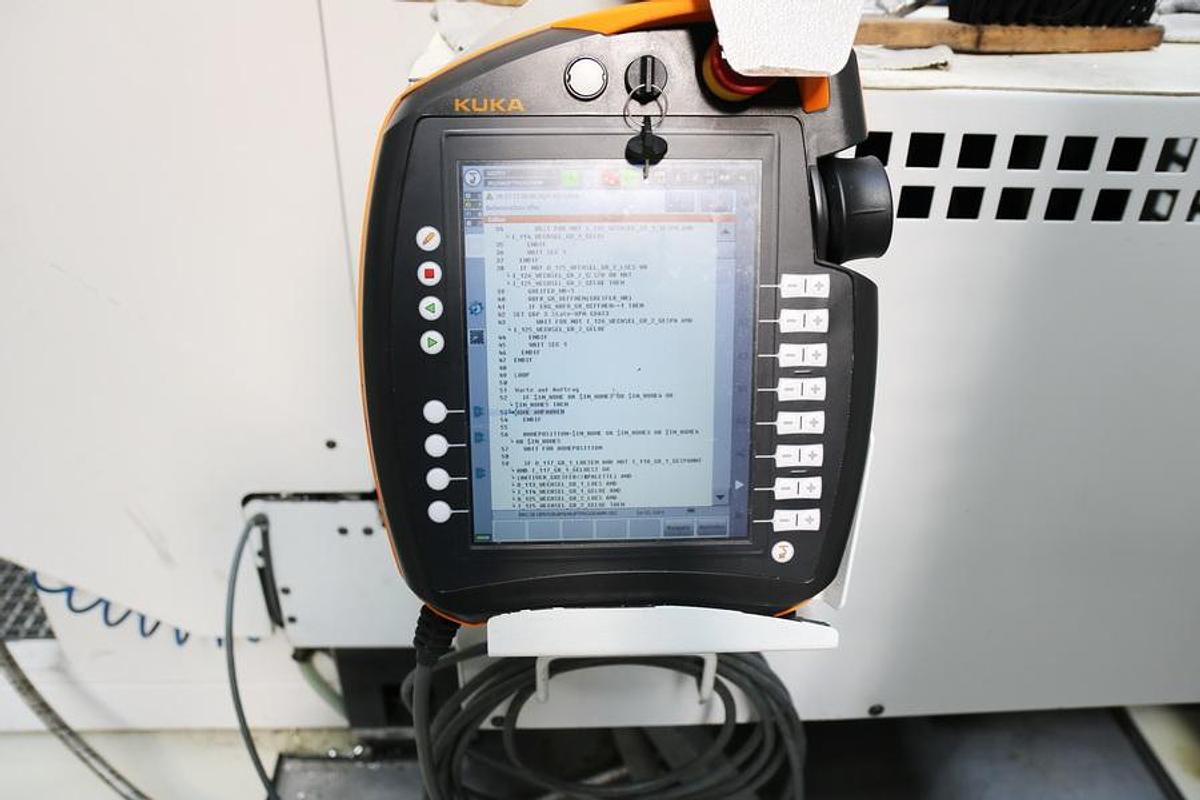

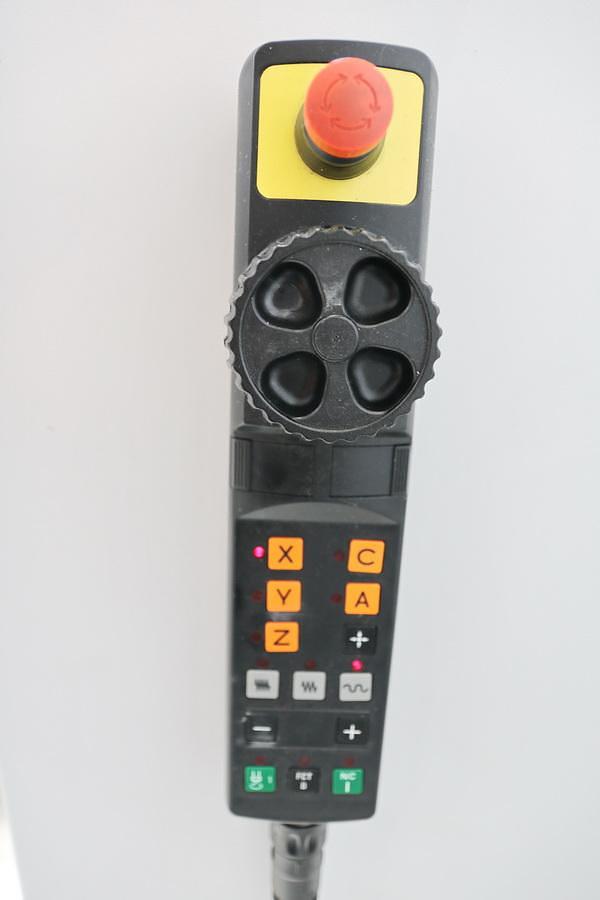

Electronic hand wheel (Kuka)
Tool Presetter 32 Position - HSK A63
Max Tool Diameter 80 mm
Max Tool Diameter with free Tool Box 125 mm
Max Tool Length 300 mm
Max Tool Weight 8 kg

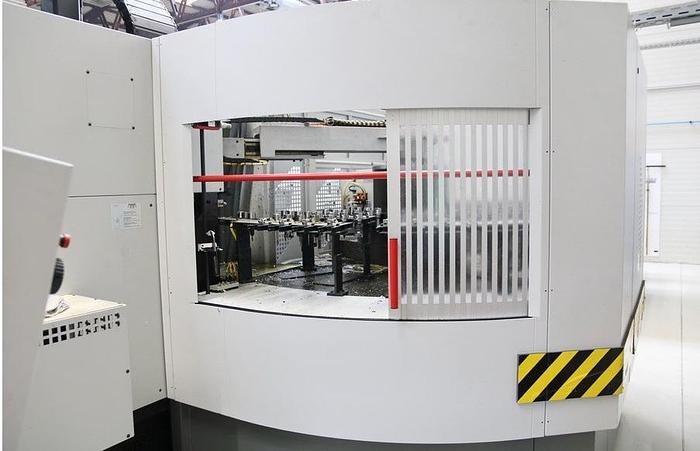

HERMLE - C 30 U

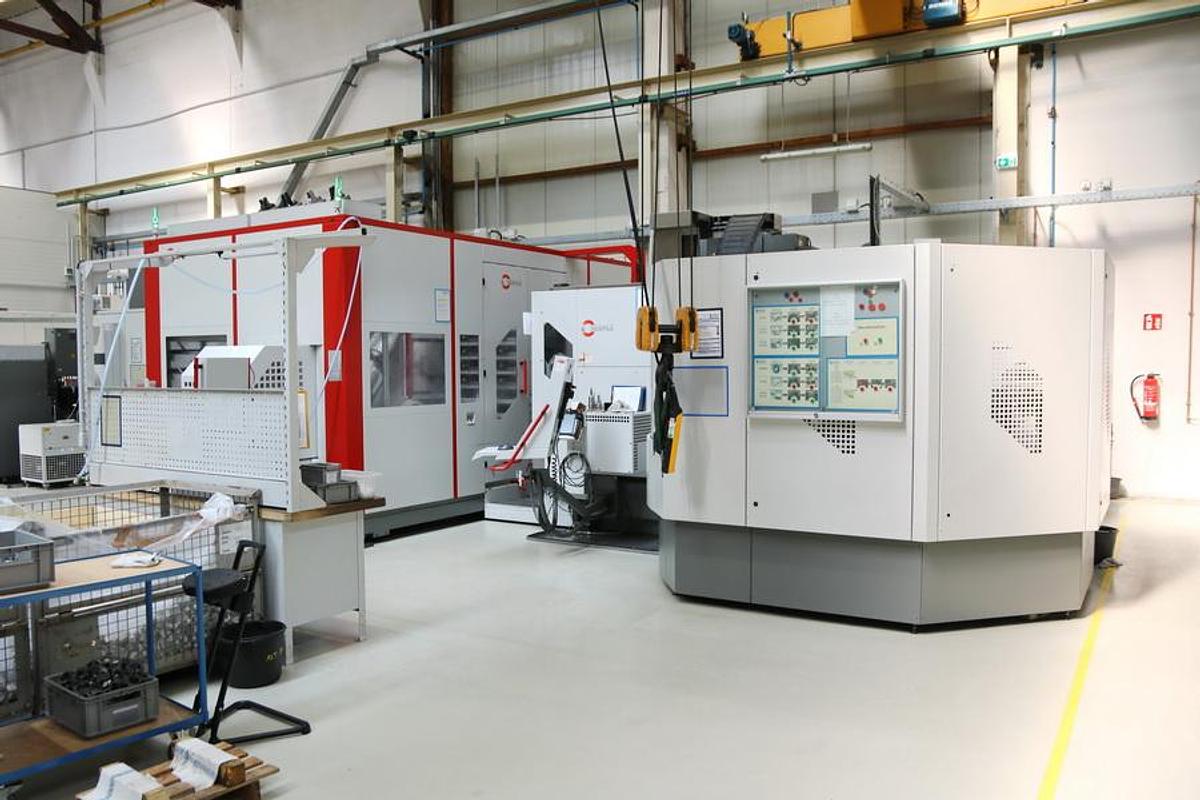

2x Hermle C 30 U
Linear axes dynamic version
6-fold rotary union
Blown air through the center of the spindle
Automatic cabin door
Rotating transparent window

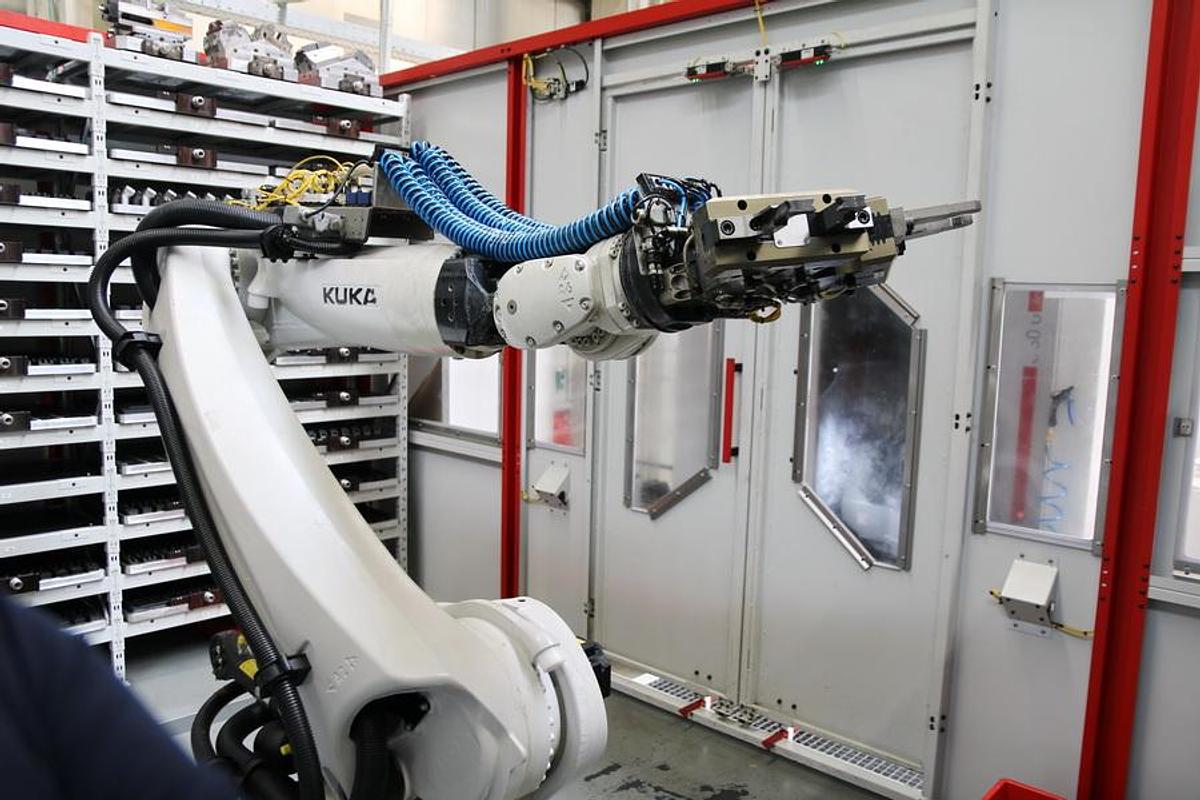

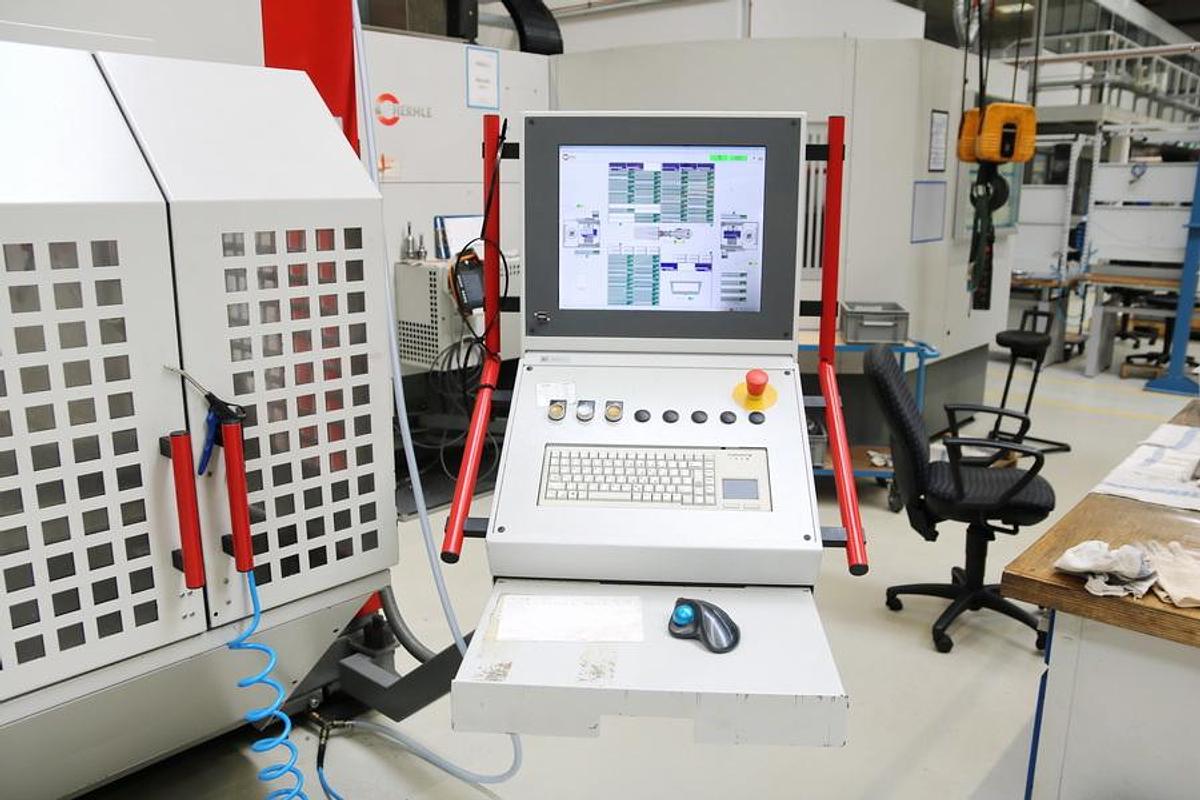

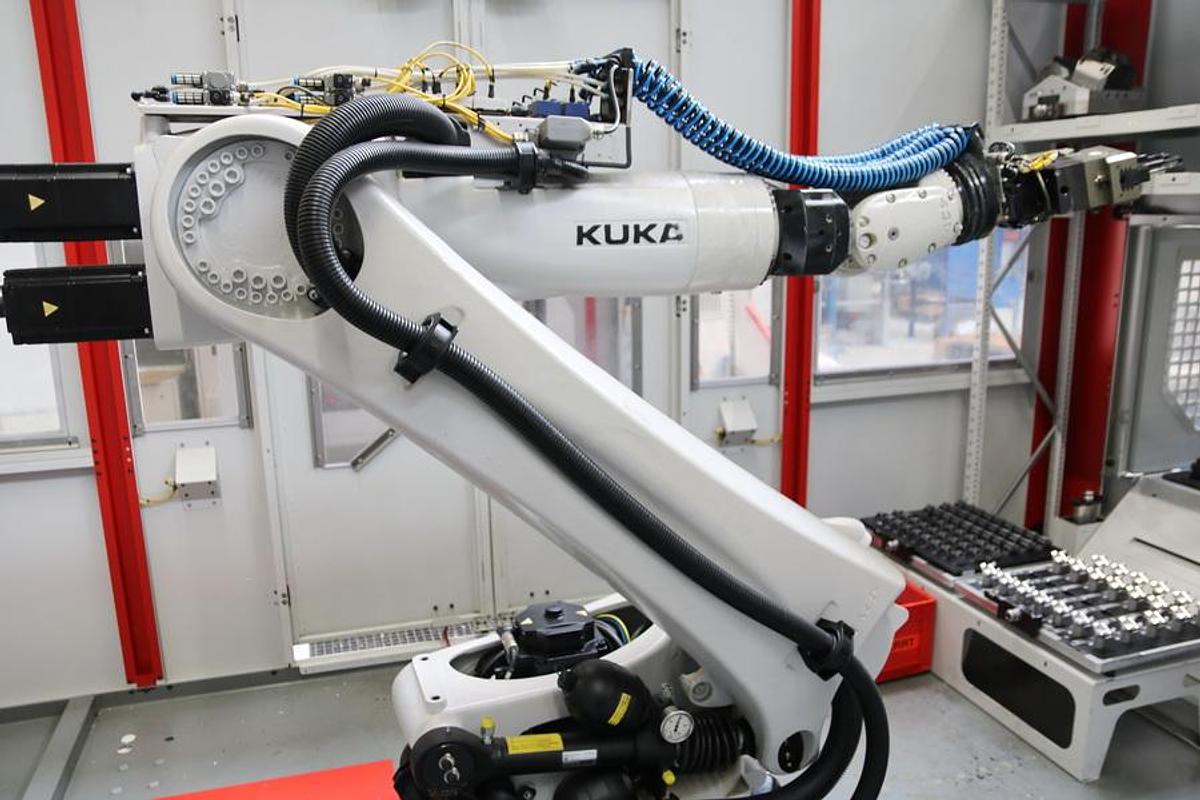

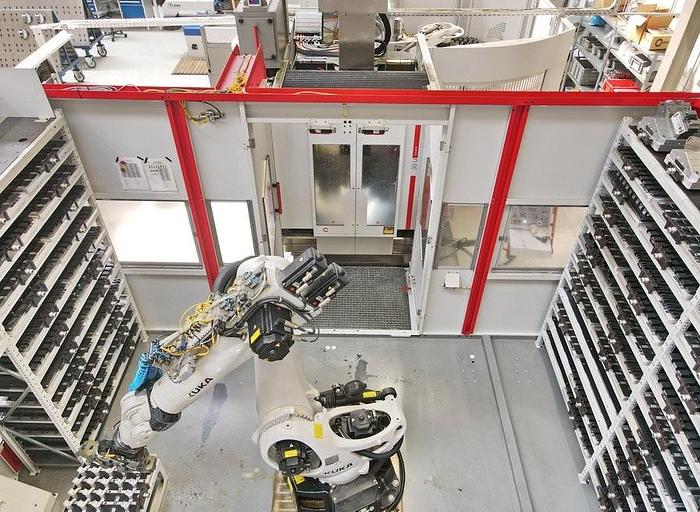

1x Kuka KR 180 R2900 prime
6 axes
Load capacity: 180 kg
Reach: 2,896 mm

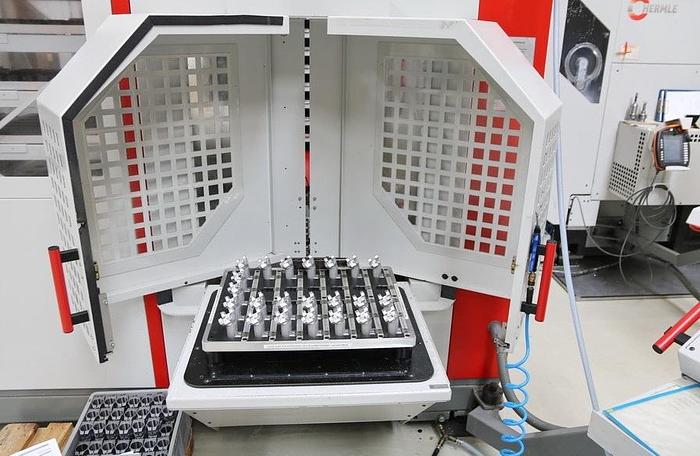

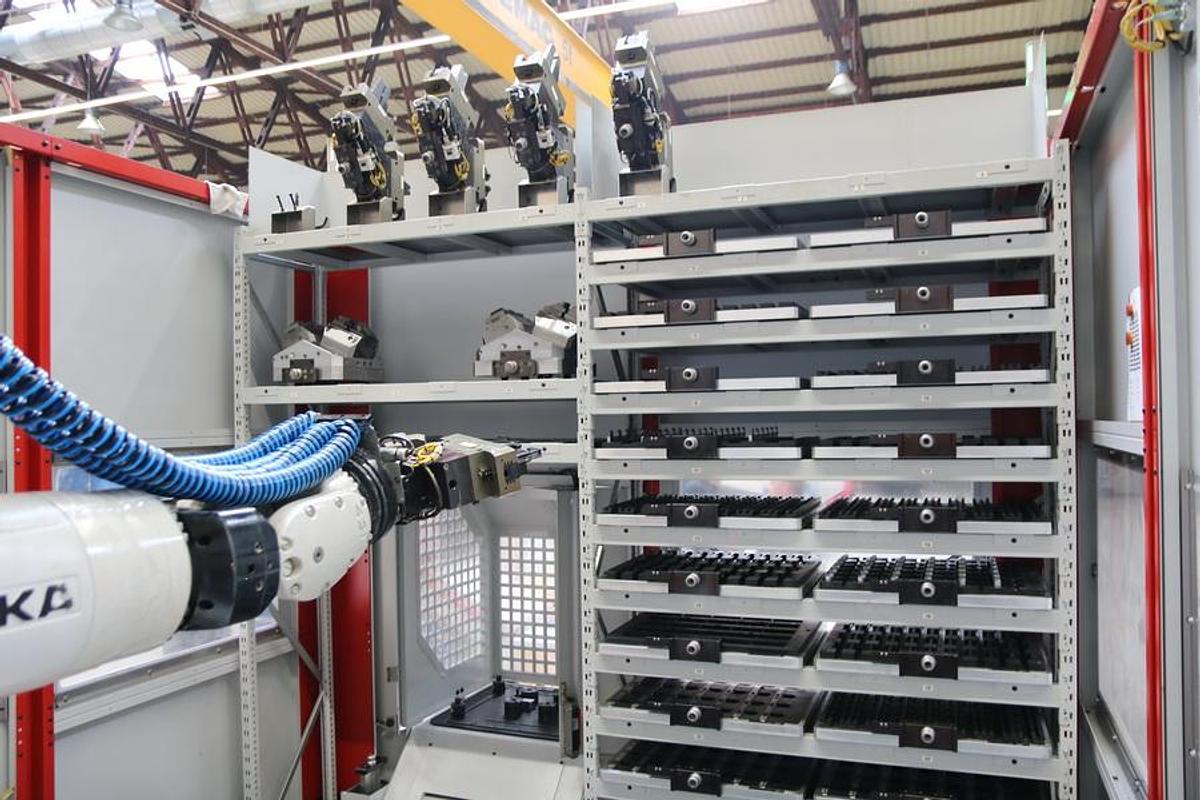

66x spaces for workpiece pallets
2x changing places
1x turning station

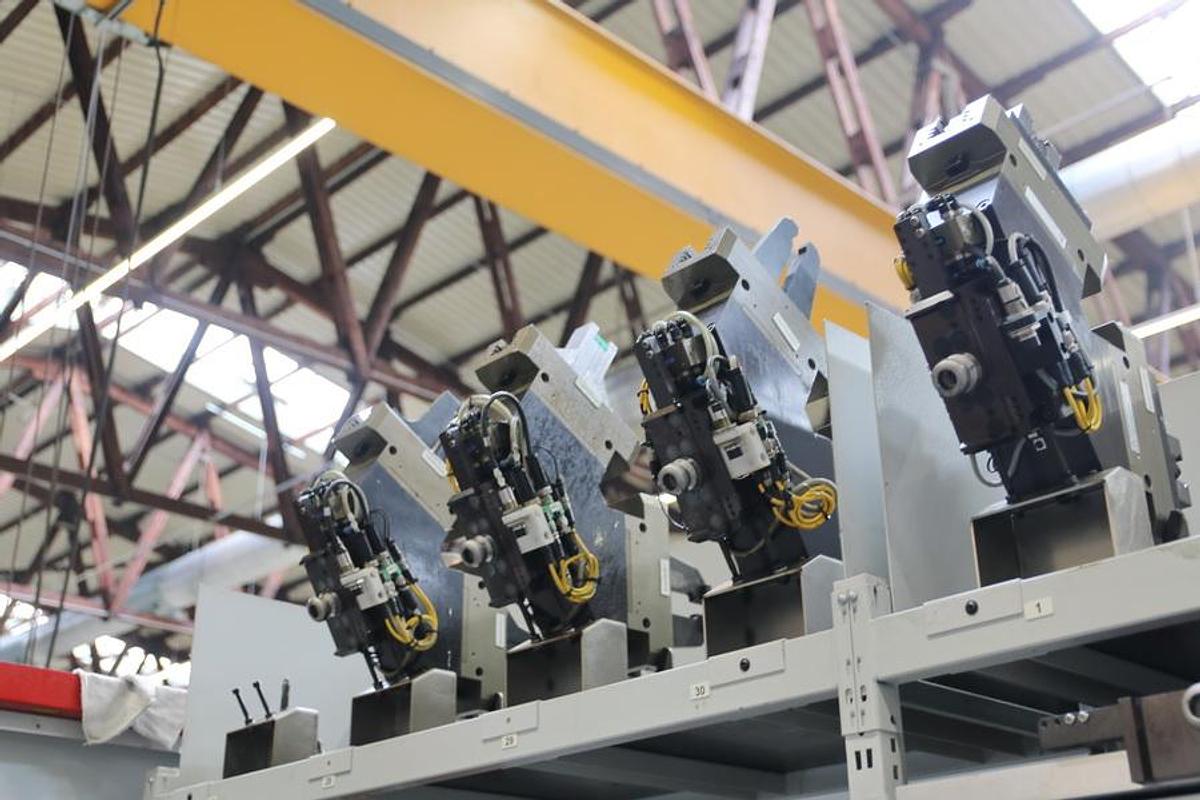

8x gripper spaces

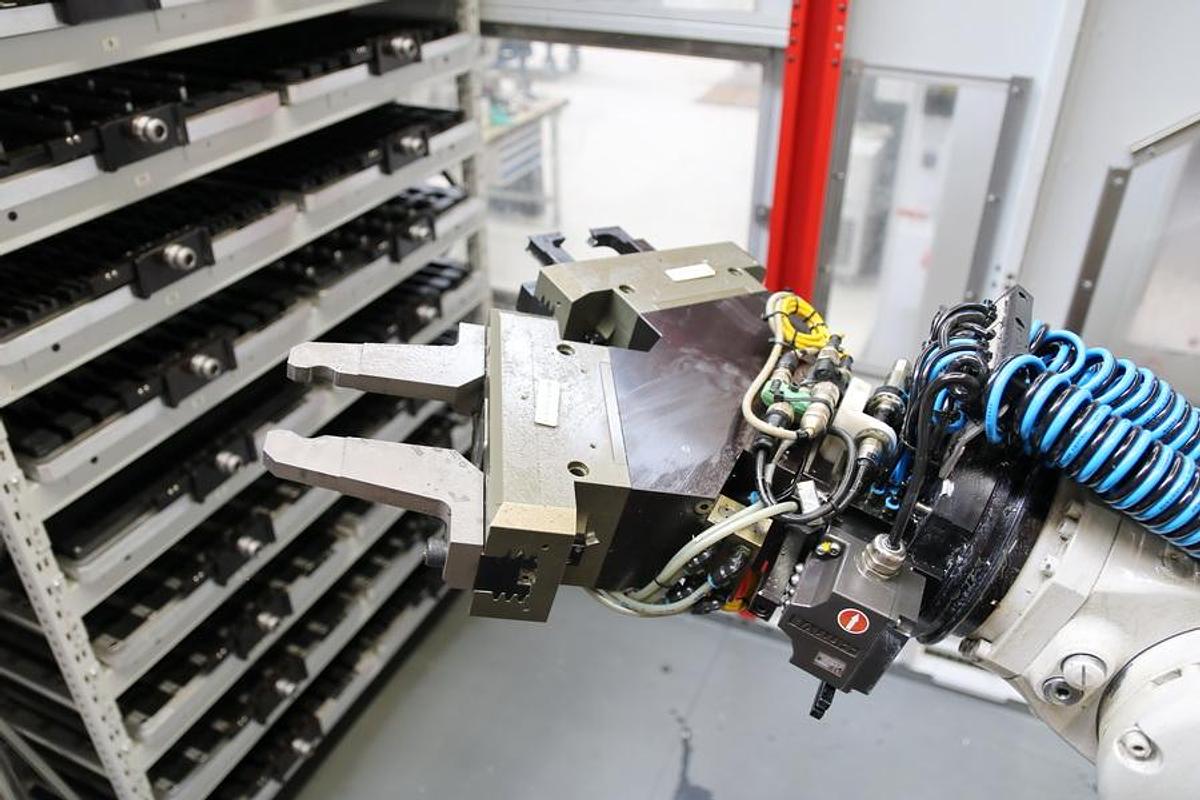

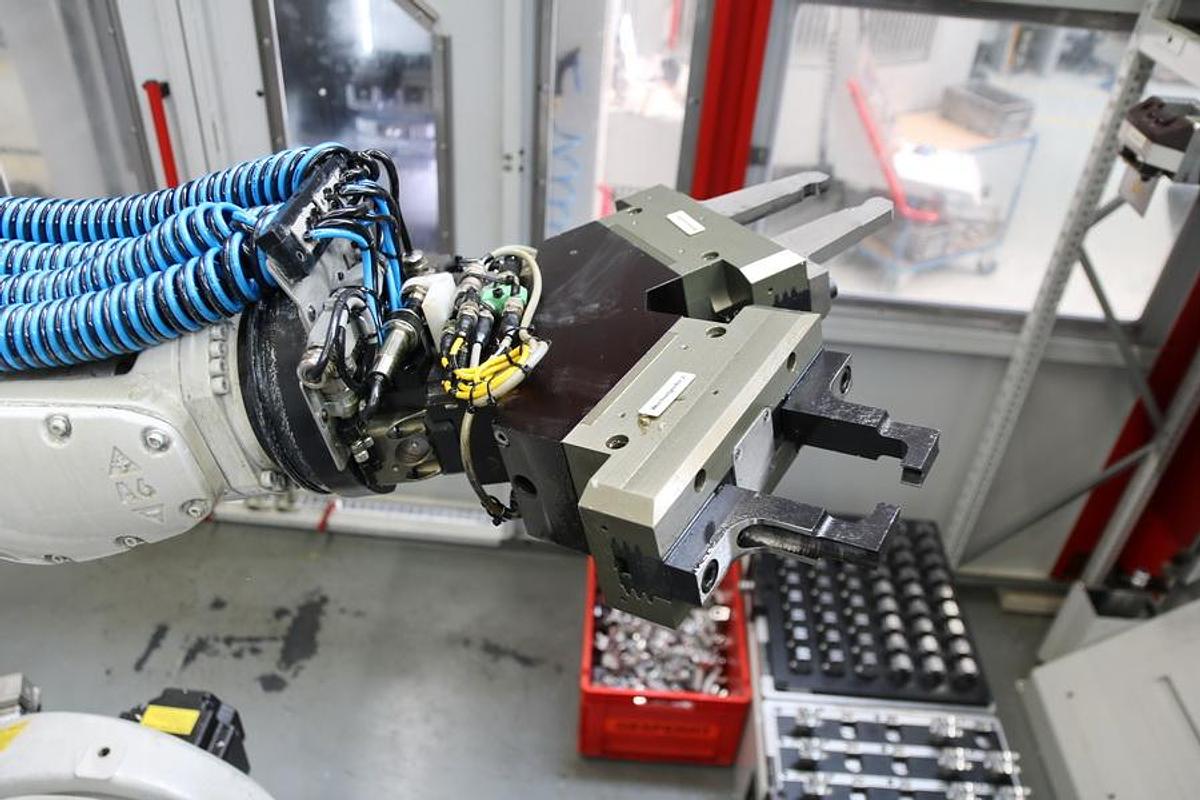

1x Schunk gripper

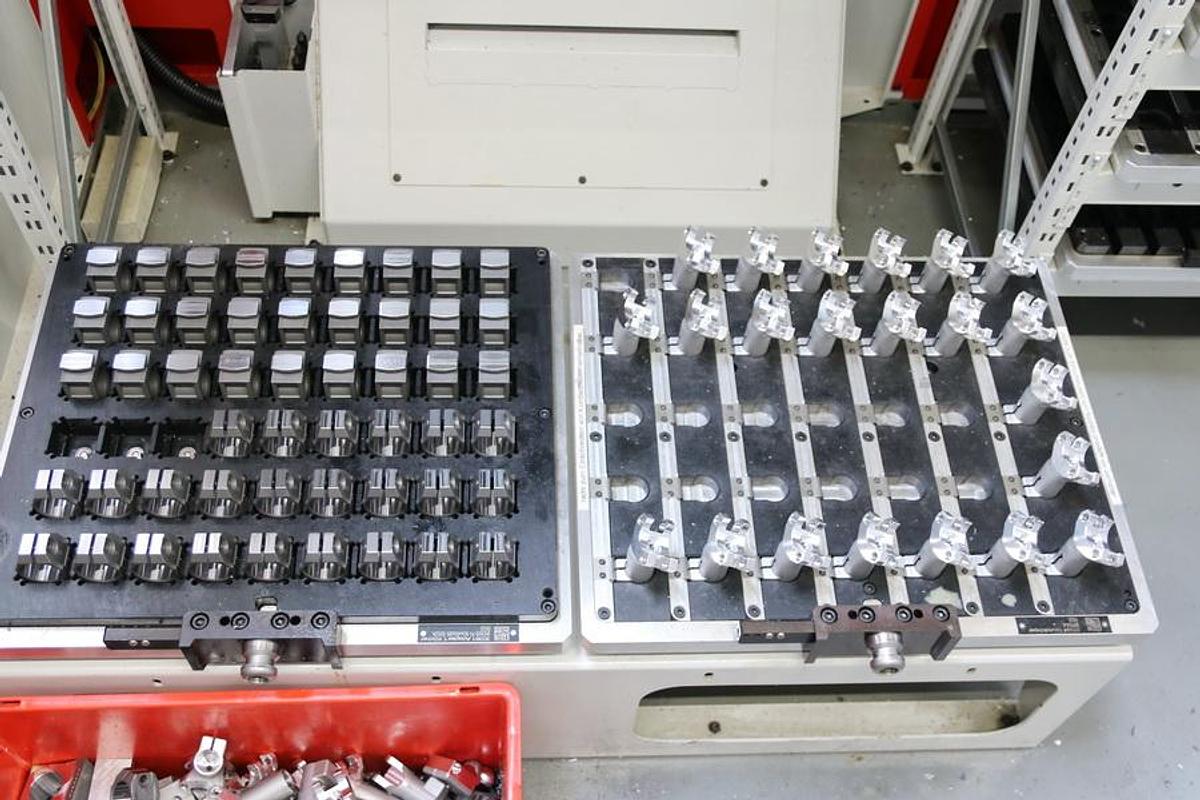

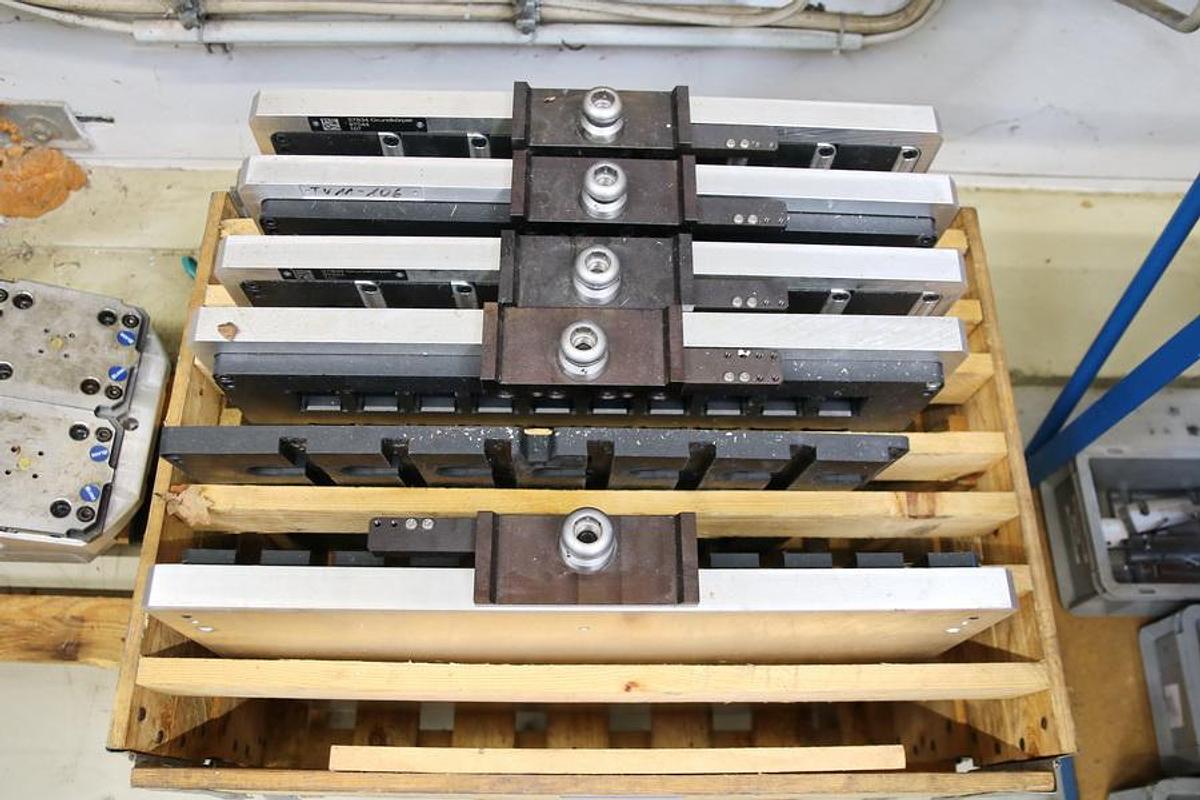

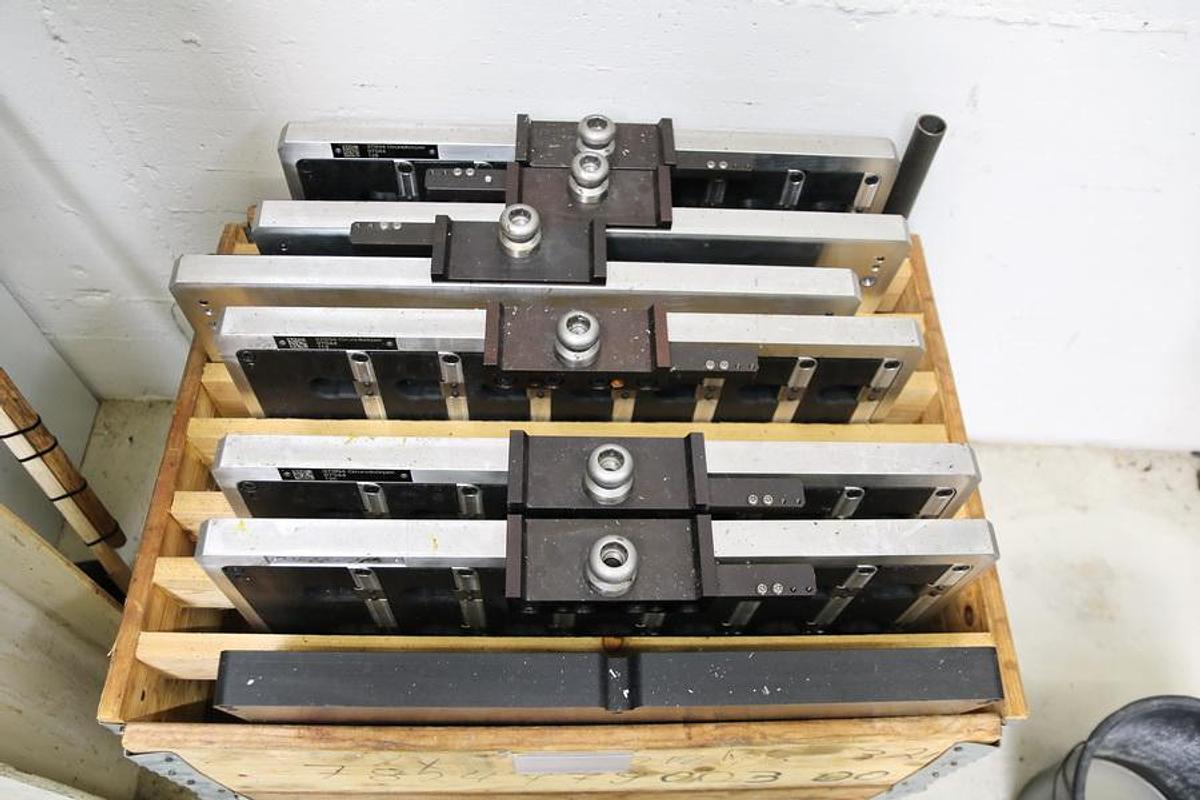

66x workpiece pallets
64x HSK 63 holders
20x collets
2x chip trolley
Specifications
| Manufacturer | Hermle |
| Model | C 30 U |
| Year | 2013 |
| Condition | Used |
| Stock Number | 11167 |
| Machine weight | 9.5 Ton |
| Total power requirement | 43 kVA |
| Feed power | 8,500 N |
| Acceleration | 10 m/s² |
| Rapid traverse X/Y/Z | 60 m/min |
| Table load | 1,000 kg |
| Table c axis rotation | 360° |
| Table swivel range | A +30° / -115° |
| Table center bore | 32 H7 |
| Swiveling rotary table diameter | 630 mm |
| Tool taper | HSK A 63 |
| Spindle power | 10 / 15 kW |
| Z axis travel | 500 mm |
| Y axis travel | 600 mm |
| X axis travel | 650 mm |

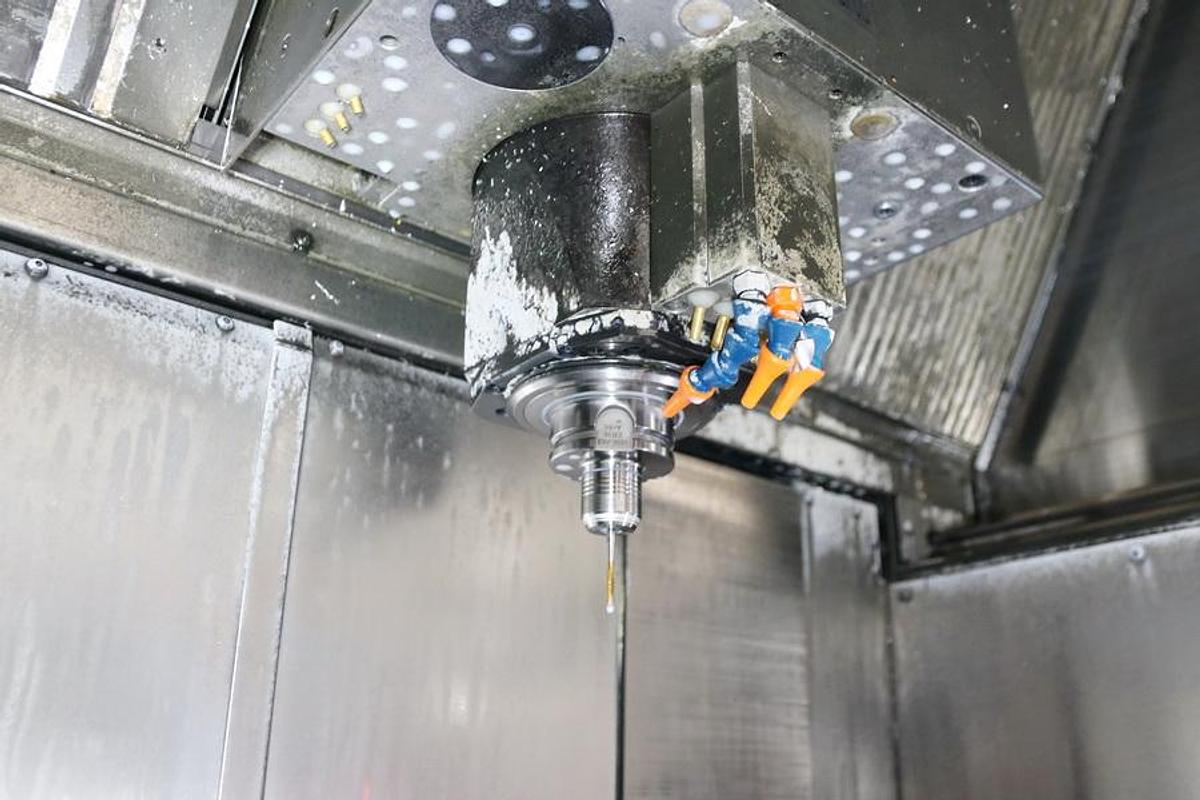

| Spindle speeds | 18,000 rpm |
| Machine dimensions | 15 x 7.5 x 3.5 m |
