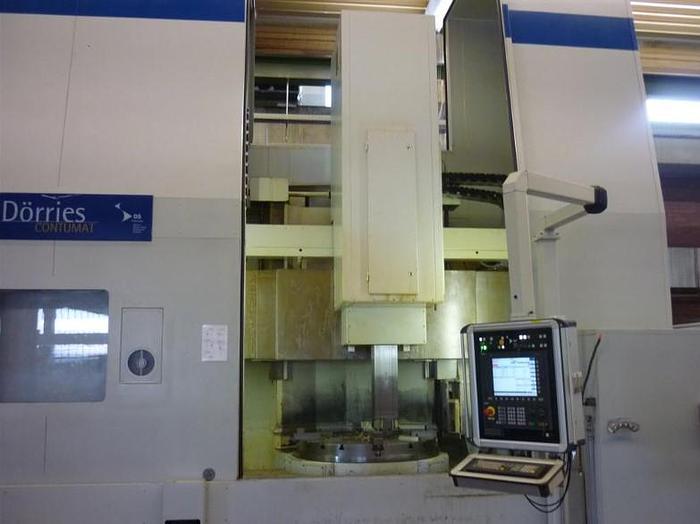

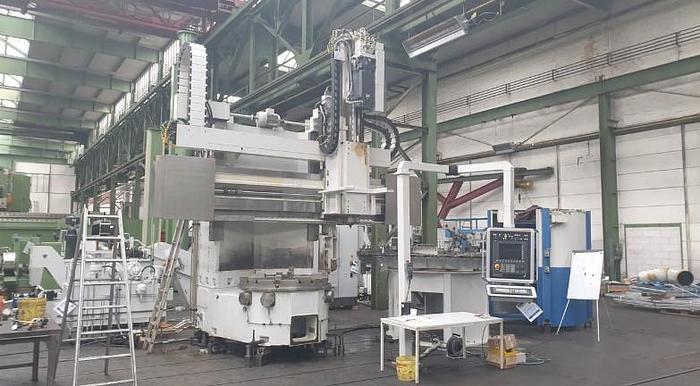

Dorries VCE 200/140 CNC Single Column Vertical Turning & Boring Machine with Live Spindle & Table C-Axis
Dorries VCE 200/140 CNC Single Column Vertical Turning & Boring Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description
Machine Completely Rebuilt & Retrofitted in 2008
Very Few Hours Since Rebuild

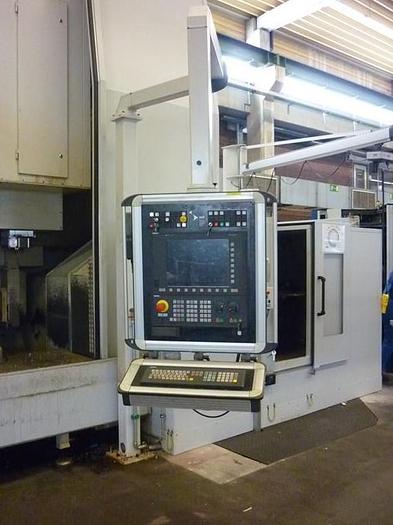

Siemens 840D CNC Control
72 Position Automatic Tool Changer
Live Spindle & C-Axis
Angular & Straight tool holder head with CAPTO taper
Transmit function

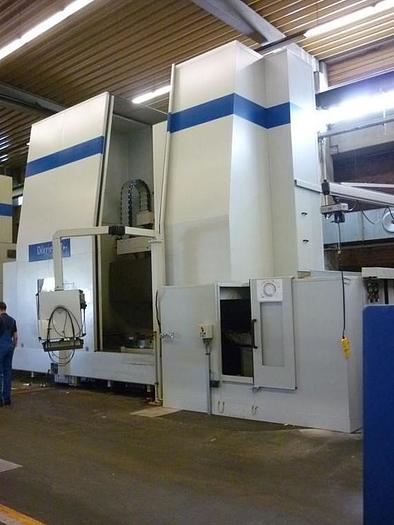

Complete Splash Housing
Coolant Device
Chip Conveyor
Diverse accessories
Specifications
| Manufacturer | Dorries |
| Model | VCE 200/140 |
| Year | 1987 |
| Condition | Used |
| Stock Number | 11173 |

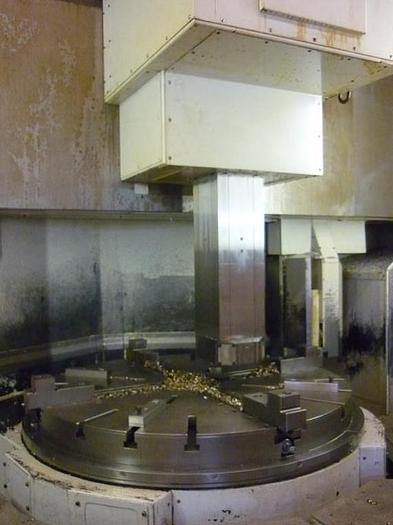

| Table diameter | 1,400 mm |
| Swing | 2,000 mm |
| Turning height | 1,270 mm |
| Table capacity | 6,000 kg |
| Table turn speed | 355 rpm |
| Live spindle speed | 3,000 rpm |
| Z axis travel ram stroke | 1,250 mm |
| W axis vertical cross rail adjustment | 800 mm (8 x 100 mm) |
| Milling motor | 37 kW |
| Spindle taper | ISO 50 |
| Ram size | 240 x 240 mm |
| Main drive | 80 kW |
| Machine weight | 50 Ton |
| Total power requirement | 133 kVA |
| Machine dimensions | 11 x 5 x 6.4 m |
