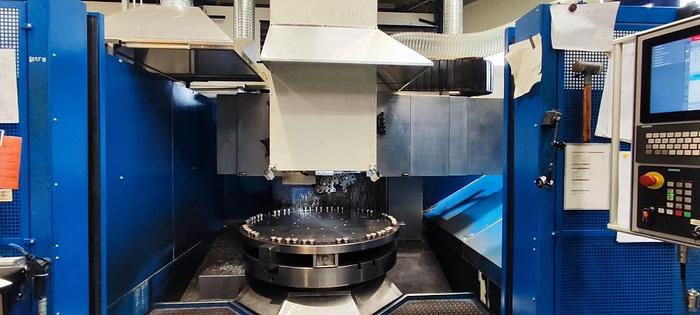

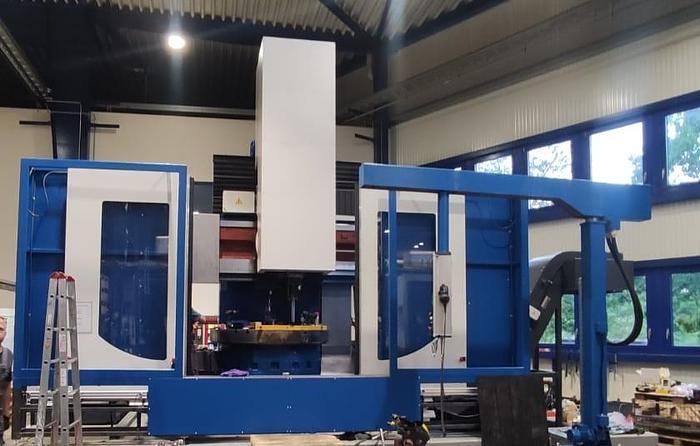

TOS HULIN SKIQ 16 CNC Single Column Vertical Turning & Boring Machine with Live Spindle & C-Axis
TOS HULIN SKIQ 16 CNC Single Column Vertical Turning & Boring Machine with Live Spindle & C-Axis
or
Call 770-509-0744
Description
Machine Completely Rebuild & Retrofitted in 2025 by the OEM.
Condition: New
Siemens Sinumerik One CNC Control
Live spindle
Full - way positioning C axis (boring, milling with continuous controllable driving tools)
15 Tool (Driven) Positions
Full machine covering

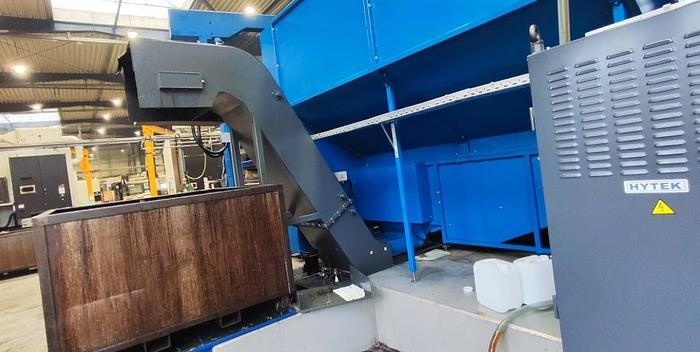

Chip conveyor

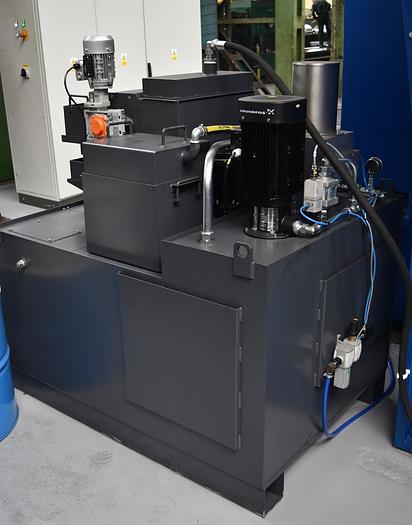

Cooling device
Coolant Through Spindle - 20 bar
Full machine documentation
Specifications
| Manufacturer | TOS HULIN |
| Model | SKIQ 16 |
| Year | 2025 |
| Condition | Used |
| Stock Number | 11177 |
| Table diameter | 1,600 mm |
| Swing | 1,800 mm |
| Turning height | 1,275 mm |
| Table capacity | 12 Ton |
| Table turn speed | 200 rpm |
| Live spindle speed | 3,300 mm |
| Z axis travel | 1,000 mm |
| C axis | 360° |
| Ram size | 180 x 220 mm |
| Main drive | 60 kW |
| Live spindle motor | 19.5 kW |
| Working feed | 4,000 mm/min |
| Rapid feeds | 10 m/min |
| Machine weight | 27.2 Ton |
| Machine dimensions | 5.7 x 7 x 5.9 m |
