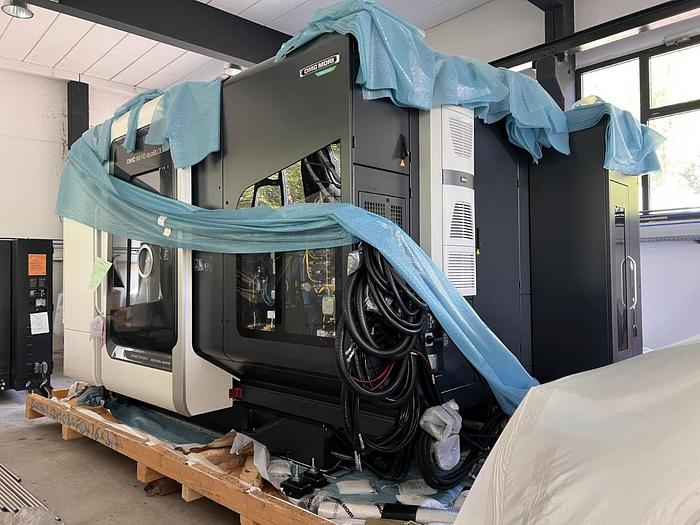

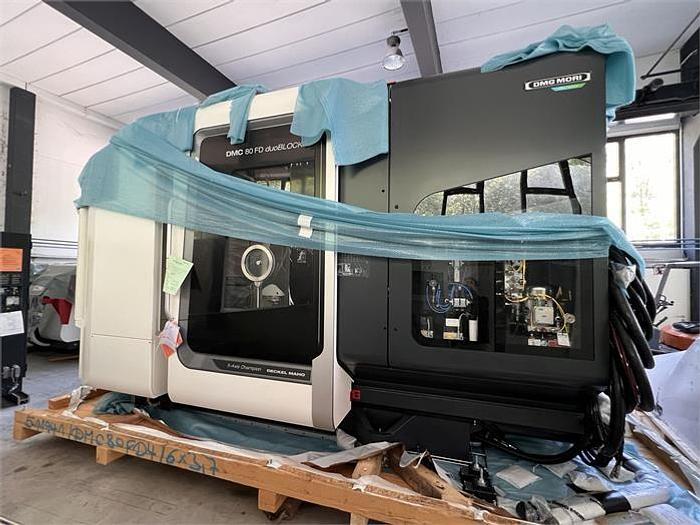

DMG DMC 80 FD duoBLOCK CNC Machining Center
DMG DMC 80 FD duoBLOCK CNC Machining Center
or
Call 770-509-0744
Description

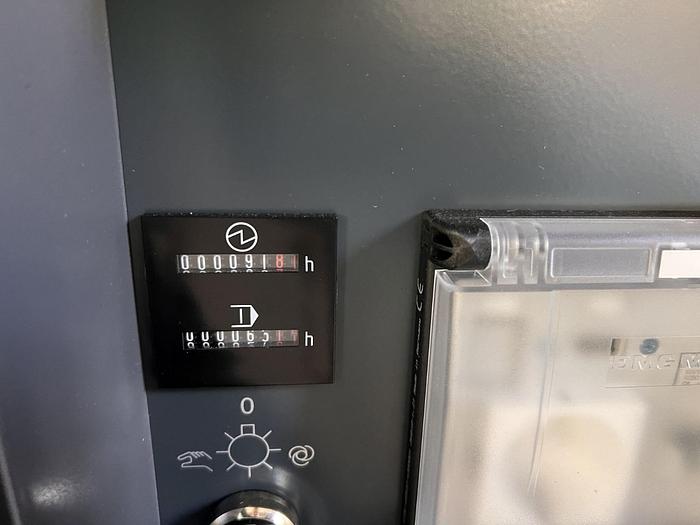

Under Power Hours 92 - Operating Time 65 Hours
Siemens 840D SL (CELOS X) CNC Control
2 Pallets - 800 x 630 mm
123 Position Automatic Tool Changer - SK40
Electronic Handwheel
Chip Conveyor
Swivel Head
Rotating inspection windows
Rinsing gun
Signal lamp
Mist collector
3D quickSET
Workarea light
Cooling device blowing air through spindle center, selectable via M-function
Internal coolant supply
MPC – Machine Protection Control
Oil skimmer
RENISHAW OMP60
Blum DIGILOG laser tool measurement
Cooling:
Tank capacity: 980
High-pressure bar: 10-80
Tool System:
- Tool holder: HSK-A100
- Tool magazine slots: 123
- Tool changer: SK40
- With free neighboring places mm: 160
- With occupied neighboring places mm: 80
- Max tool weight kg: 15
- Tool-to-tool time s: 5,6
- Tool clamp power N: 70
- Chip-to-chip time s: 4.2
Specifications
| Manufacturer | DMG |
| Model | DMC 80FD duoBLOCK |
| Year | 2023 |
| Condition | Used |
| Stock Number | 11178 |
| Spindle speeds | 12,000 rpm |
| X axis travel | 800 mm |
| Y axis travel | 1,050 mm |
| Z axis travel | 850 mm |
| C axis | 360° - 0.001° Full Index |
| Rapid traverse | 30 m/min |
| B axis | -30° to +180° |
| Spindle power | 52/42 kW |
| Spindle taper | HSK A100 |
| Milling/Turning table NC | 2 Pallets |
| Table dimensions | 800 x 630 mm |
| Max workpiece size | 900 x 1,450 mm |
| Max workpiece weight | 1,400 kg |
| Table rotation speed | 800 rpm |
