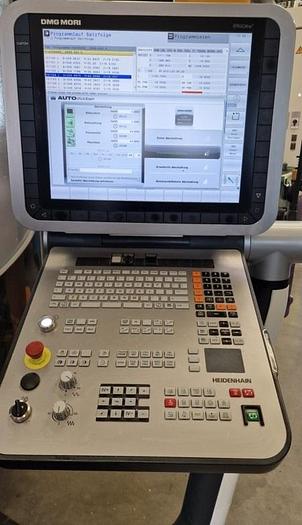

HEIDENHAIN TNC 640 3D CNC Control

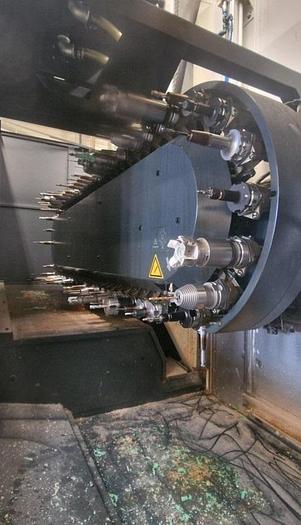

60 Position Chain Magazine Double Gripper Automatic Tool Changer

IKZ Coolant System - 40 bar / 23 l/min through spindle center (AD)

External Coolant System - 4 bar / 40 l/min

MPC Machine Protection Control chip tray with integrated coolant tank 500 l

Scraper belt chip conveyor with coolant system 600 litres, paper belt filter

Infrared measuring probe HEIDENHAIN TS 649

3D quickSET extension package

Coolant ring nozzle for vertical headstock, 15 water nozzles, 5 air nozzles

Flushing gun with pump 2 bar / 40 l/min

Cooling device Blast air through spindle center, selectable via M function

Operating mode 4 - Manual intervention with open work area doors

Documentation

Manufacturer	DMG
Model	DMU 95 monoBLOCK
Year	2016
Condition	Used
Stock Number	11179
Spindle speeds	20,000 rpm
X axis travel	950 mm
Y axis travel	850 mm
Z axis travel	650 mm

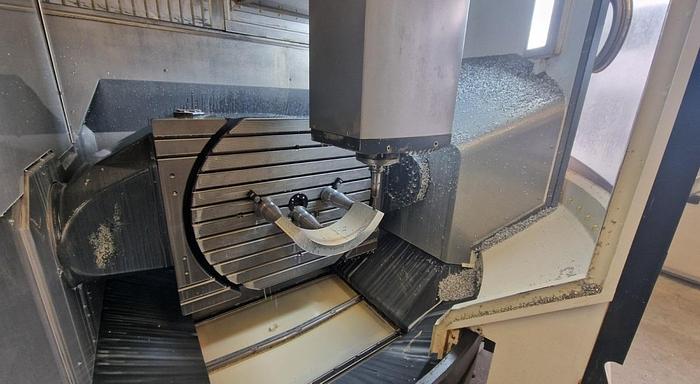

Swivable table dimensions (C-axis)	850 x 750 mm
C axis	360°
Rigid table dimensions	1,000 x 750 mm
Spindle power	35 kW (40% ED) / 25 kW (100% ED)
Tool taper	HSK - 63A - DIN 69893
Machine weight	14 Ton
Connected load	50 kVA
