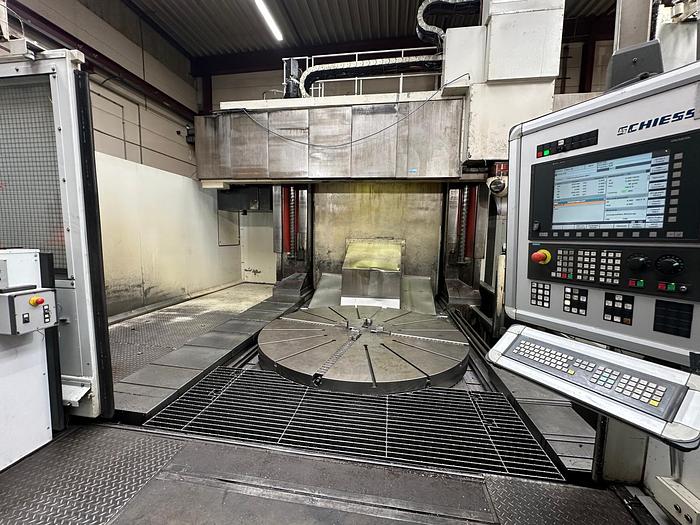

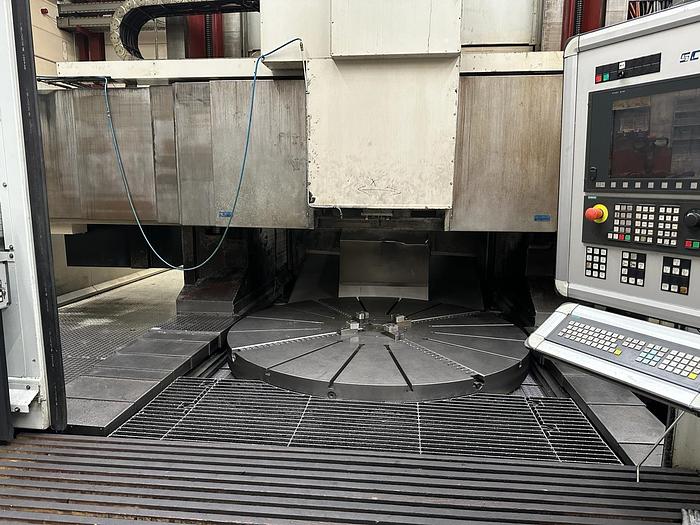

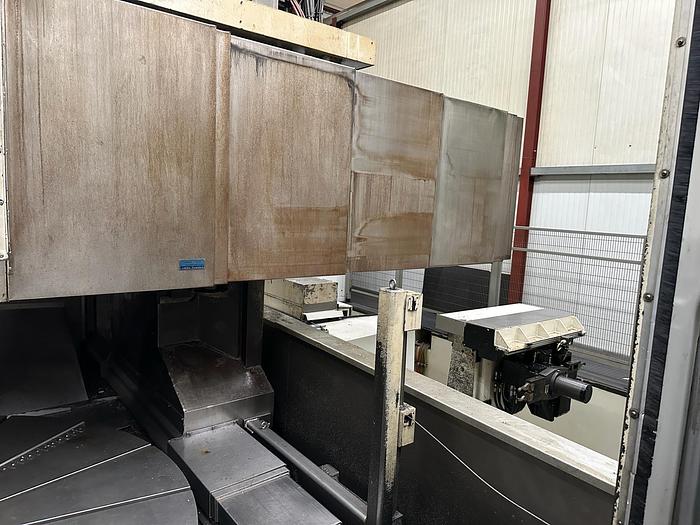

Schiess VMG CNC Vertical Boring & Milling Machine with Live Spindle & Travelling Gantry Y-Axis
Schiess VMG CNC Vertical Boring & Milling Machine with Live Spindle & Travelling Gantry Y-Axis
or
Call 770-509-0744
Description

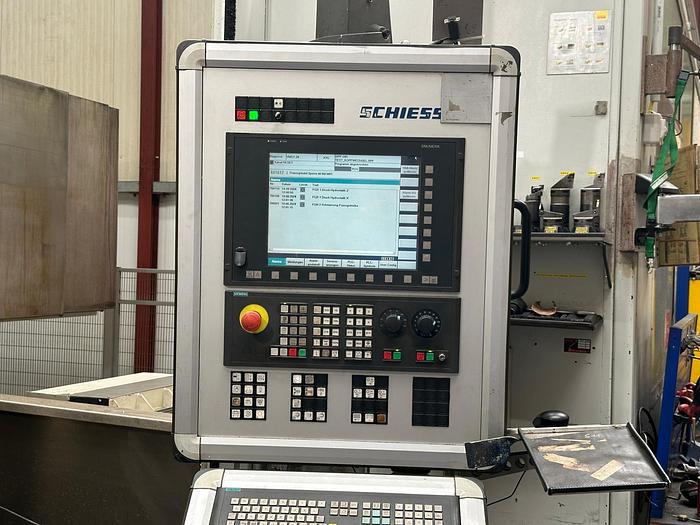

Siemens 840D CNC Control

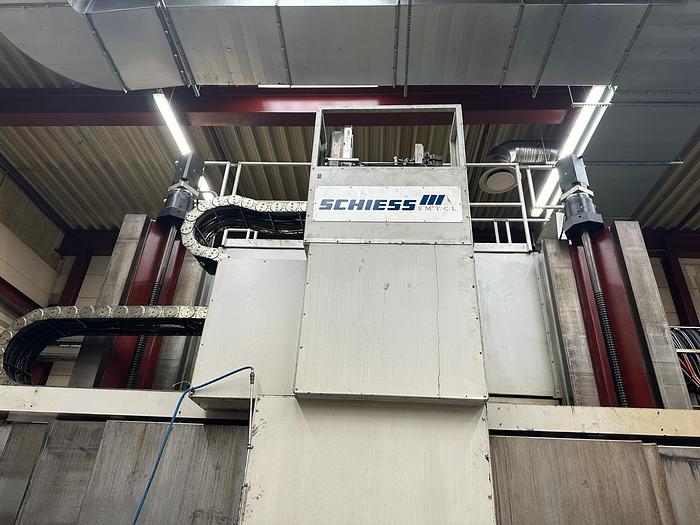

Y-Axis Travelling Gantry

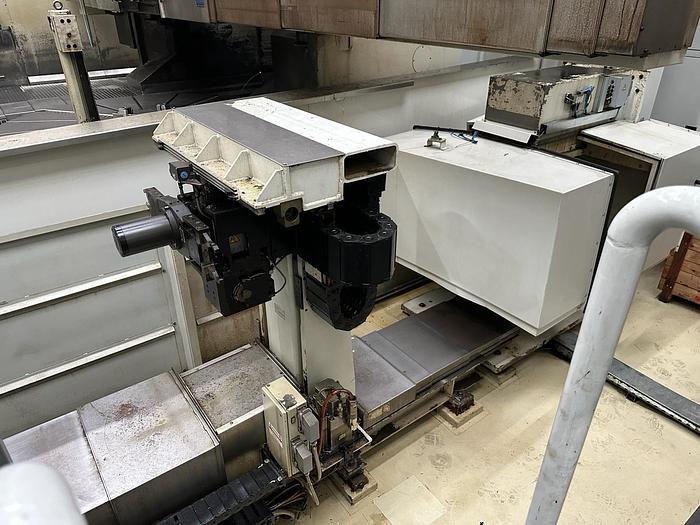

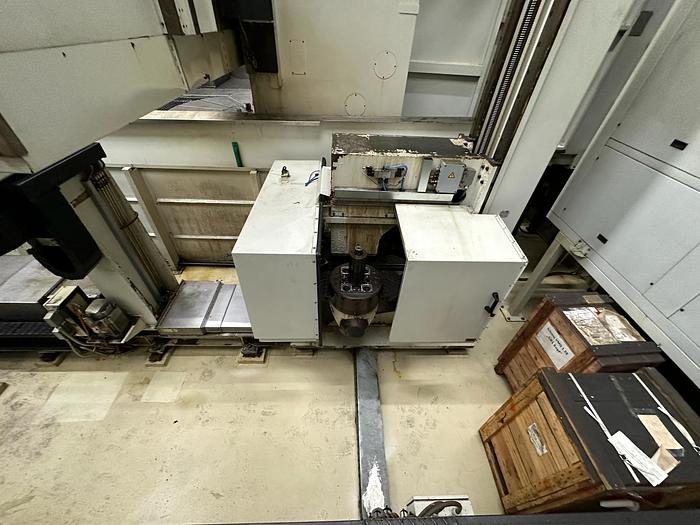

Head Changer with Vertical & Horizontal Heads

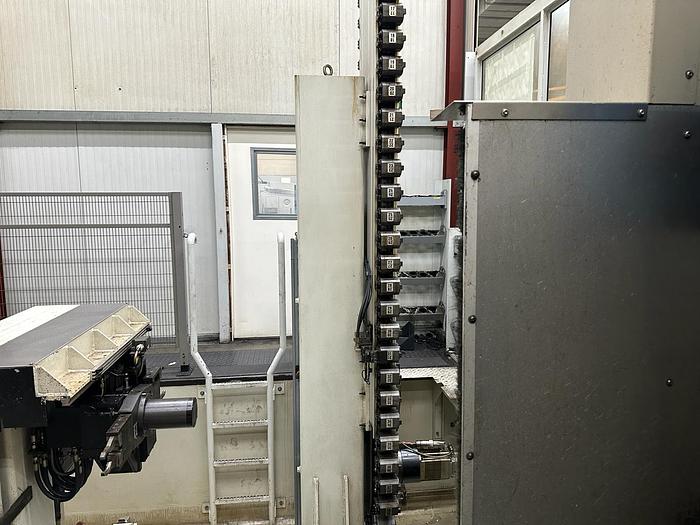

60 Position Automatic Tool Changer

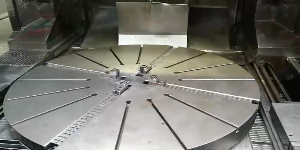

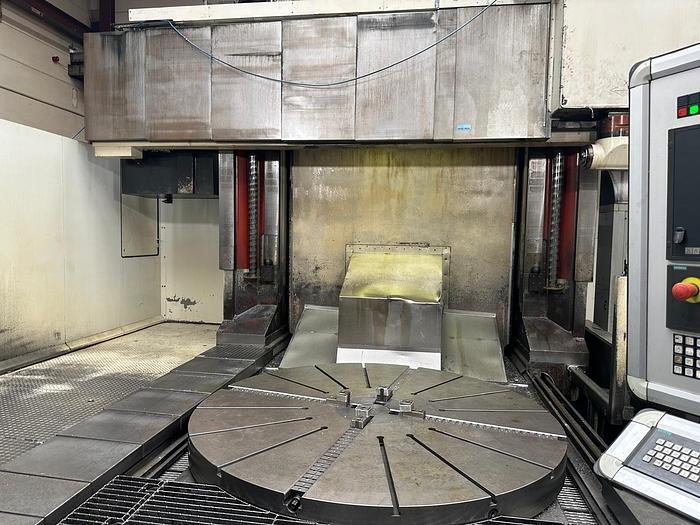

Indexing Table - Continuous
Chip Conveyor
Tool Setting
Control Keyboard

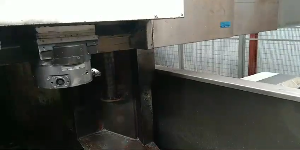

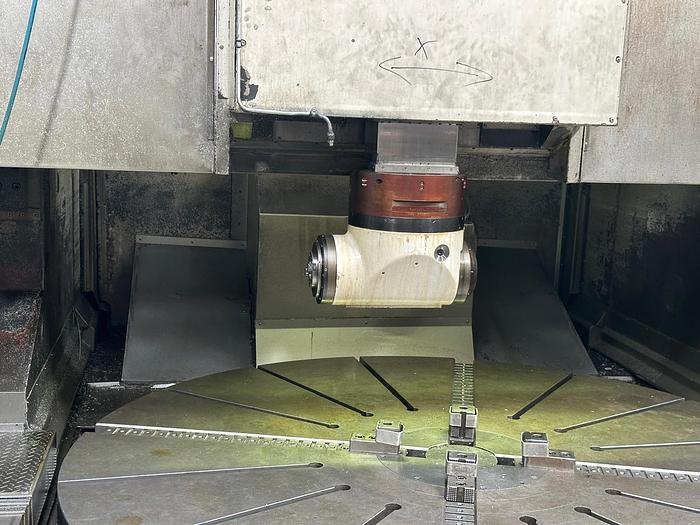

Live Spindle
Specifications
| Manufacturer | Schiess |
| Model | VMG |
| Year | 2006 |
| Condition | Used |
| Stock Number | 11185 |

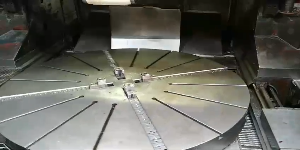

| Table diameter | 2,800 mm |
| Swing | 3,200 mm |
| Max machining height | 2,500 mm |
| Table capacity | 25 Ton |
| Table speed for turning | 0.62 - 210 rpm |
| Table speed for milling | 0.0004 - 4 rpm |
| Passage width | 2,940 mm |
| Ram stroke | 1,400 mm |
| W axis crossrail travel | 1,700 mm |
| Live spindle motor | 25 kW |
| Spindle taper | ISO 50 |
| Feed rate | 0.1 - 2,000 mm/min |
| Rapid feed rate of portal | 8,000 mm/min |
| Rapid feed rate of crossrail | 4,000 mm/min |
| Machine dimensions | 10,100 x 8,350 x 7,000 mm |
