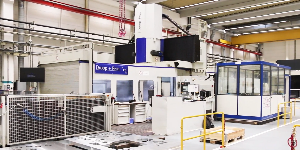

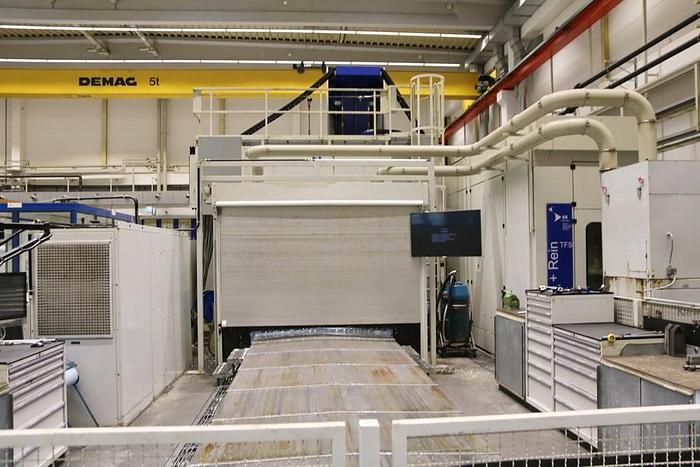

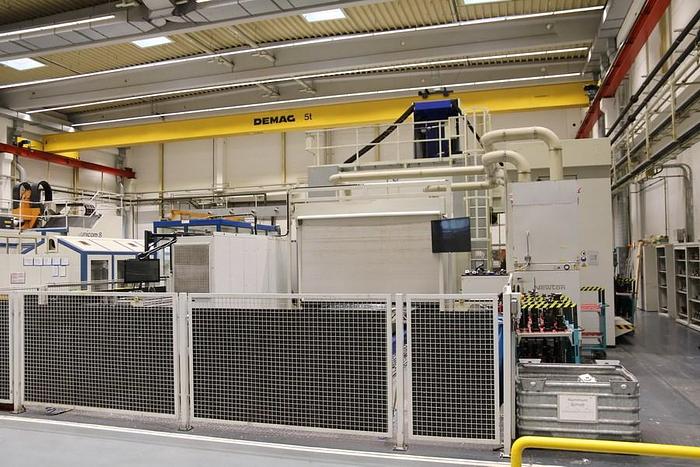

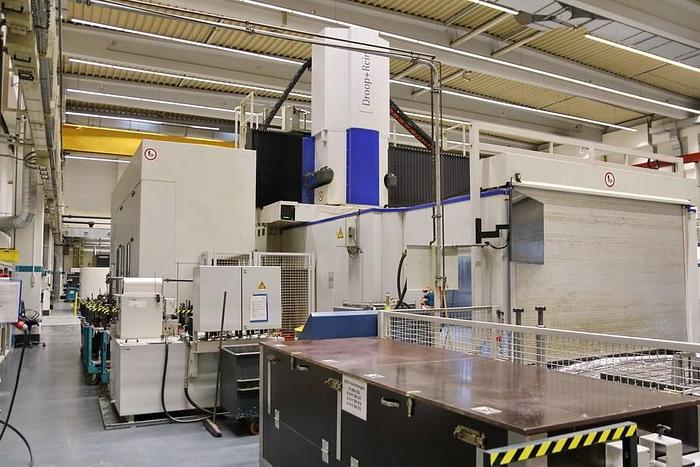

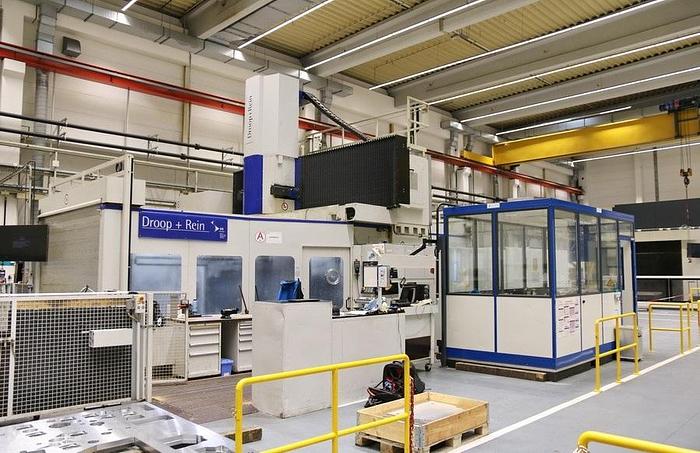

Droop + Rein TFS 22 40 DT D40 P CNC 5-Axis Planer Type Milling Machine

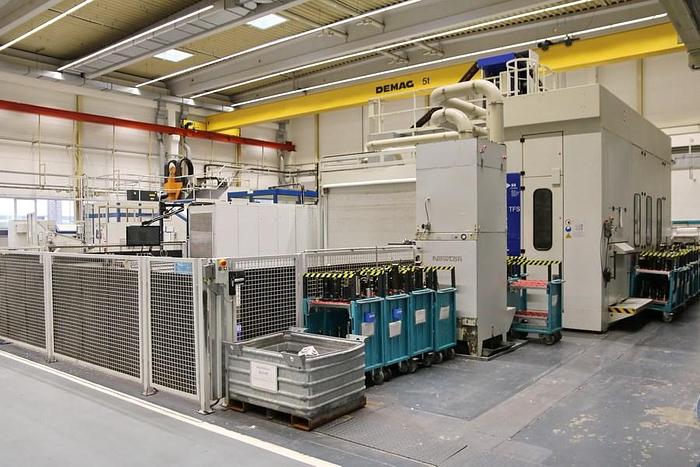

Droop + Rein TFS 22 40 DT D40 P CNC 5-Axis Planer Type Milling Machine
Description
5-Axis Machining
- 3 Axes Simultaneously (X, Y, Z)
- 2 Positioning Axes (B, C)

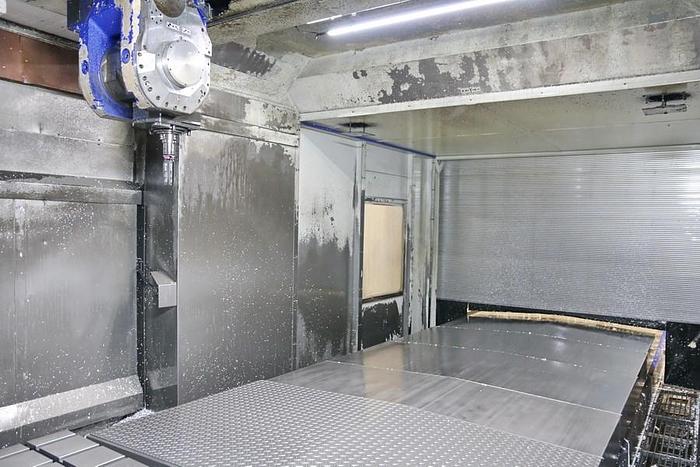

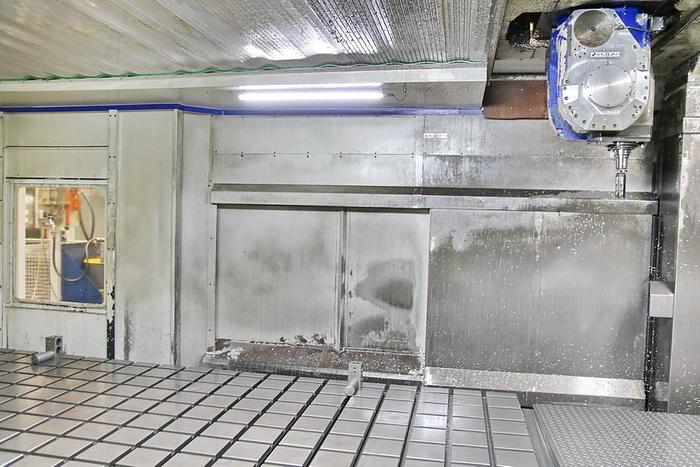

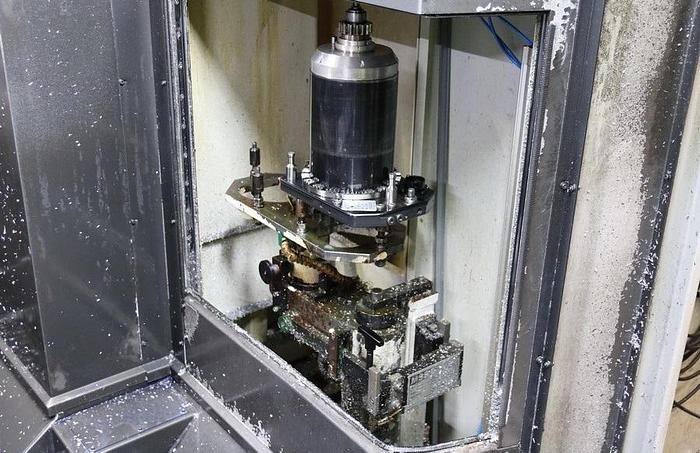

(2) Two Milling Heads - Only 4,000 Power On Hours

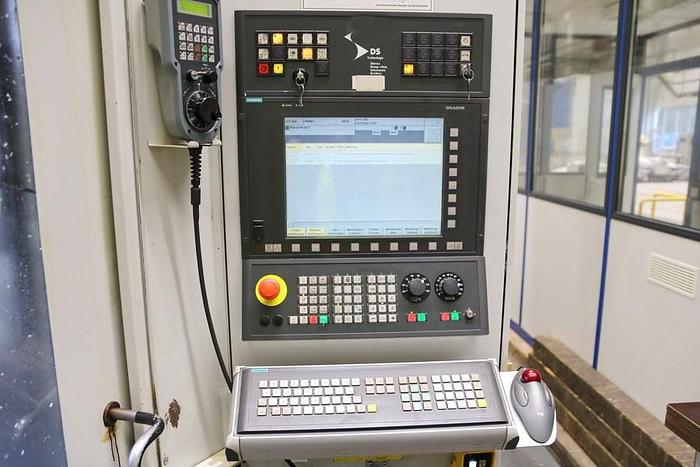

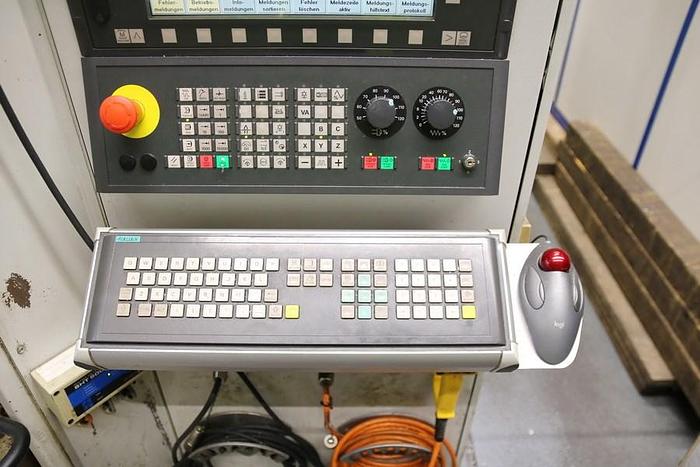

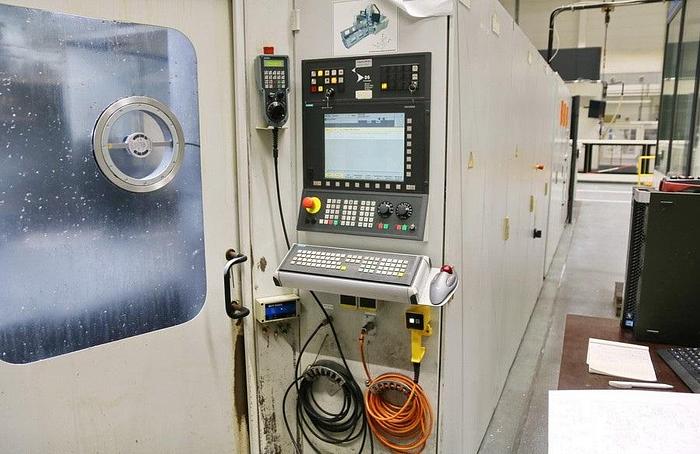

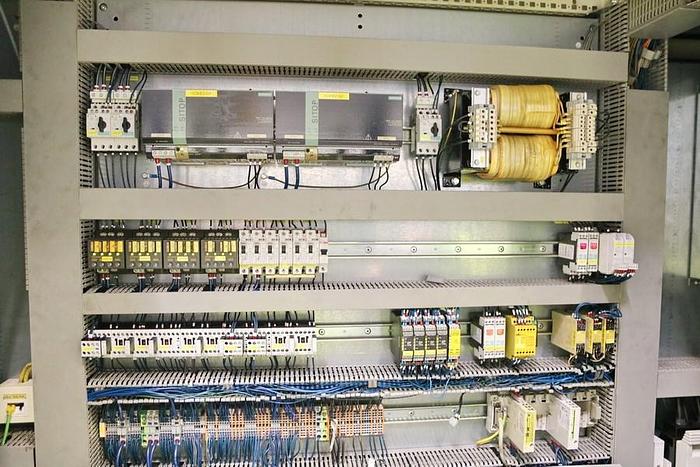

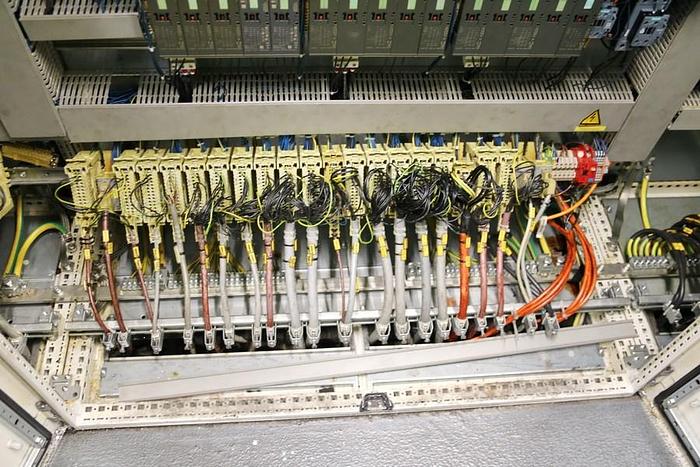

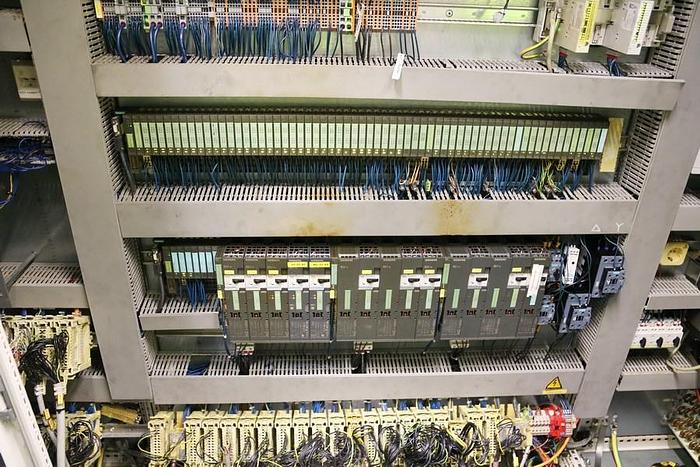

Siemens 840D CNC Control

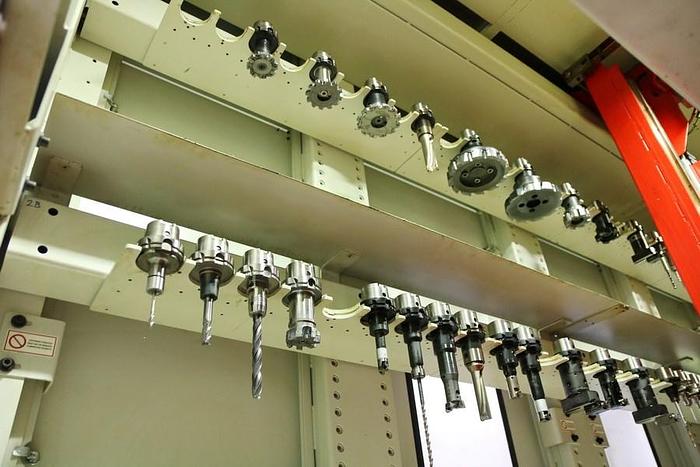

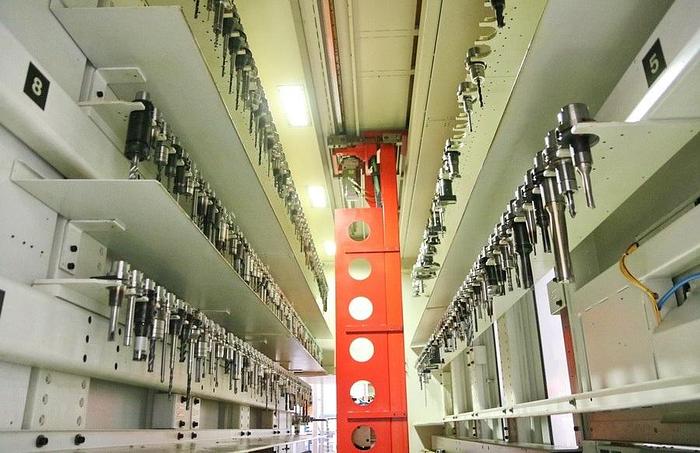

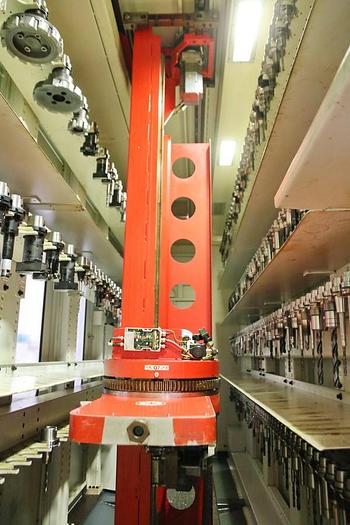

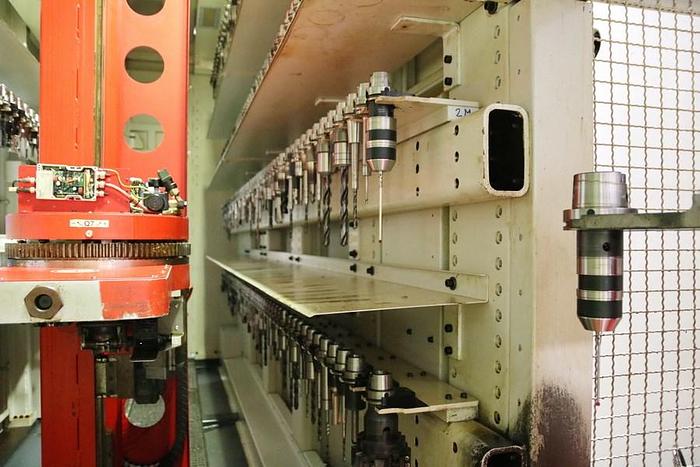

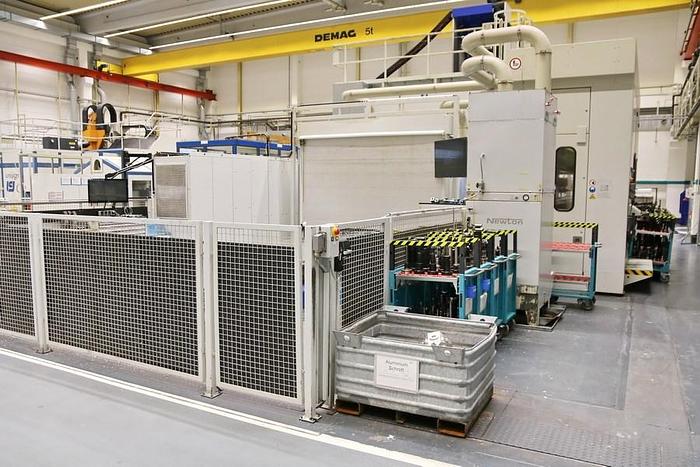

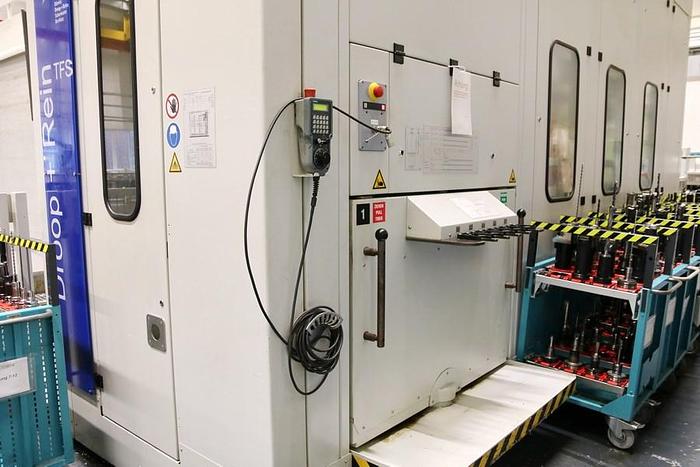

327 Position Automatic Tool Presetter
- 156 Position HSK A63
- 171 Position HSK A100
- Max Tool Diameter HSK A63 - 52 mm
- Max Tool Length HSK A63 - 250/500 mm
- Max Tool Weight HSK A63 - 5 kg
- Max Tool Diameter HSK A100 - 315 mm
- Max Tool Length HSK A100 - 500/800 mm
- Max Tool Weight HSK A100 - 40 kg
Chip Conveyor (2x)

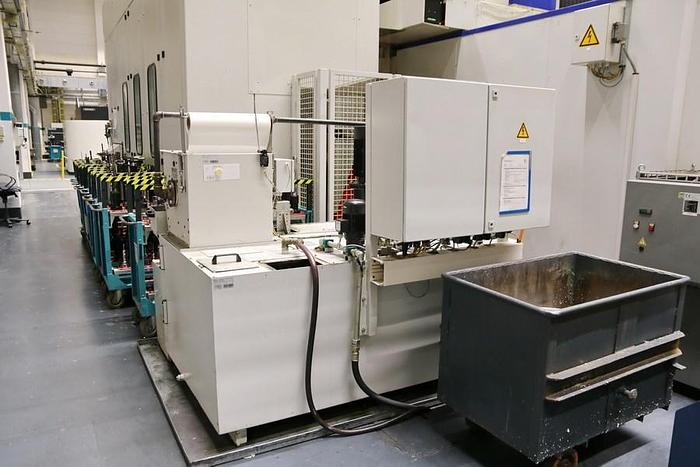

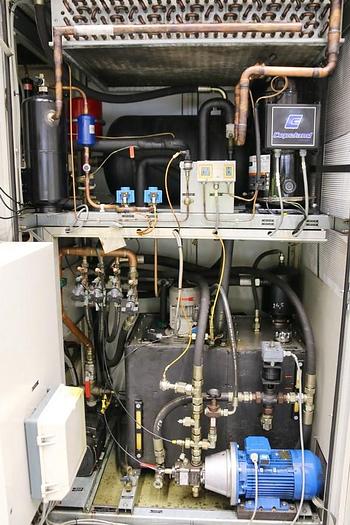

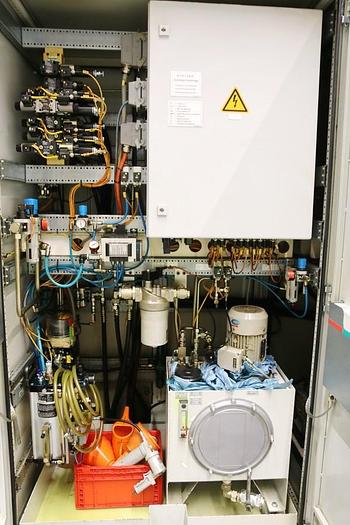

Coolant System

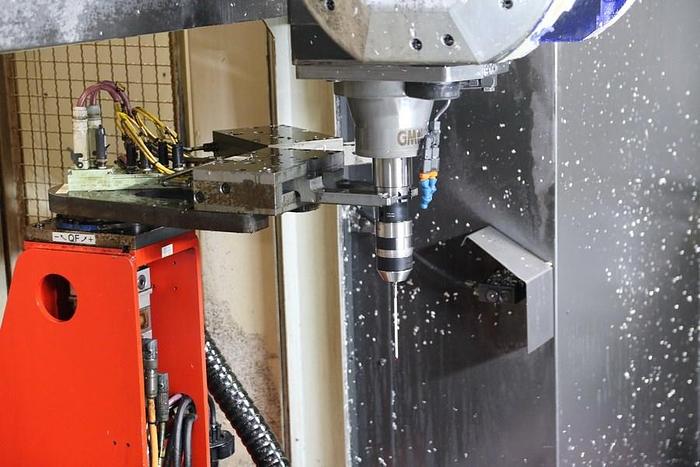

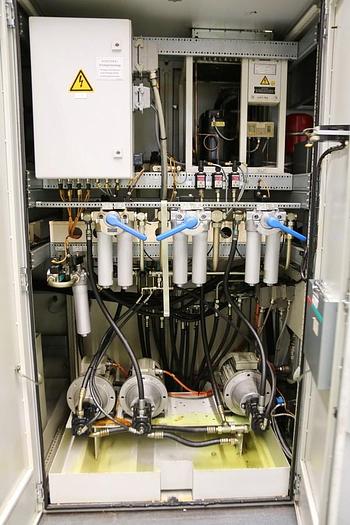

Through Spindle Coolant

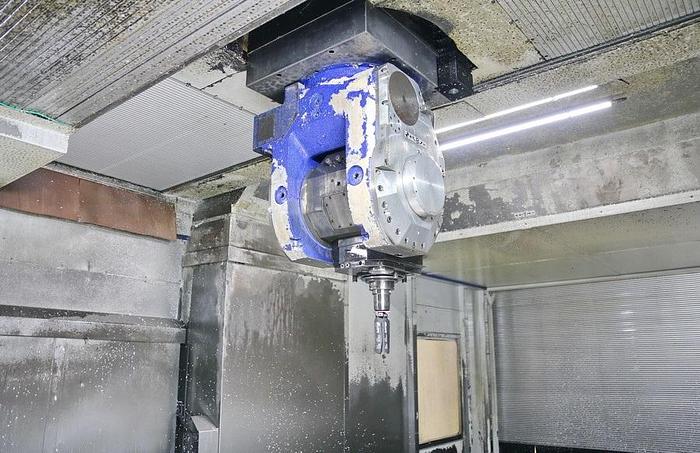

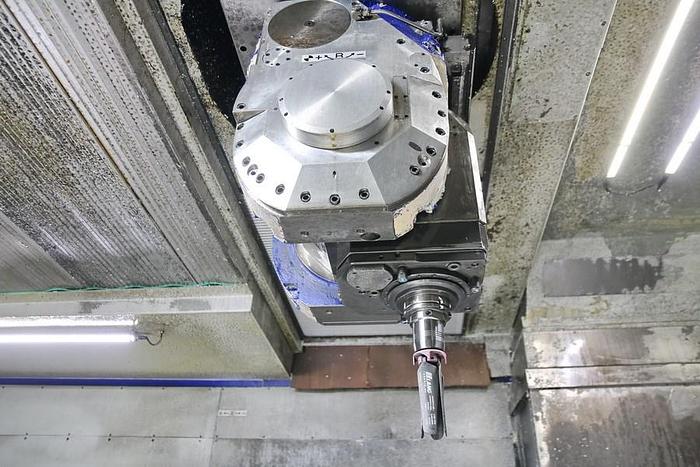

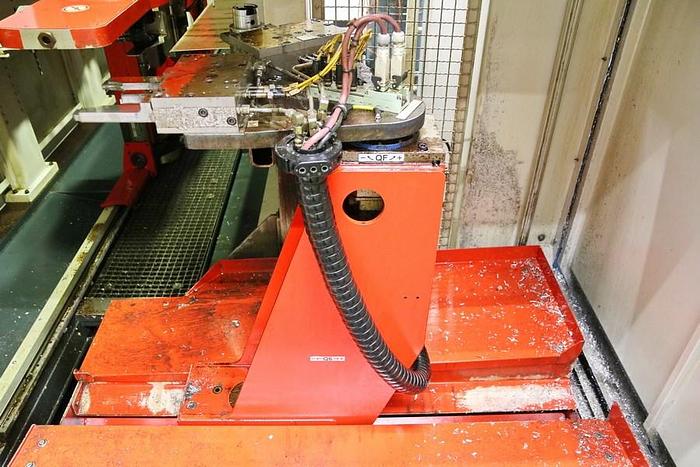

Spindle Head Changing System
Turning Milling Head
Rotary Screen

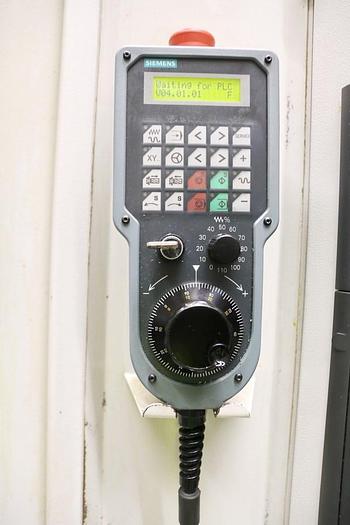

Electronic Hand Wheel

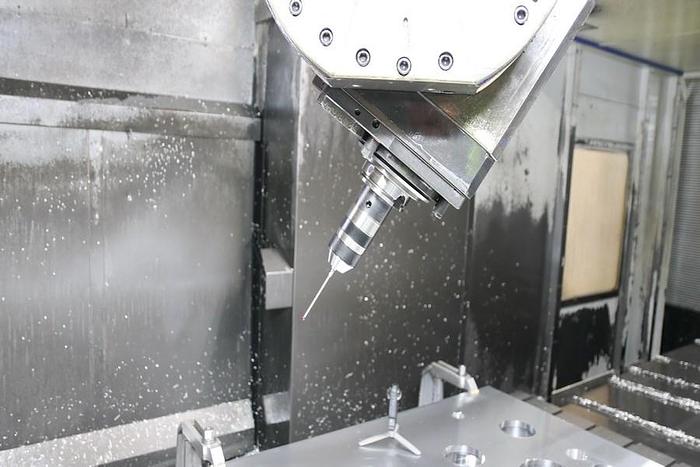

M&W RWMP 20.10 Test Probe
Renishaw Breakage Control
Minimal Quantity Lubrication
Documentation

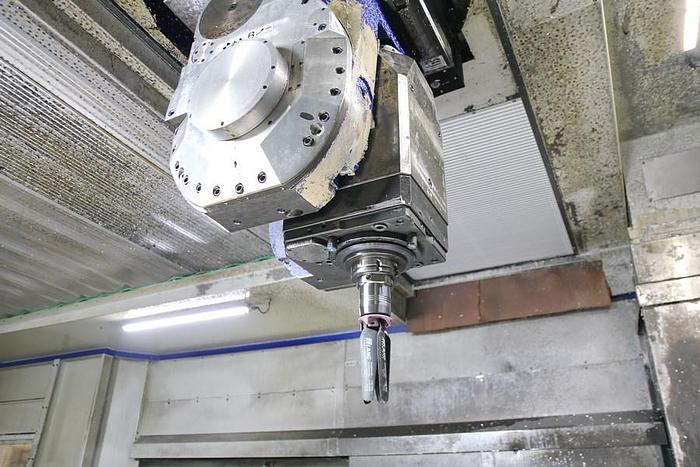

2 Spindle Heads:
type P 8005020/00-4
turning speed range - main spindle max. 18,000 rpm
power capacity - main spindle 20 kW
max. Torque 48 Nm
tool taper HSK-A63 DIN 69063
Spindle Extension 450 mm
swivellable B: +110° / -10 °
rotatable C: +/- 200 °
type P 8002320/00-4
turning speed range - main spindle 20 - 5,000 rpm
power capacity - main spindle 40 kW
max. Torque 1.100 Nm
tool taper HSK-A100 DIN 69063
Spindle Extension 300 mm
swivellable B: +110° / -10 °
rotatable C: +/- 200 °
Specifications
| Manufacturer | Droop + Rein |
| Model | TFS 22 40 DT D40 P CNC Planer Type Milling Machine |
| Year | 2007 |
| Condition | Used |
| Stock Number | 11186 |
| Between columns | 3,000 mm |
| Passage | 1,950 mm |
| Spindle speeds | 18,000 rpm / 5,000 rpm |
| Spindle nose to table | 1,350/1,500 mm |
| Spindle center to table | 1,800 mm |
| X axis travel | 10,100 (2x 5,000) mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 1,500 mm |

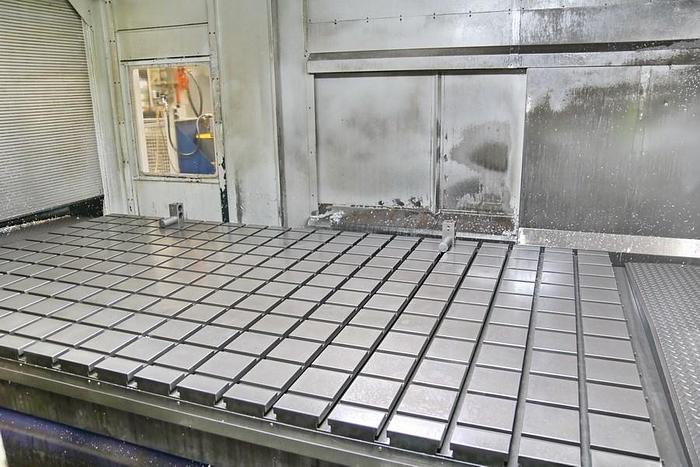

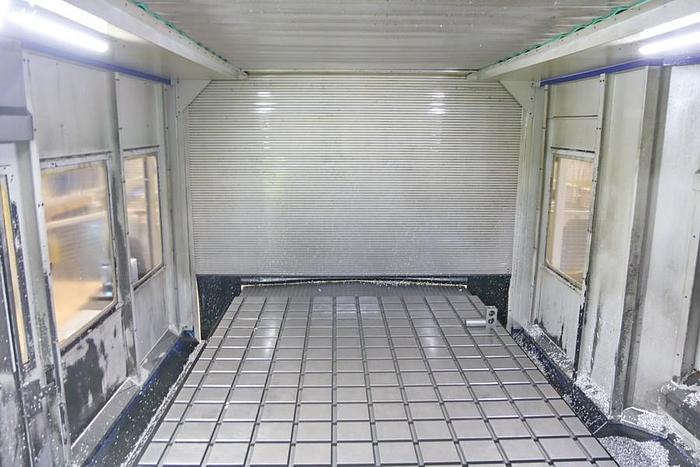

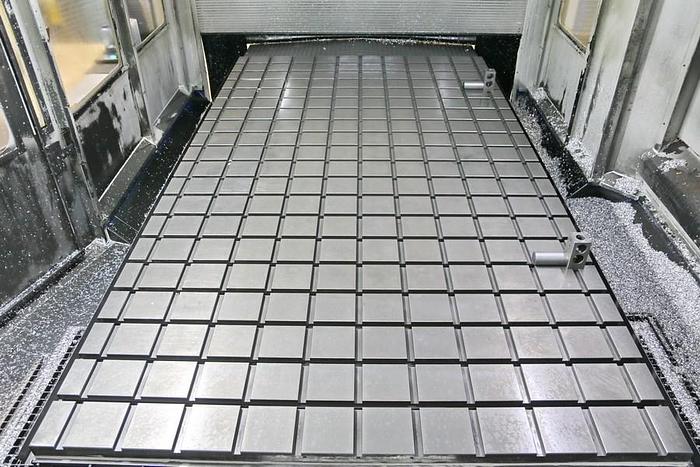

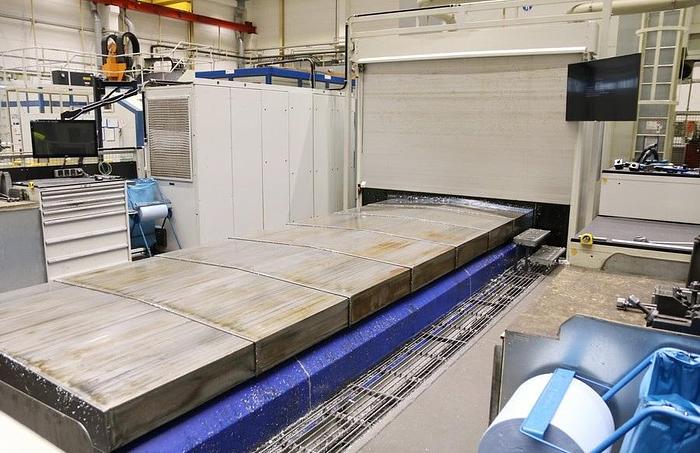

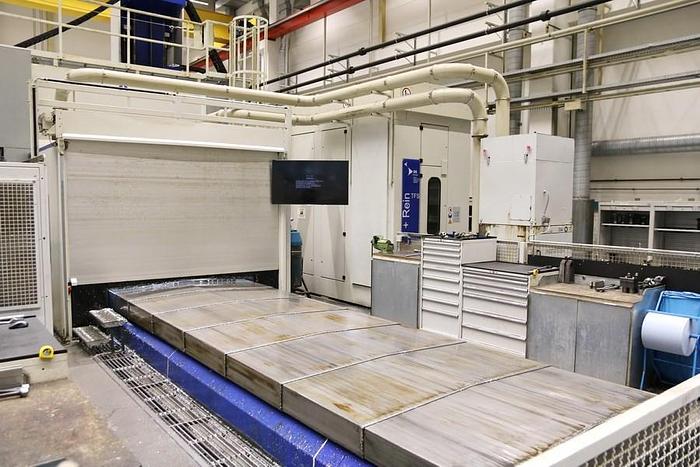

| Table size | 4,000 x 2,200 (2x) mm |
| Table capacity | 12/20 Ton |
| Table height over floor | 700 mm |
| Number of T-slots | 11 + 19 |
| T-slot width | 28H7 mm |
| T-slot distance | 200 mm |
| Feed speed X axis | 30,000 mm/min |
| Feed speed Y/Z axis | 40,000 mm/min |
| Feed speed B axis | 3,600 °/min |
| Feed speed C axis | 2,160 °/min |
| Acceleration X axis | 1.5 m/s² |
| Acceleration Y/Z axis | 3.2 m/s² |

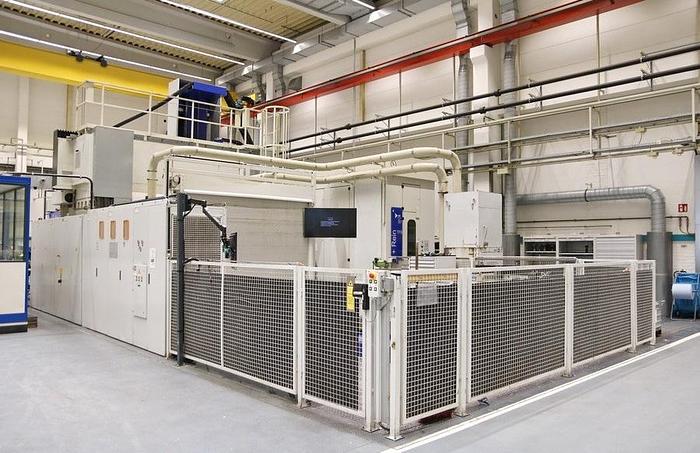

| Machine dimensions | 25 x 12 x 7 m |
