Heidenhain iTNC 530 3D Path CNC Control

5 Controlled Axes

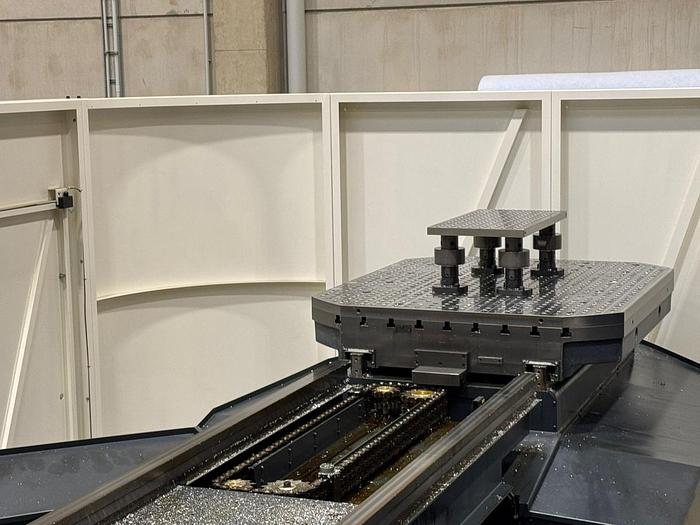

RS rotary pallet storage, pallet dimensions 1,600 x 1,400 mm

Linear Pallet Changer

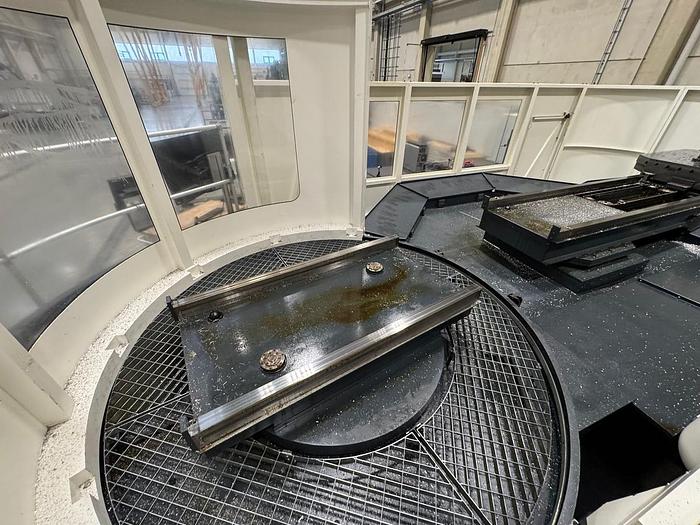

Circular Pallet Storage

Interchangeable motor spindle pick-up

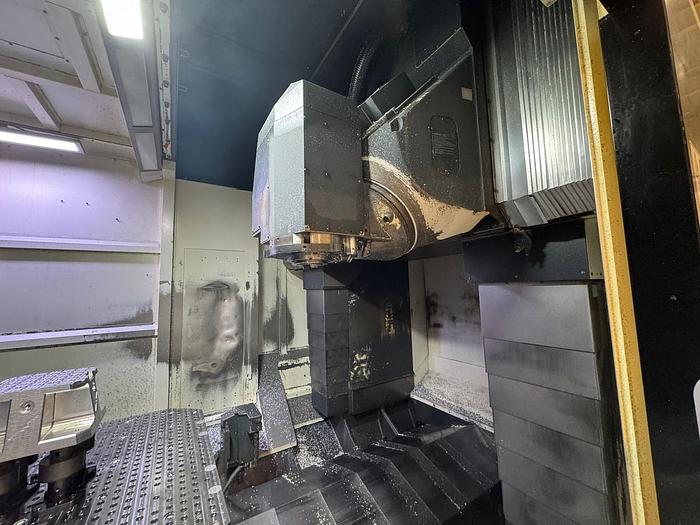

Milling Swivel Head:

Spindle Speed 10,000 rpm

40 bar internal coolant supply (IKZ)

Drive Power (ED 40/100) - 44 / 32 kW

Replaceable Motor Spindle Pickup:

Spindle Speed 30,000 rpm

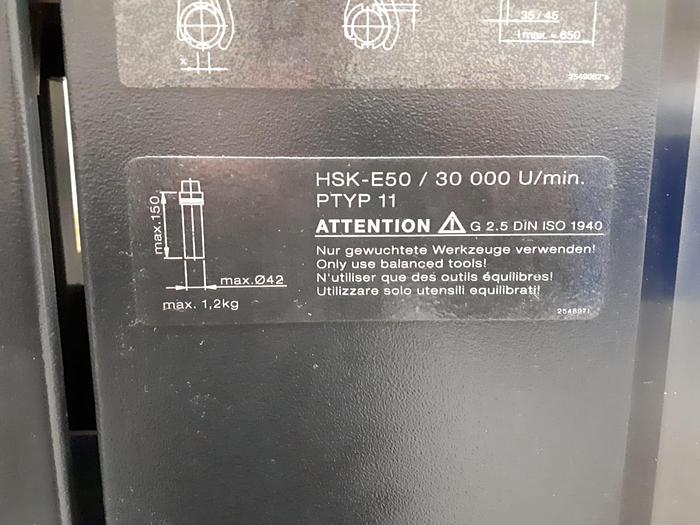

Tool Holder HSK-E 50

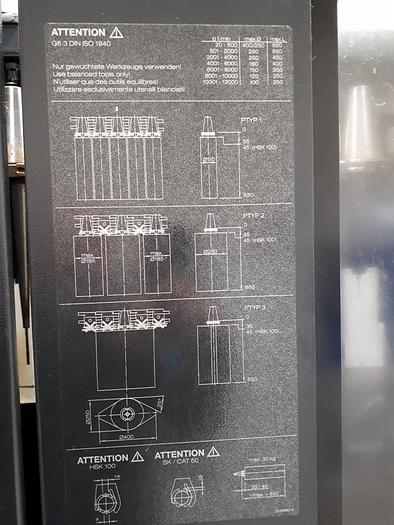

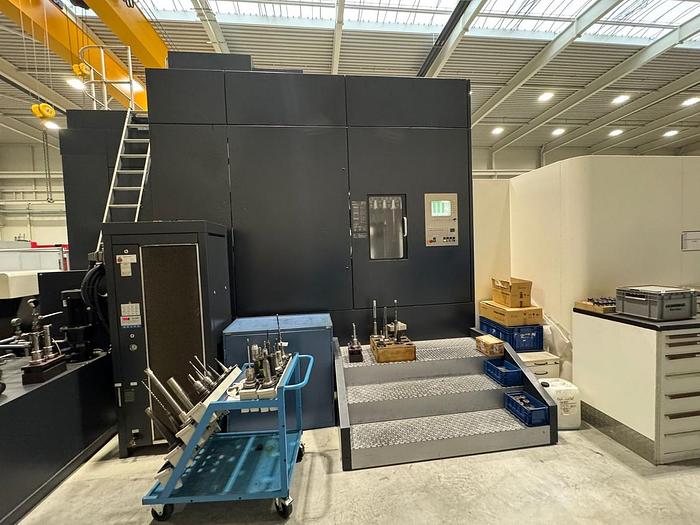

180 Position Magazine Tool Changer - Double Gripper - SK50/HSK-E50

Tool changer HSK-E 50

Proportionate 16 magazine spaces in the magazine

Incl. tool measurement in the work area

Electronic handwheel

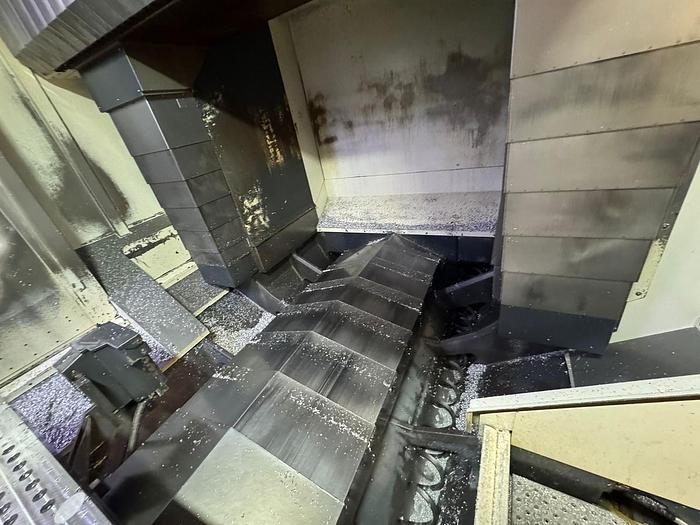

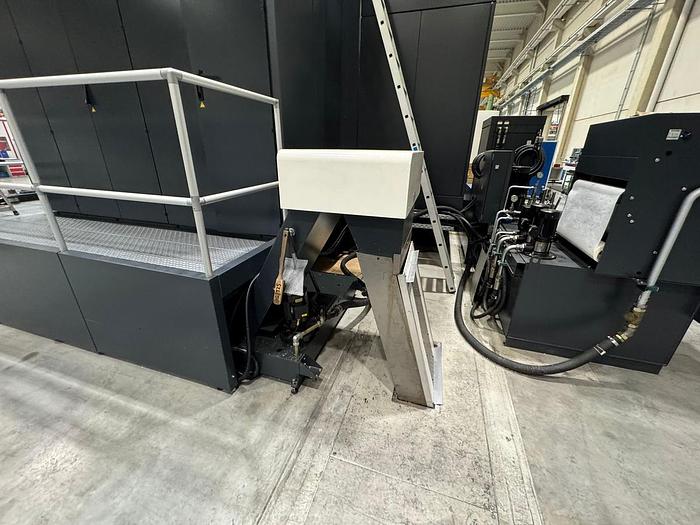

Chip conveyor

Chip flushing gun

Internal cooling (IKZ) 40 bar

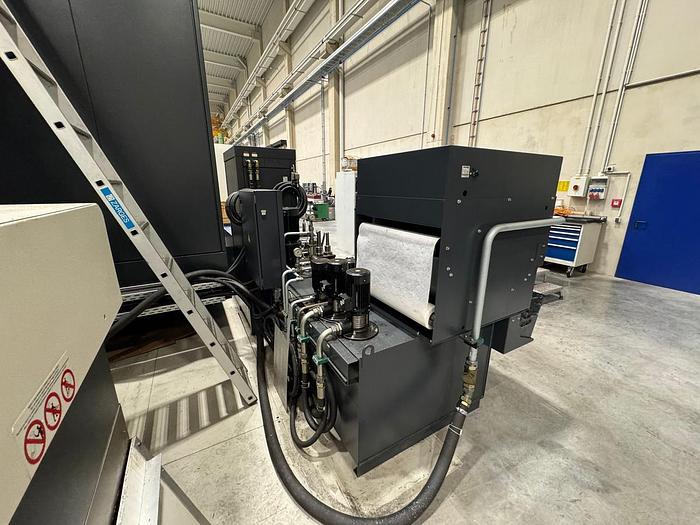

Coolant container 980 liters

3D Quickset

3D measuring probe

Operating mode 4 “Process monitoring in production”

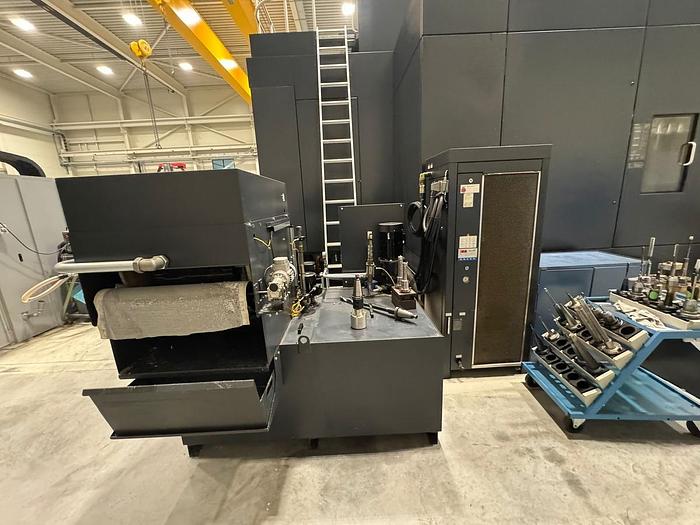

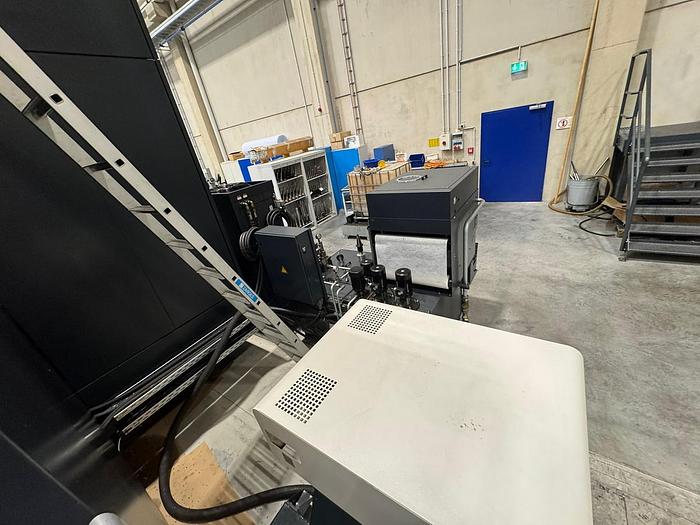

Oil and emulsion mist separator, mechanical filter

Rotating viewing window

Laminated glass safety window for right-hand cabin door

Cooling device blowing air through the spindle center

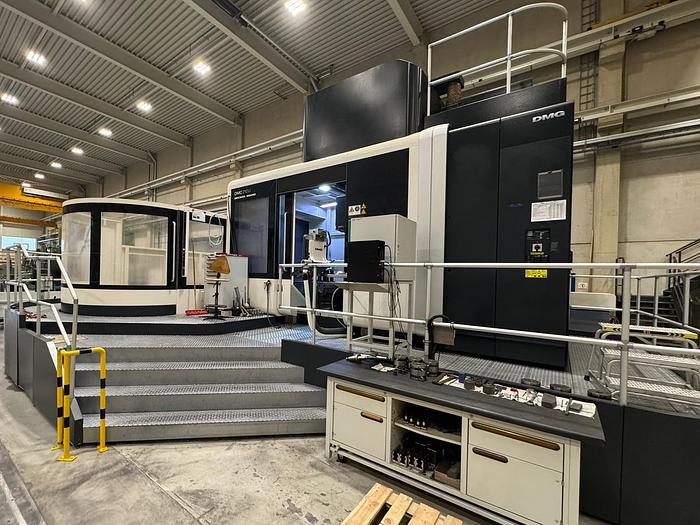

Manufacturer	DMG

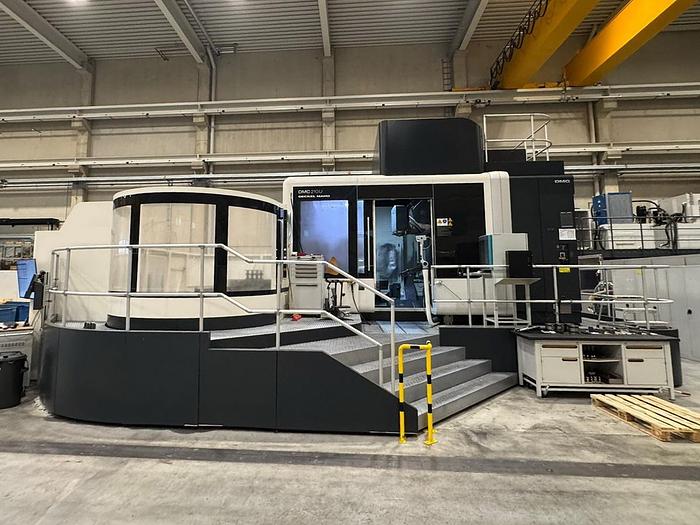

Model	DMC 210 U RS
Year	2009
Condition	Used
Stock Number	11187
Spindle speeds	30,000 / 10,000 rpm
X axis travel	1,800 mm
Y axis travel	2,100 mm
Z axis travel	1,250 mm
B axis	Controlled Universal Milling Head

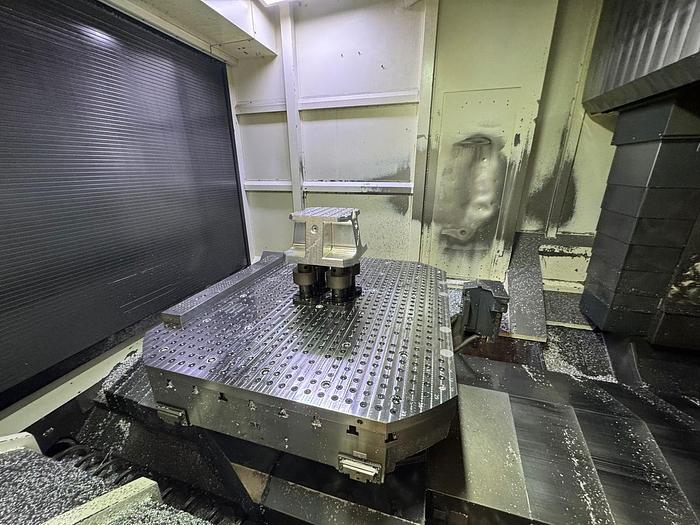

C axis rotary table	360°
