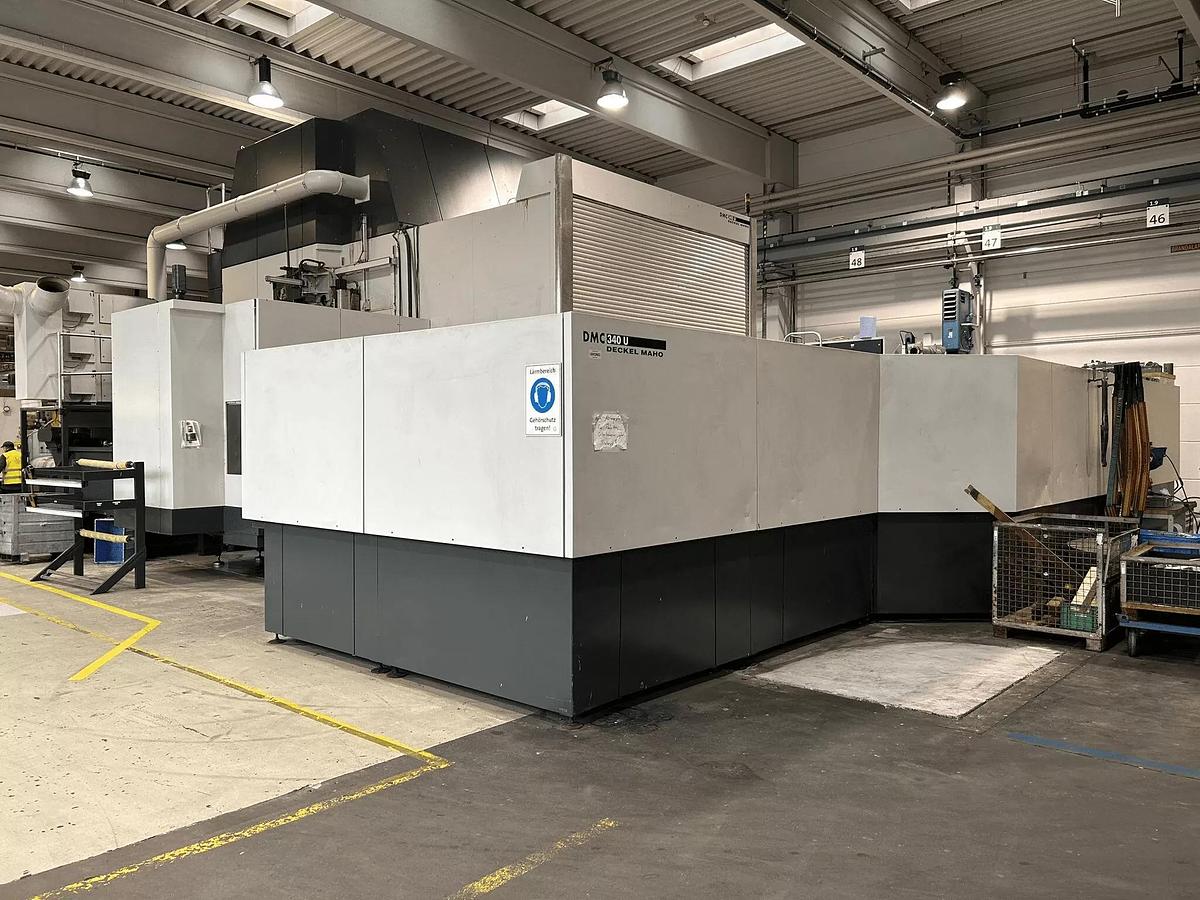

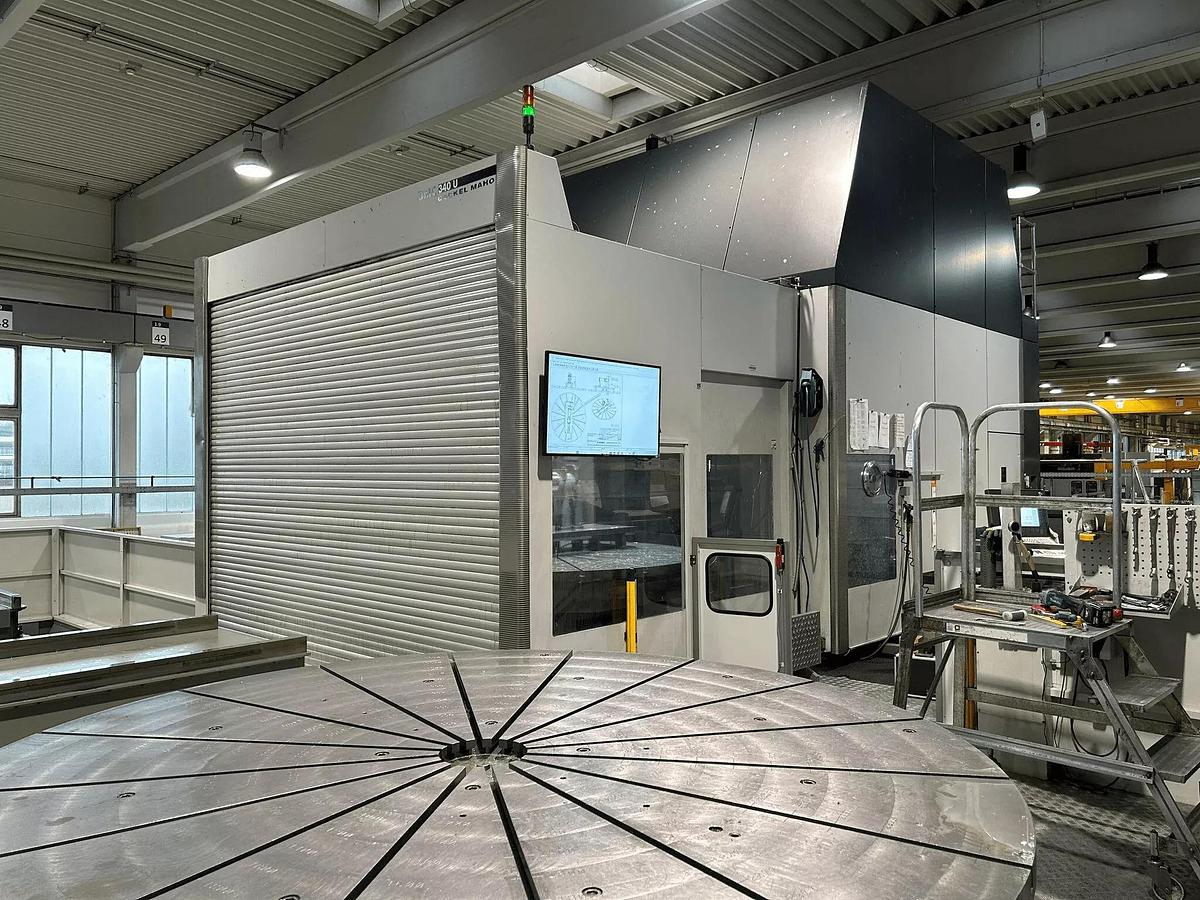

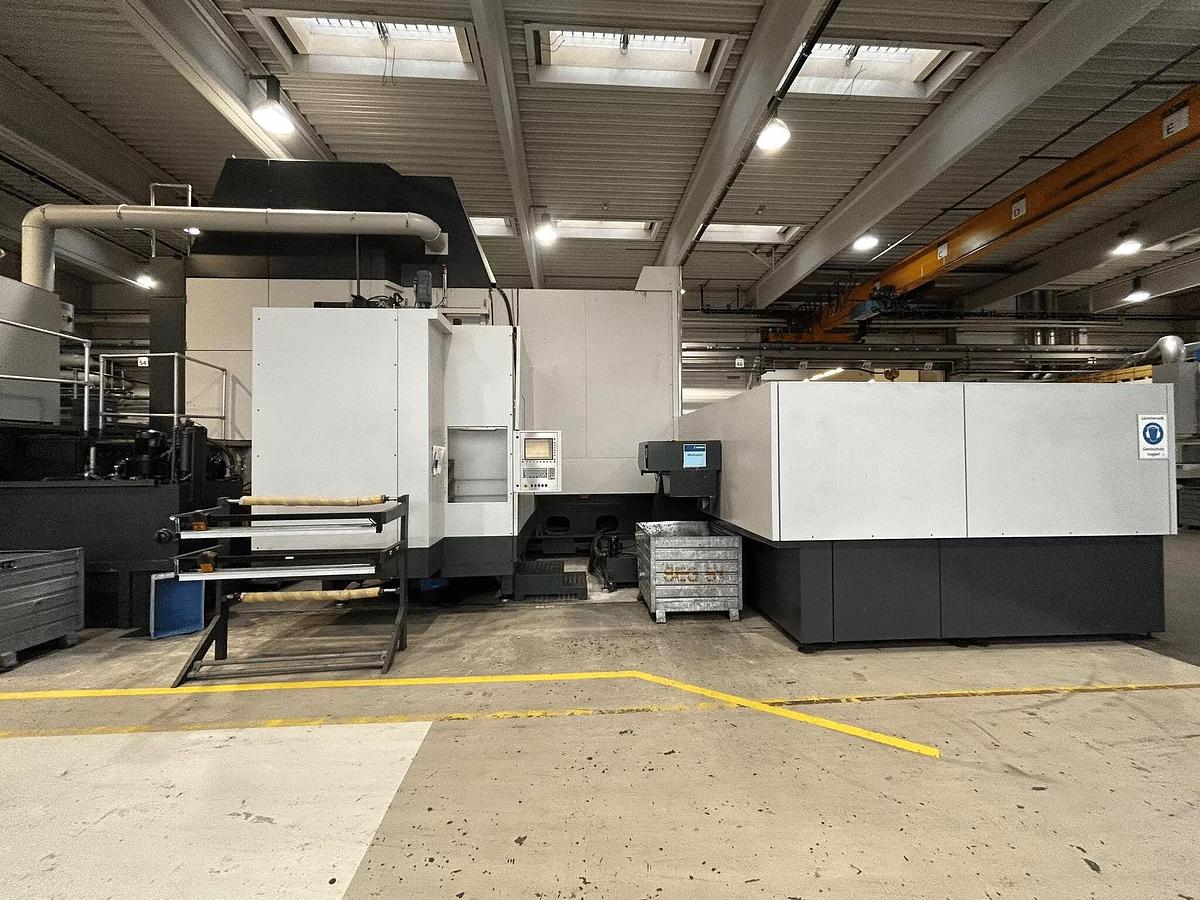

DMG DMC 340 U CNC Universal Machining Center with 2 Pallet System & Rotary Table Plate

DMG DMC 340 U CNC Universal Machining Center with 2 Pallet System & Rotary Table Plate

or
Call 770-509-0744

Description

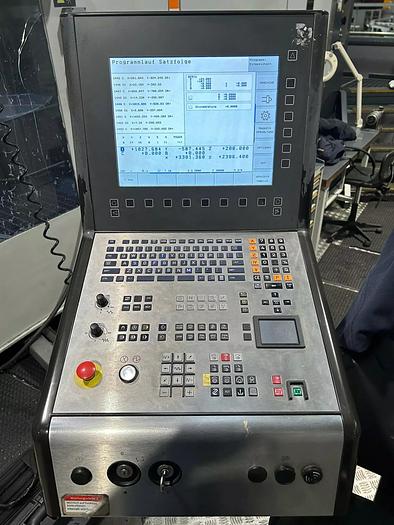

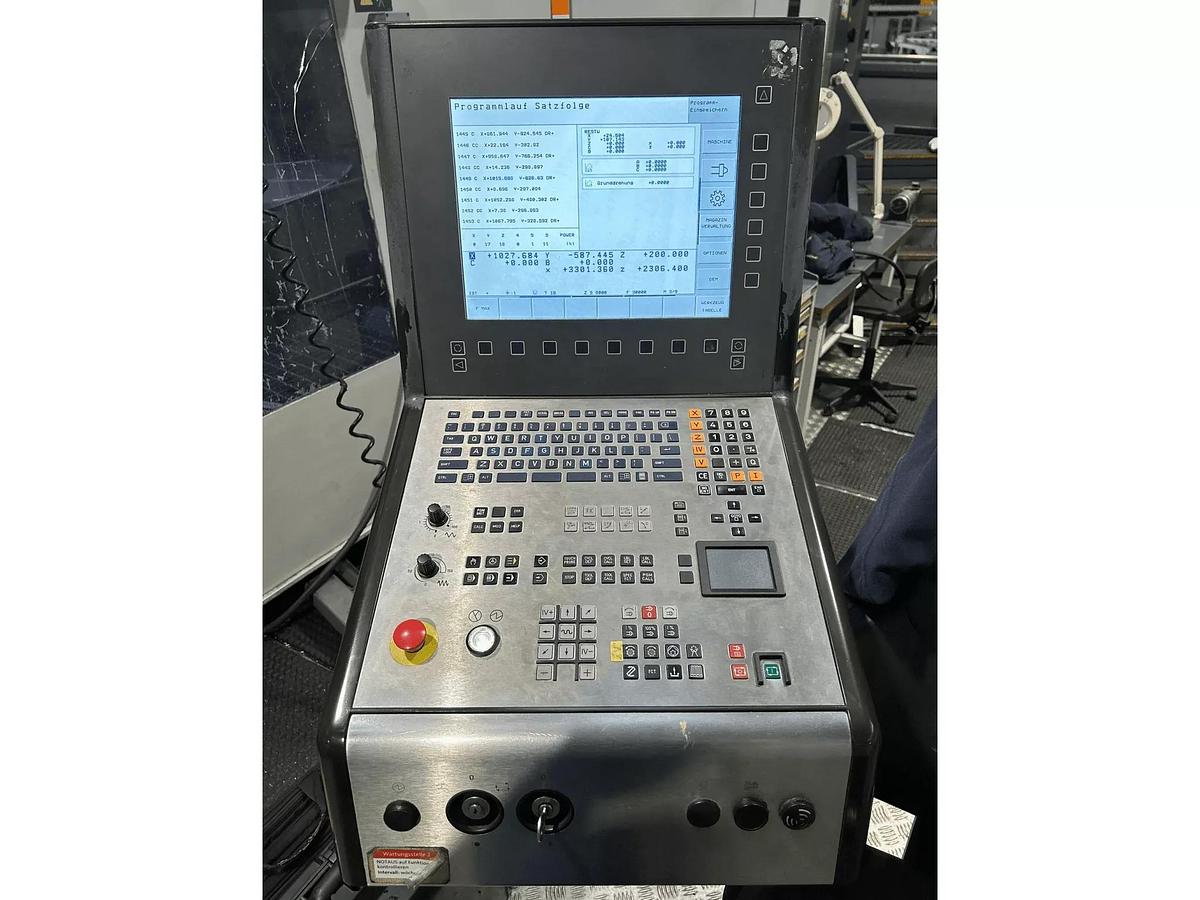

Heidenhain iTNC 530 CNC Control

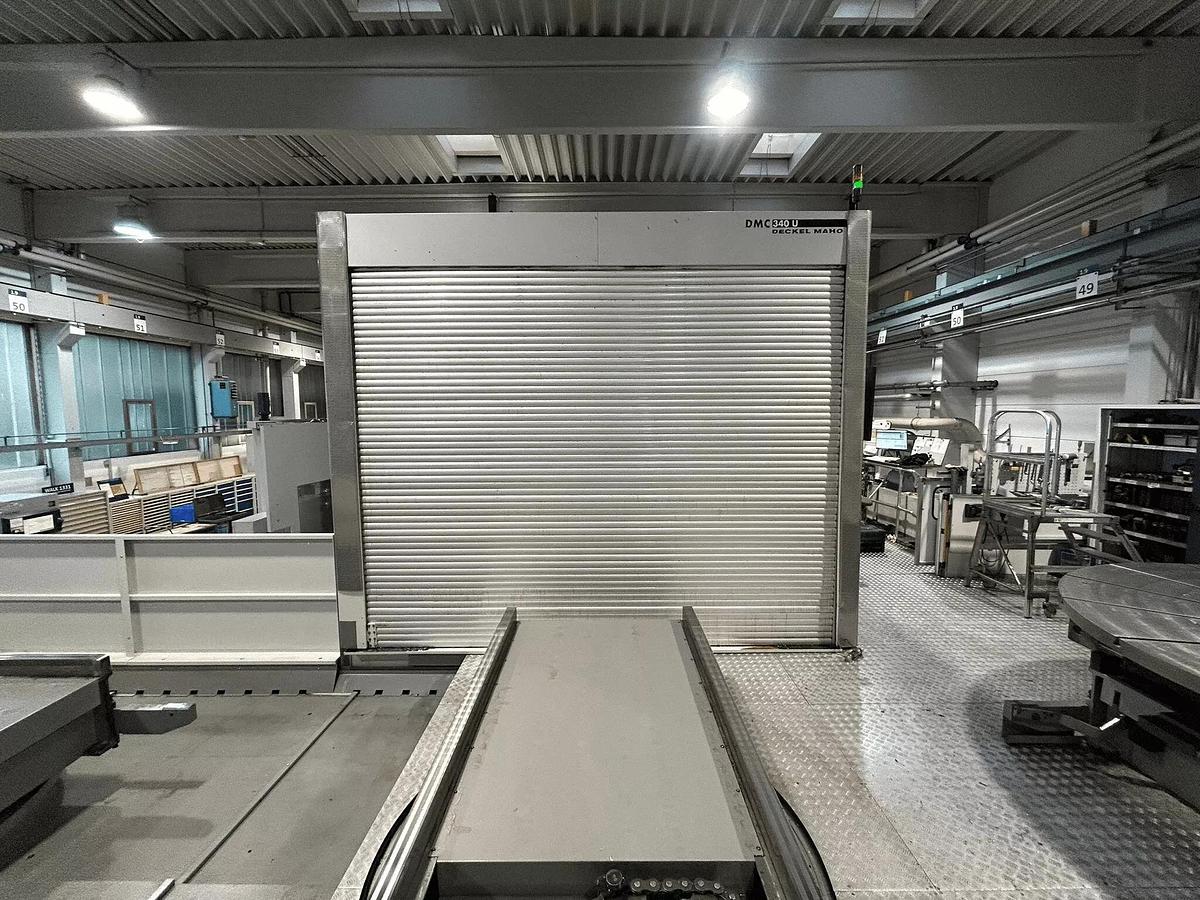

NC Rotary Pallet System

  • 2 Pallets
  • Pallet Size 2,500 x 2,000 mm

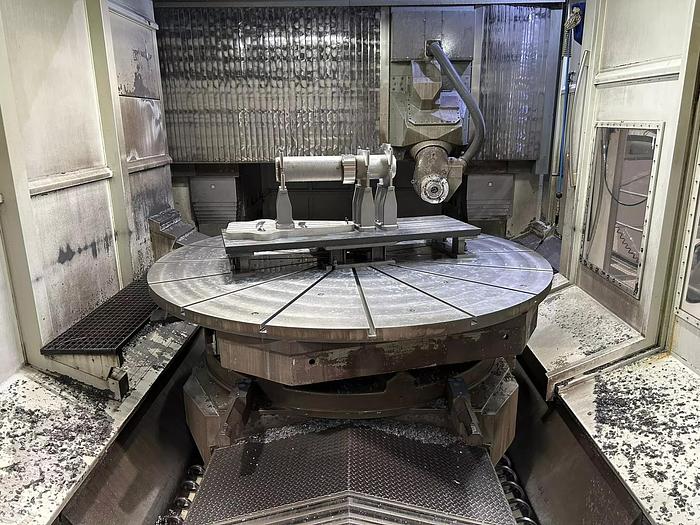

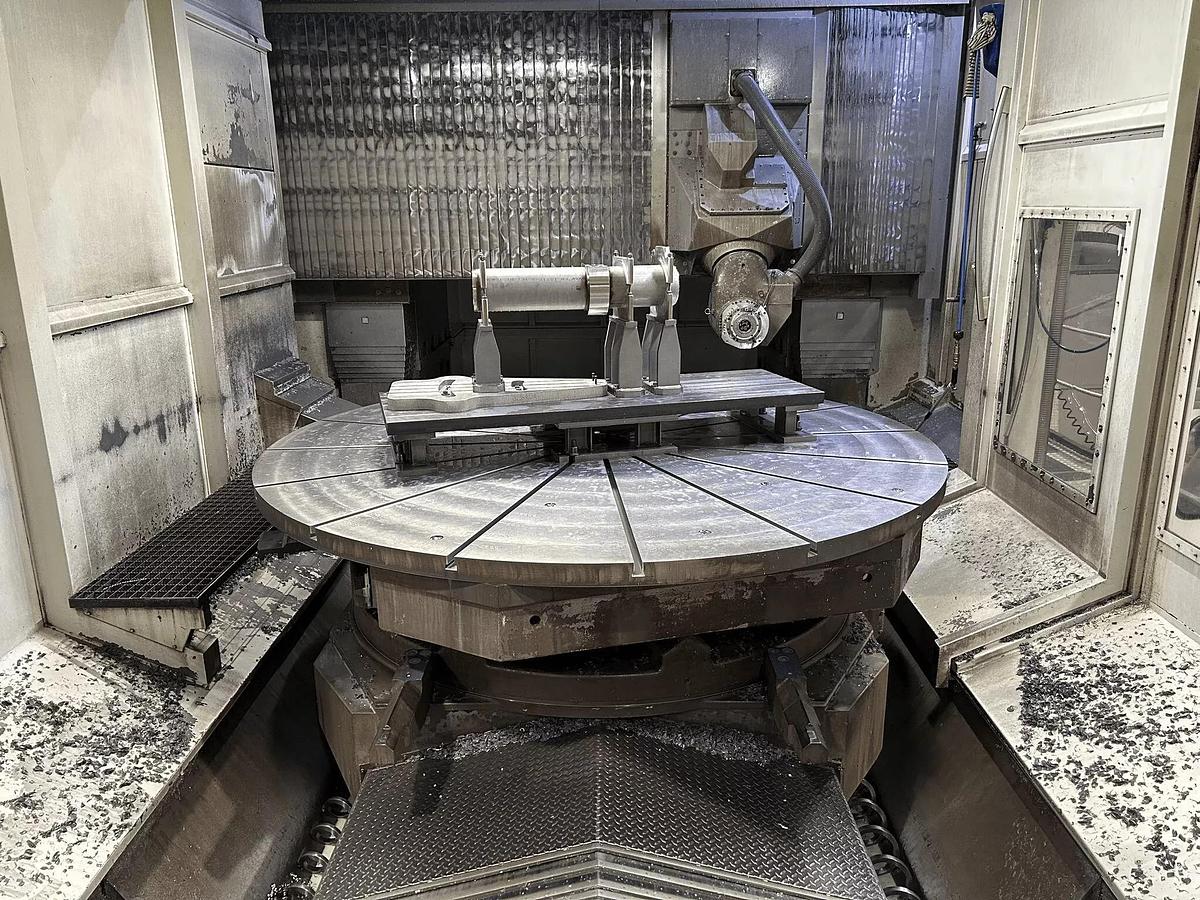

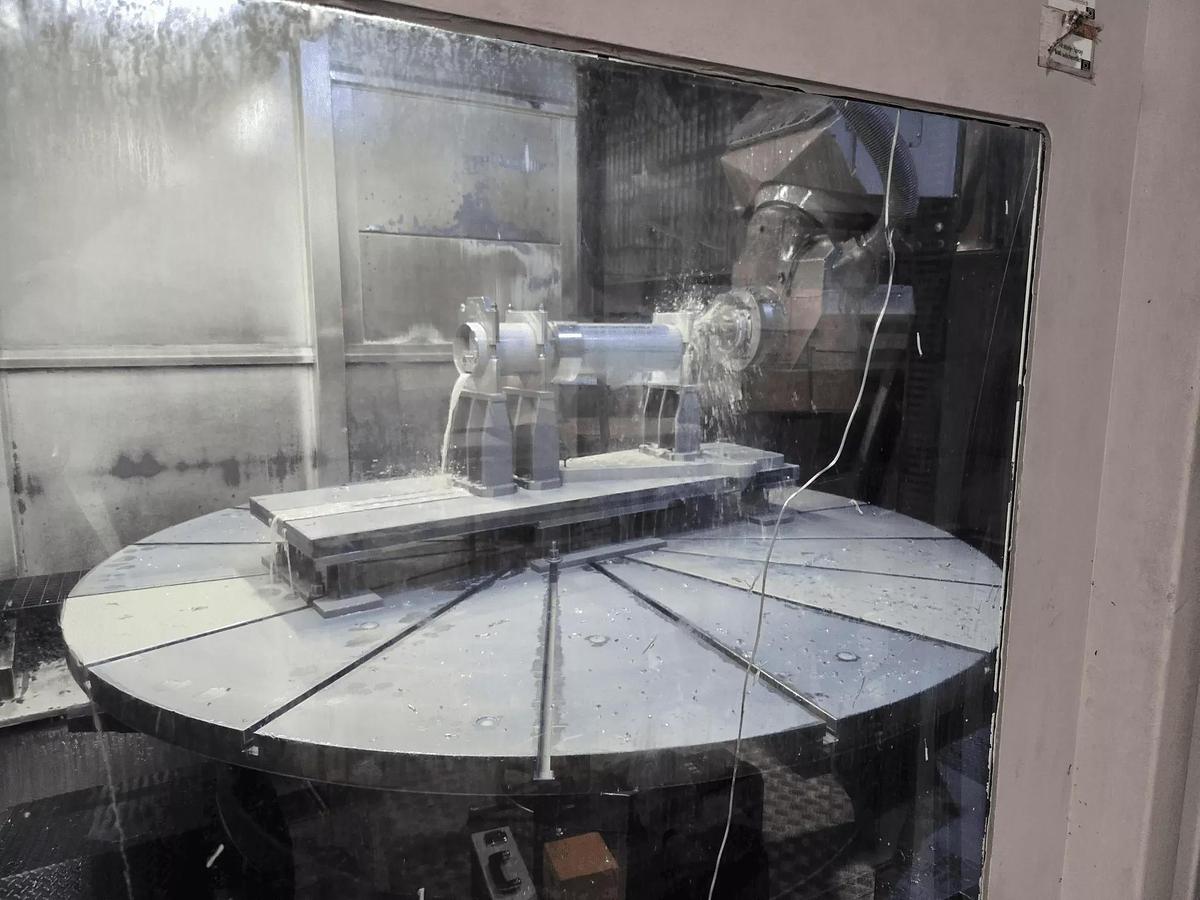

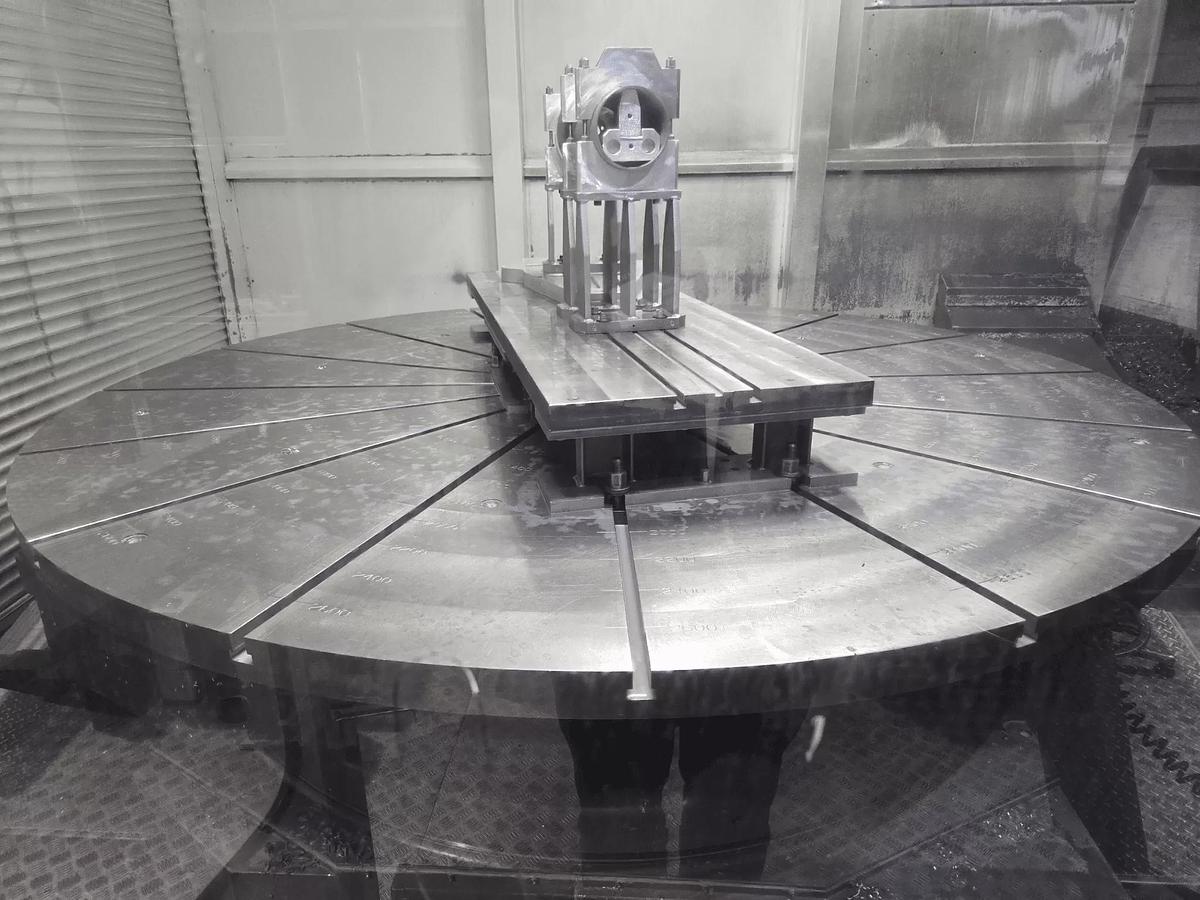

Rotary Table Plate - Diameter 2,800 mm

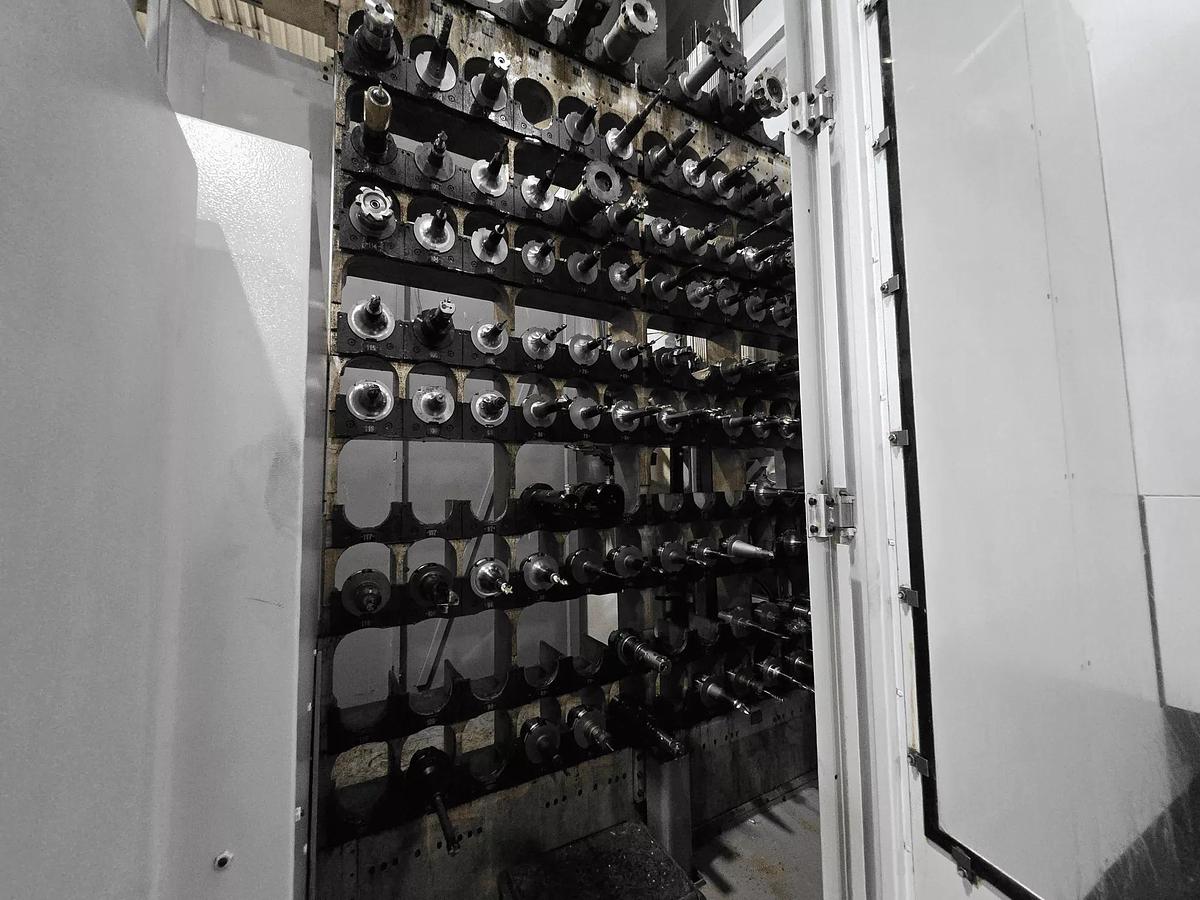

120 Position Automatic Tool Changer

  • Tool Diameter 130 / 250 mm
  • Tool Length 650 mm
  • Tool Weight 30 kg
  • Taper HSK 100

Internal Cooling

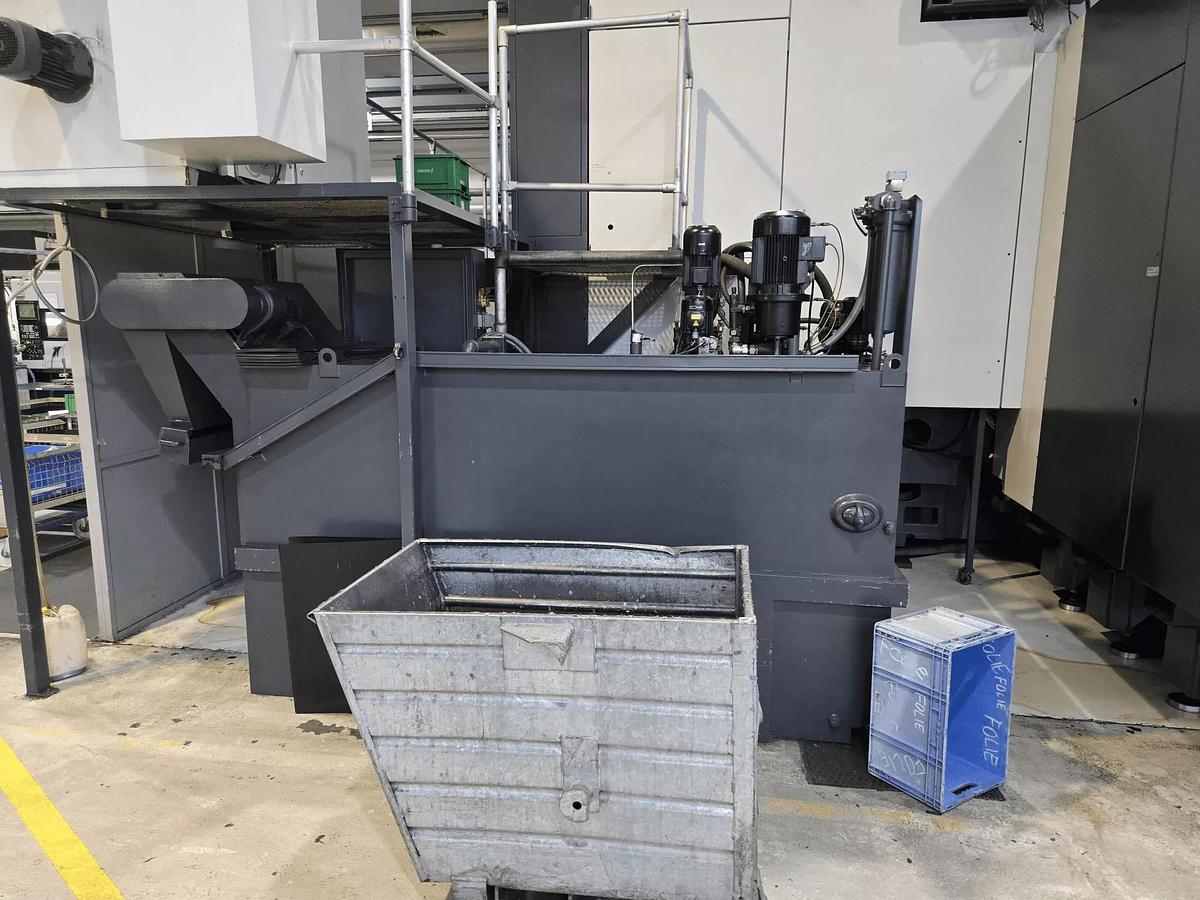

Chip Conveyor

Electronic Handwheel

Chip Rinsing Pistol

Specifications

ManufacturerDMG
ModelDMC 340 U
Year2002
ConditionUsed
Stock Number11195
Spindle speeds10,000 rpm
X axis travel2,800 mm
Y axis travel3,400 mm
Z axis travel1,600 mm
Rotary table plate diameter2,800 mm
Number of pallets2
Pallet size2,500 x 2,000 mm
Tool taperHSK 100
Spindle power44 / 32 kW
Spindle torque288 Nm
Rapid traverse X/Y/Z60 / 30 / 40 m/min
