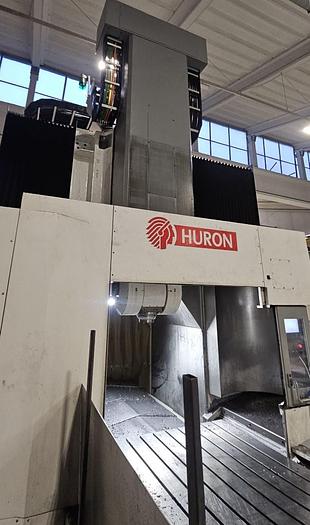

Huron KX 50L CNC 5-Axis Simultaneous Bridge-Type Milling Machine
Huron KX 50L CNC 5-Axis Simultaneous Bridge-Type Milling Machine
or
Call 770-509-0744
Description
5-Axis Simultaneous Machining
Heidenhain TNC 530 CNC Control
2-Axis Fork-Type Head
C Axis - ±200° - 0.001° Measurement Increment
B-Axis - ±105° - 0.001° Measurement Increment

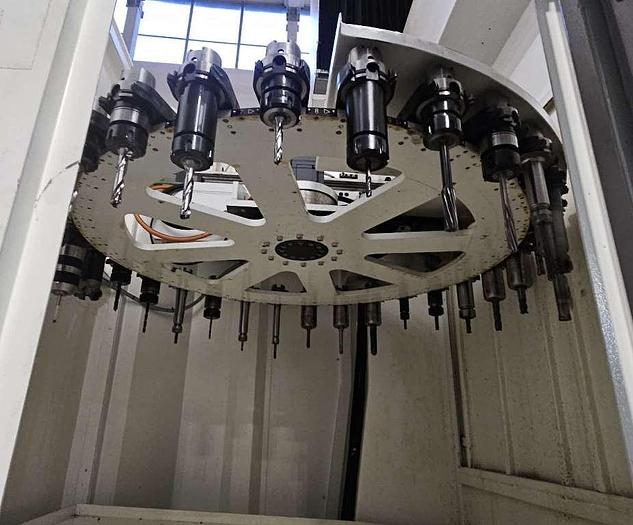

30 Position Magazine Tool Changer
Linear Axes Movements (X, Y, Z)
Table - 3,300 x 1,250 mm
6,000 kg Load Capacity
9 T-Slots
Distance Between T-Slots 125 mm
T-Slot Width 18 mm H7
Height Above Floor 790 mm
Workpiece Probe
Tool Probe
Linear Guides with Roller Recirculation Carriages
Low-Pressure Cooling. bar 3
Centralized Automatic Lubrication for Ball Screws and Slide Carriages
Absolute Linear Measurement via Linear Scale. Resolution mm 0.001°
Rotary Axis Measurement via Circular Encoder. Resolution 0.001°
Specifications
| Manufacturer | Huron |
| Model | KX 50L |
| Year | 2017 |
| Condition | Used |
| Stock Number | 11197 |
| Between columns | 1,500 mm |
| Spindle speeds | 20,000 rpm |
| Distance spindle nose to table | 955 mm |
| X axis travel | 3,000 mm |
| Y axis travel | 1,700 mm |
| Z axis travel | 900 mm |
| Table size | 3,300 x 1,250 mm |
| Table capacity | 6,000 kg |
| High speed | 40 m/min |
| Acceleration per Axis | 4 m/s² |
| Vectorial Acceleration | 7 m/s² |
| Spindle power S1/S6 - 40% | 60 / 75 kW |
| Spindle taper | HSK 63A |
| Machine dimensions | 4,700 x 9,740 x 5,030 mm |
| Machine weight | 30 Ton |
