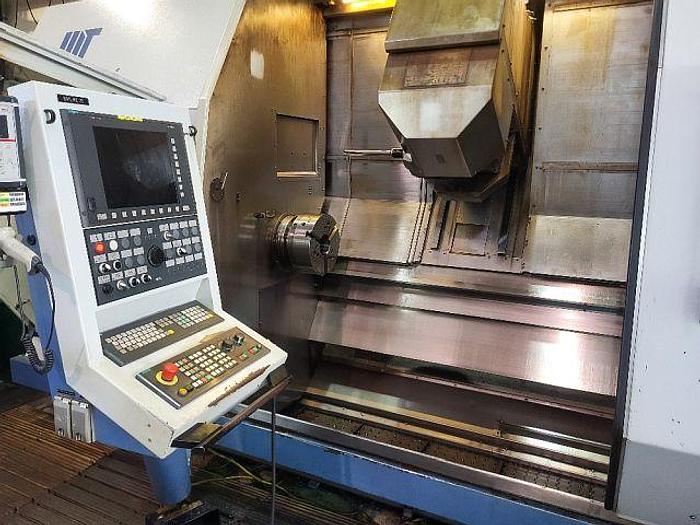

SIEMENS 840D SL CNC Control

Updates to Machine:

2023 B-axis overhauled

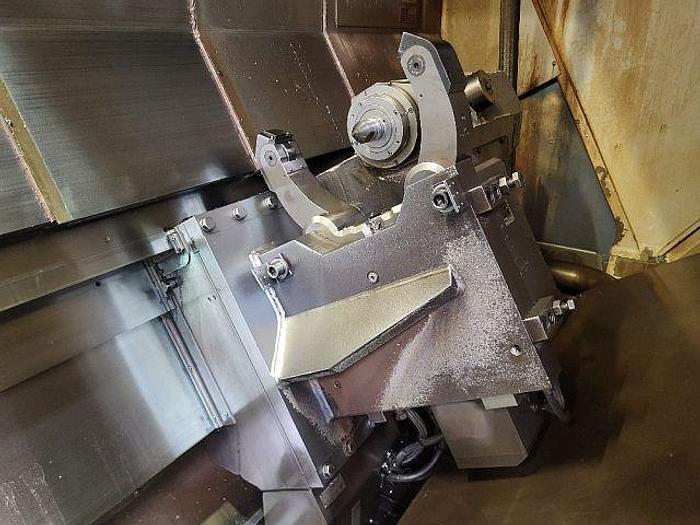

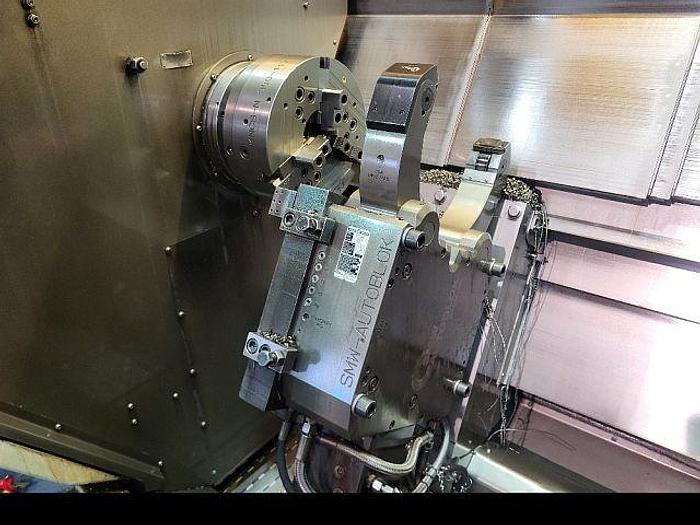

2024 SMW steady rest SR5-ZSW

2025 Rotary union replaced

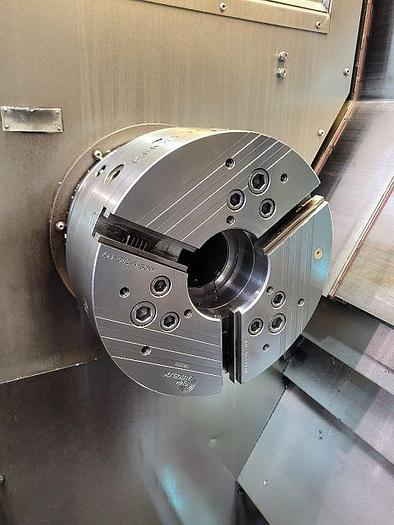

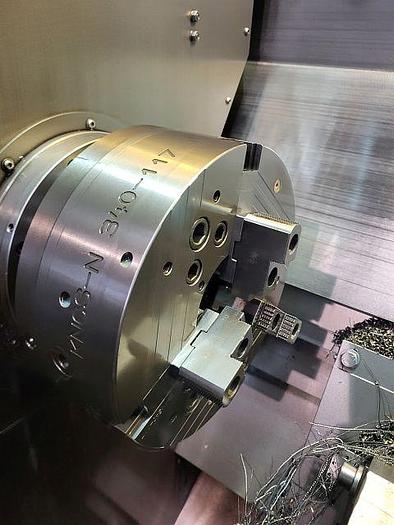

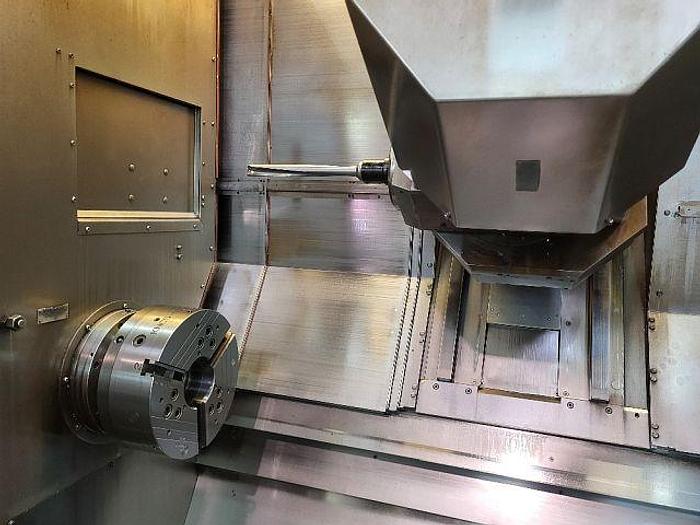

3-Jaw Autoblok 340-117 chuck

Steady Design - Offen

Steady Diameter (min/max) - 45 / 310 mm

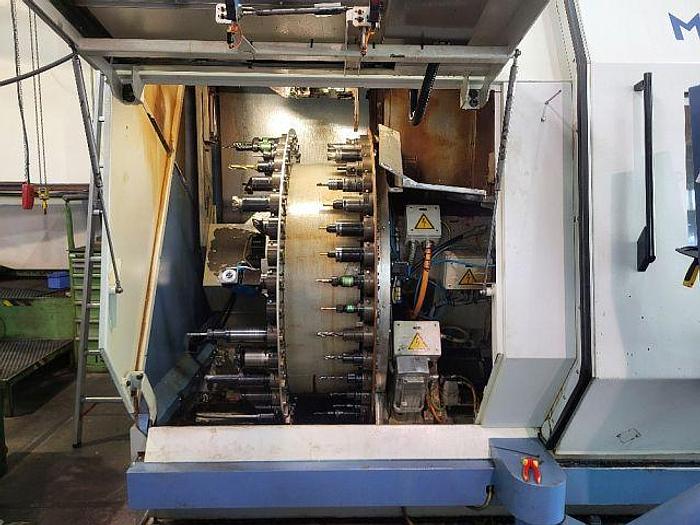

80 Position Automatic Tool Changer - Live Positions

ATTACHMENTS (TURNING)

self-centering chuck 1

clamping diameter 340 mm

tailstock optional

steadies (number) 1

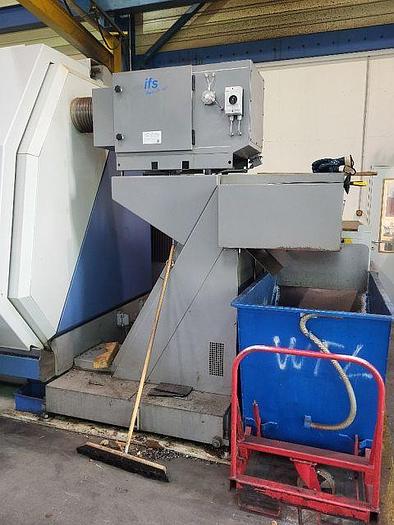

chip conveyor yes

coolant unit yes

aspiration unit yes

hydraulic system yes

European CE standards yes

number of spindles 1

live positions yes

number of c-axes 1

number of y-axes 1

number of b-axes 1

Operating hours:

NC program runs: 28,620h

Spindle running: 21,900h

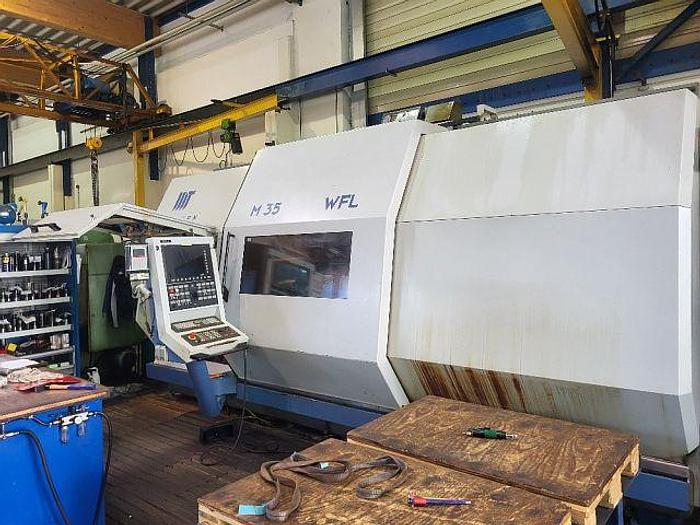

Manufacturer	WFL
Model	MillTurn M 35
Year	2008
Condition	Used
Stock Number	11199
Between centers	2,000 mm
Swing diameter	520 mm
Bar diameter	77 mm
Workpiece length	2,000 mm
Workpiece weight	1,000 kg
Main spindle speeds	4,000 rpm
Spindle drive power S6 40%	33 kW
Spindle drive power S1 100%	45 kW
Spindle torque S6 40%	630 Nm
C-axis	Yes
X axis travel	600 mm
Y axis travel	250 mm
Rotating range B-axis up to	220°
Rapid traverse z axis	40 m/min
Rapid traverse x axis	30 m/min
Rapid traverse y axis	15 m/min
Tool fixture	Milling Spindle
Number of tool positions (total)	80
Number of live positions	80
Rotation speed, max	9,000 rpm
Electrics	400 V / 50 Hz
Machine dimensions	7,700 x 4,200 x 3,300 mm
Machine weight	17,000 kg
