SAMAG SFZ 3500 CNC 5-Axis Traveling Column Machining Center

SAMAG SFZ 3500 CNC 5-Axis Traveling Column Machining Center

or
Call 770-509-0744

Description

NEW DEMO Machine

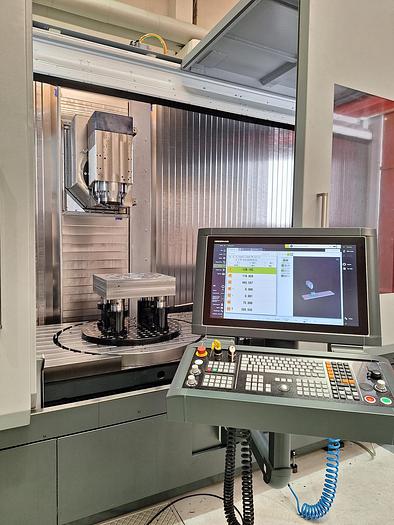

Heidenhain TNC7 with 24" Color Screen

60 Position Tool Magazine

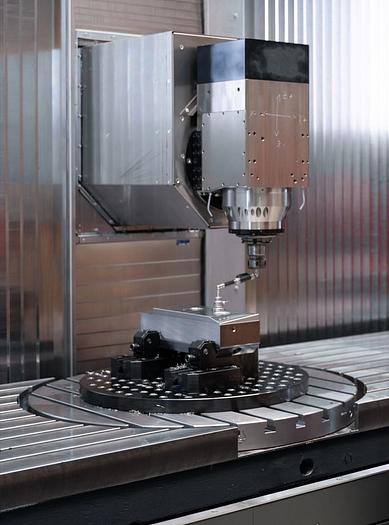

Swivel Head and Internal Turntable

B-Axis Swivel Head

C-Axis Rotary Table

Coolant System with Paper Belt Filter

Internal Cooling 40 bar (max 80 bar)

Internal Air Supply Through the Spindle

3D Touch Probe

Electronic Handwheel

Flushing Gun

Measuring Probe

DCM Collision Monitoring

Kinematics Opt

Specifications

ManufacturerSAMAG
ModelSFZ 3500
Year2023
ConditionUsed
Stock Number11201
Spindle speeds12,000 rpm
Table diameter1,000 mm
X axis travel3,500 mm
Y axis travel1,000 mm
Z axis travel1,000 mm
Table fault circle1,300 mm
Spindle power54 kW
Spindle taperSK 50
Spindle torque120/145 Nm
Machine dimensions9,700 x 5,200 x 3,480 mm
