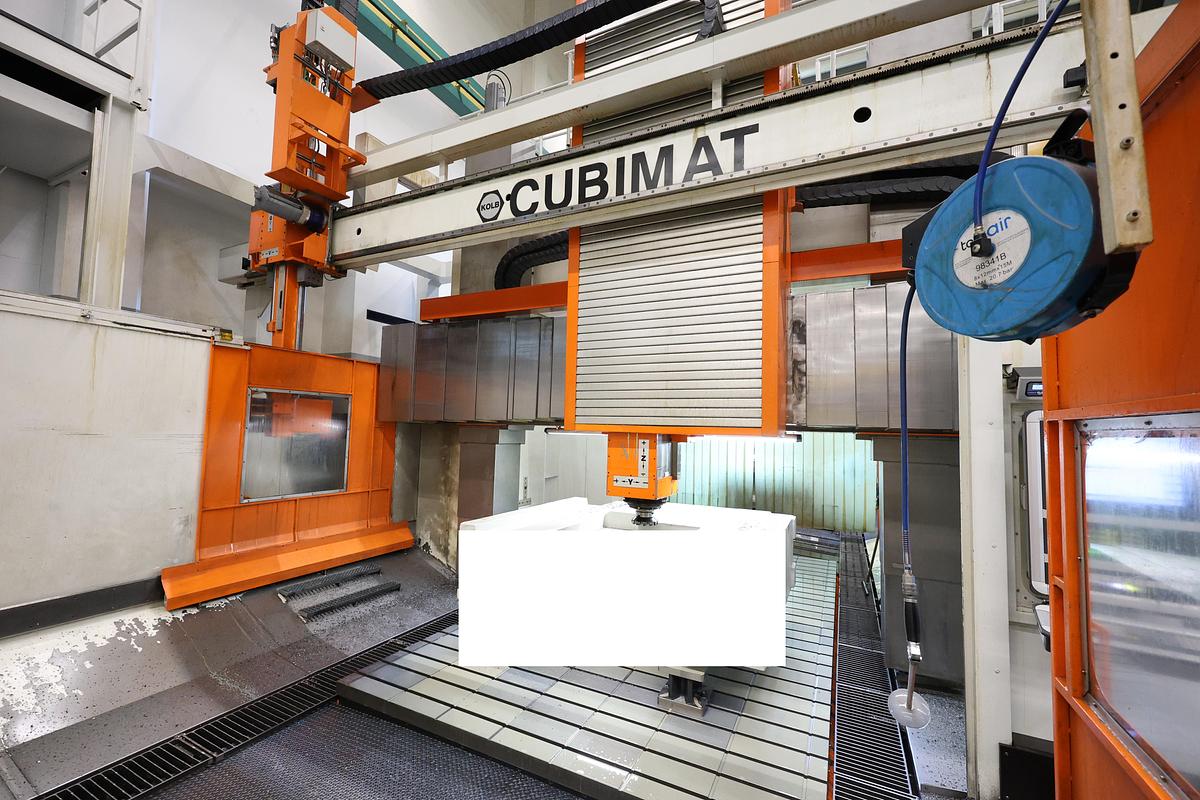

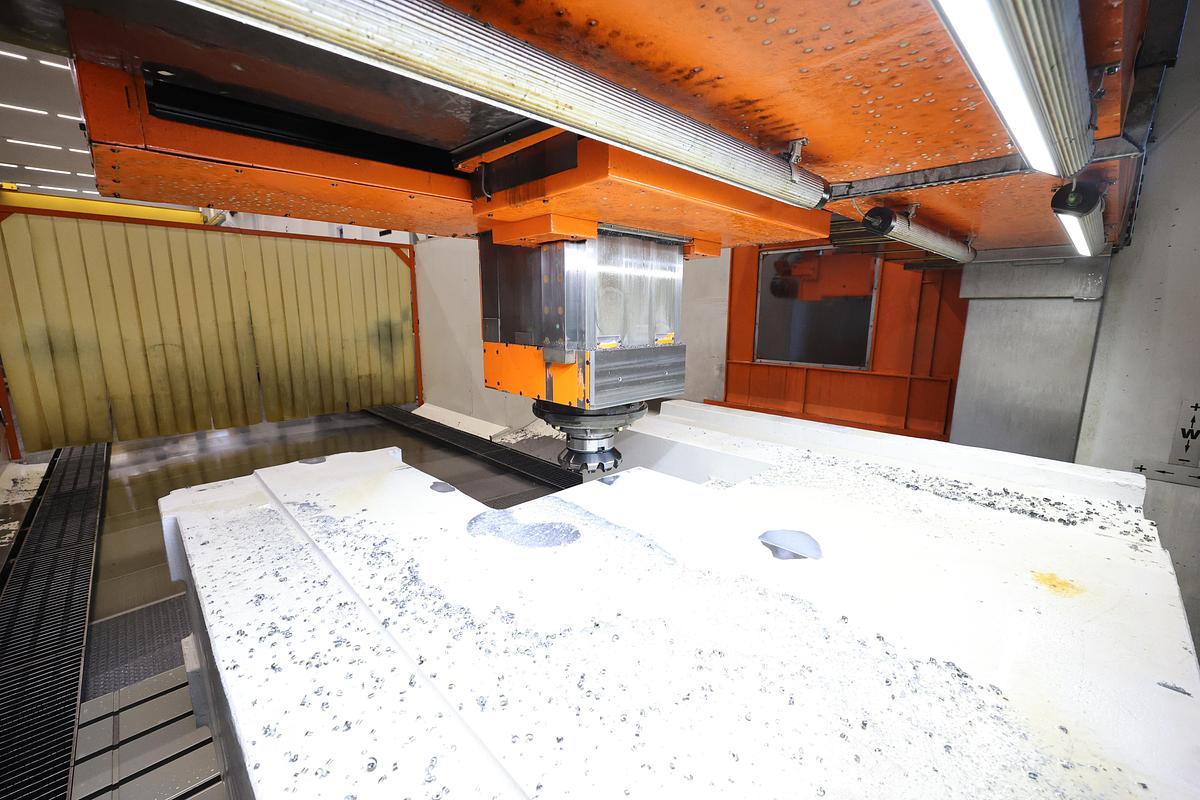

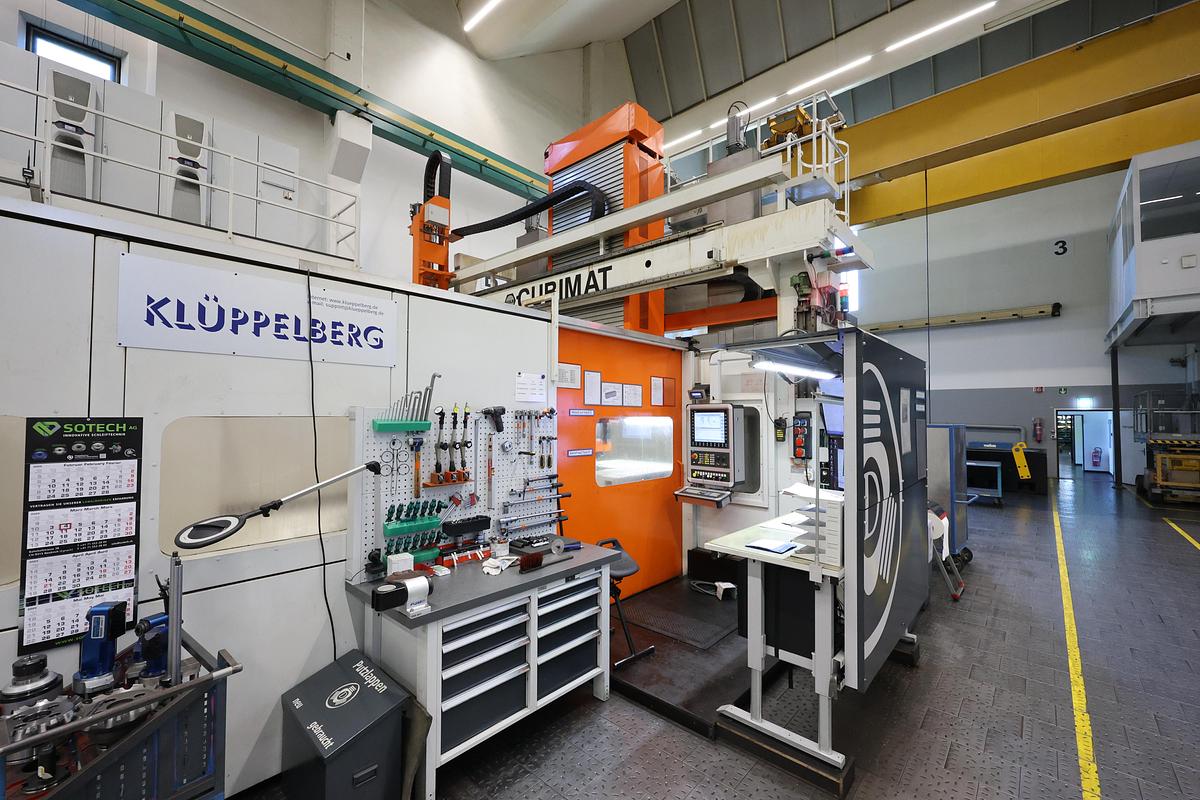

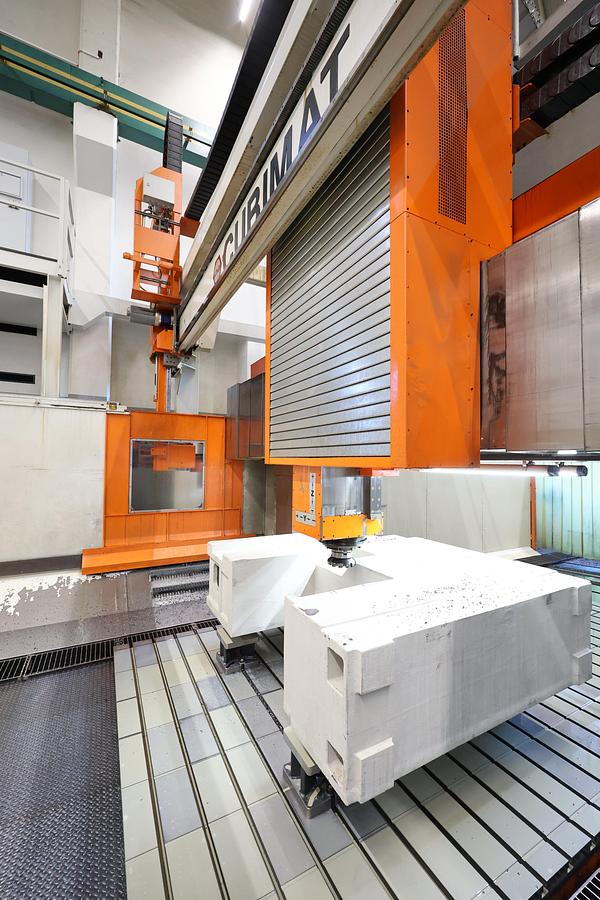

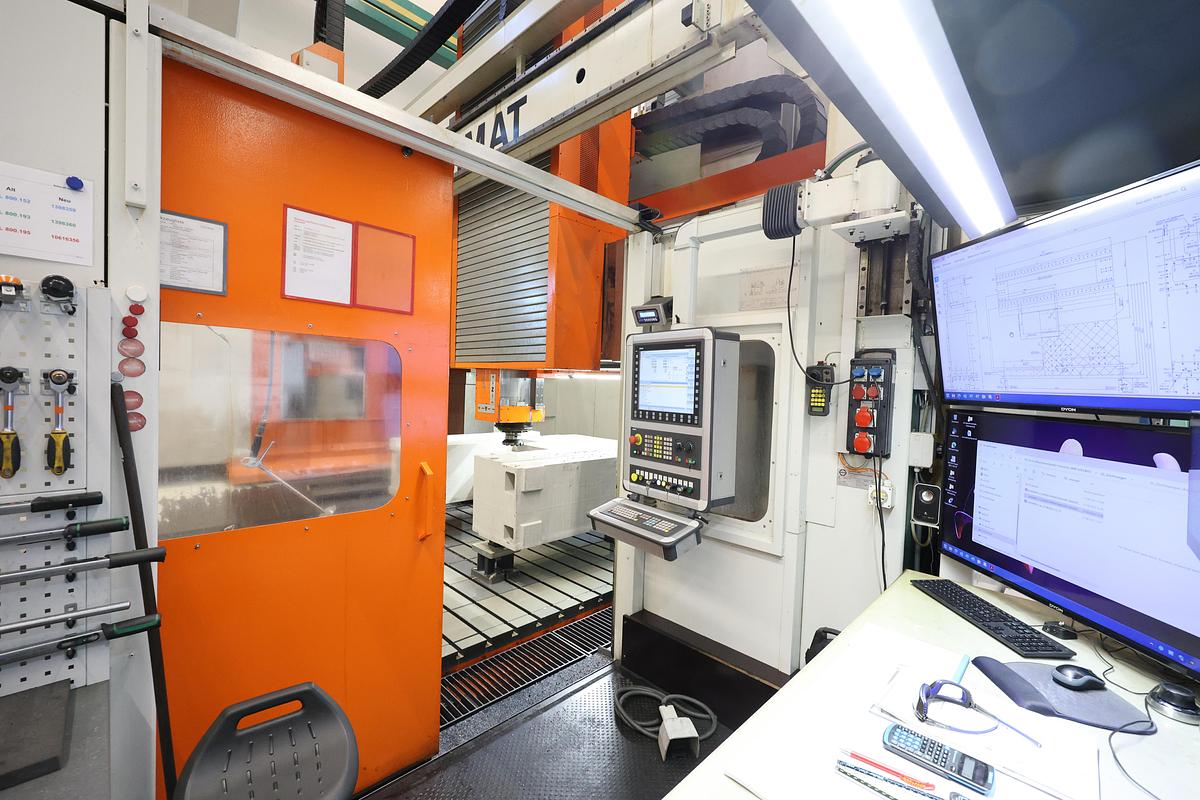

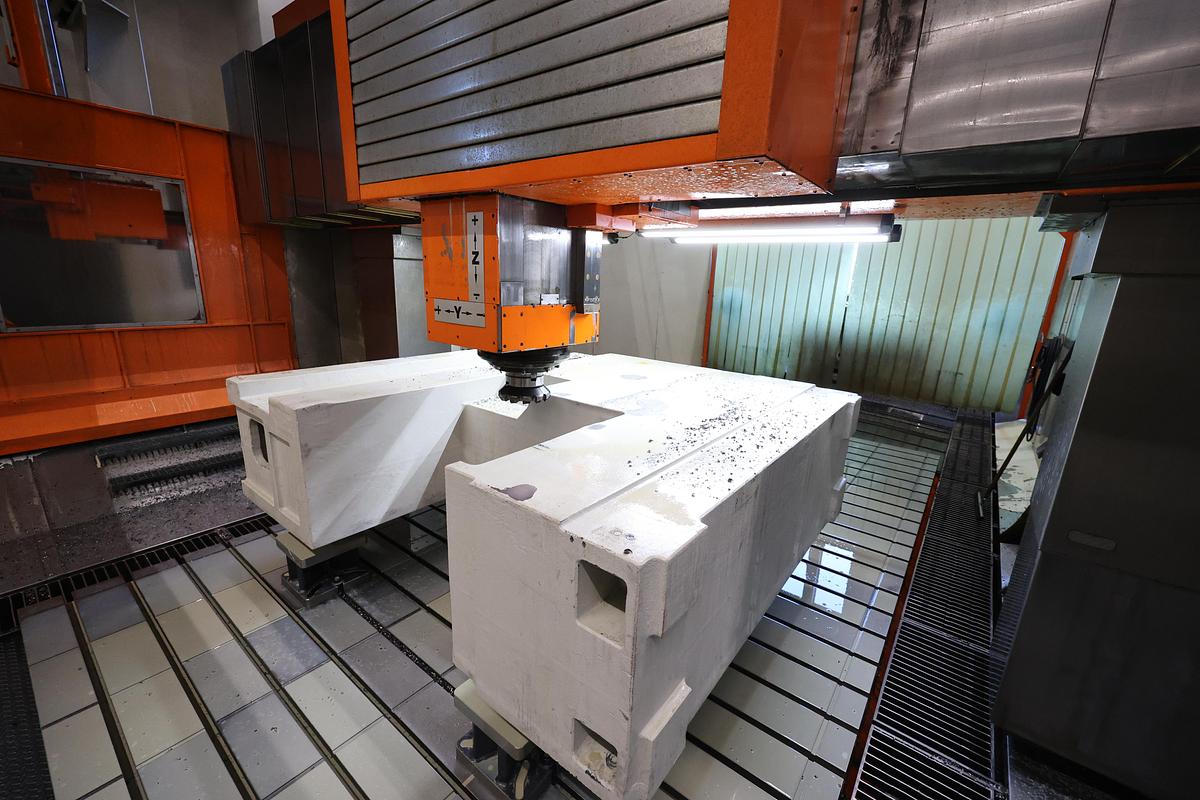

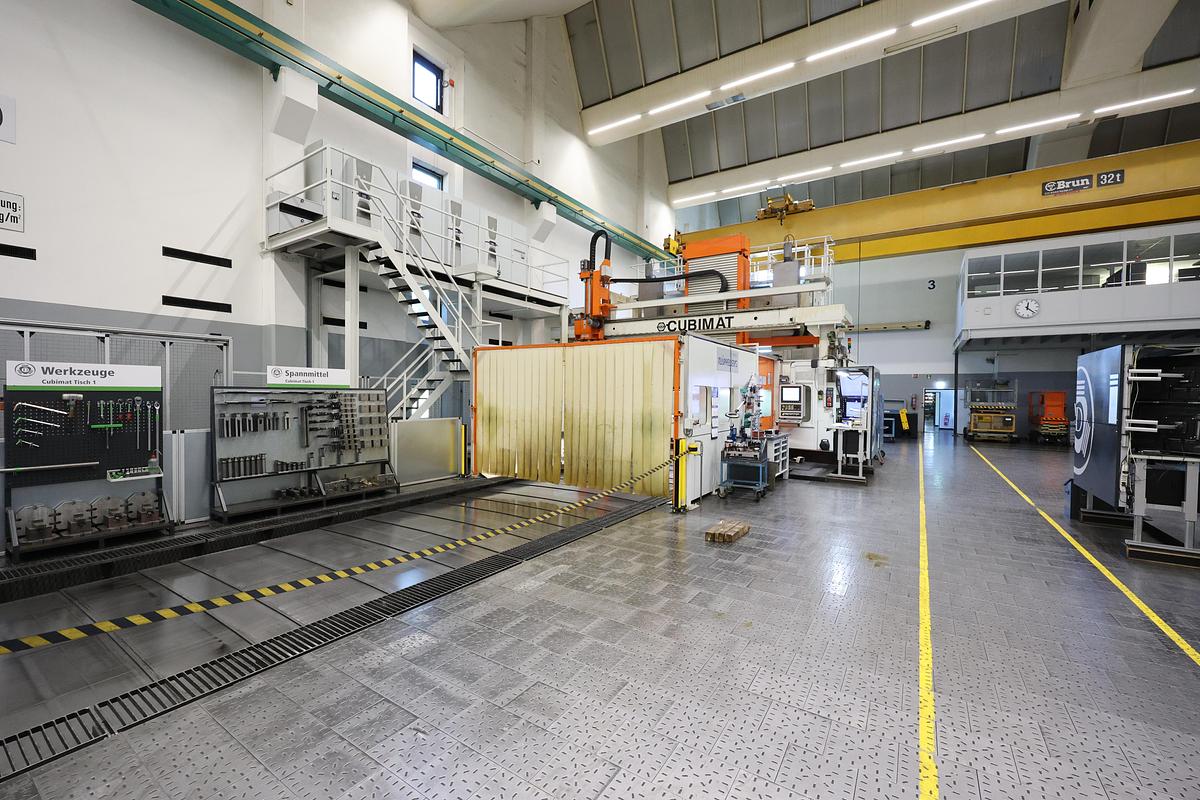

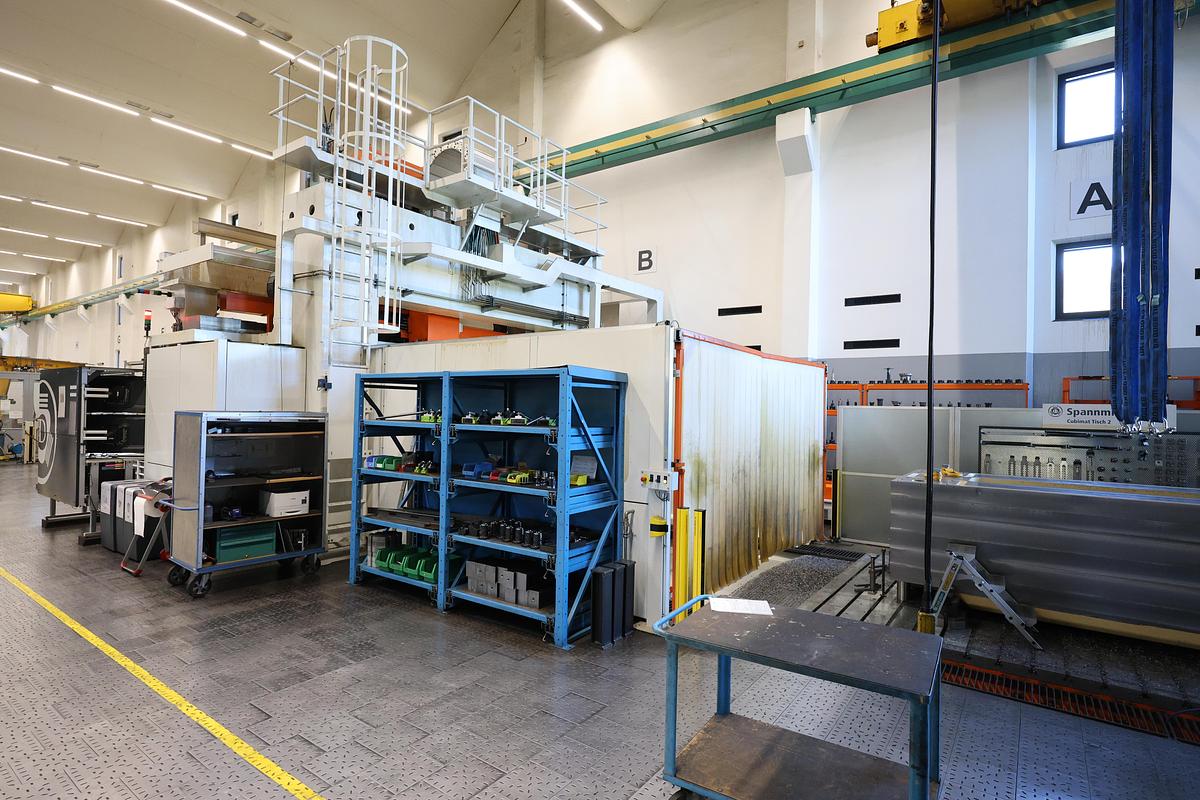

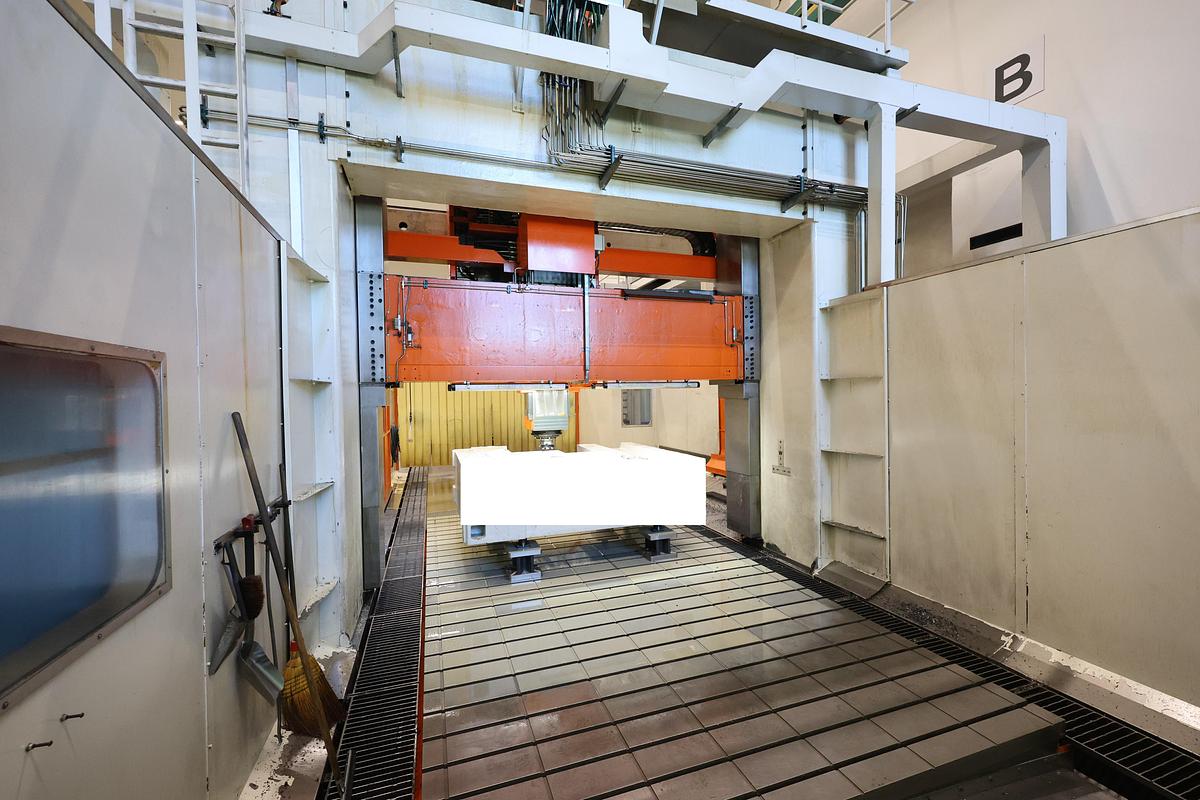

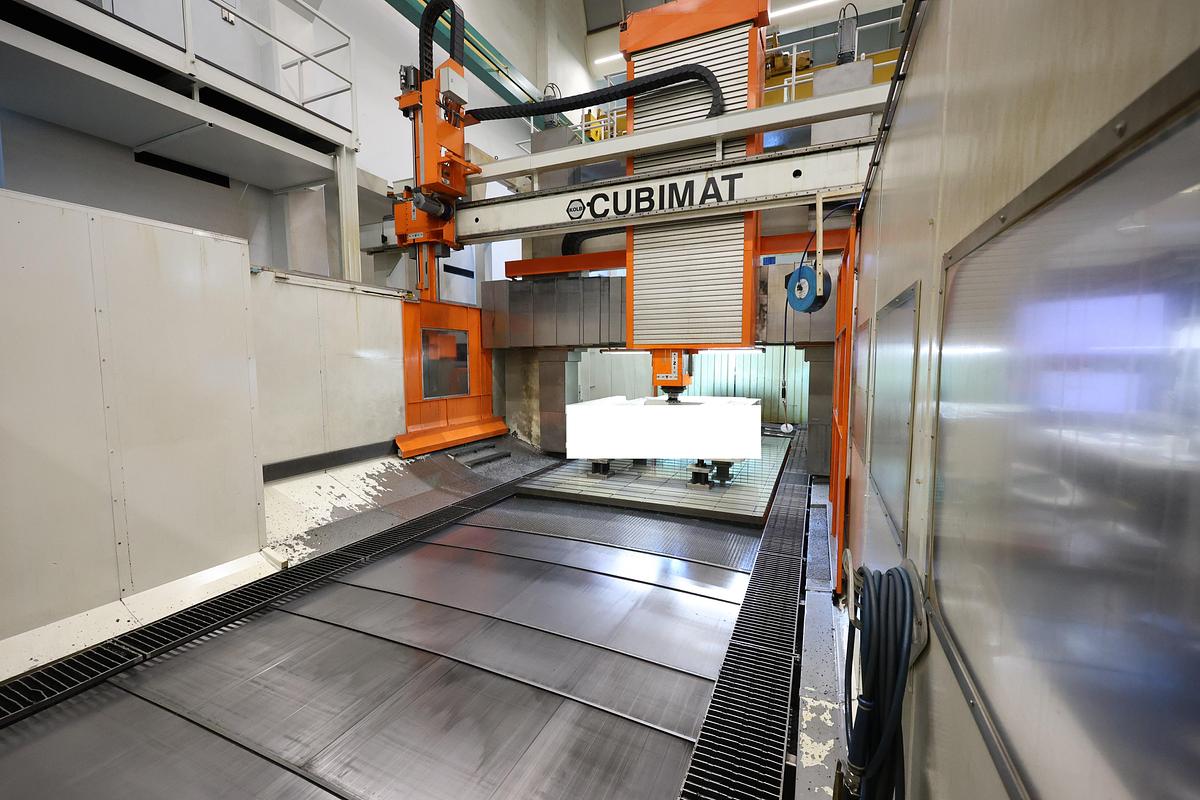

Kolb CUBIMAT VD CNC Double Column Planer Type Milling Machine
Kolb CUBIMAT VD CNC Double Column Planer Type Milling Machine
or
Call 770-509-0744
Description
In Almost NEW Condition
Complete Rebuild & Retrofit in 2020 - Fully Modernized

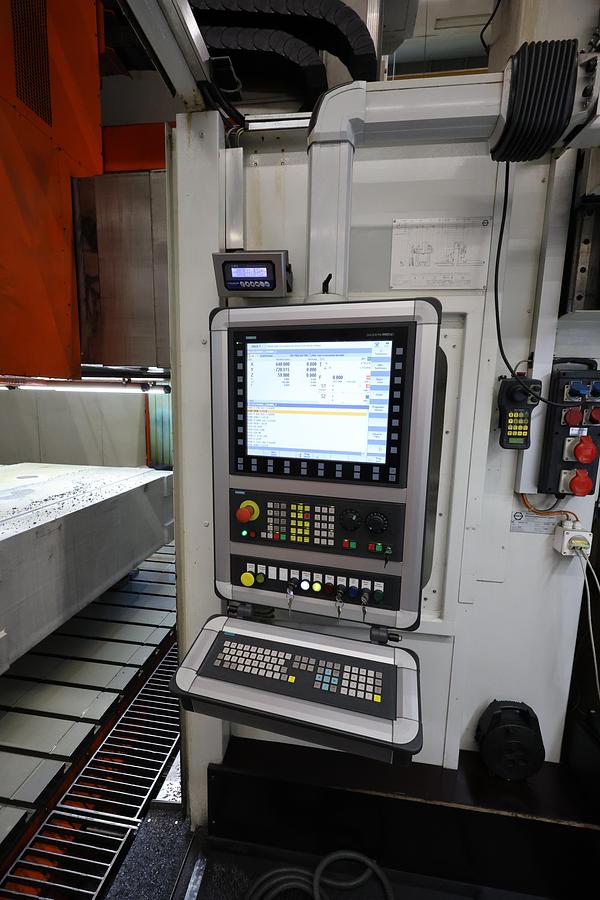

Siemens Sinumerik 840D CNC Control

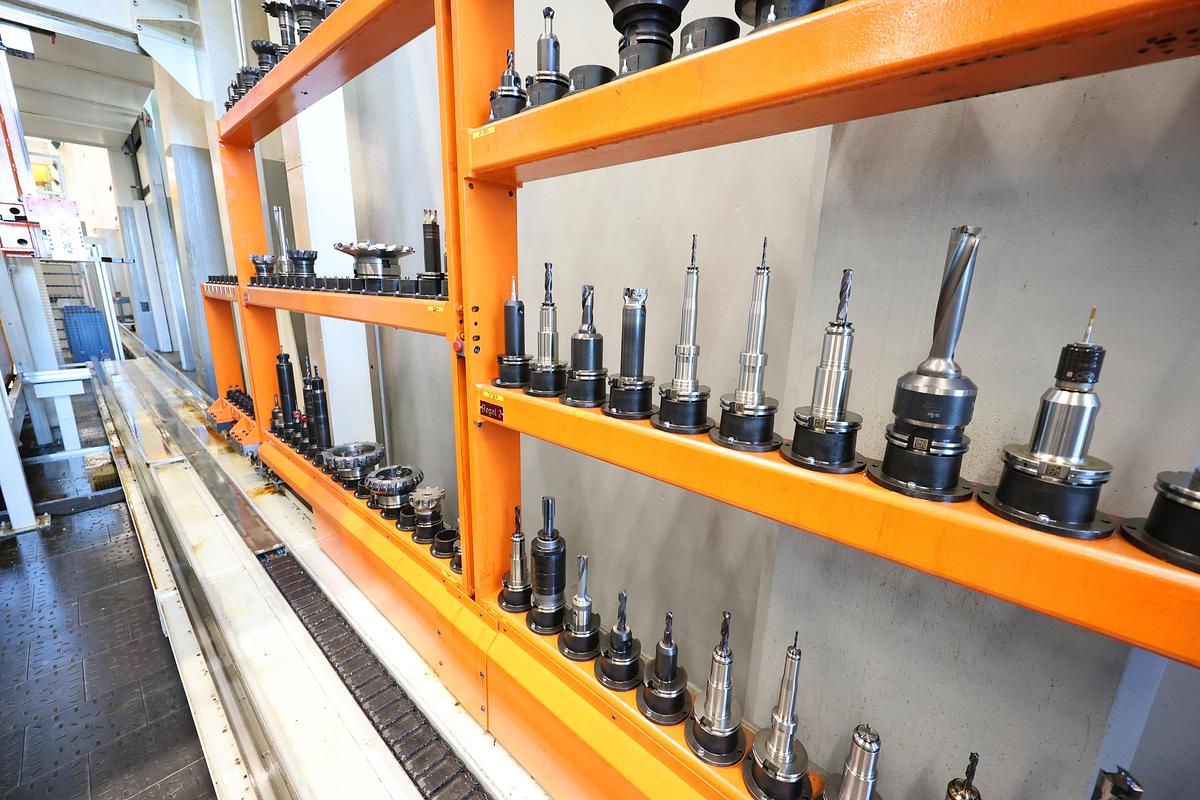

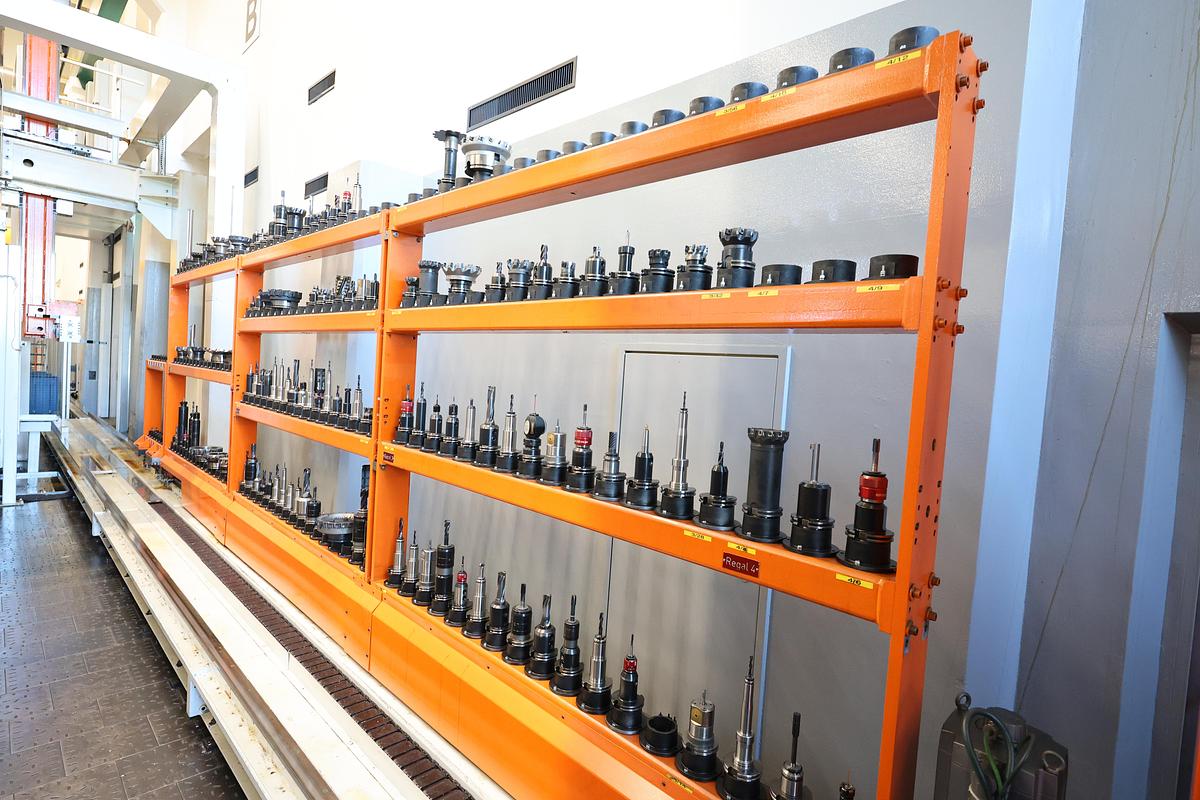

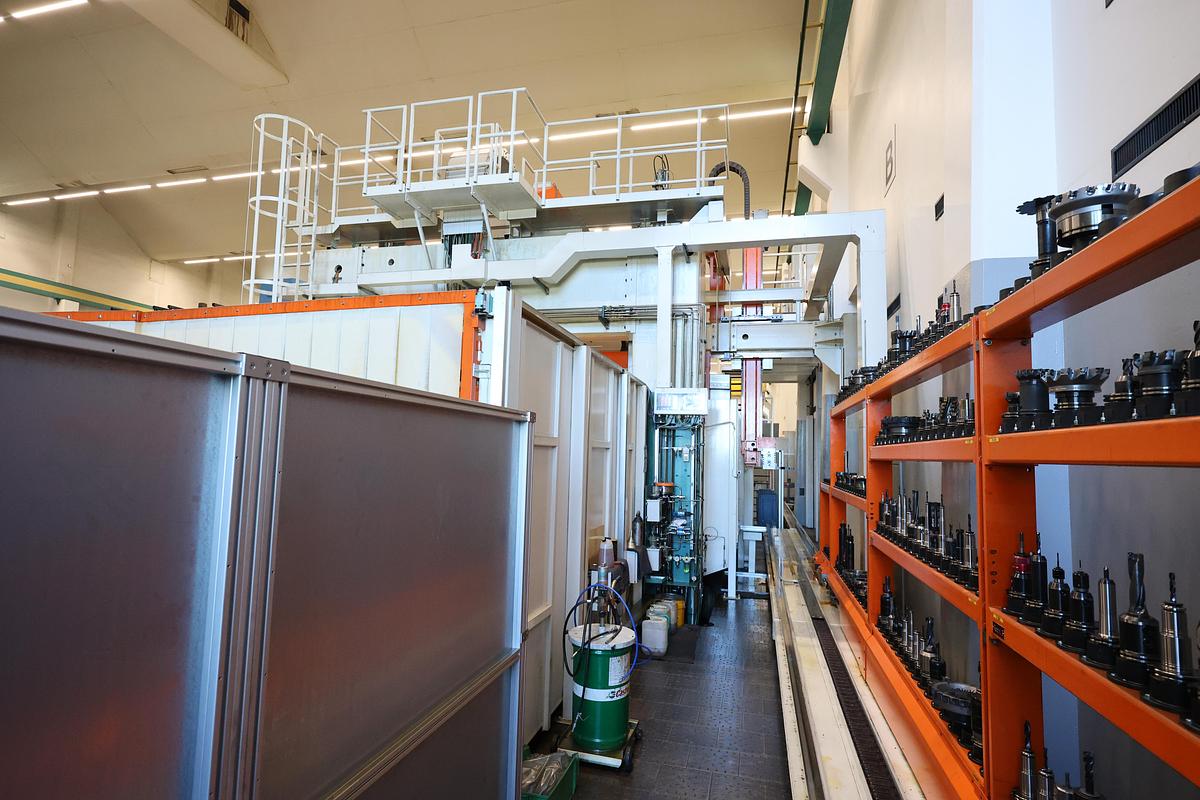

153 Position Automatic Tool Changer
Automatic Milling Head for 6 Milling Heads:

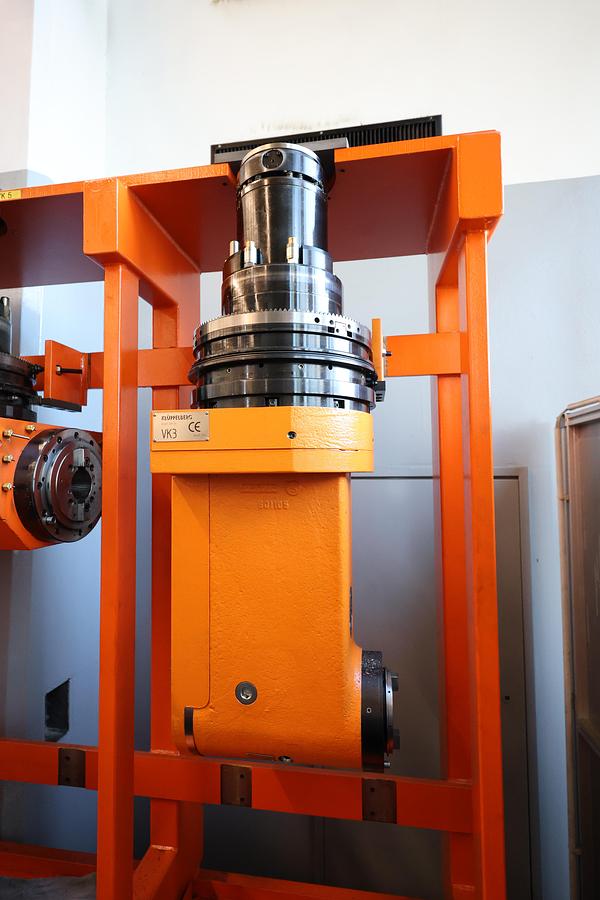

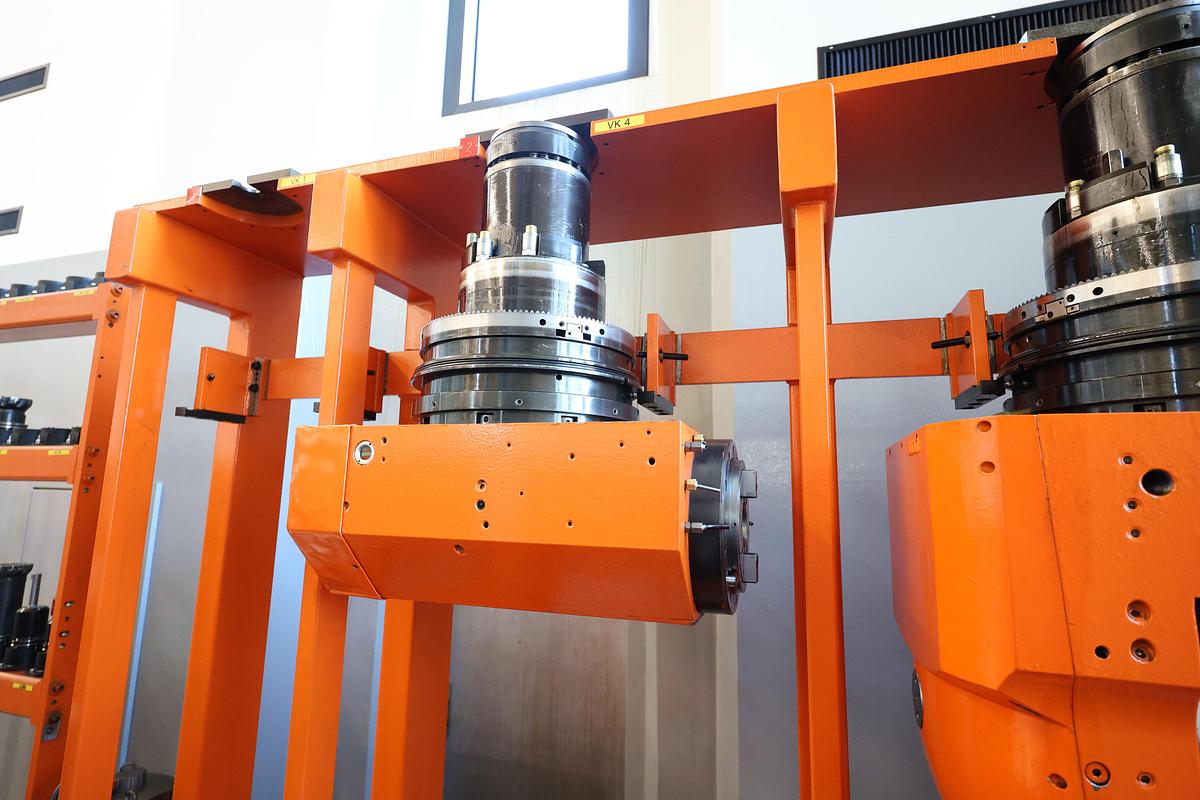

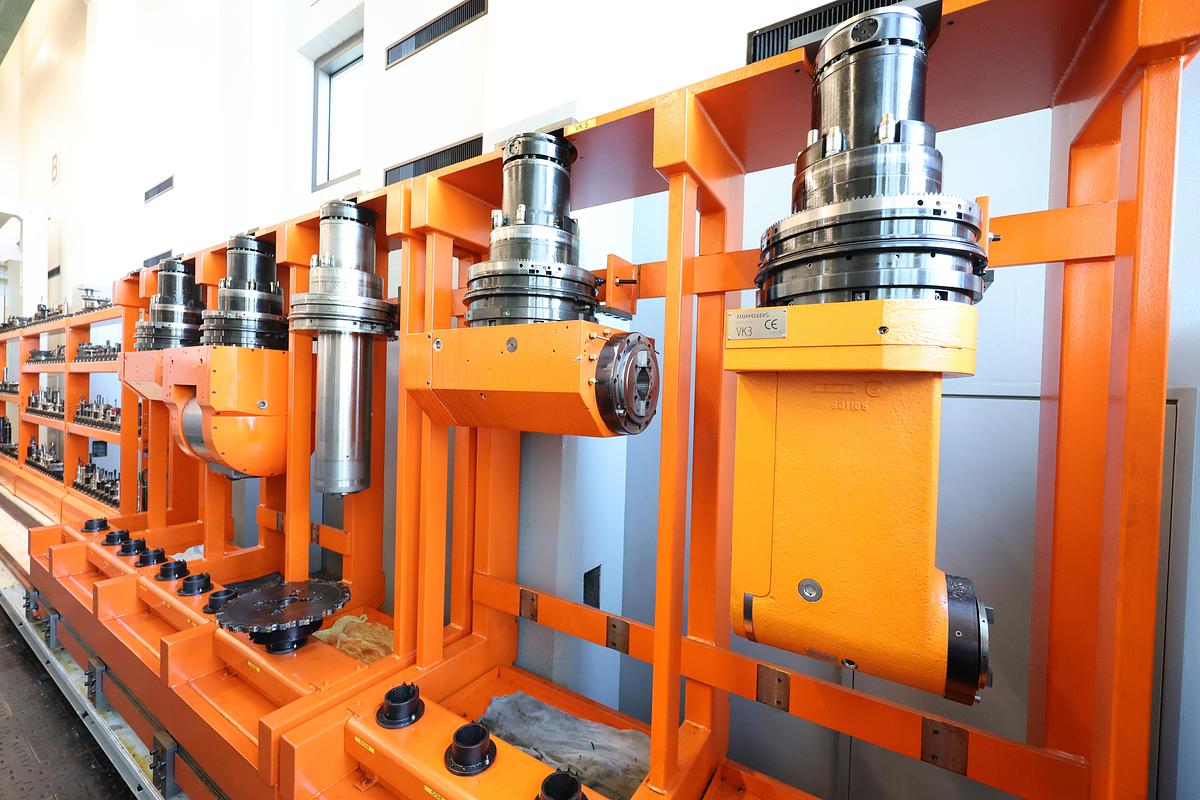

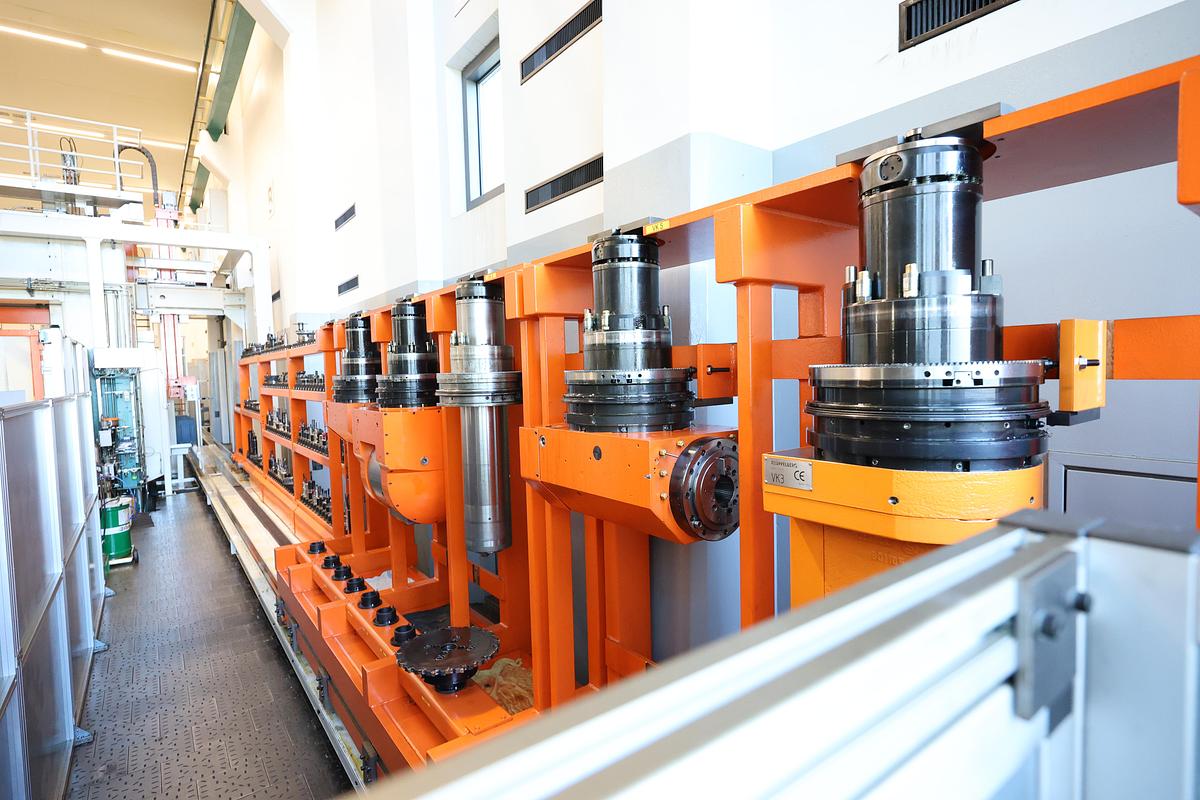

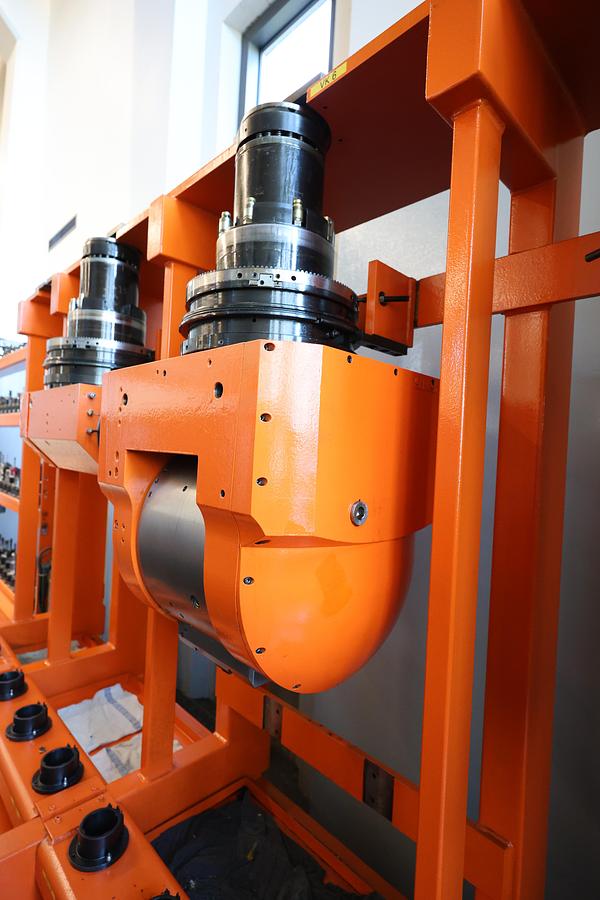

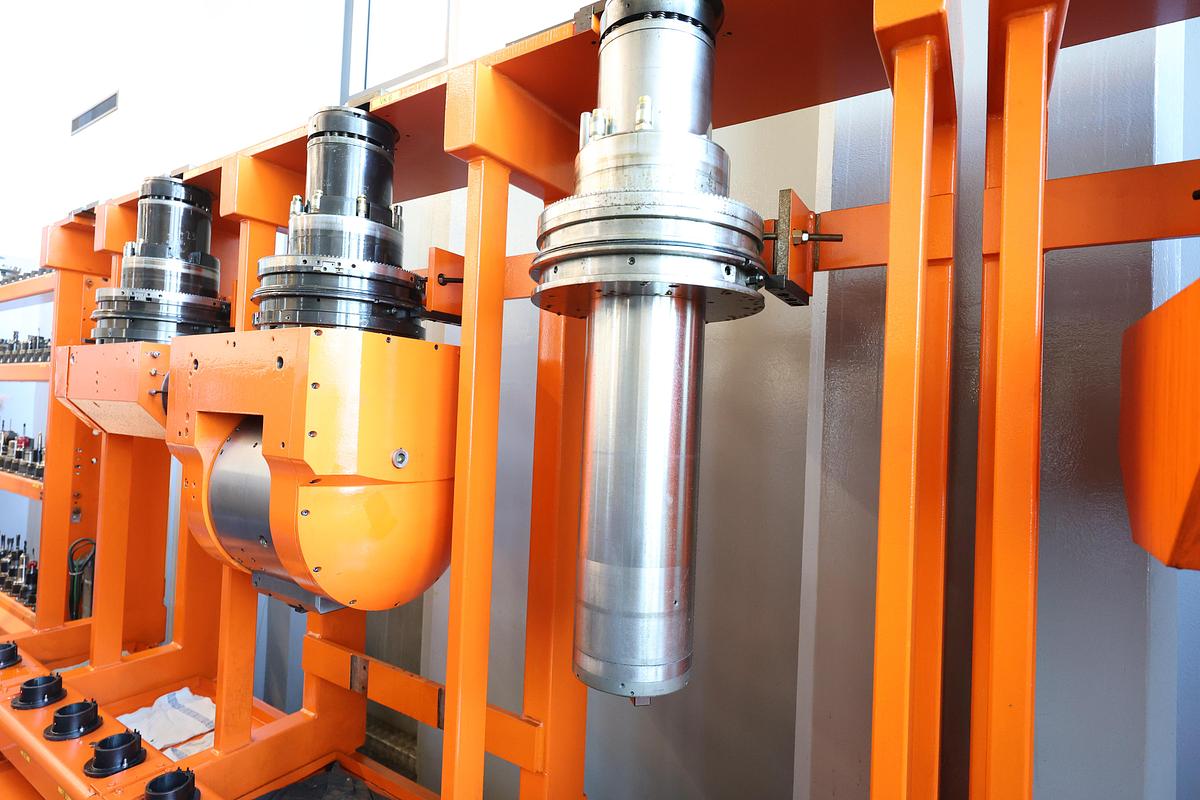

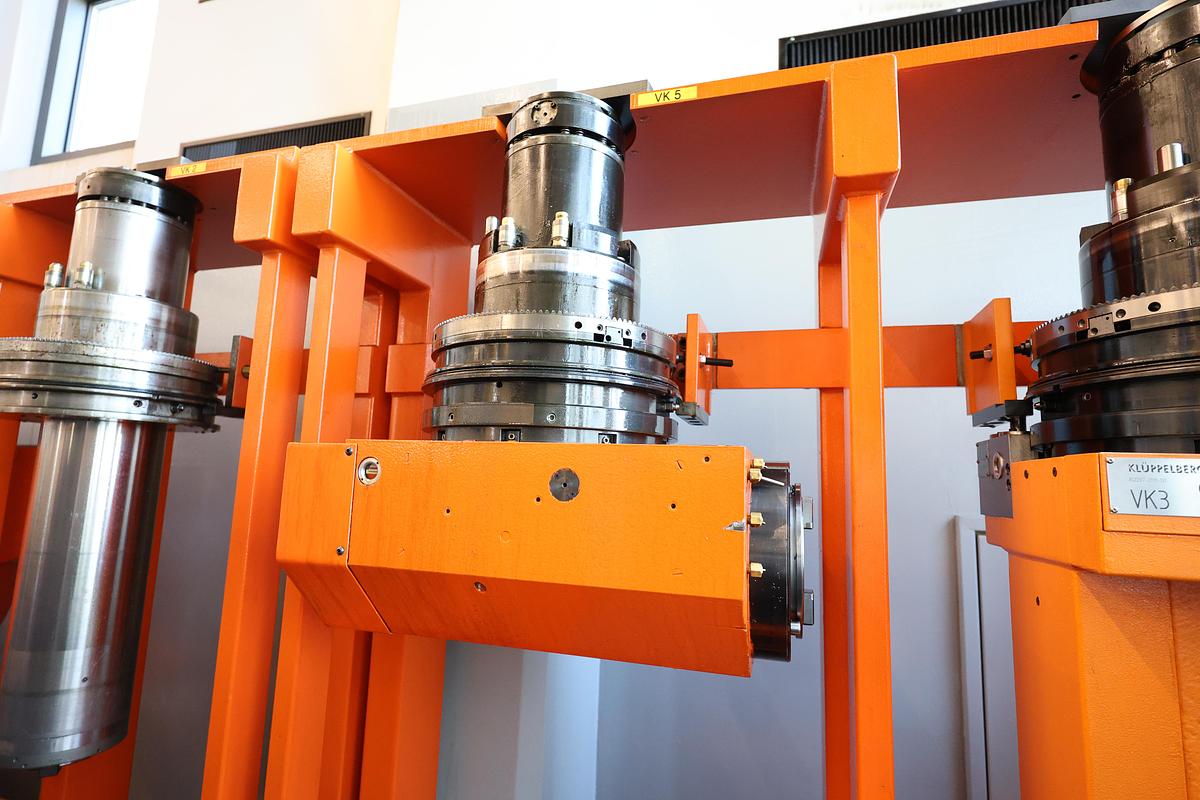

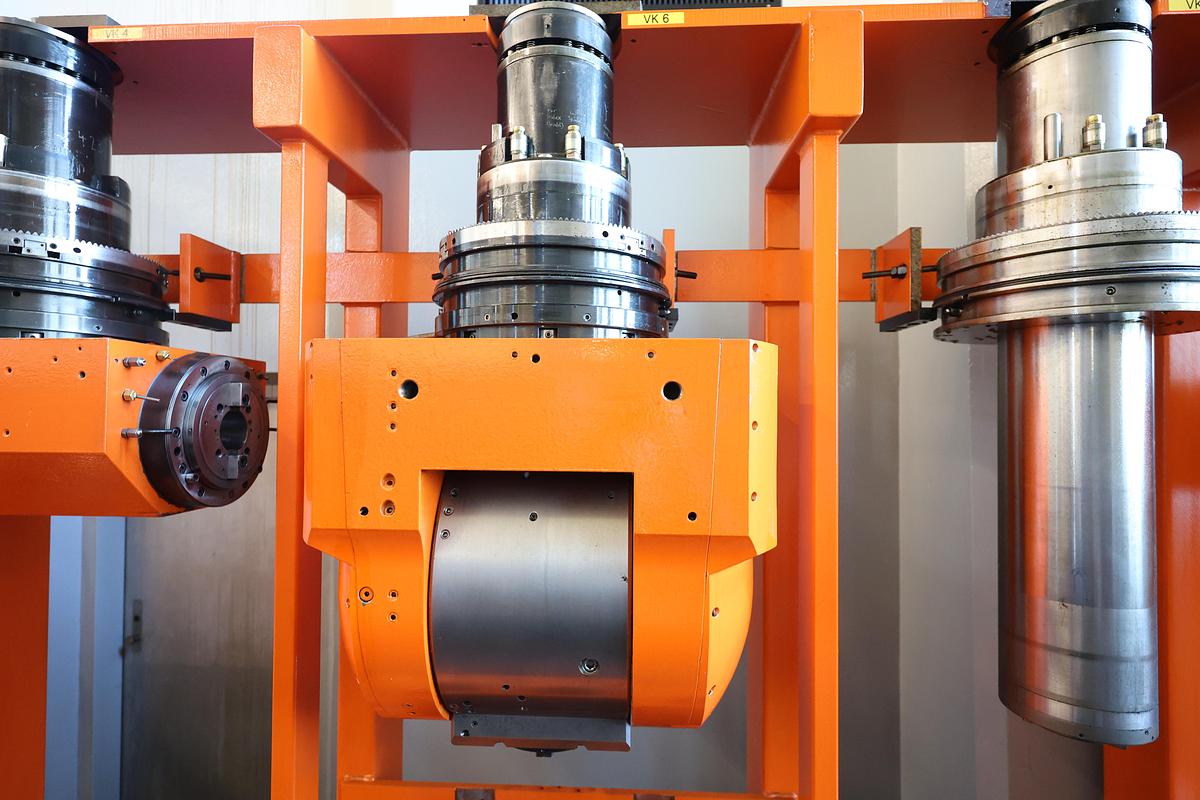

Machining Modules/Milling Heads Included:
1. machining module -straight - straight long -
2. machining module -standard angle - 4000 rpm, 144 x 2.5°, ISO 50
3. machining module -narrow angle extended -40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50
4. machining module -universal index - 40 kW, 4000 rpm, 2100 Nm, C-axis 144 x 2.5°, B-axis +/- 44 x 2.5°, ISO 50
Coolant Unit
Chip Conveyor
Technical Documentation
Specifications
| Manufacturer | Kolb |
| Model | CUBIMAT VD |
| Year | 1999 |
| Condition | Used |
| Stock Number | 11202 |
| Between columns | 3,500 mm |
| Spindle speeds | 4,000 rpm |
| Spindle nose to table | 3,000 mm |
| X axis travel | 6,500 / 13,150 mm |
| Y axis travel | 4,000 mm |
| Z axis travel | 1,250 mm |

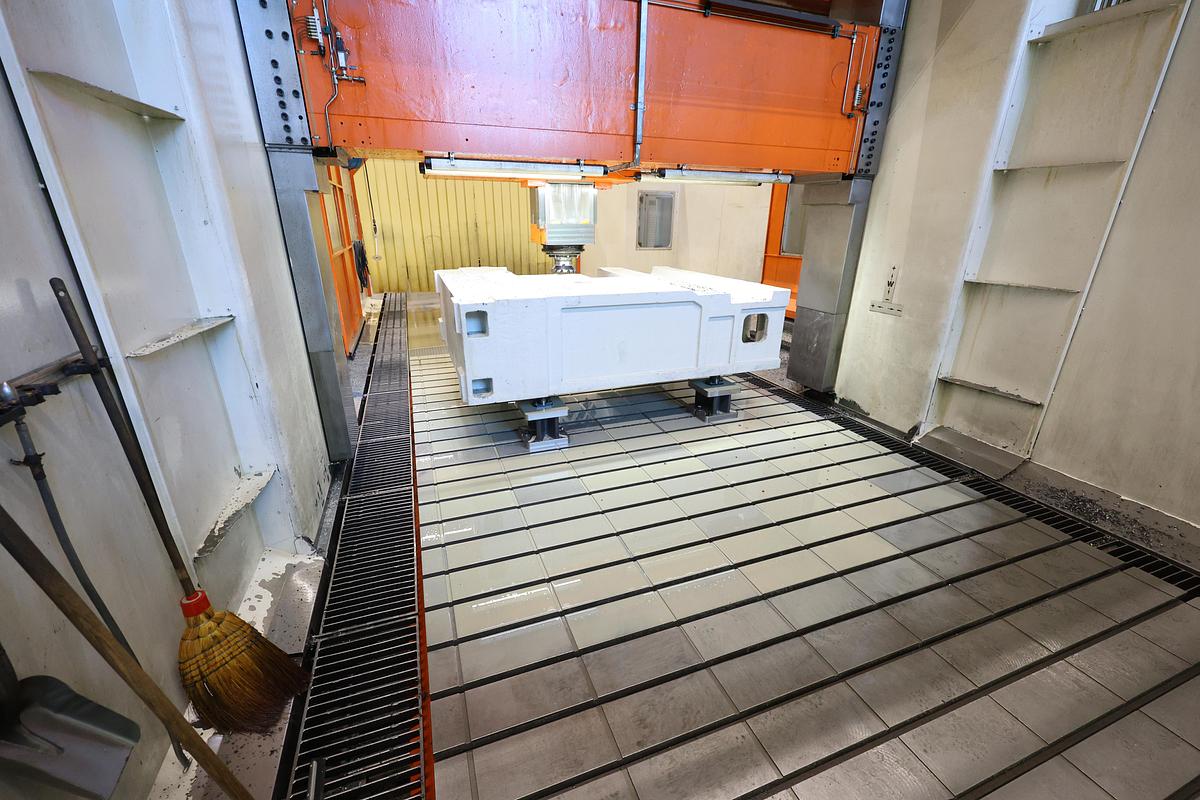

| Table size | 5,500 / 12,150 x 3,000 mm |
| Table capacity | 70 / 105 Ton |
| W axis travel | 2,250 mm |
| Z + w axis (ram + crossrail) | 3,500 mm |
| Ram dimensions | 480 x 510 mm |
| Spindle drive motor | 63 kW |
| Spindle taper | ISO 50 DIN 3987` AD |
| Spindle torque | 3,300 Nm |
| Feed speed X/Y/Z | 24,000 mm/min |
| Total power requirement | 120 kVA |
| Machine weight | 245 Ton |
| Machine dimensions | 29 x 7.7 x 8.1 m |
