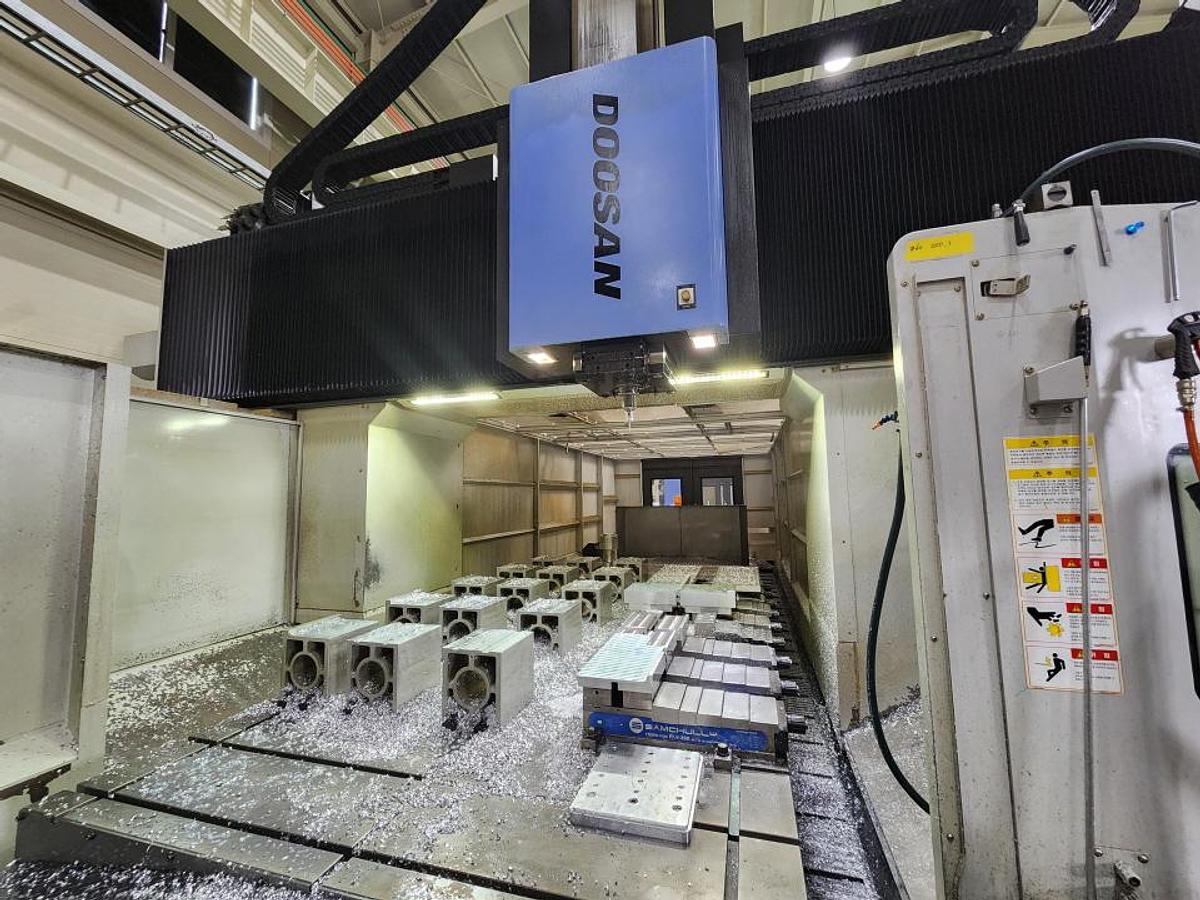

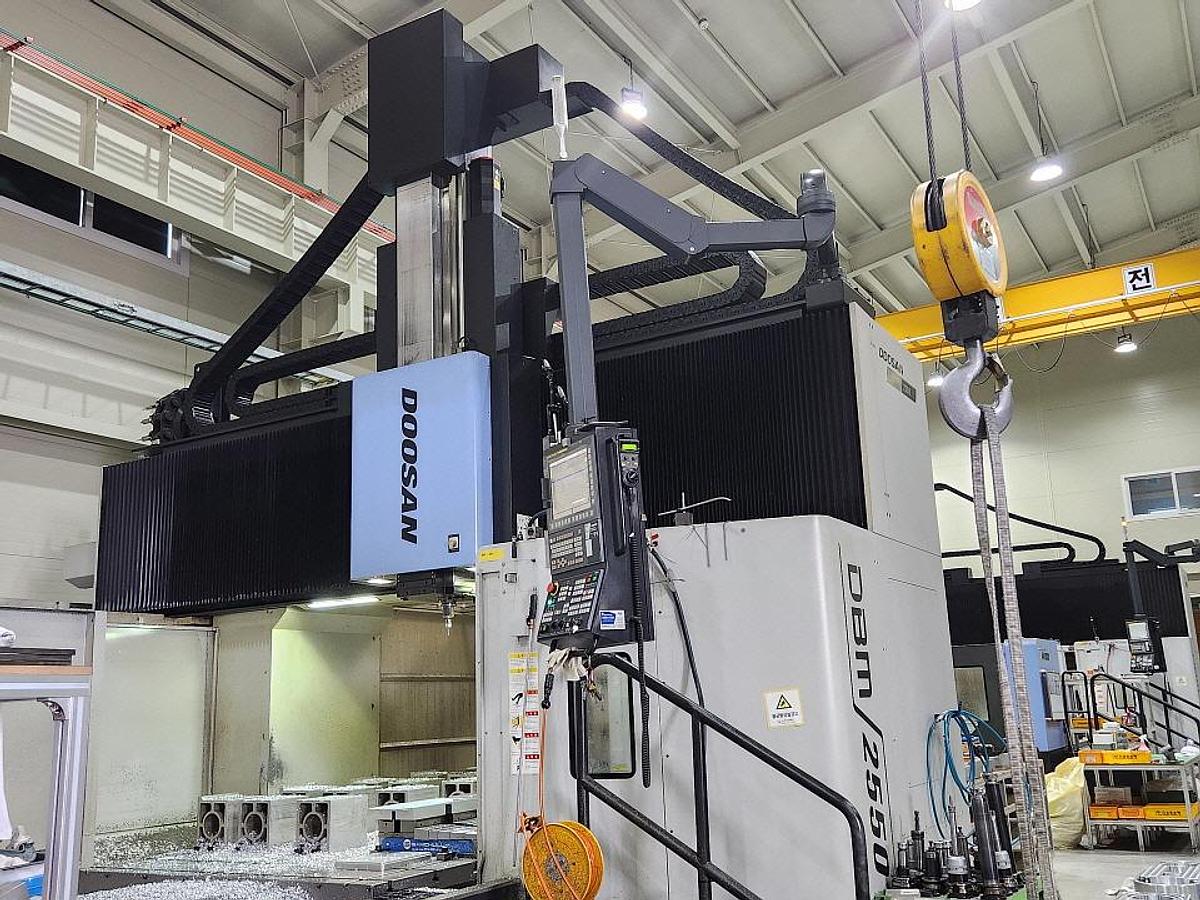

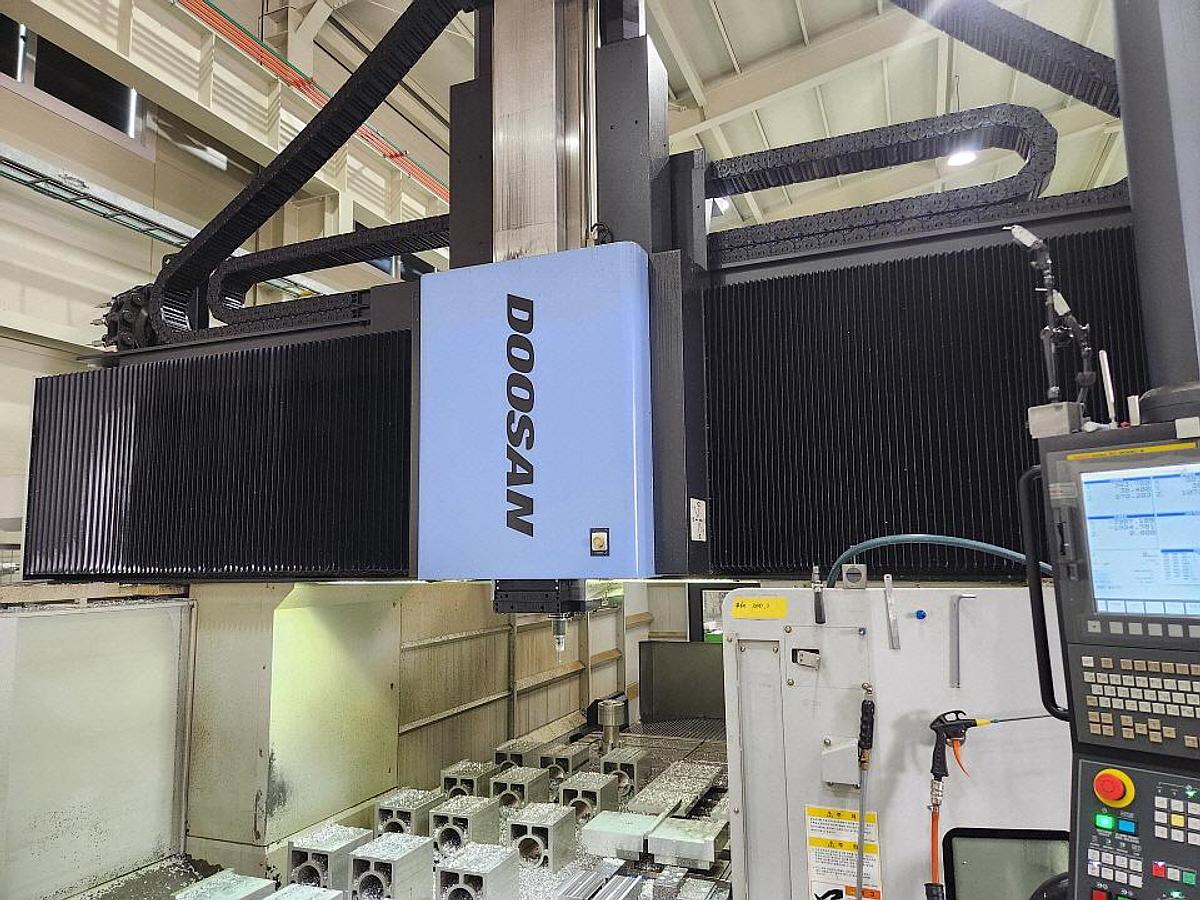

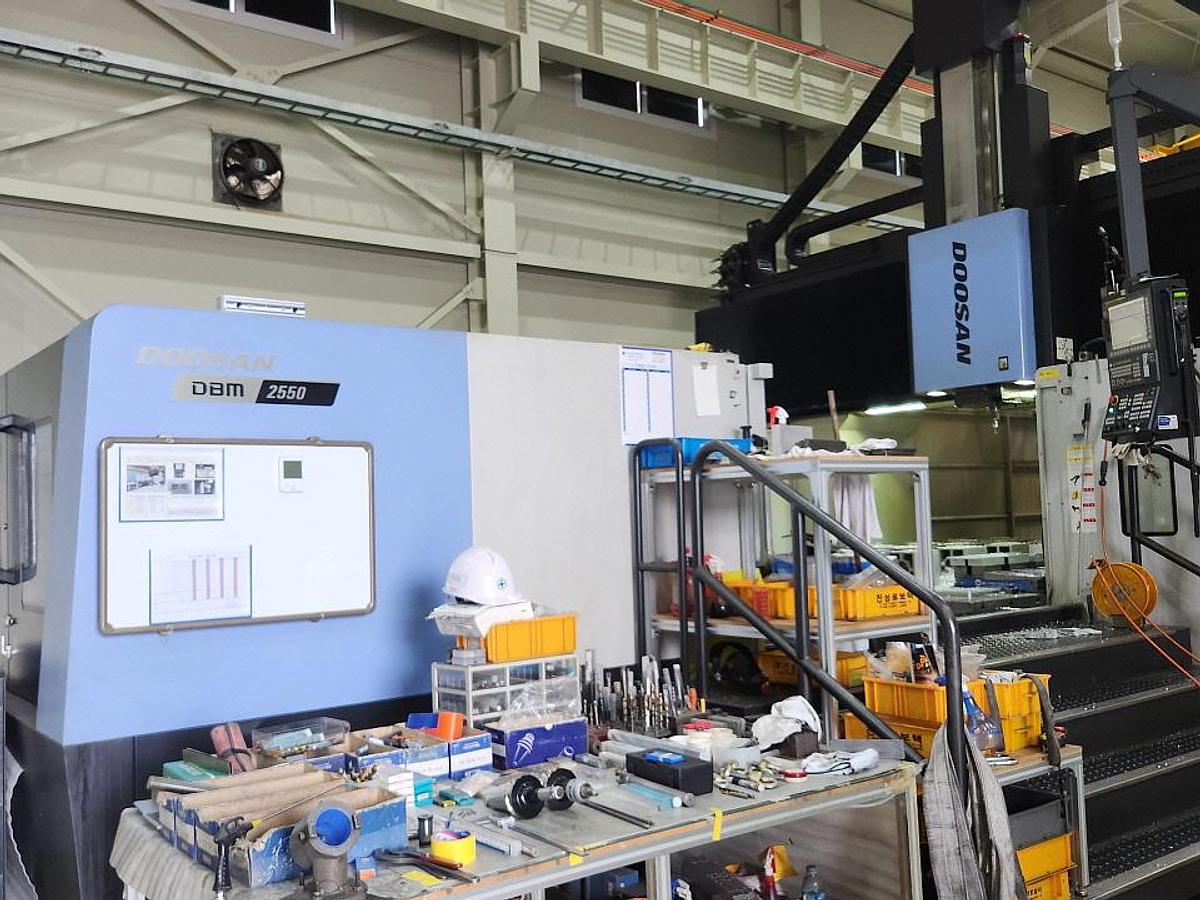

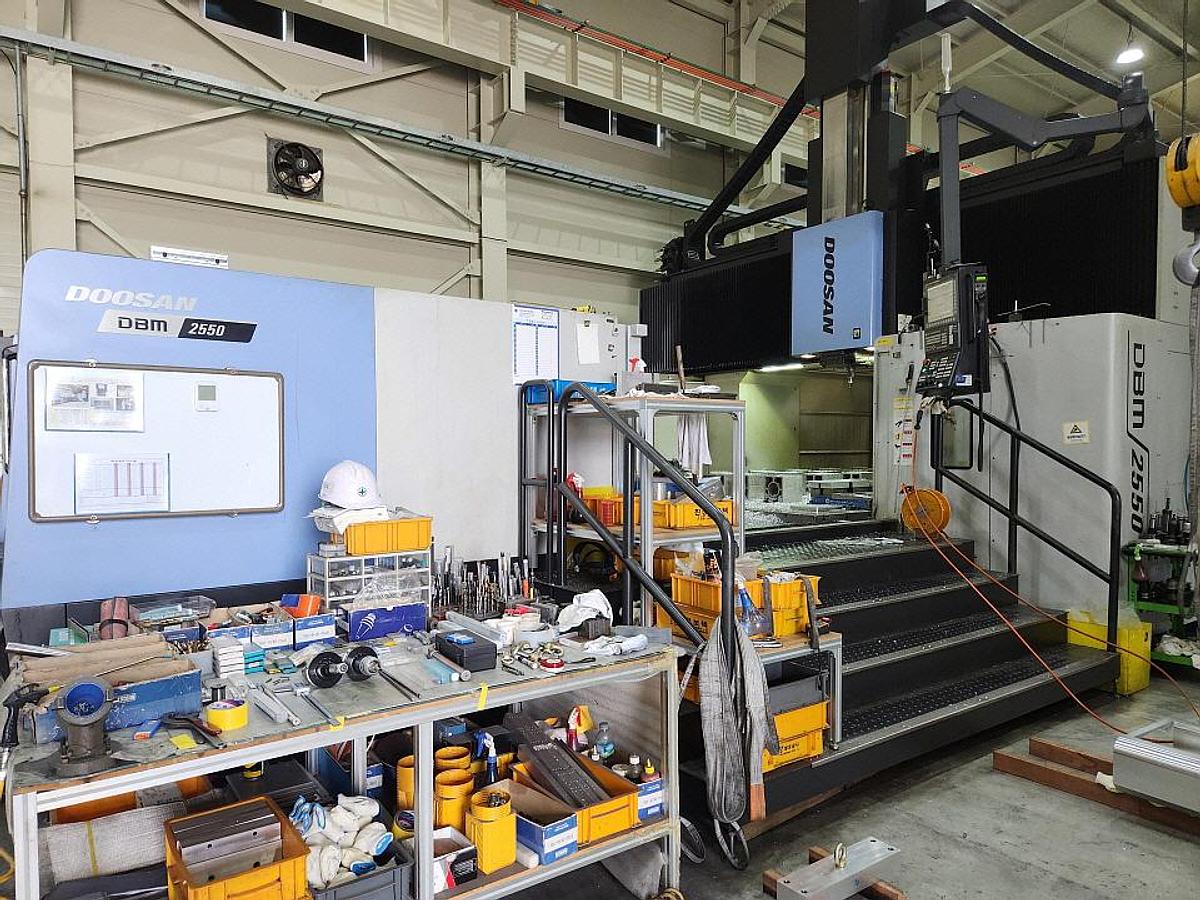

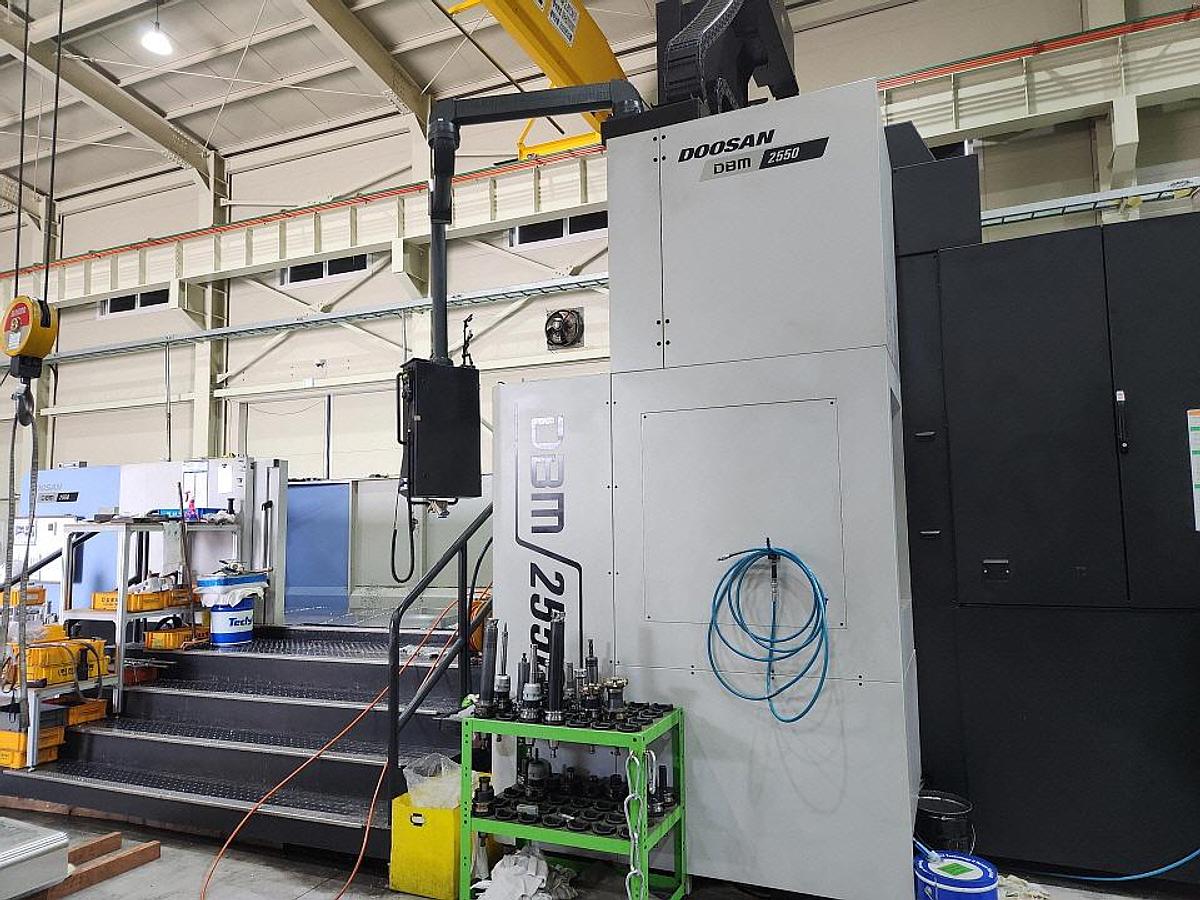

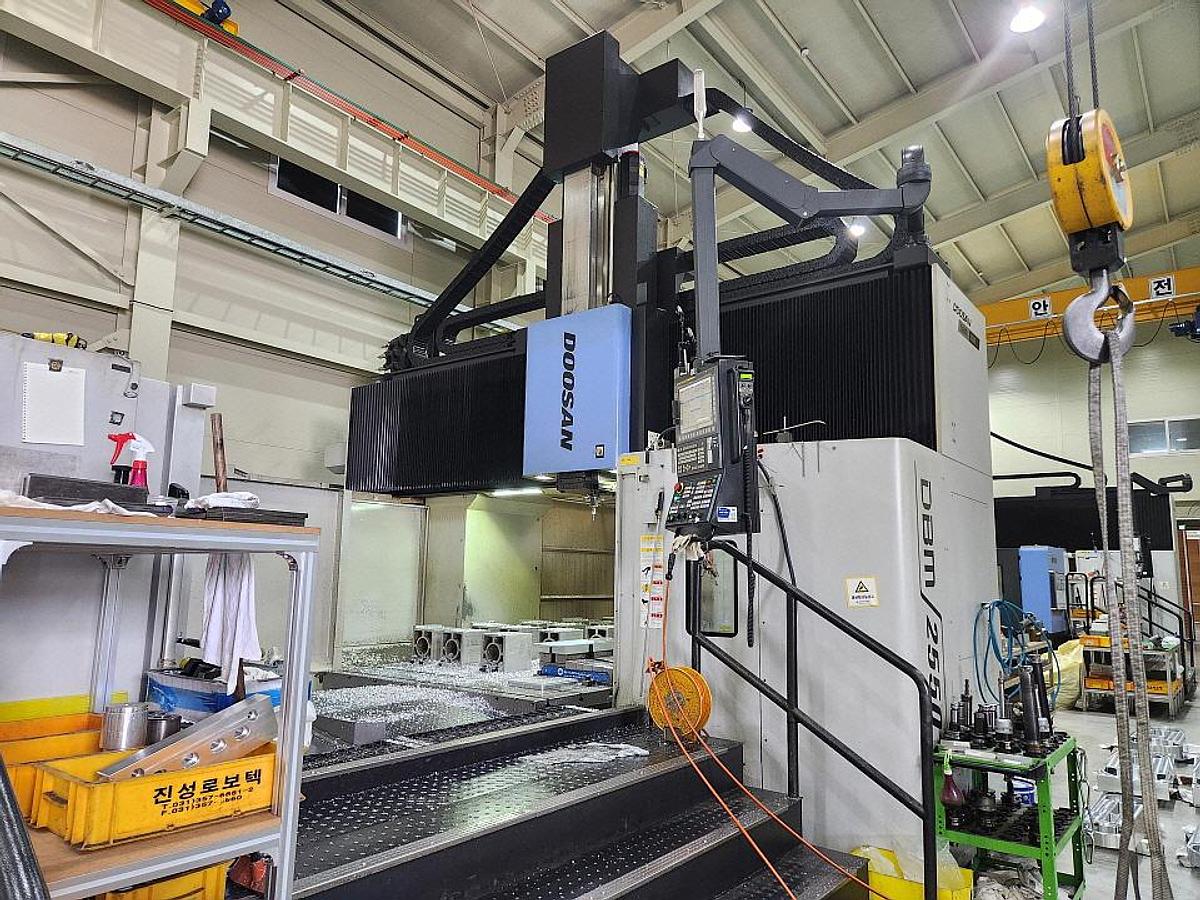

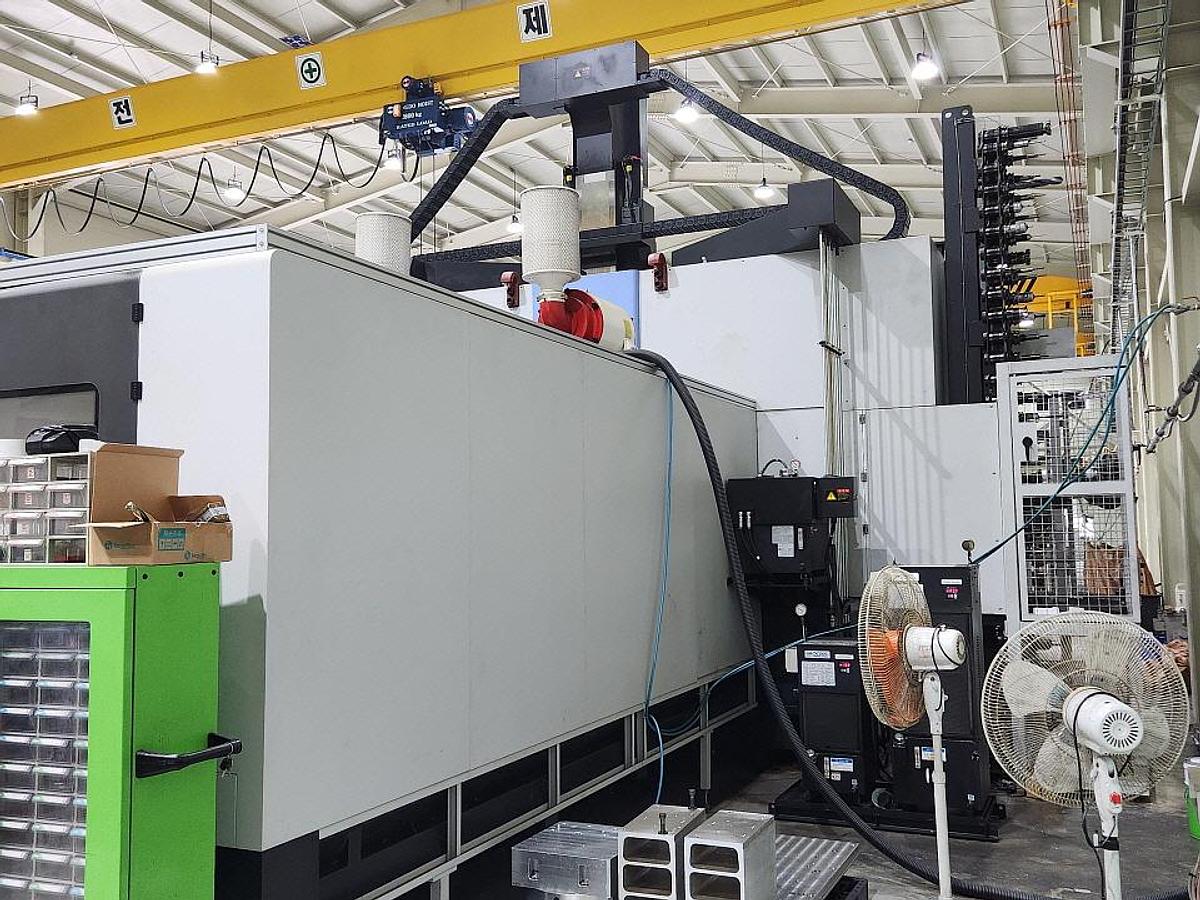

Doosan DBM 2550 CNC Double Column Planer Type Milling Machine

Doosan DBM 2550 CNC Double Column Planer Type Milling Machine

or
Call 770-509-0744

Description

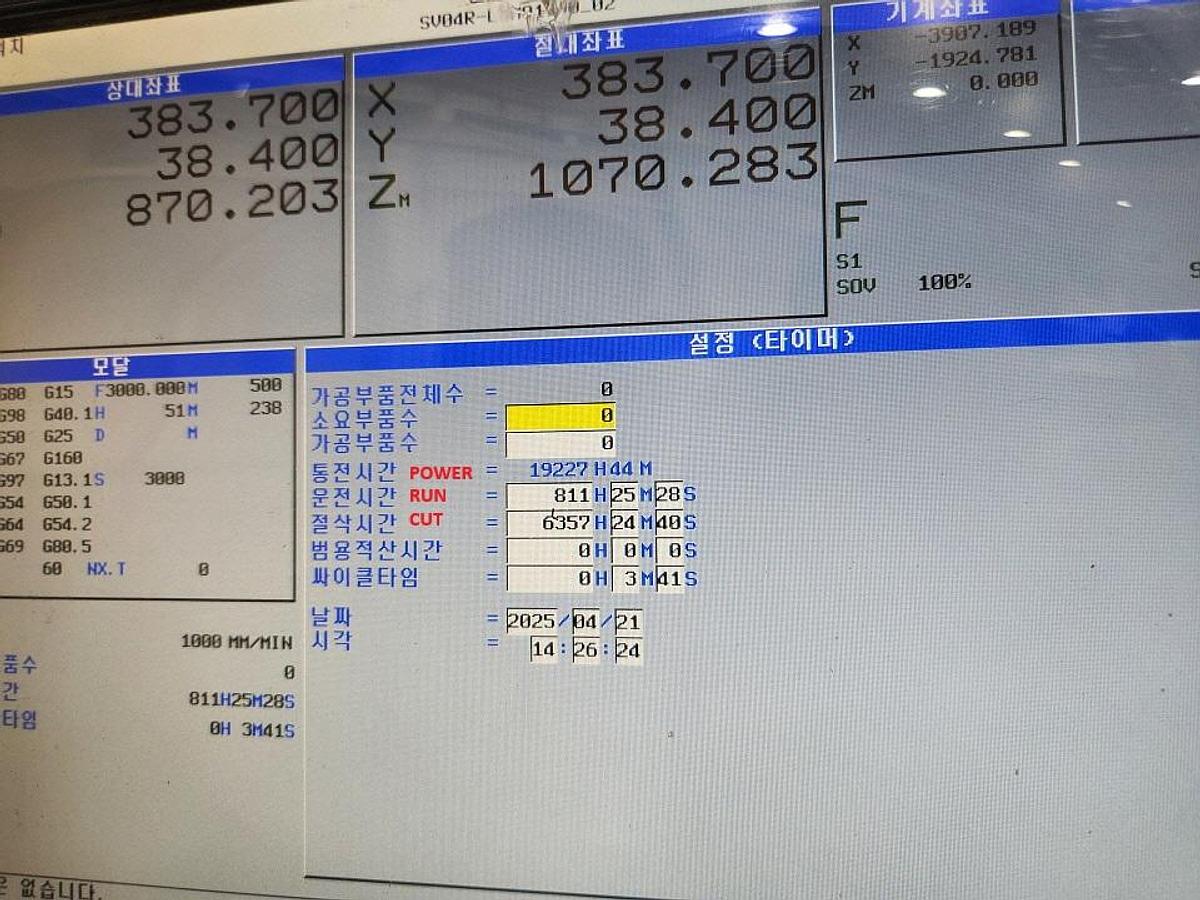

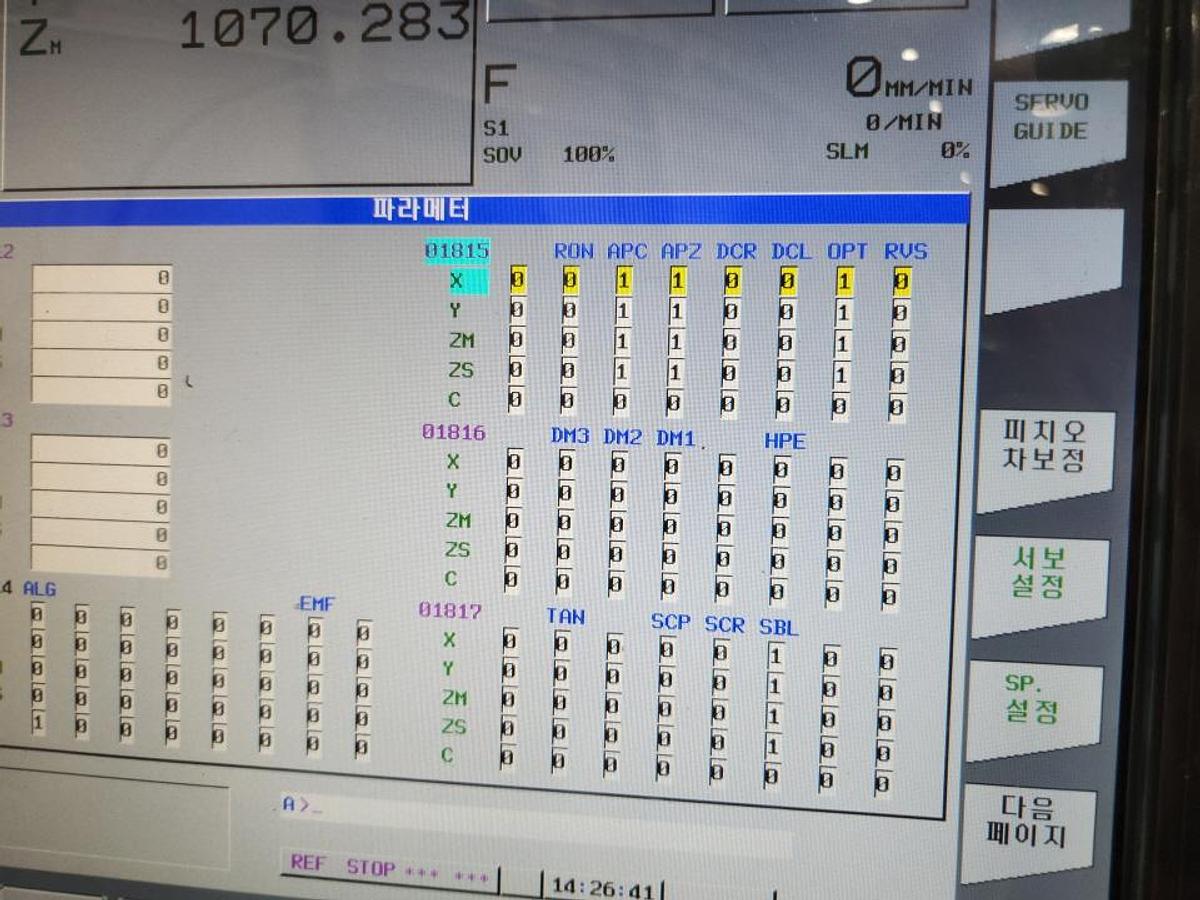

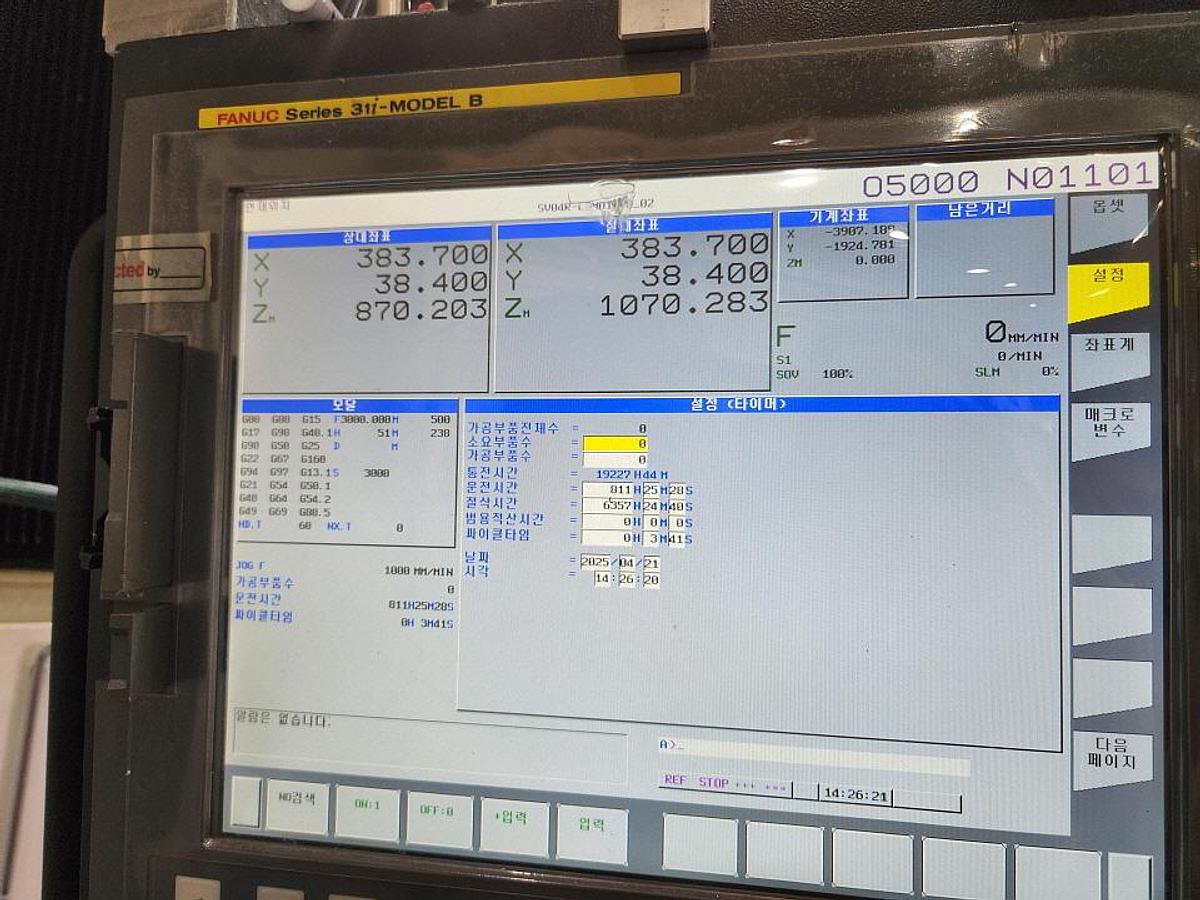

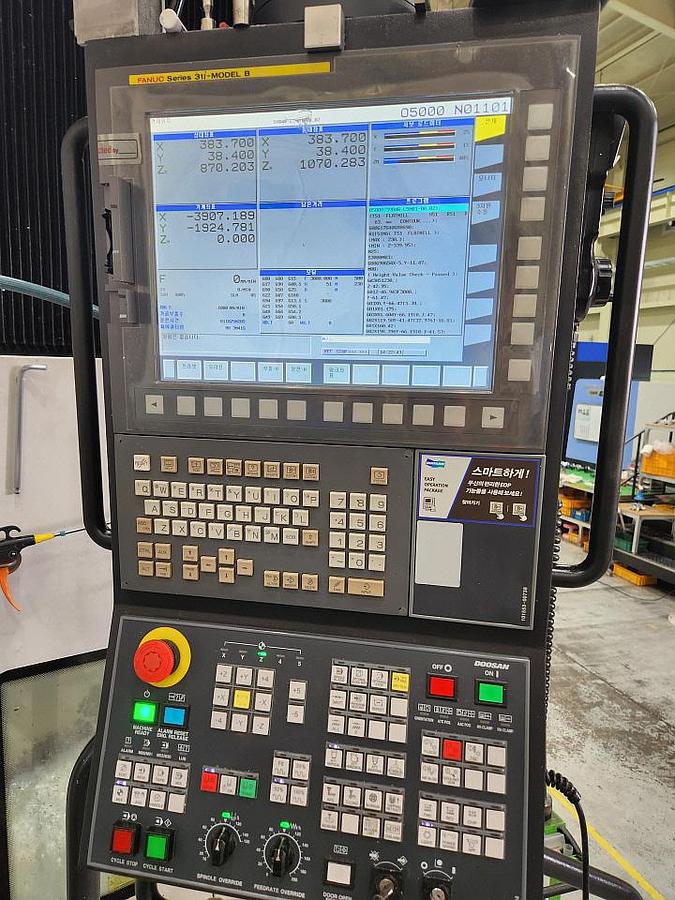

Fanuc 31iB CNC Control

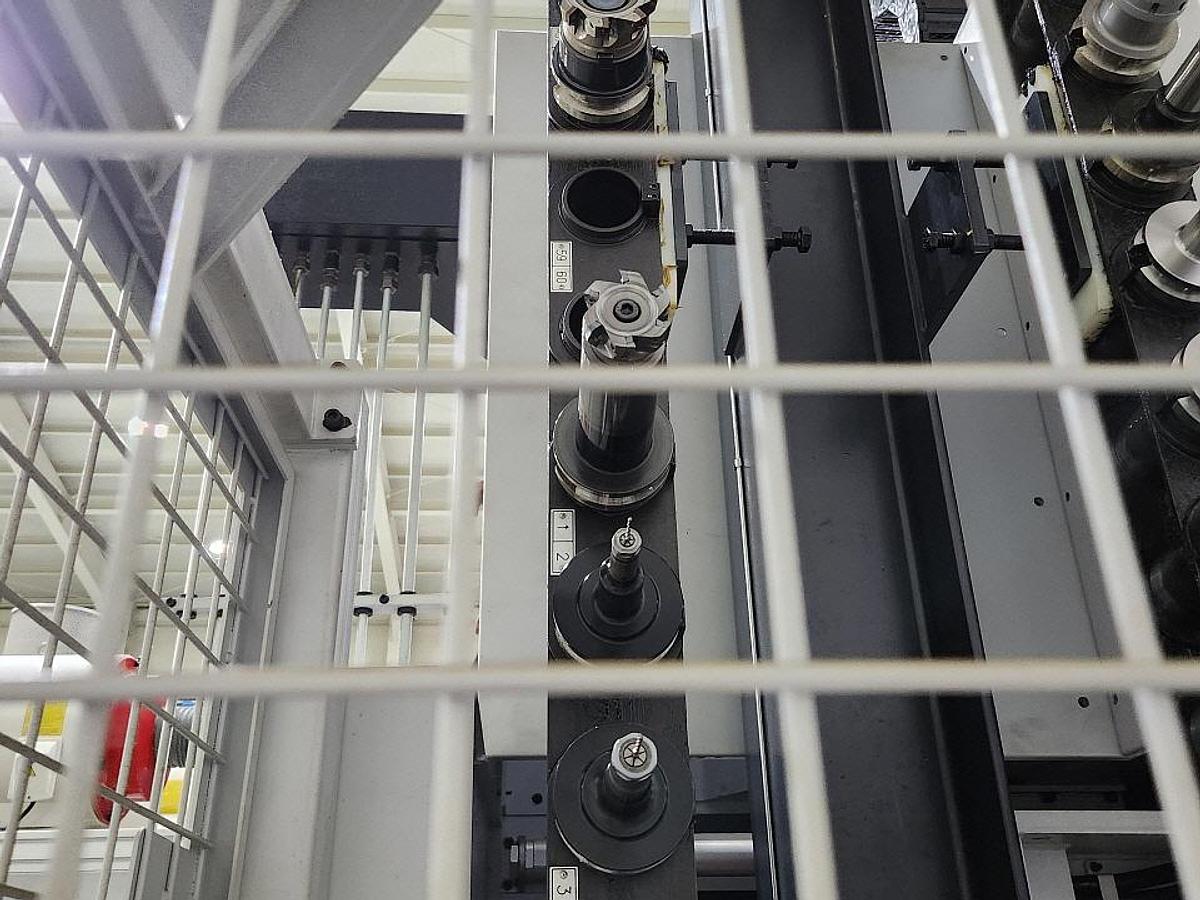

60 Position Automatic Tool Changer

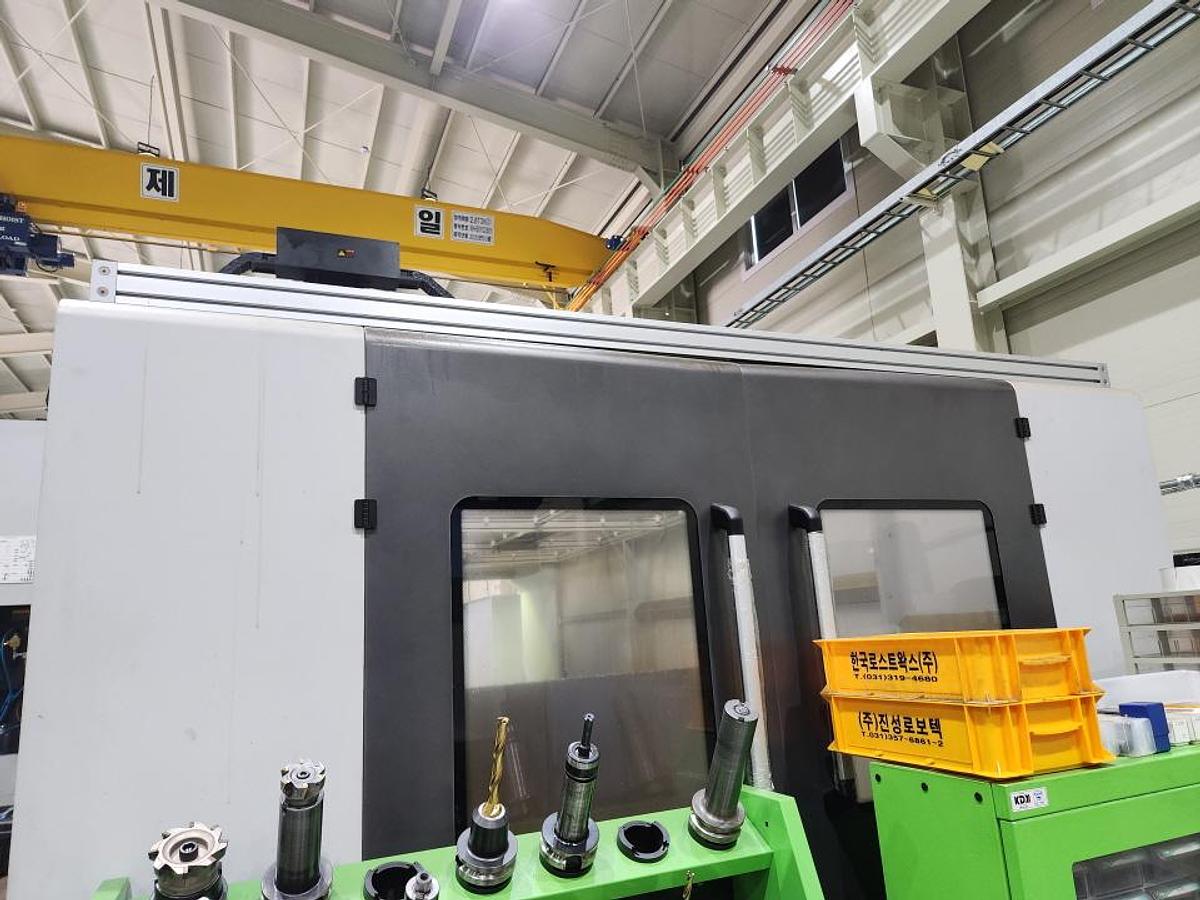

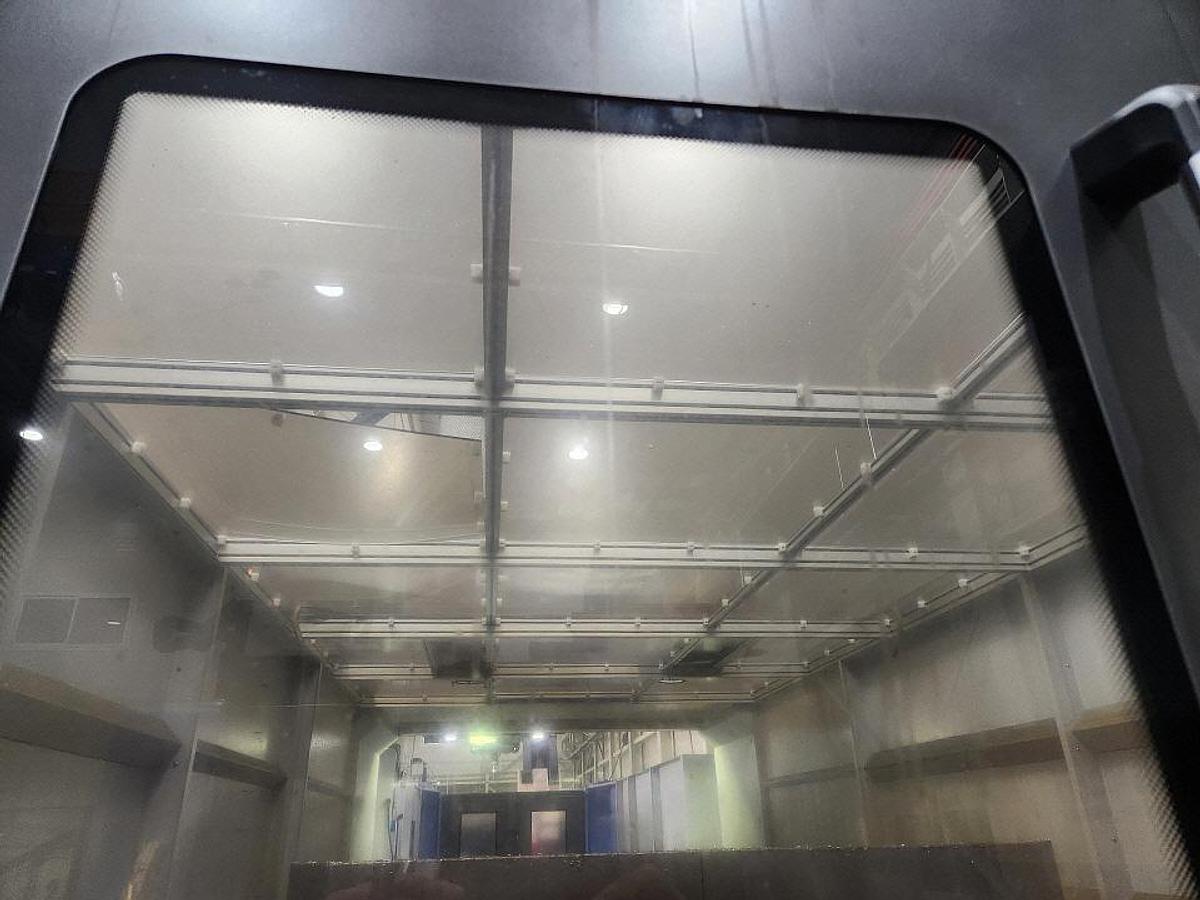

Semi cover with rear top roof

Scales XYZ1, Z2 axis

Automatic Attachment Changer (swing 2 station)

90 Degree angle head (6000 rpm)

Part program 8M

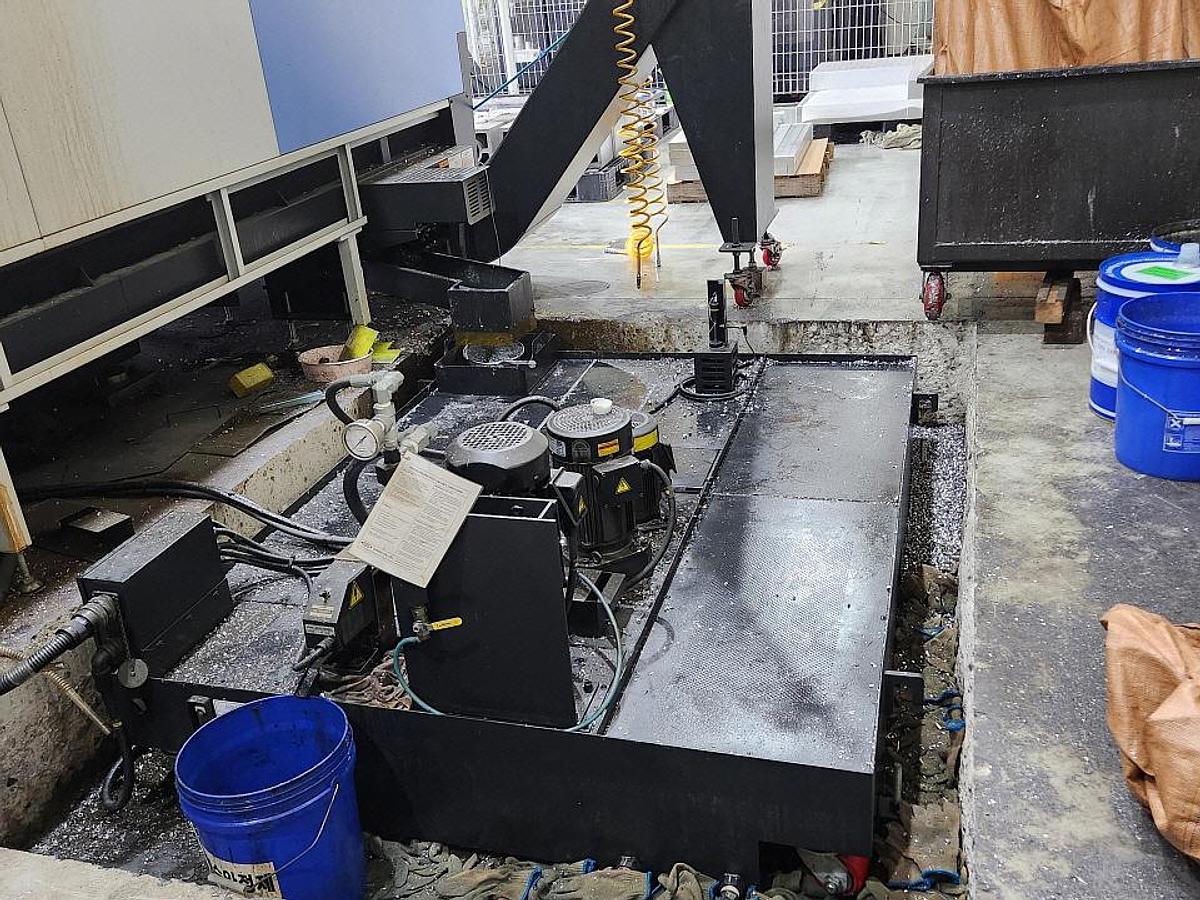

Spindle through coolant - 20 bar

Renishaw tool length measurement

DSQ 2

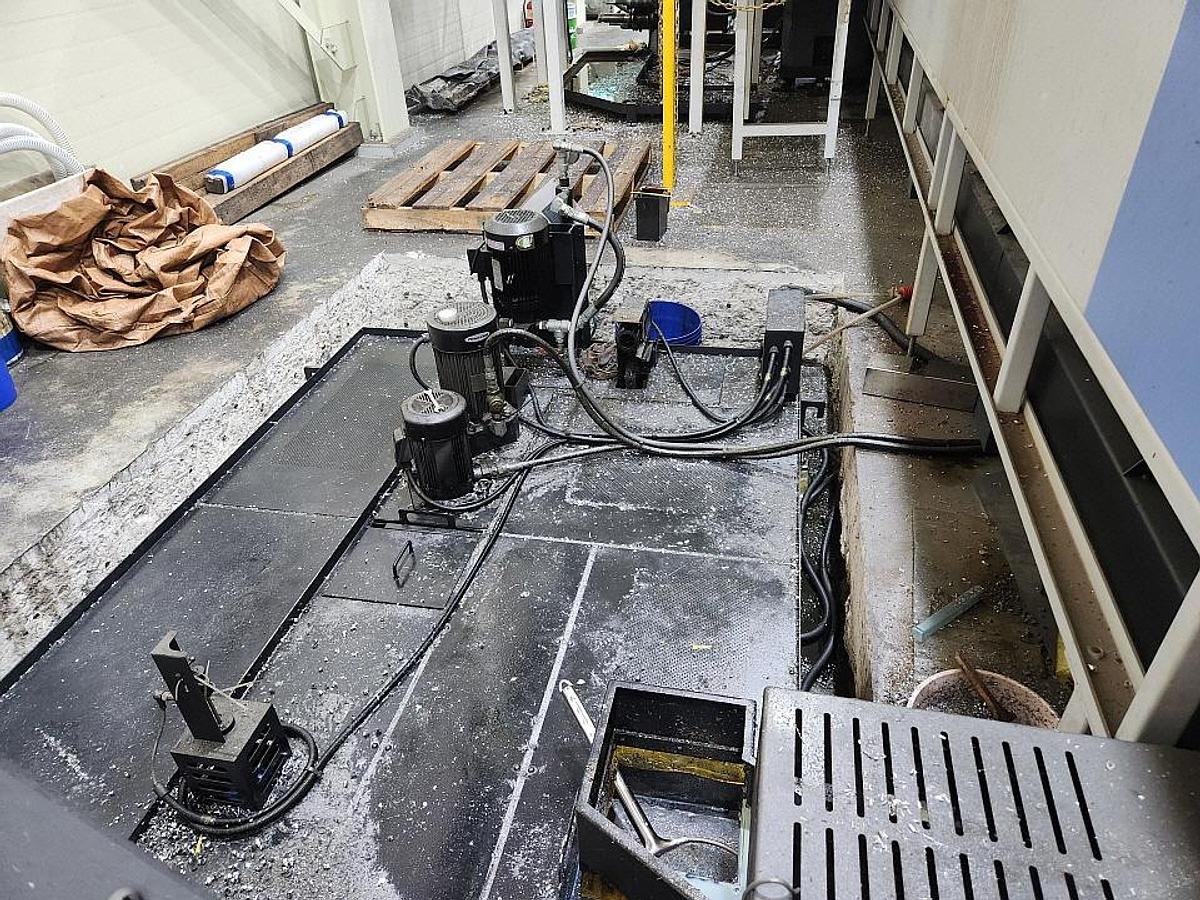

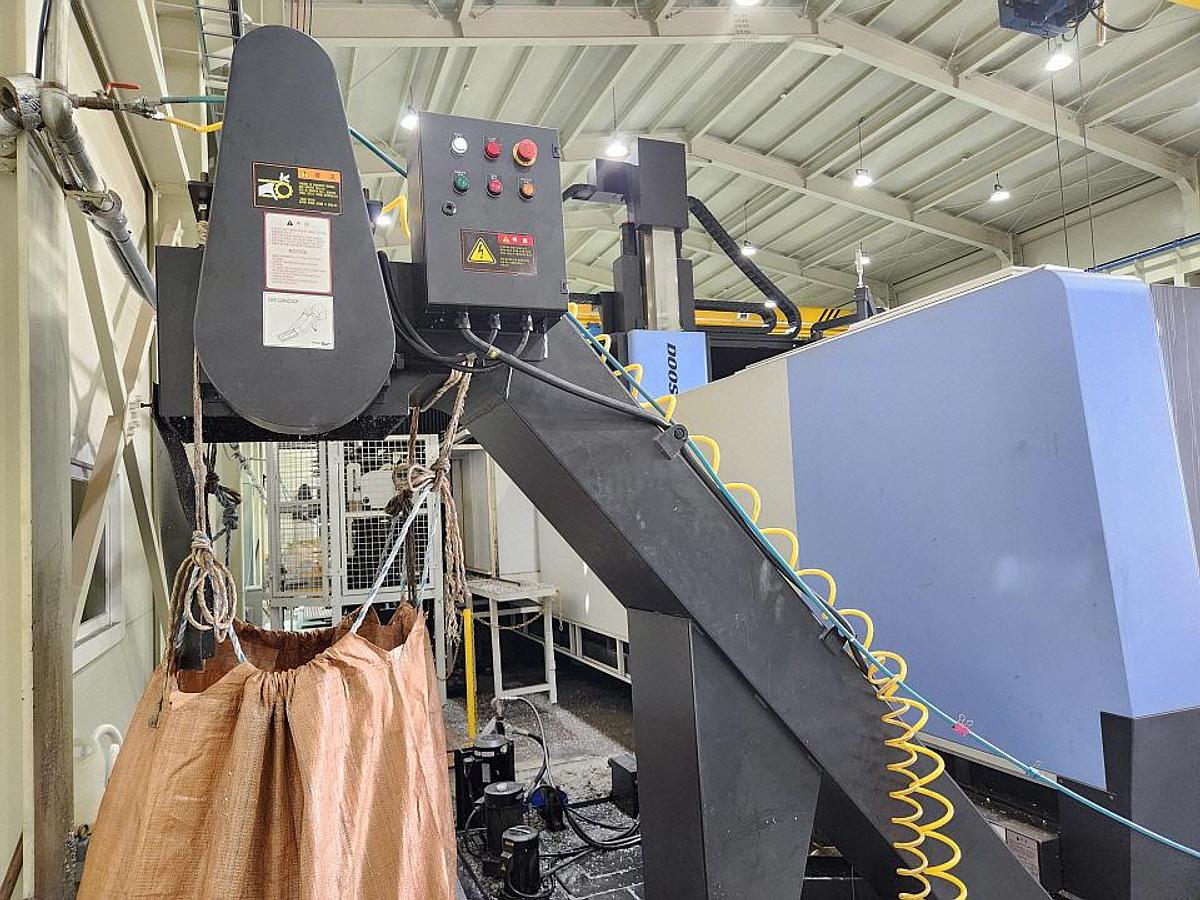

Chip conveyor

Specifications

ManufacturerDoosan
ModelDBM 2550
Year2019
ConditionUsed
Stock Number11205
Spindle speeds8,000 rpm
X axis travel5,250 mm
Y axis travel3,000 mm
Z axis travel800 mm
Table dimensions2,000 x 5,000 mm
Table capacity25 Ton
Ram dimensions380 x 380 mm
Spindle motor37 / 55 kW
Spindle taperBT 50
