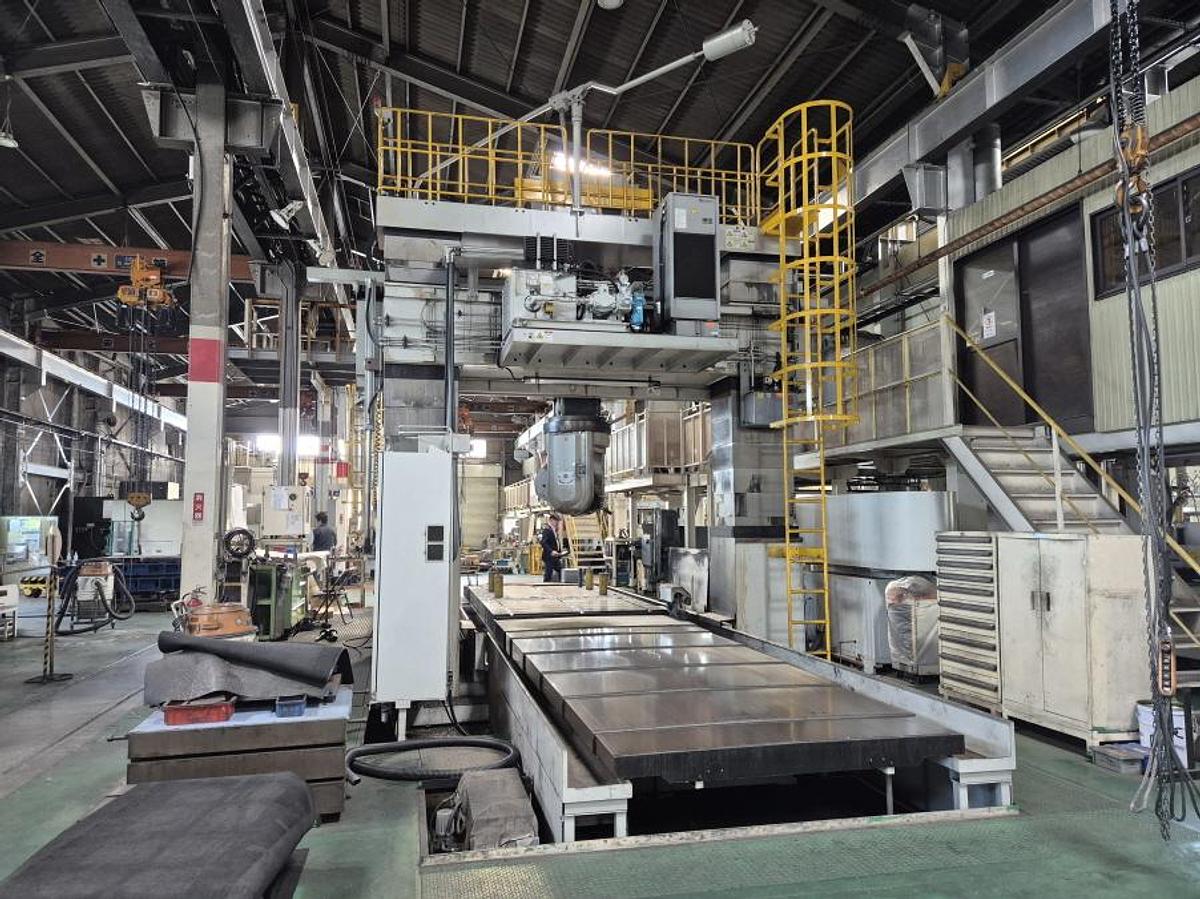

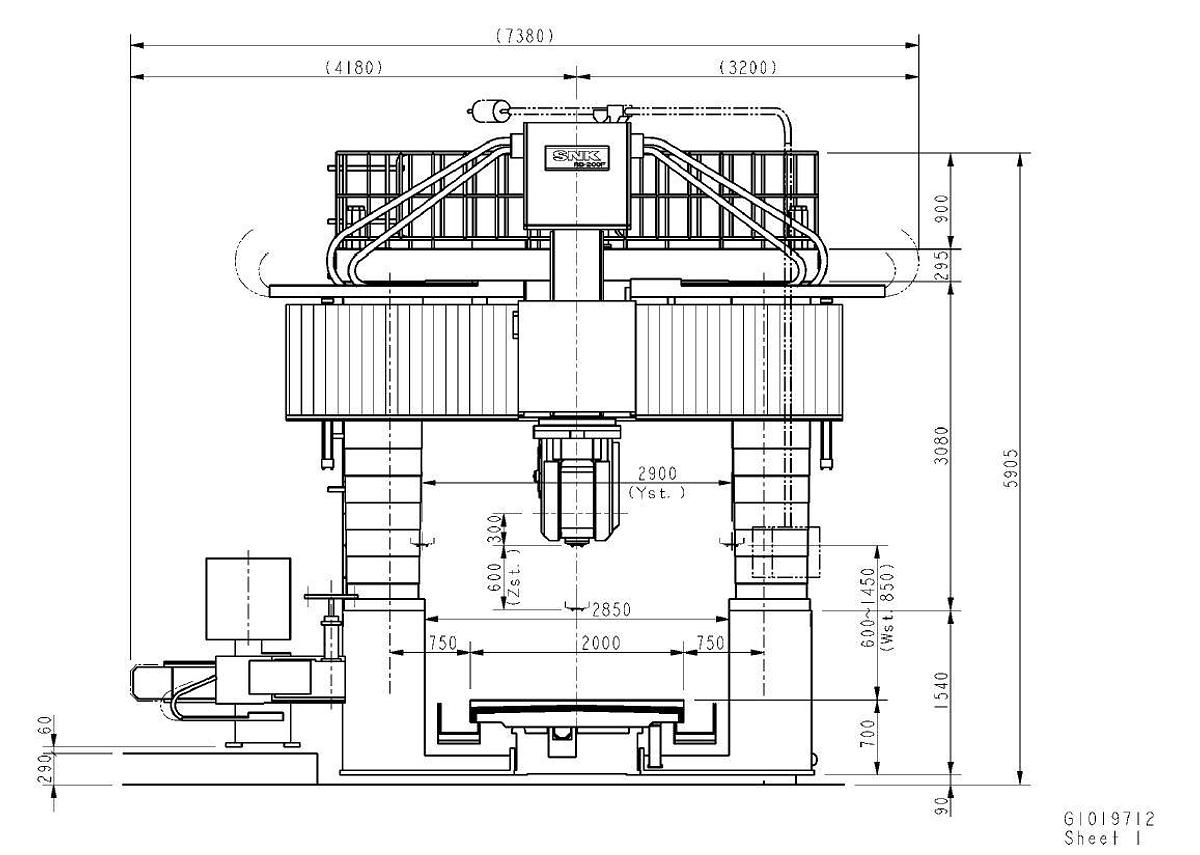

SNK RB-200F CNC 5-Axis Multi Center Double Column Machining Center
SNK RB-200F CNC 5-Axis Multi Center Double Column Machining Center
or
Call 770-509-0744
Description

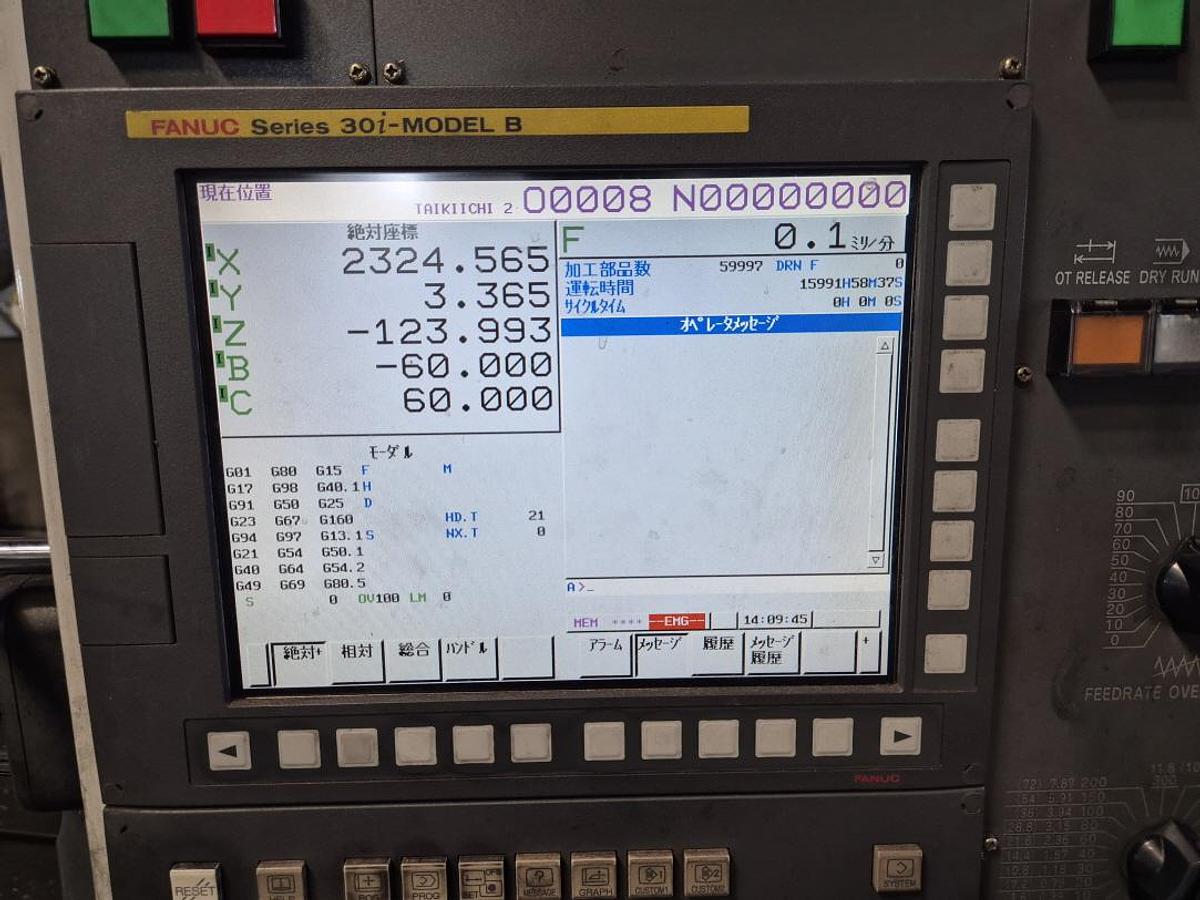

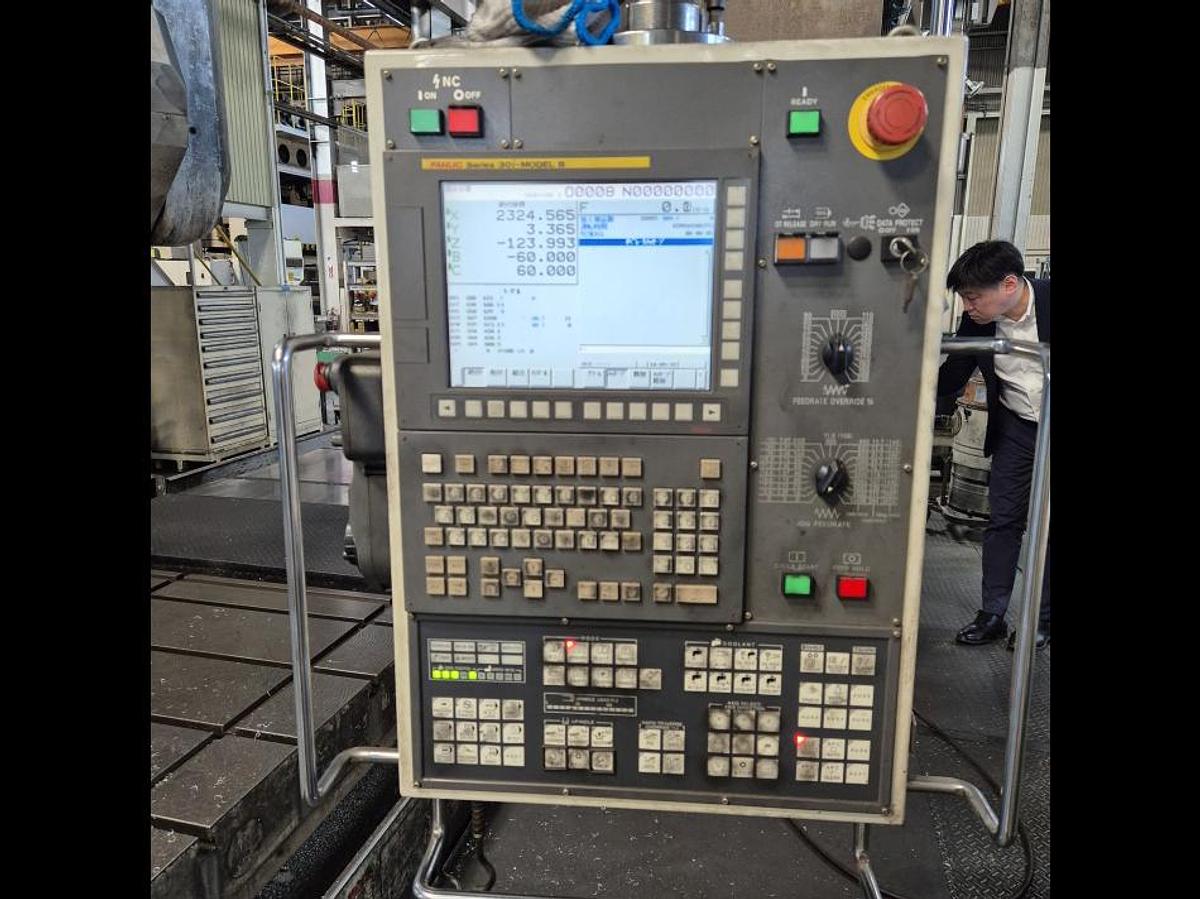

Fanuc 30iB CNC Control
5-Axis Machining

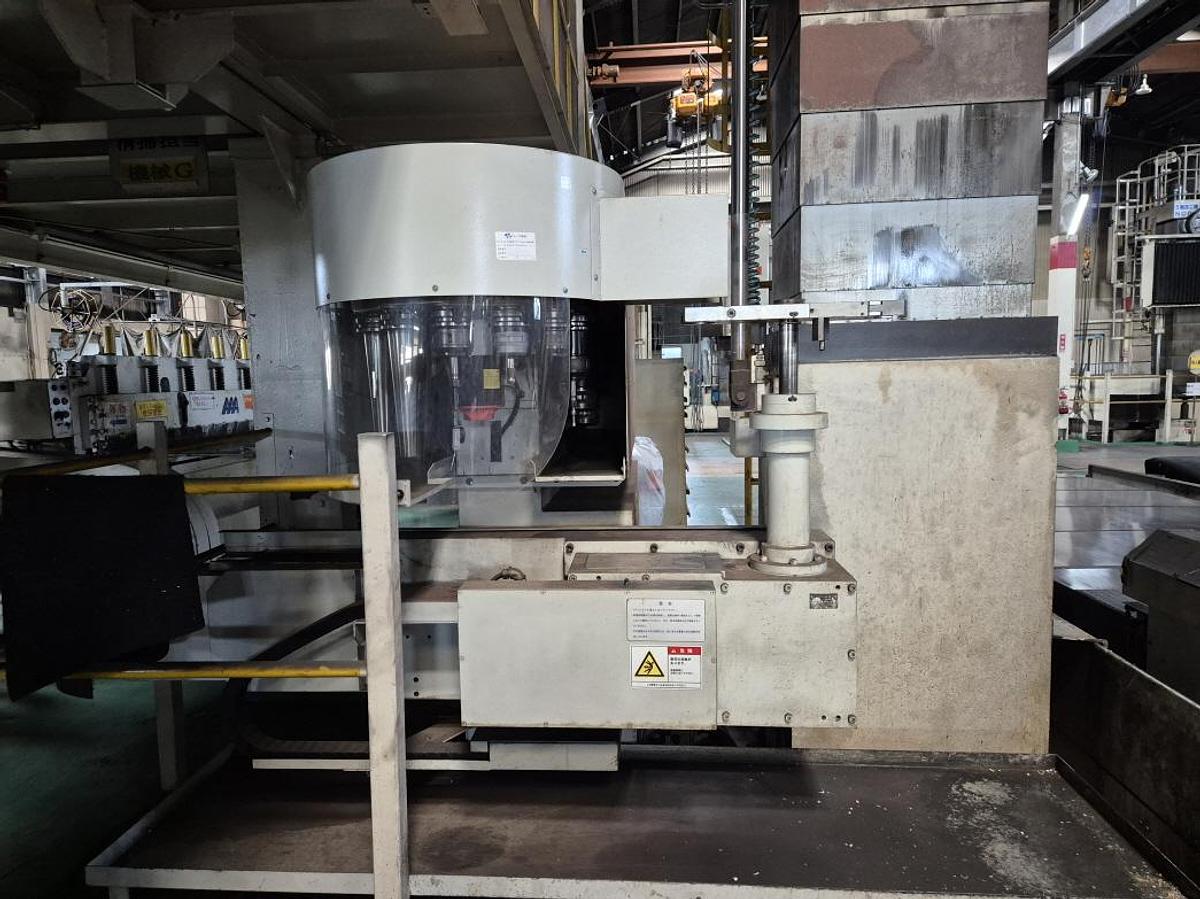

40 Position Automatic Tool Changer
Specifications
| Manufacturer | SNK |
| Model | RB-200F |
| Year | 2017 |
| Condition | Used |
| Stock Number | 11223 |
| Between columns | 2,850 mm |
| Spindle speeds | 6,000 rpm |
| Table to spindle end | 1,450 mm |
| X axis travel | 4,250 mm |
| Y axis travel | 2,900 mm |
| Z axis travel | 600 mm |

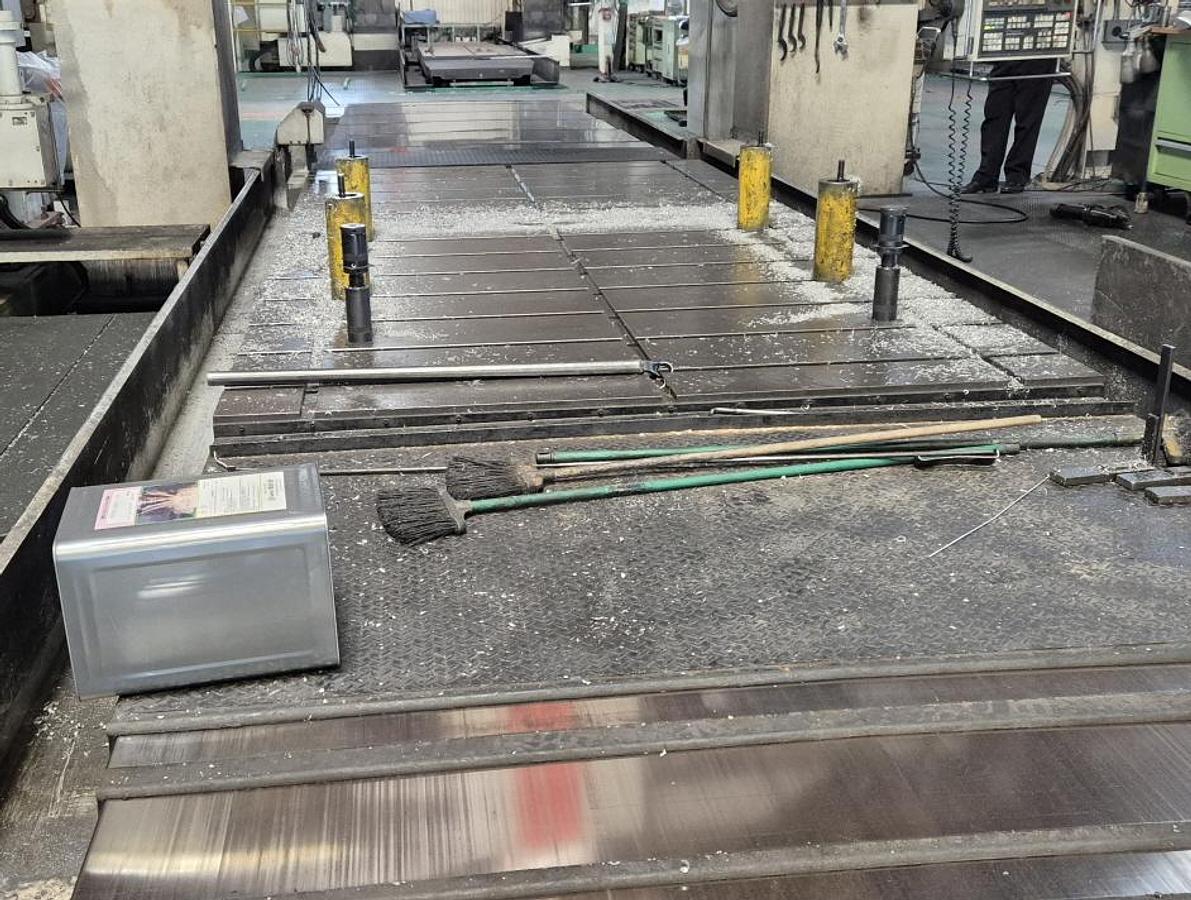

| Table size | 2,000 x 4,000 mm |
| Table capacity | 15 Ton |
| W axis travel | 850 mm |

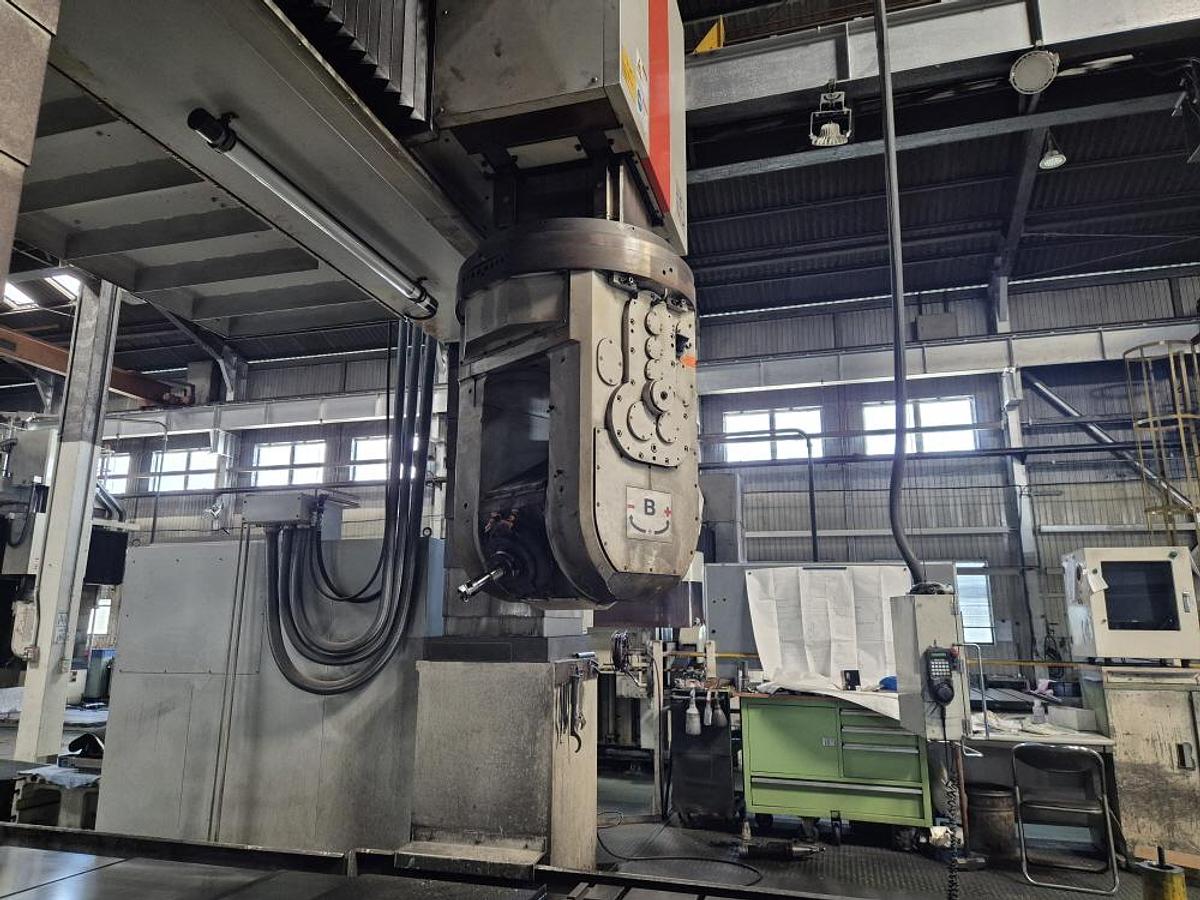

| B axis | ±115° |
| C axis | ±360° |
| Z + w axis (ram + crossrail) | 1,450 mm |
| Spindle drive motor - low speed | VAC 18.5 / 22 kW |
| Spindle drive motor - high speed | VAC 25 / 30 kW |

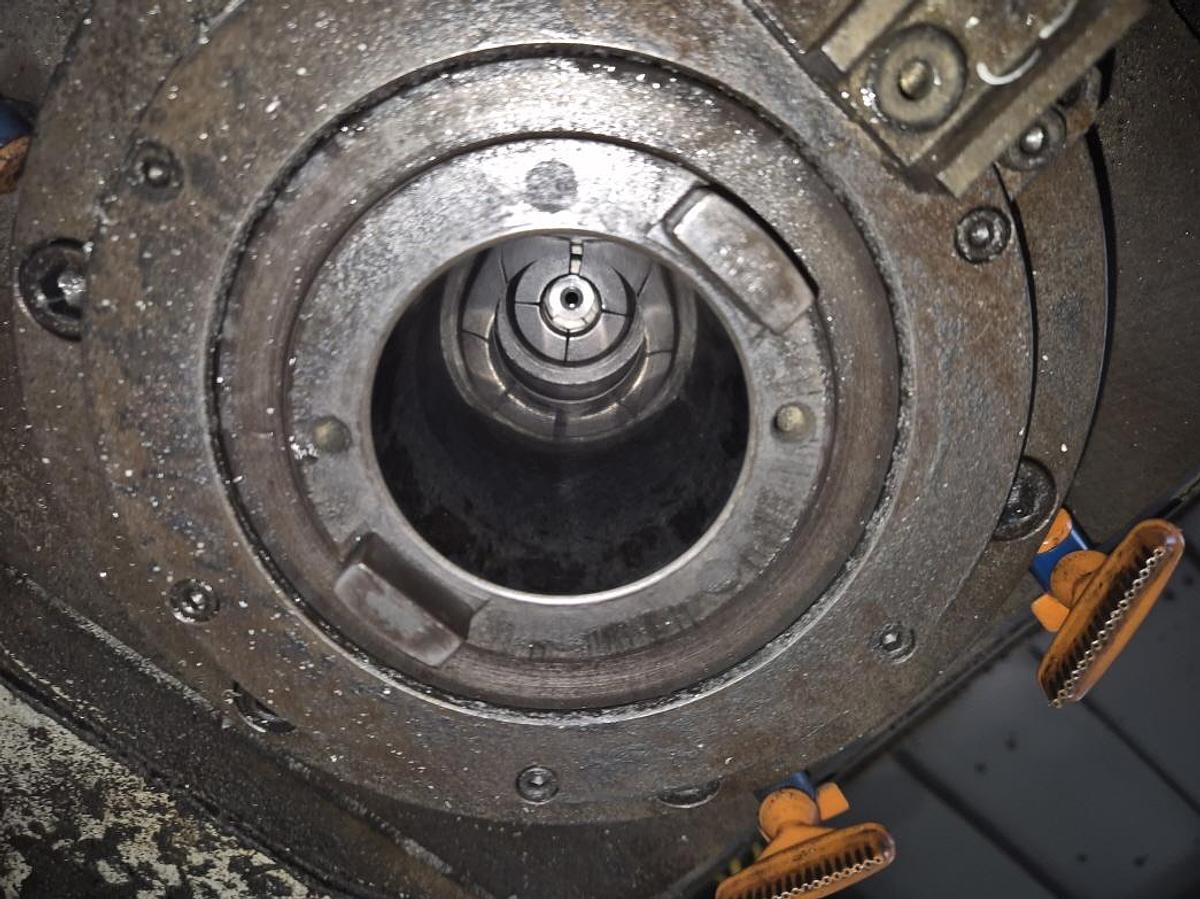

| Spindle taper | ISO No 50 |
| Spindle diameter | 90 mm |
| Ram dimensions | 450 x 450 mm |
| X,Y axis rapid traverse | 20 m/min |
| Z axis rapid traverse | 6 m/min |
| W axis rapid traverse | 3 m/min |
| B,C axis rapid traverse | 3,600 deg/min |
| Distance B-axis tilting center | 300 mm |
