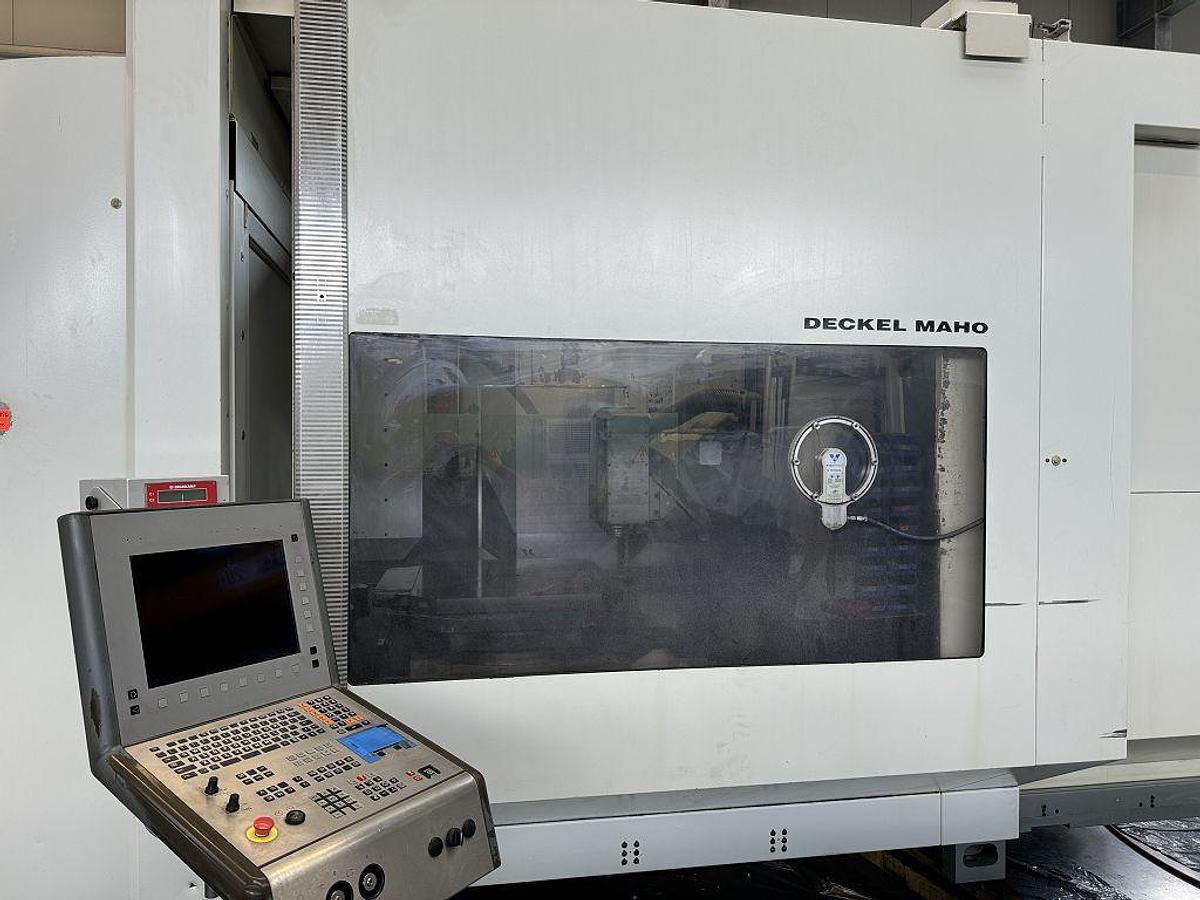

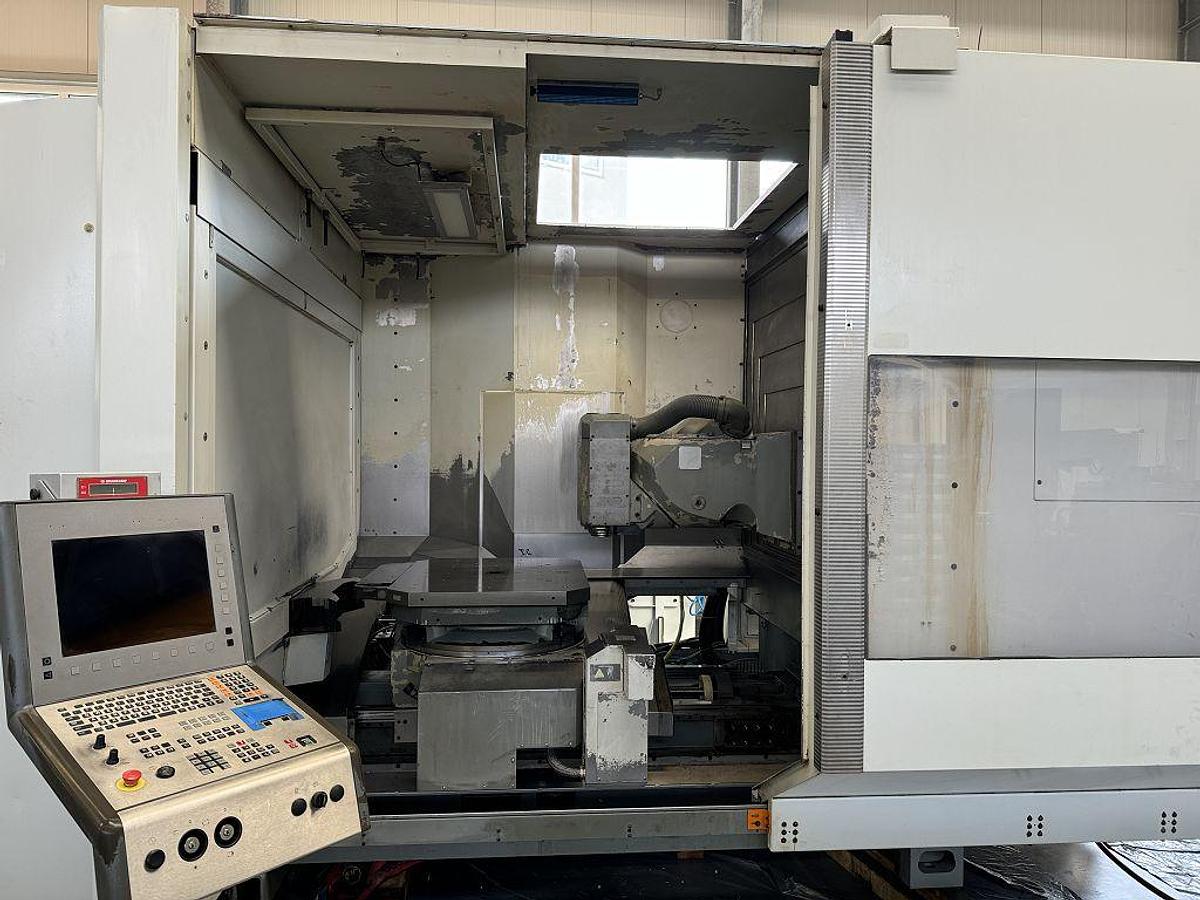

DMG DMC 125 U hi-dyn CNC Universal Machining Center
DMG DMC 125 U hi-dyn CNC Universal Machining Center
or
Call 770-509-0744
Description
Heidenhain iTNC 530 CNC Control
Pallet changer
60 Position Automatic Tool Changer
Chip conveyor

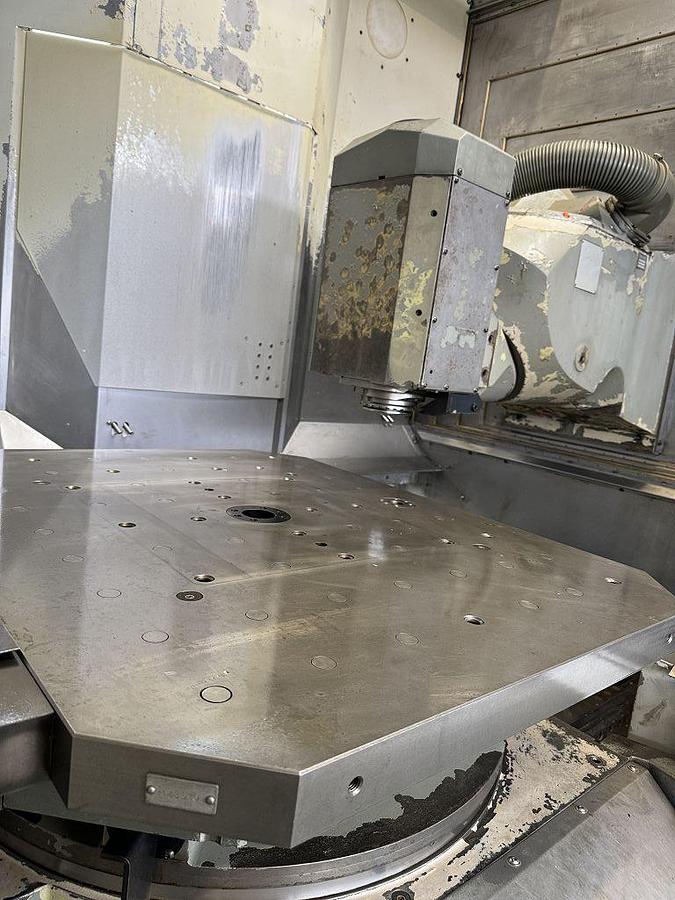

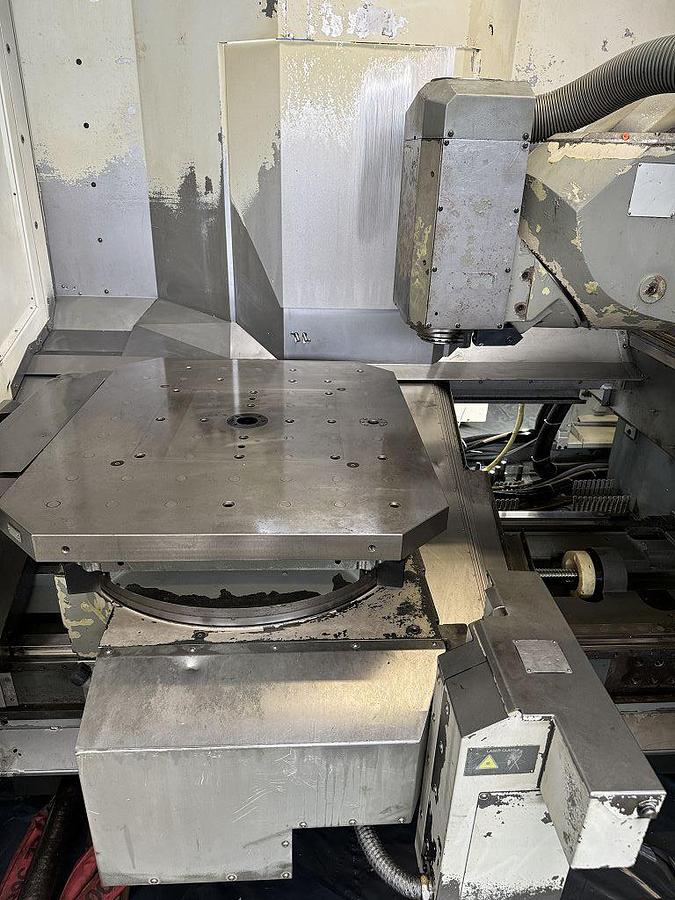

NC-Rotary table
Swivelling (B-head) +180° / -7 °
Pallet changer
Documentation
Operation mode 4
Coolant unit
Internal coolant supply 40 bar
Electrical Handwheel
Rotation inspection disc
Touch probe
Specifications
| Manufacturer | DMG |
| Model | DMC 125 U hi-dyn |
| Year | 2002 |
| Condition | Used |
| Stock Number | 11226 |
| Spindle speeds | 18,000 rpm |
| X axis travel | 1,250 mm |
| Y axis travel | 880 mm |
| Z axis travel | 800 mm |
| Spindle power | 28 kW |
| Spindle swivelling | B: +180° / -7 ° |
| Pallet changer | 2 Pallets |
| Pallet size | 1,000 x 800 mm |
| Pallet diameter | 1,100 mm |
| Max table load | 1 Ton |
| Pallet rotation | 360° |
| Max workpiece diameter | 1,250 x 1,230 mm |
| Feed rates | 1 - 15,000 mm/min |
| Rapid traverse | 40 m/min |
| Total power | 58 kVA |
| Machine weight | 14.6 Ton |
| Space requirements | 5.5 x 4.5 x 3.1 m |
