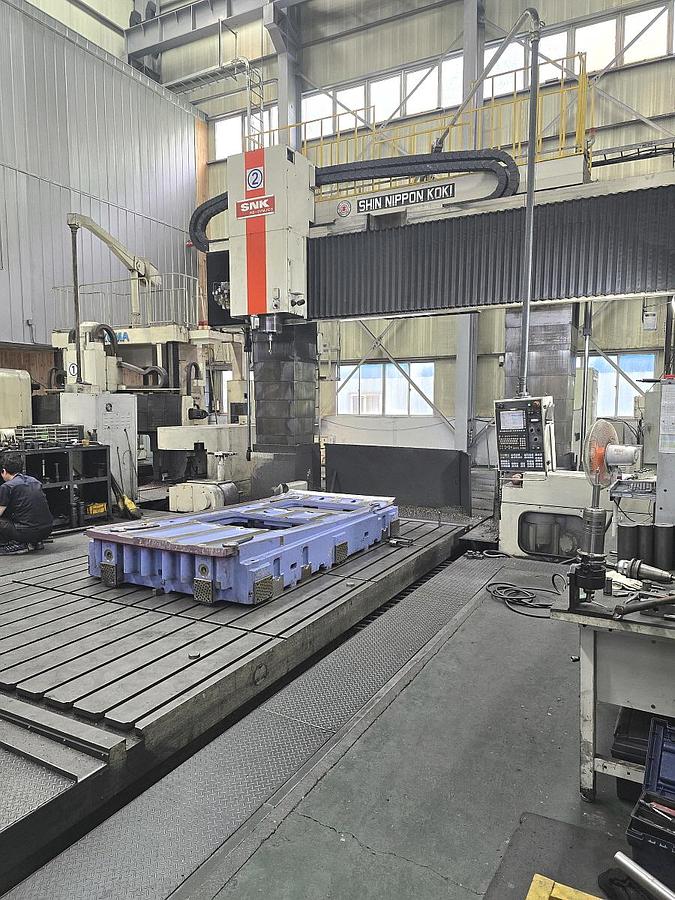

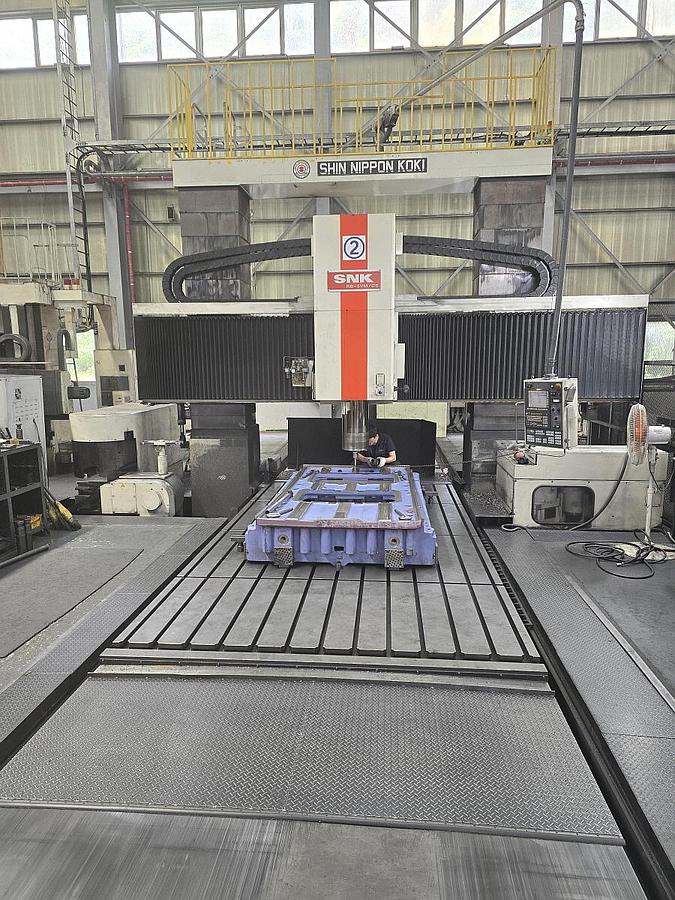

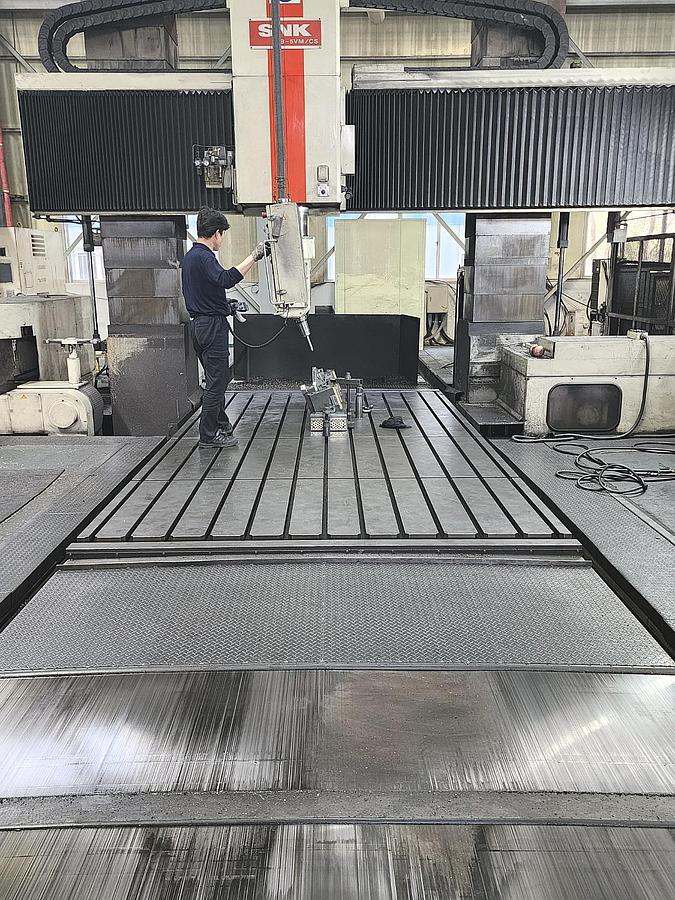

SNK RB-5VM CS CNC 5-Axis Double Column Machining Center
SNK RB-5VM CS CNC 5-Axis Double Column Machining Center
or
Call 770-509-0744
Description

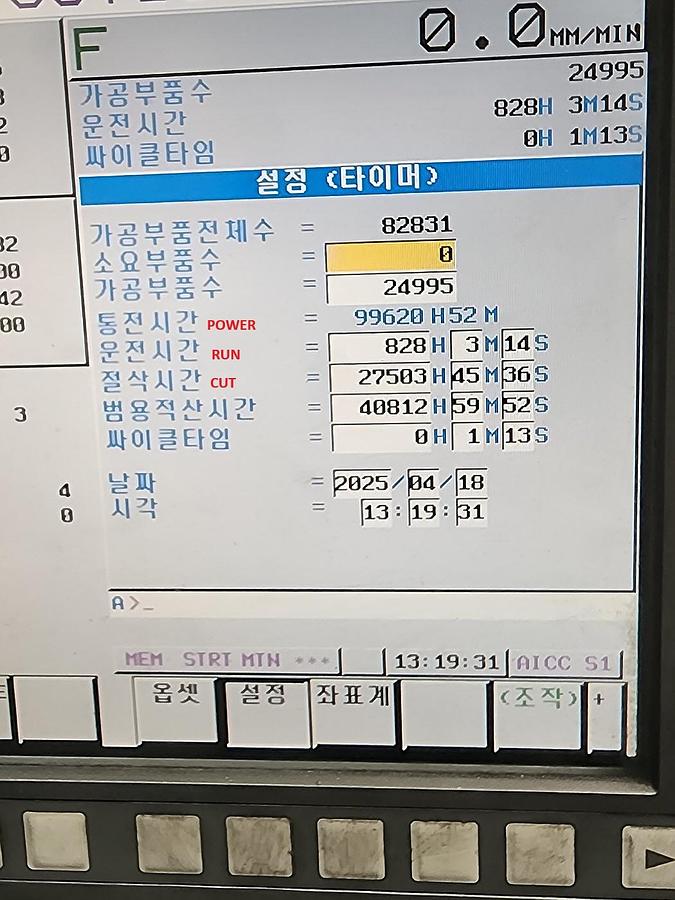

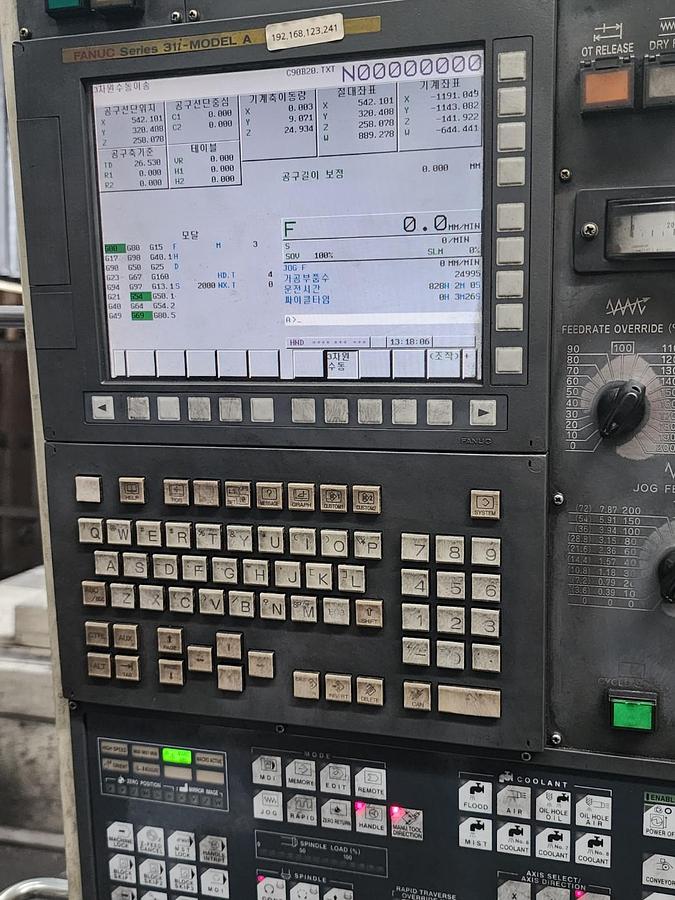

Fanuc 31i A control

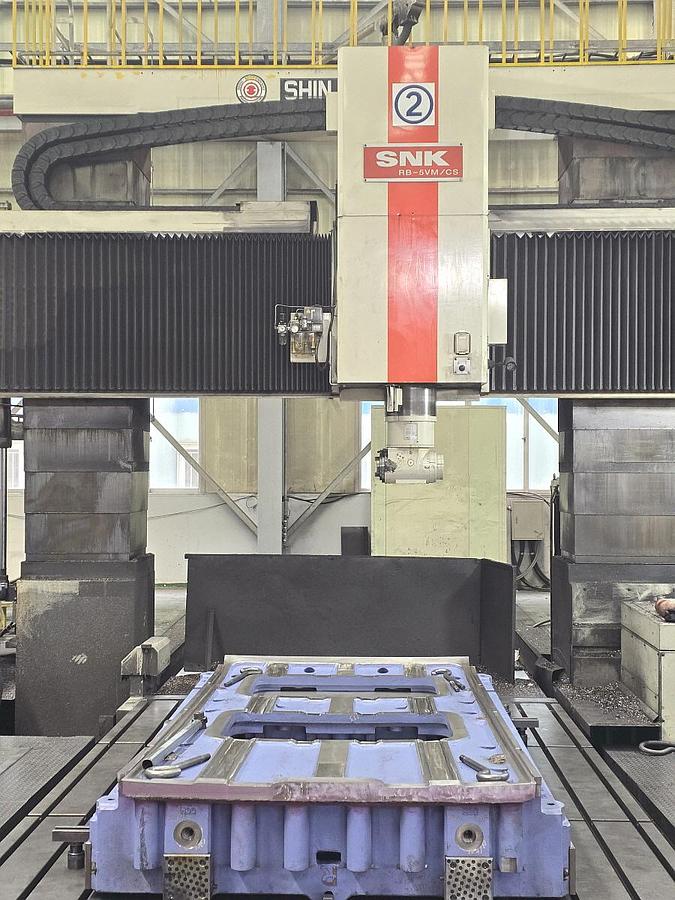

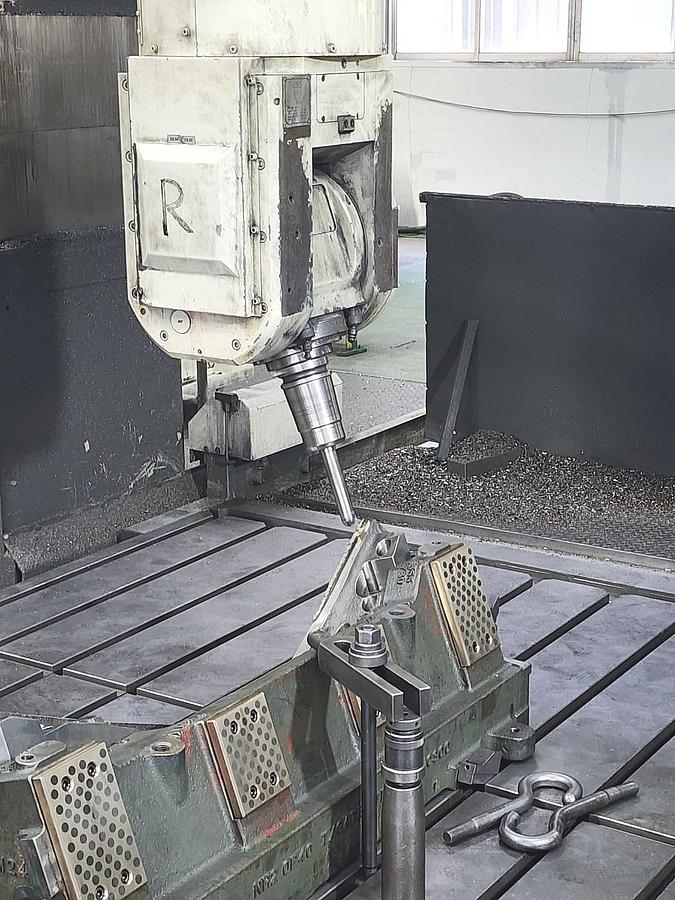

5-Axis Head
ISO 50 taper
40 Position Automatic Tool Changer
Scales XYZ axis

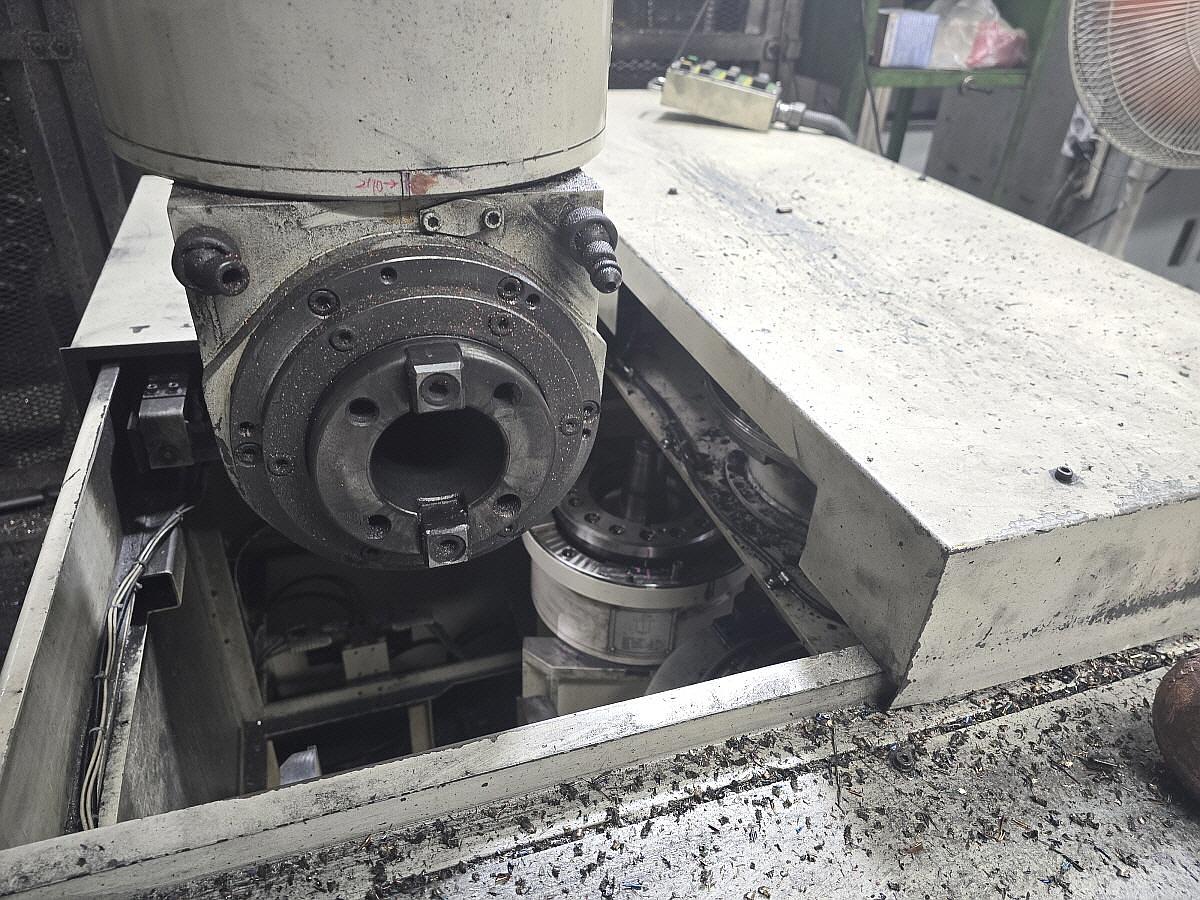

90-degree angle head
Extension

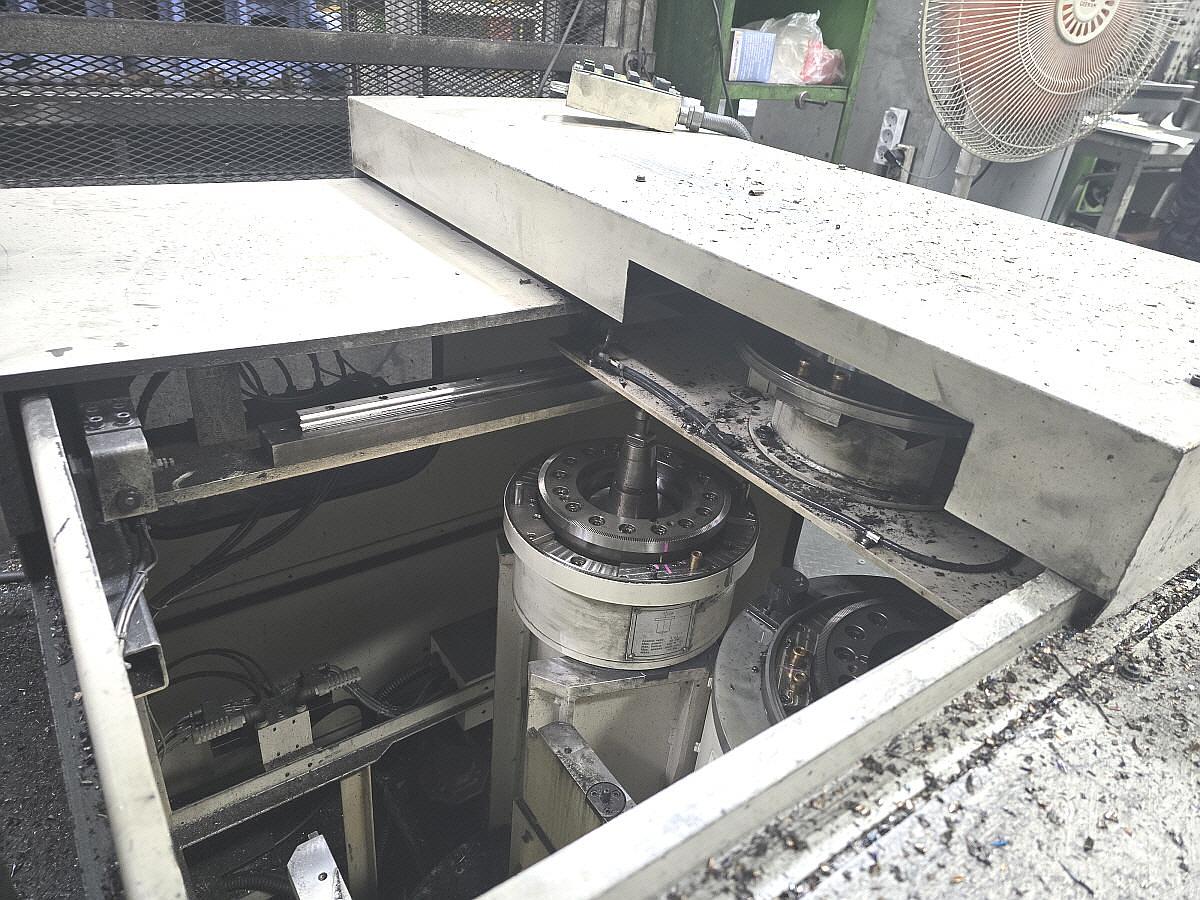

Automatic Attachment Changer (3 station)
Laser length measurement
3 Chip conveyors
Specifications
| Manufacturer | SNK |
| Model | RB-5VM CS |
| Year | 2013 |
| Condition | Used |
| Stock Number | 11235 |
| Between columns | 2,850 mm |
| Spindle speeds | 6,000 rpm |
| Machining height | 300 - 2,300 mm |
| X axis travel | 5,250 mm |
| Y axis travel | 2,900 mm |
| Z axis travel | 600 mm |
| Table size | 2,500 x 5,000 mm |
| Table capacity | 20,000 kg |
| W axis travel | 1,400 mm |
| Z + w axis (ram + crossrail) | 2,000 mm |
| Spindle taper | ISO 50 |
