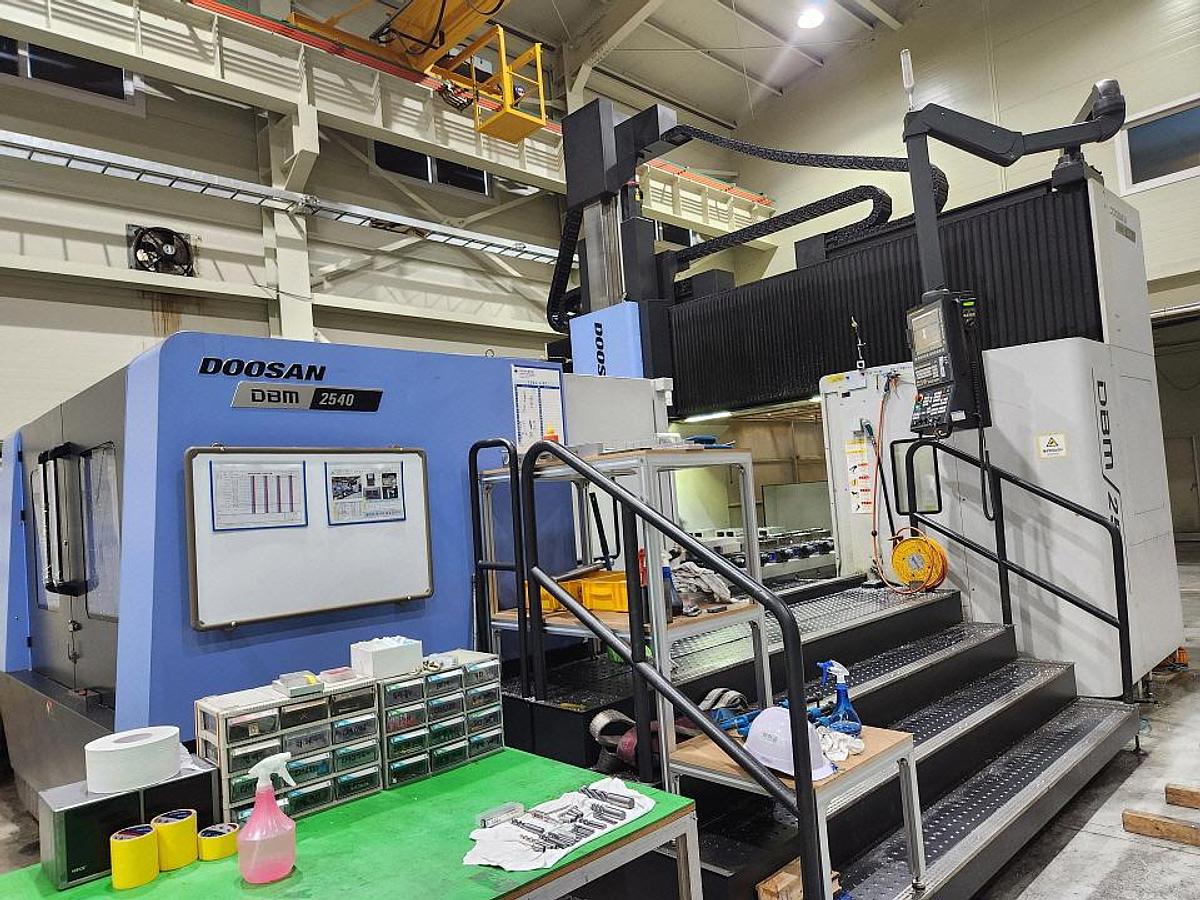

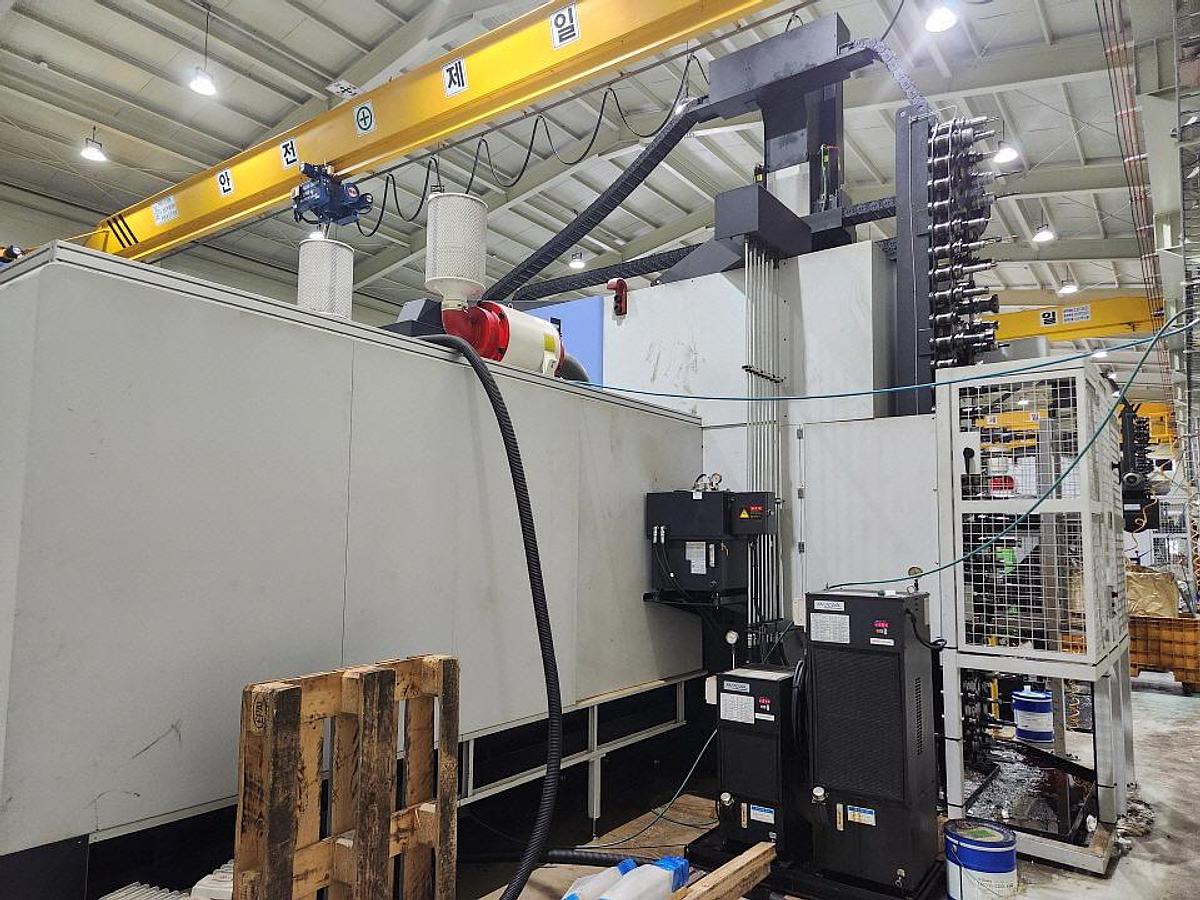

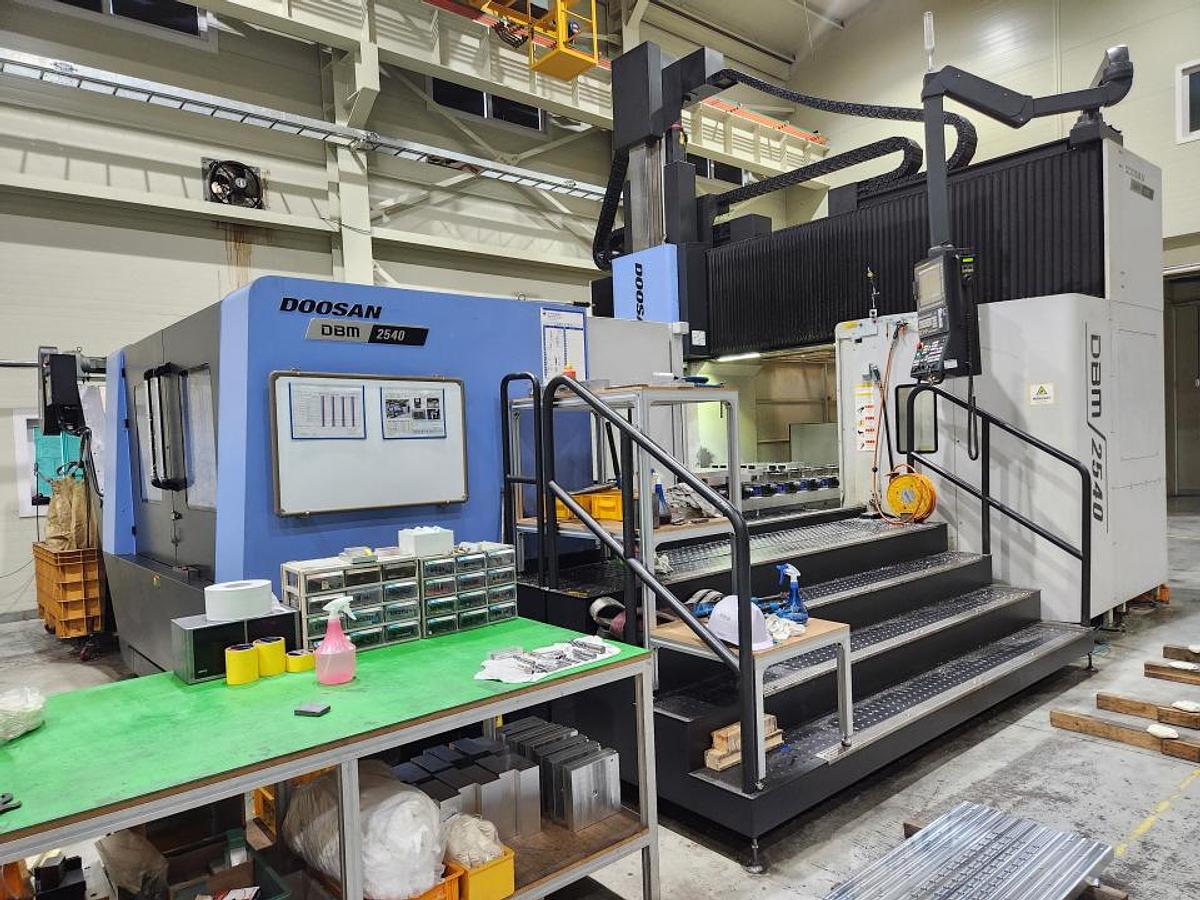

Doosan DBM 2540 CNC Planer Type Double Column Machining Center
Doosan DBM 2540 CNC Planer Type Double Column Machining Center
or
Call 770-509-0744
Description

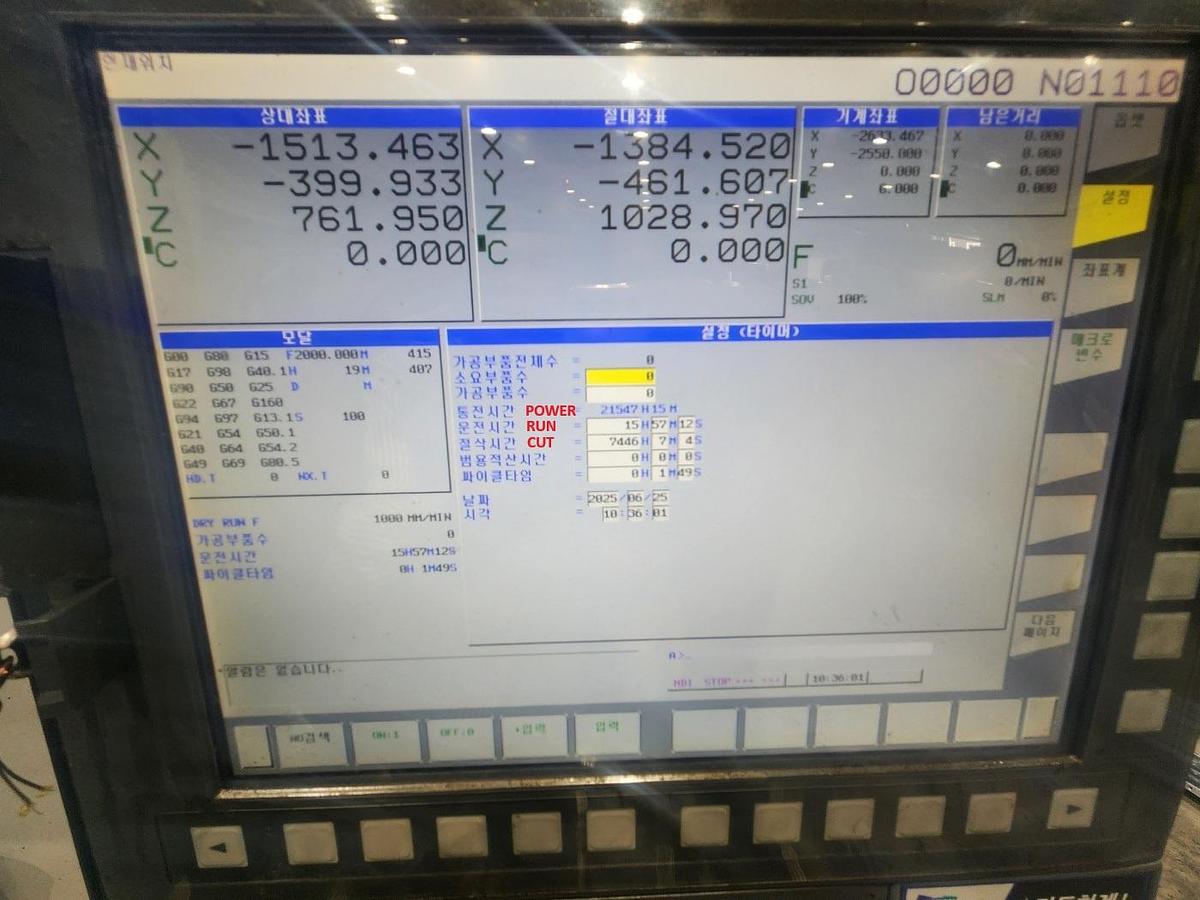

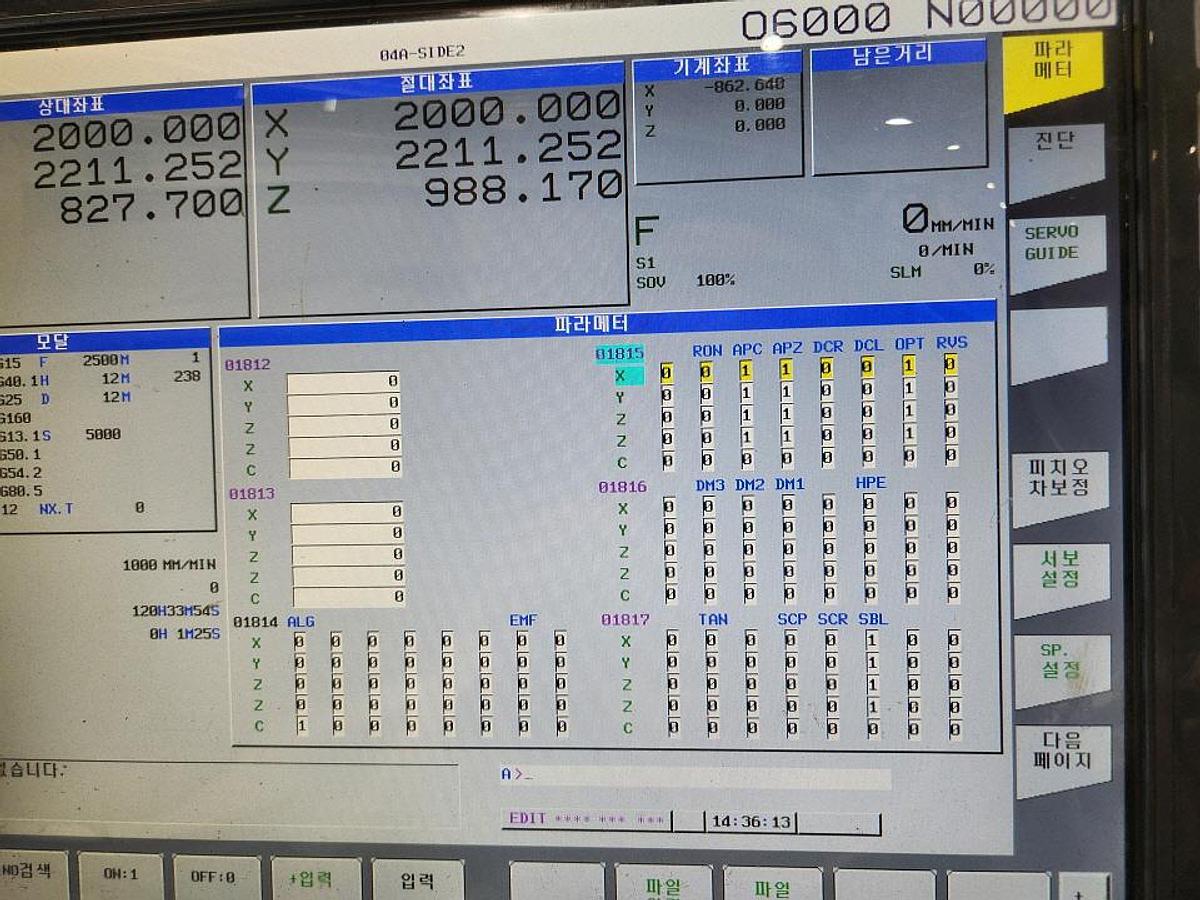

Fanuc 31iB control

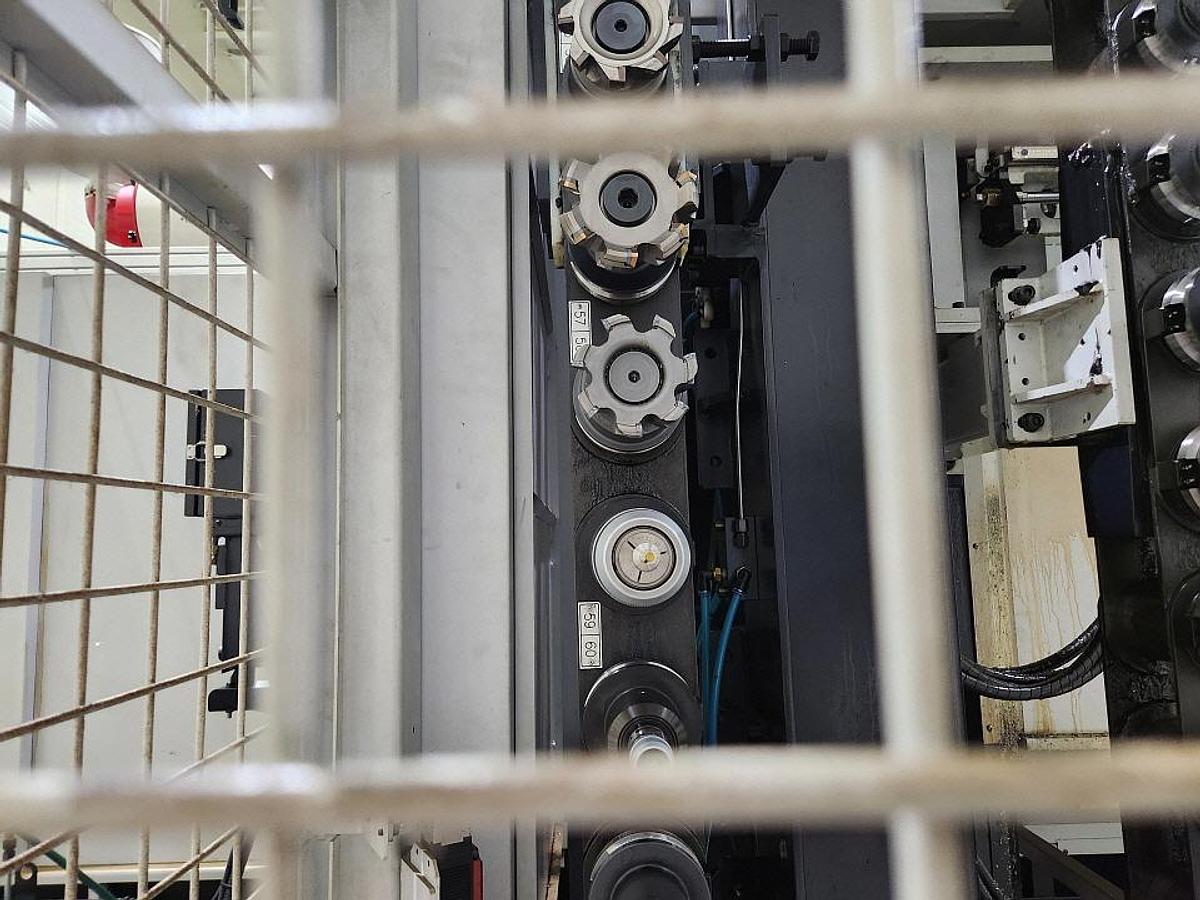

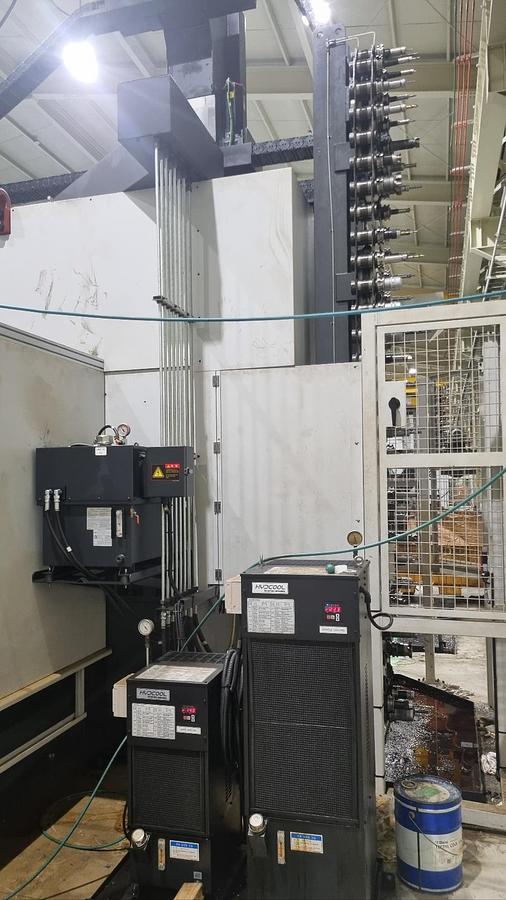

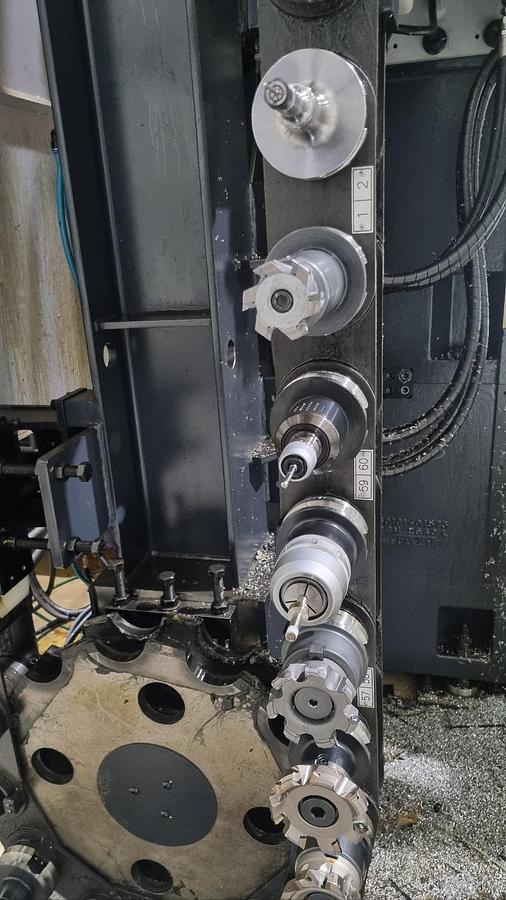

60 Position Automatic Tool Changer

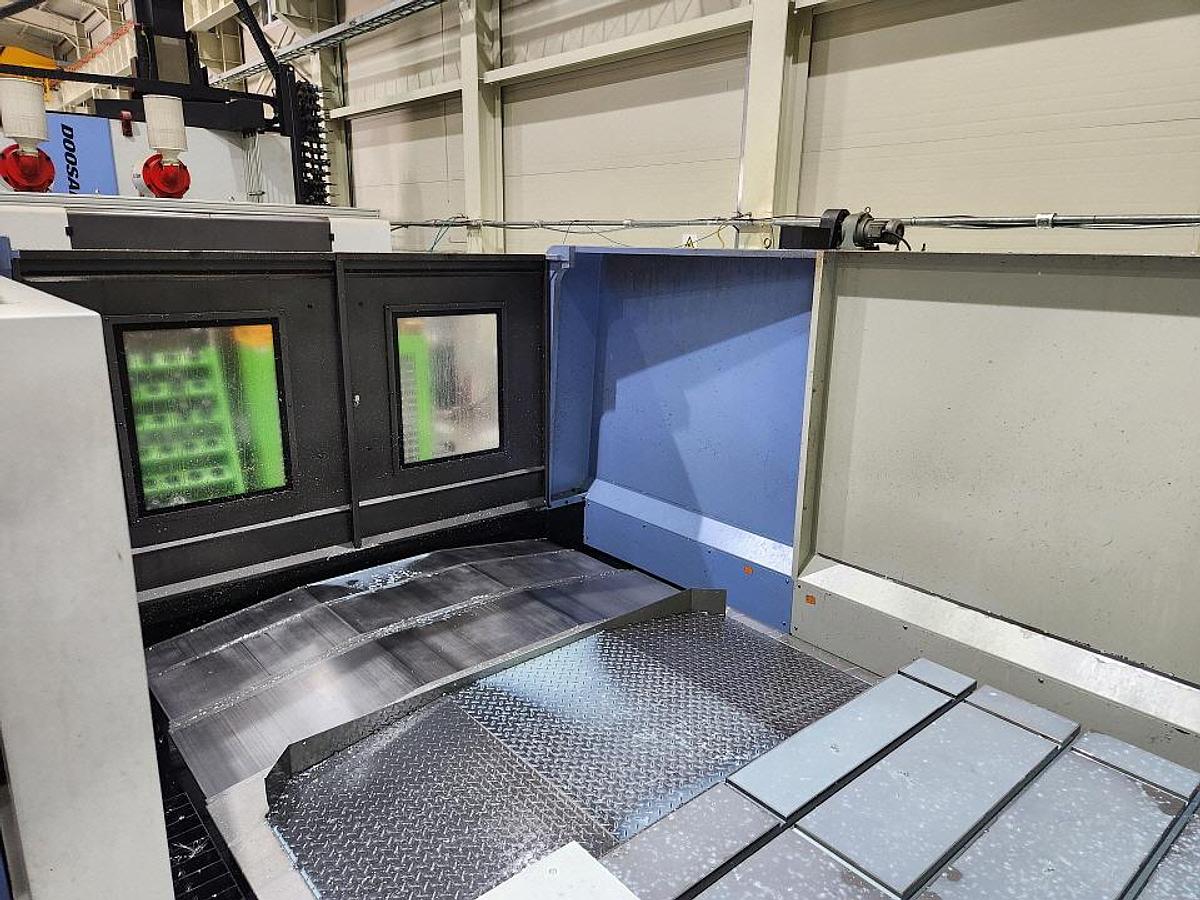

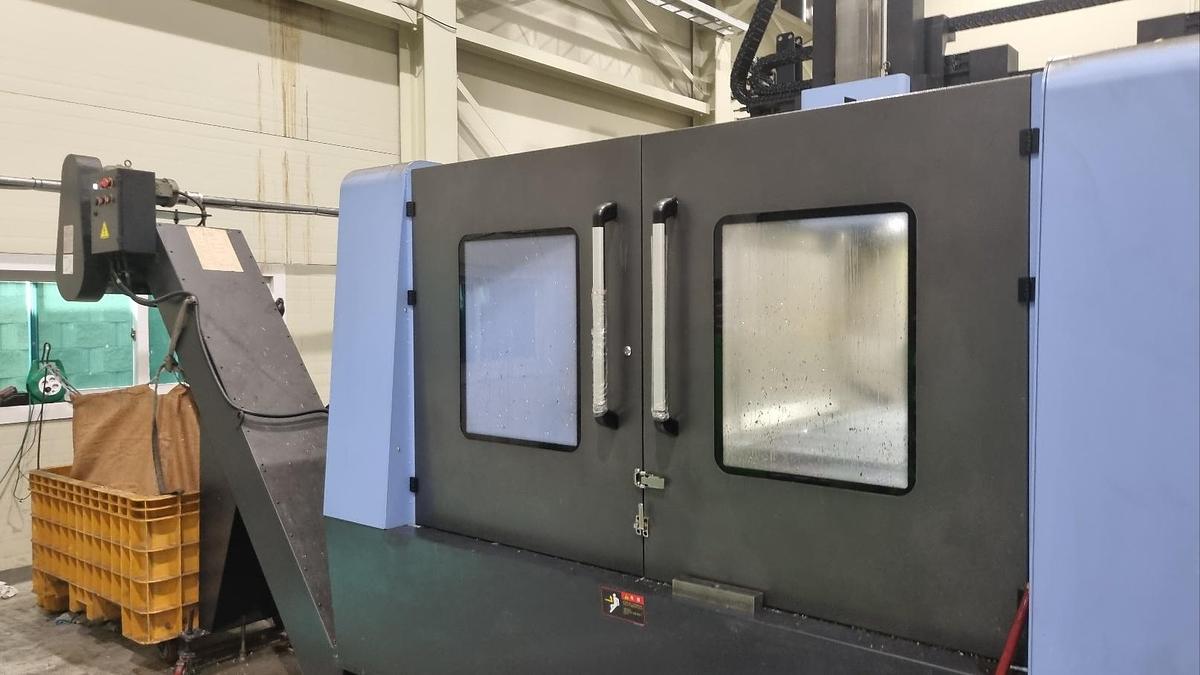

Semi cover with rear top roof
Scales XYZ1, Z2 axis
90-degree Angle Head (6000 rpm)
AAC (swing 2 station)
Part program 8M

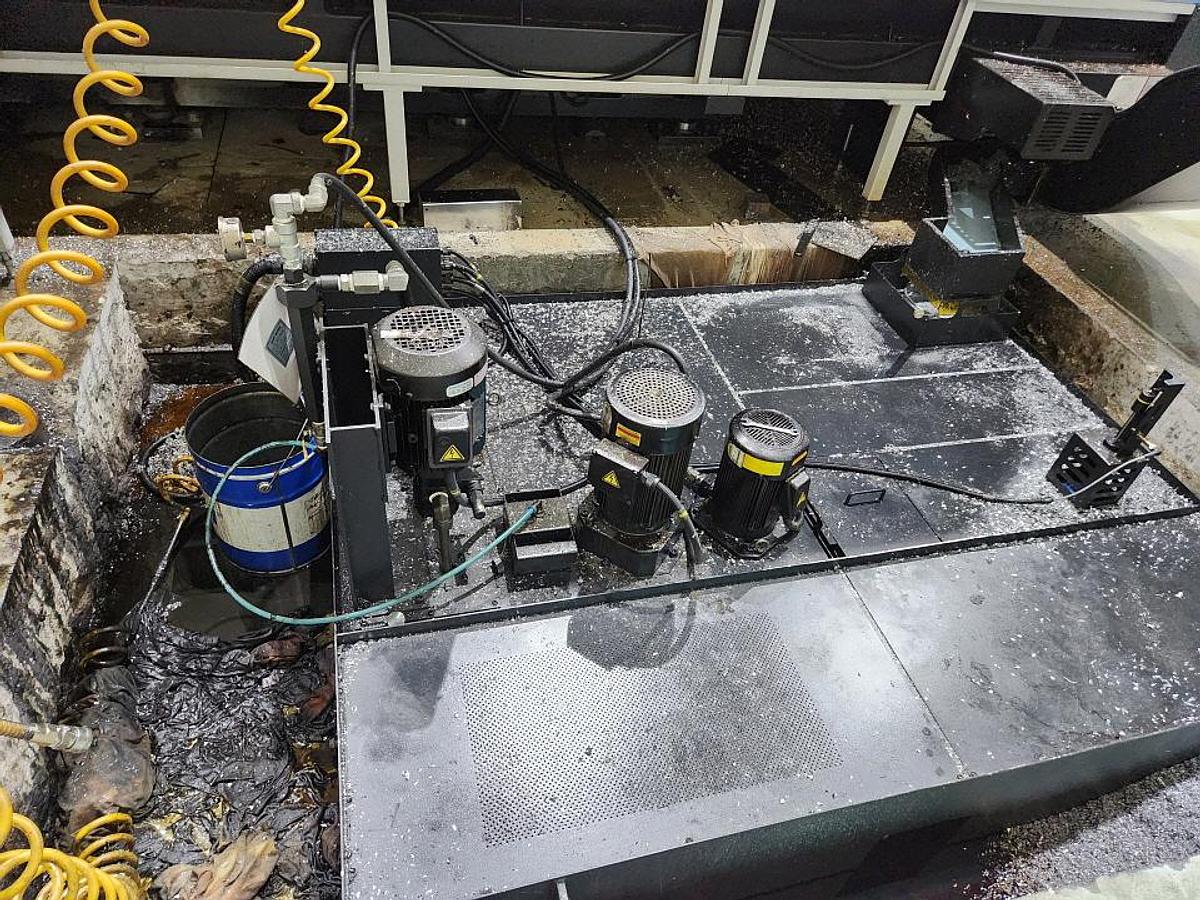

20 bar Spindle through coolant
Renishaw tool length measurement
DSQ 2

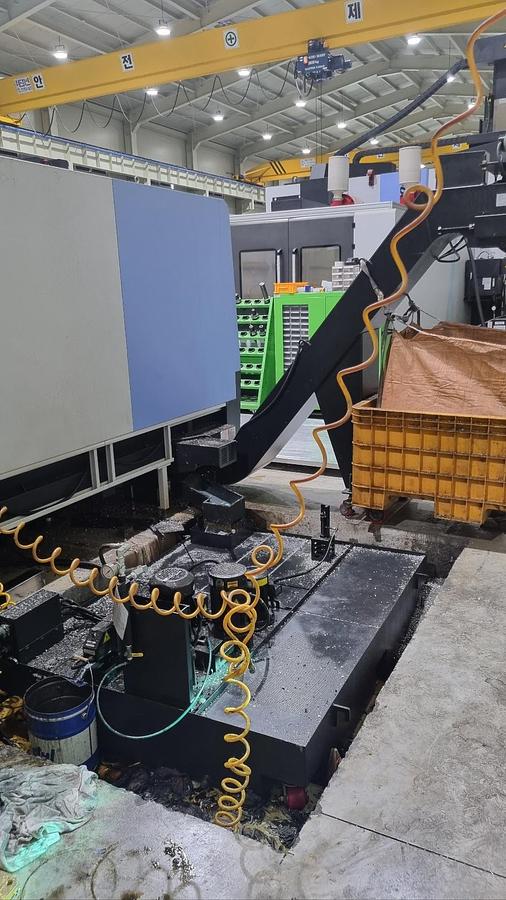

Chip conveyor
Specifications
| Manufacturer | Doosan |
| Model | DBM 2540 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 11237 |
| Spindle speeds | 8,000 rpm |
| X axis travel | 4,250 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 800 mm |
| Table size | 2,000 x 4,000 mm |
| Table capacity | 20,000 kg |
| Spindle drive motor | 37 / 55 kW |
| Spindle taper | BT 50 |

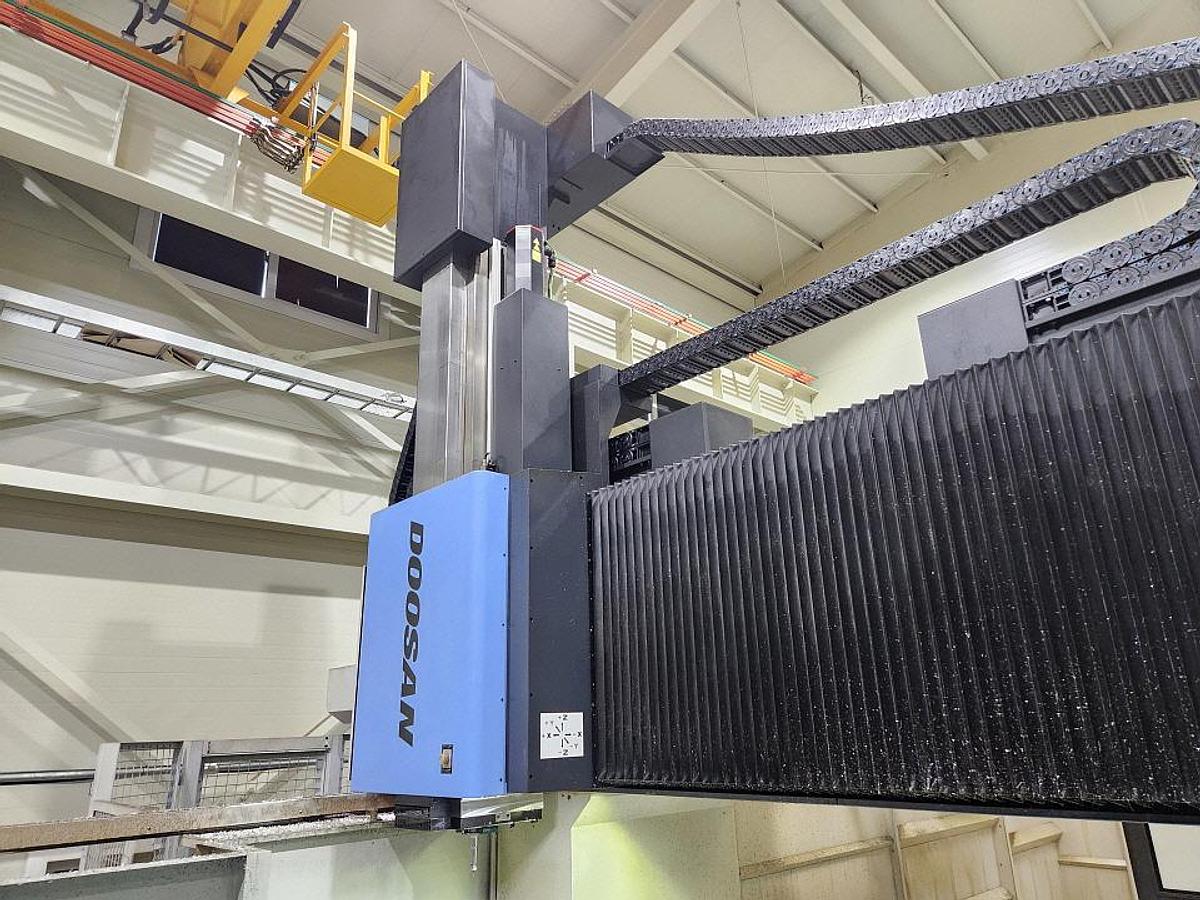

| Ram size | 380 x 380 mm |
