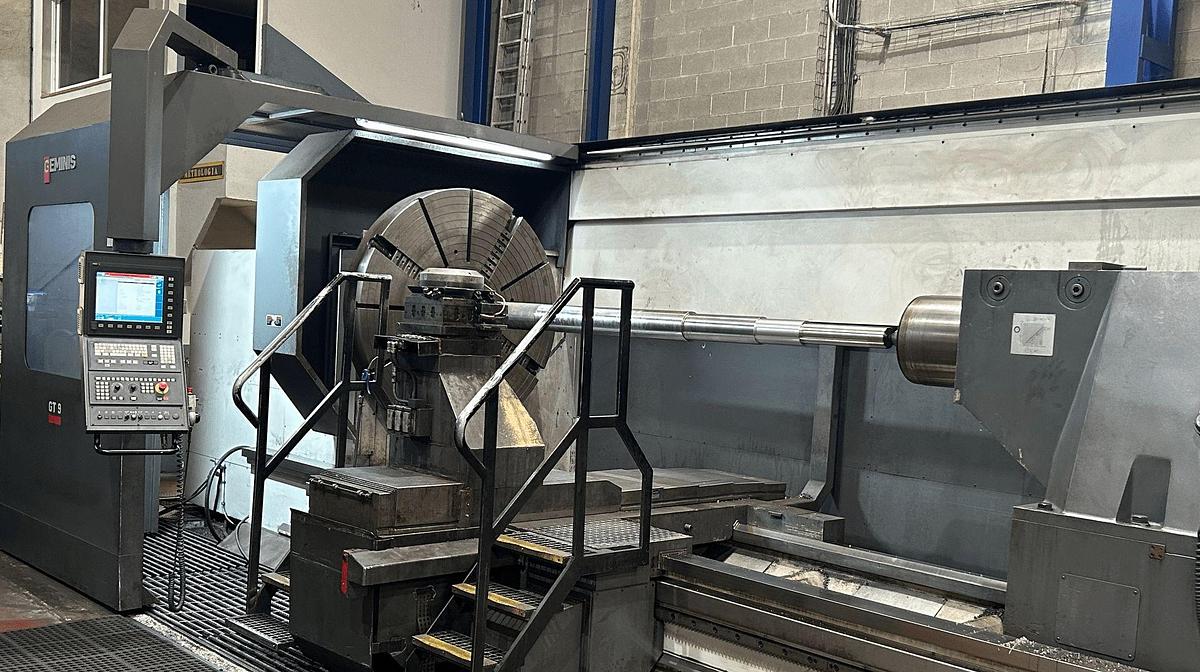

Geminis GT9 G2 2000 x 8000 CNC High Performance Heavy Duty Horizontal Lathe
Geminis GT9 G2 2000 x 8000 CNC High Performance Heavy Duty Horizontal Lathe
or
Call 770-509-0744
Description

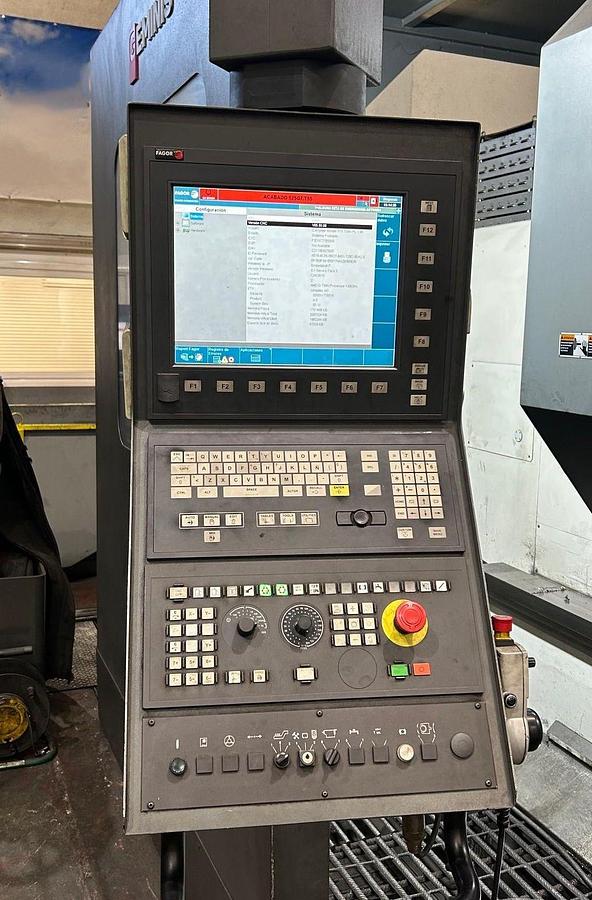

Fagor 8065 CNC Control & Handwheel

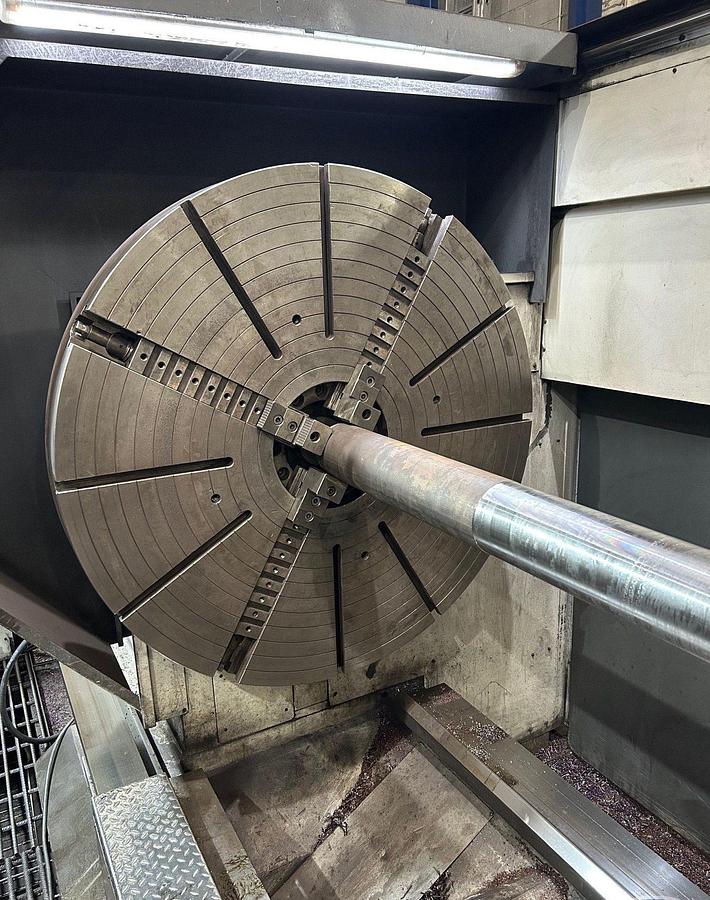

Faceplate 1,600 mm

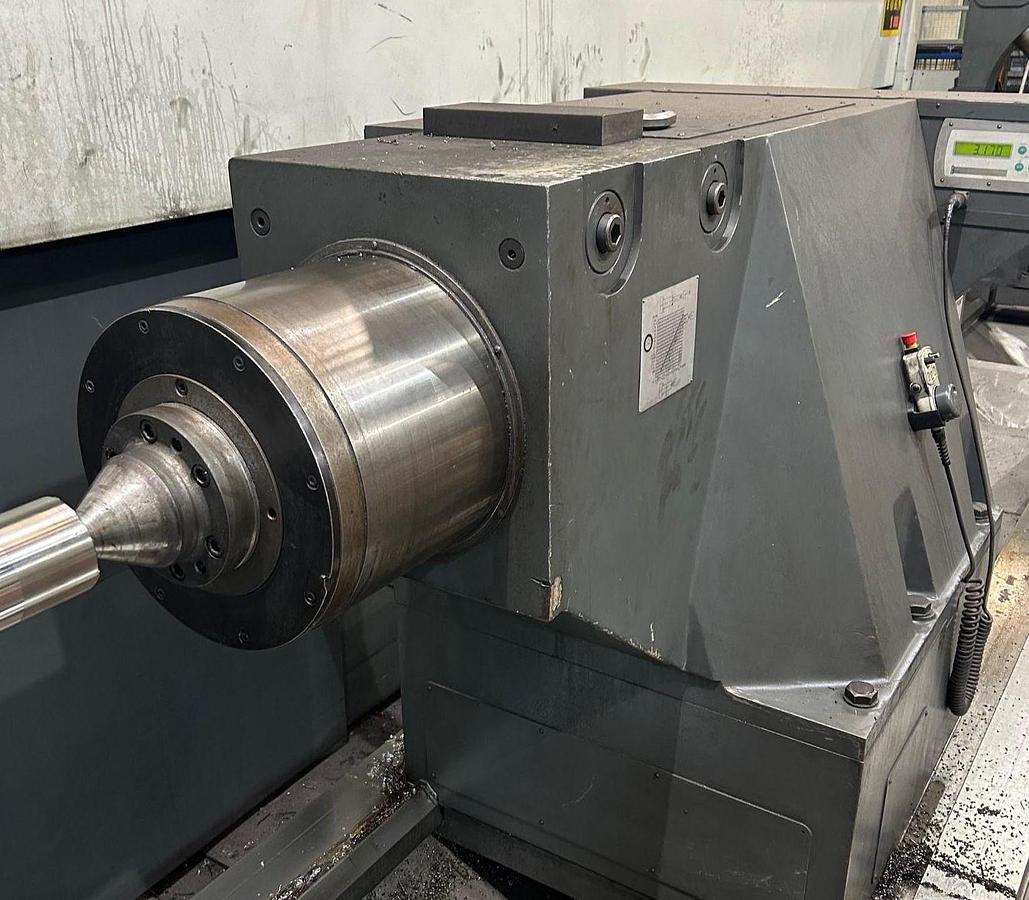

Motorized tailstock

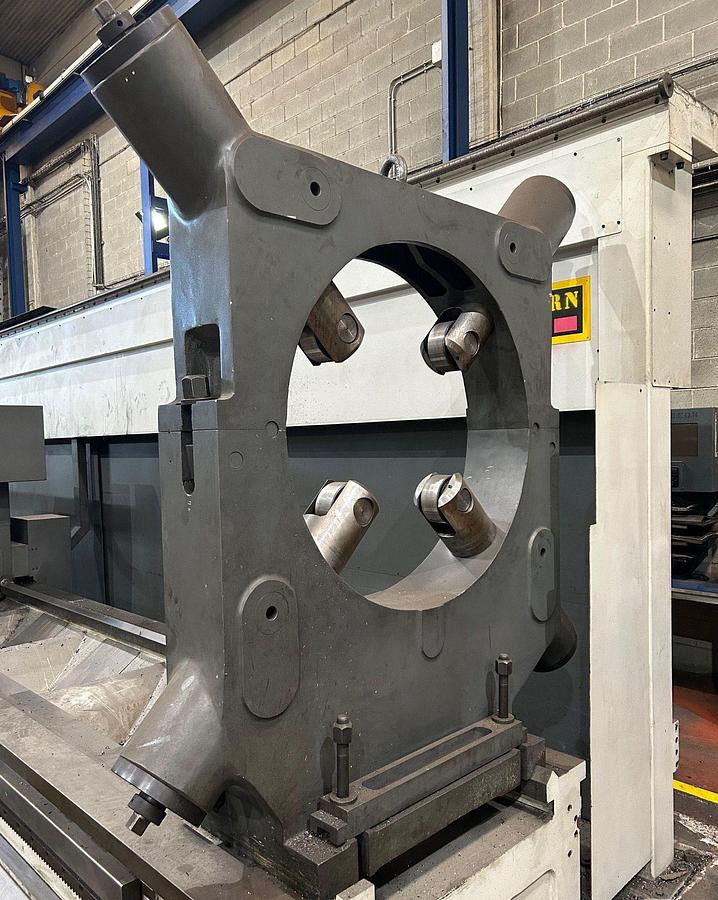

1 steady rest diameter 500-900mm - 10 Ton
Chip Conveyor

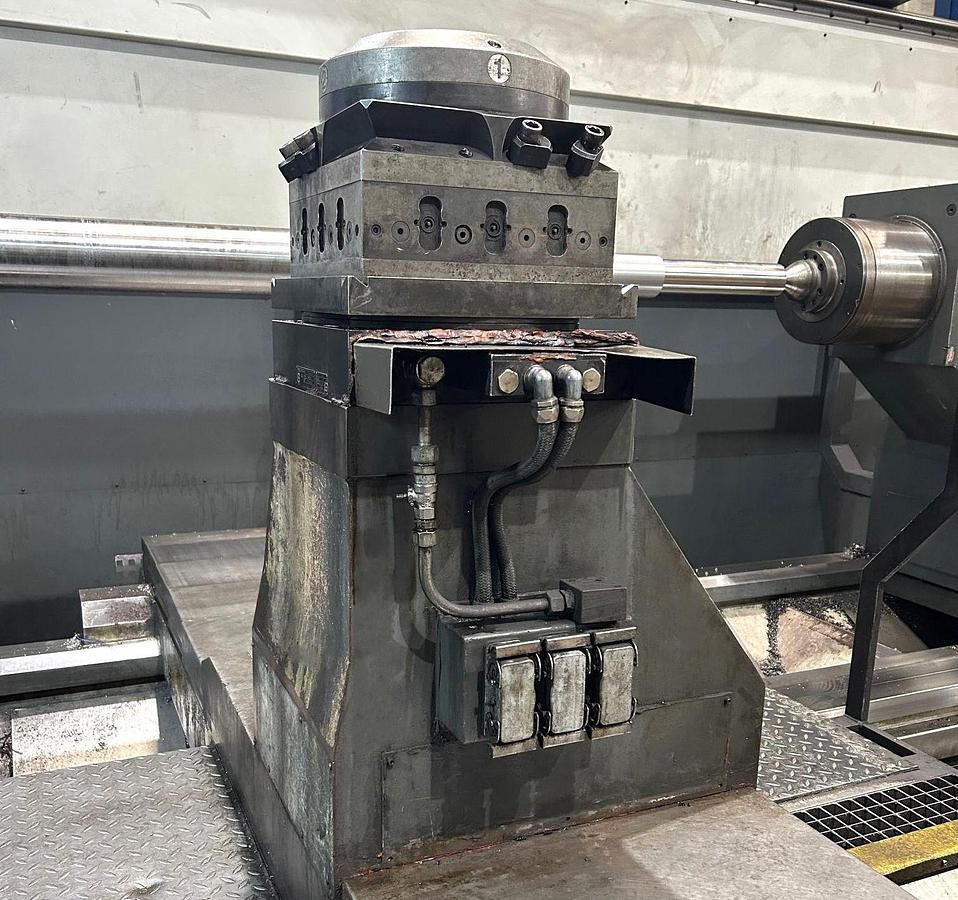

Automatic tool holder Sauter 4-fold 320 x 320mm
Coolant device
Safety doors
Prepared for C-axis with transfer from main machine
Prepared for adaptation of milling head with Y-Axis on Turret
Prepared for mounting of Grinding Head
Specifications
| Manufacturer | Geminis |
| Model | GT9 G2 2000 x 8000 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 11238 |
| Between centers | 8,000 mm |
| Workpiece weight between centers with steady rest | 40 Tons |
| Swing over bed | 2,100 mm |
| Swing over slide | 1,600 mm |
| Turning speed range - spindle | 700 rpm |
| Number of gear shifts | 4 |
| Spindle bore | 150 mm |
| Spindle drive motor | 100 kW |
| Total power requirement | 135 kW |
| Machine weight | 82 Ton |
