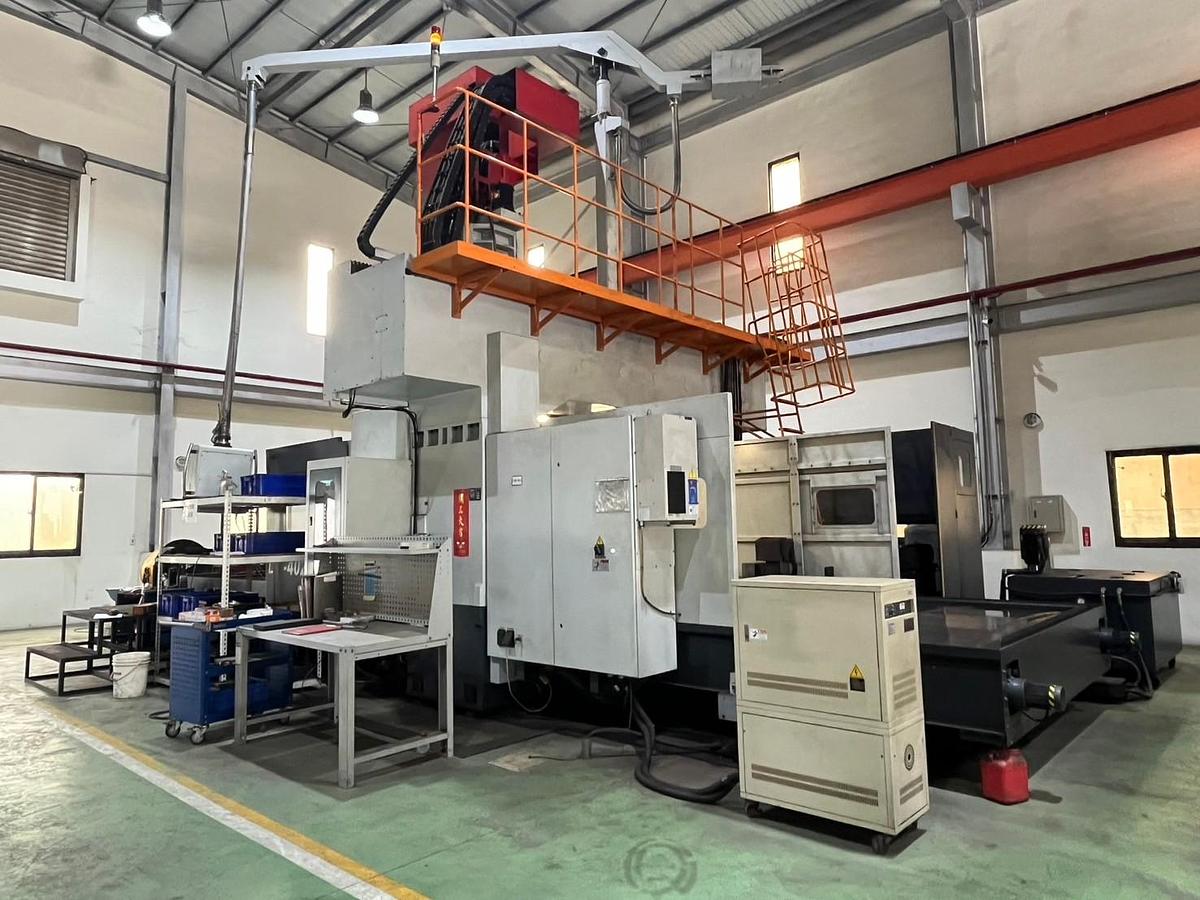

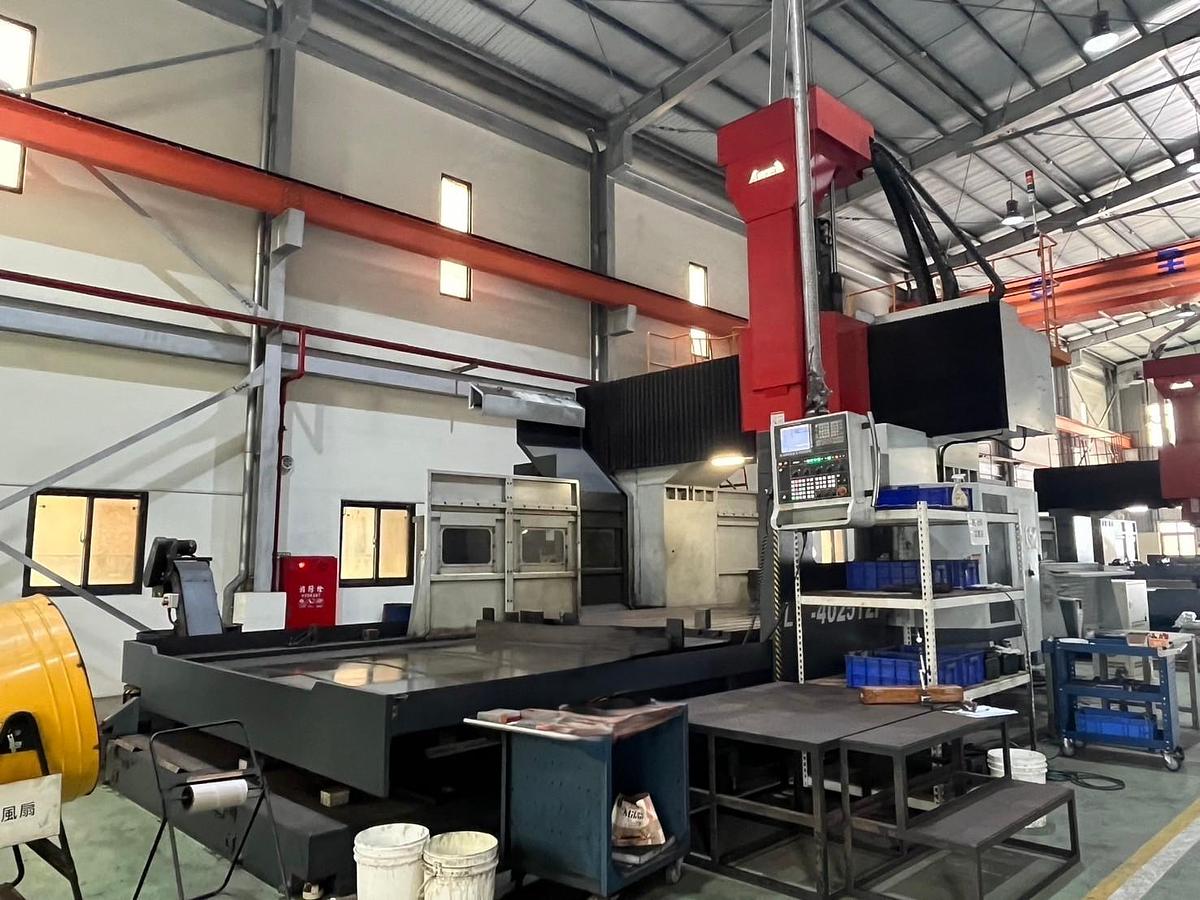

AWEA LP-4025 YZF BRIDGE TYPE 5-FACE DOUBLE COLUMN MULTI MACHINING CENTER
AWEA LP-4025 YZF BRIDGE TYPE 5-FACE DOUBLE COLUMN MULTI MACHINING CENTER
or
Call 770-509-0744
Description

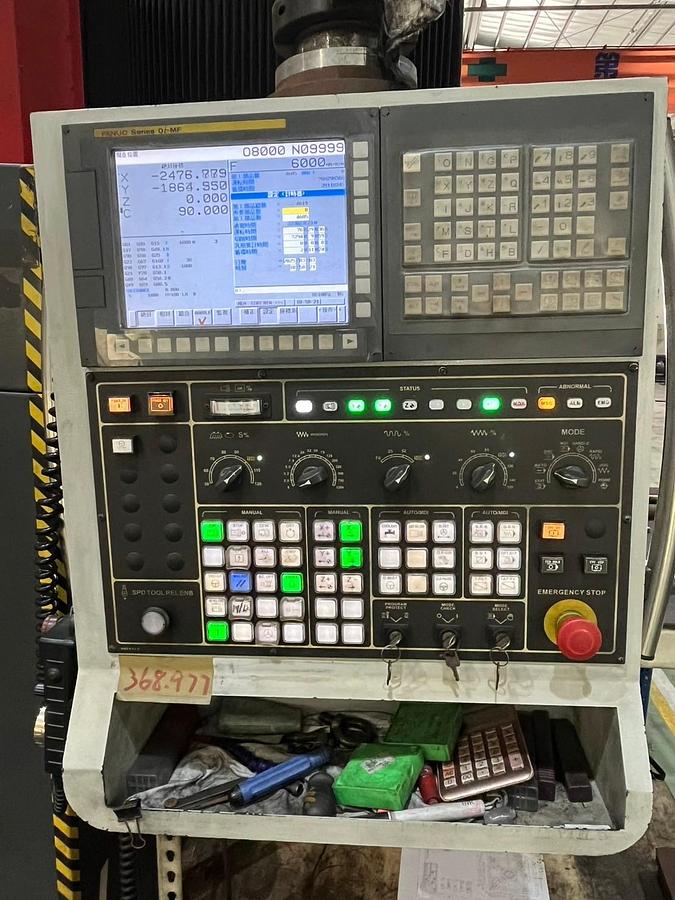

Fanuc Oi-MF CNC Control

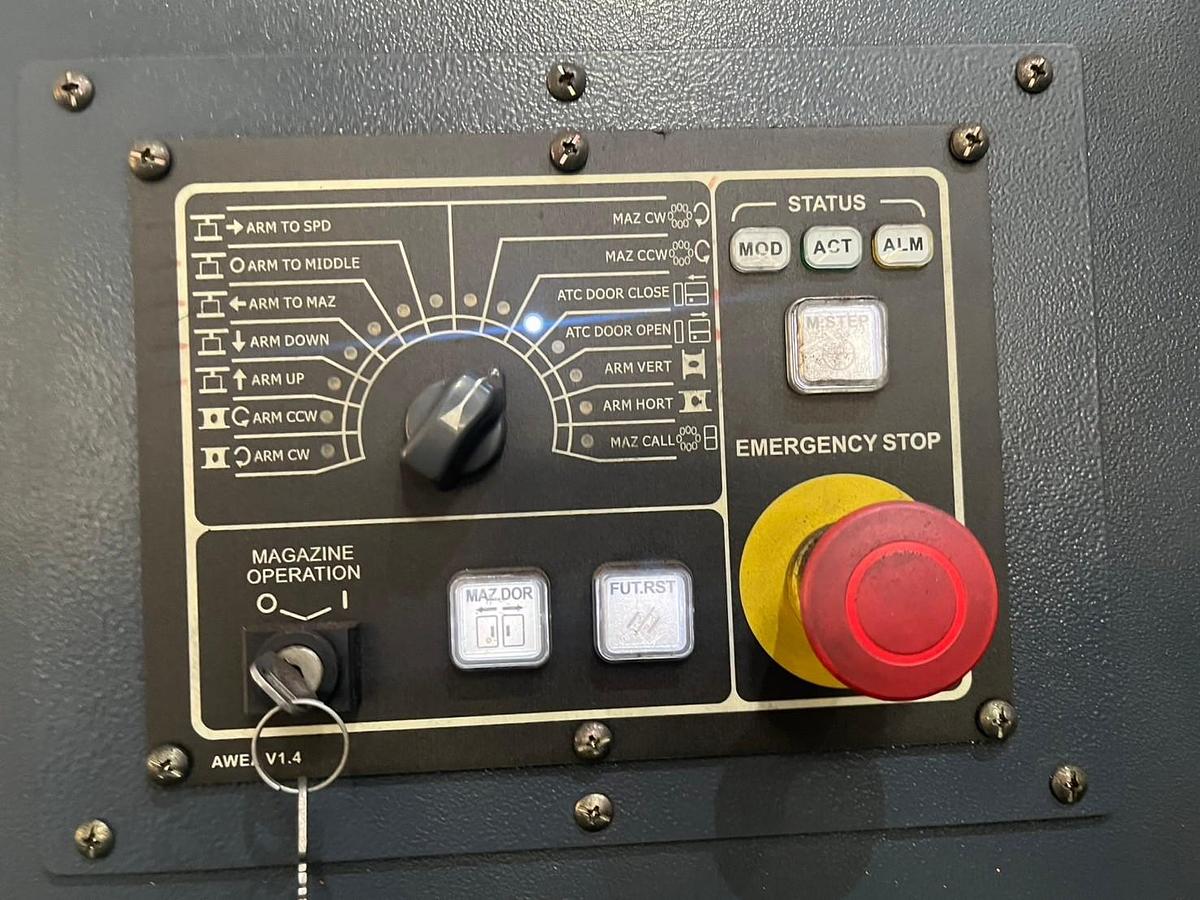

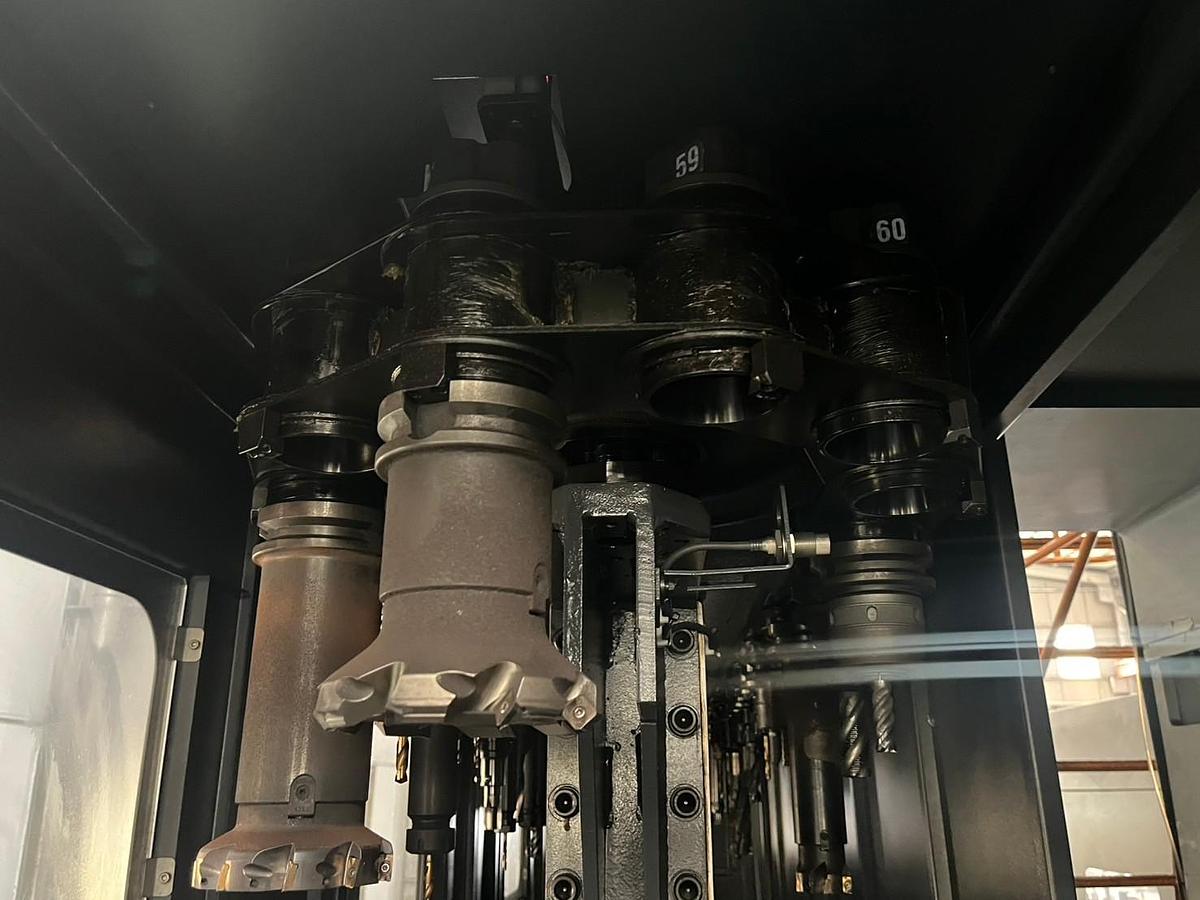

60 Position Automatic Tool Changer
X/Y Axes Linear Scales

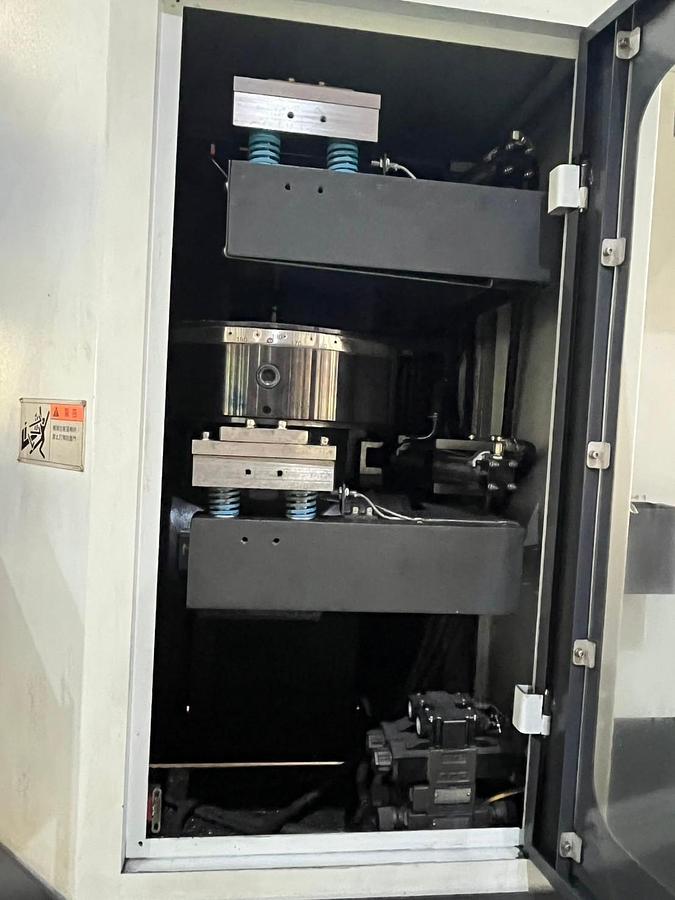

Auto Head Changer：

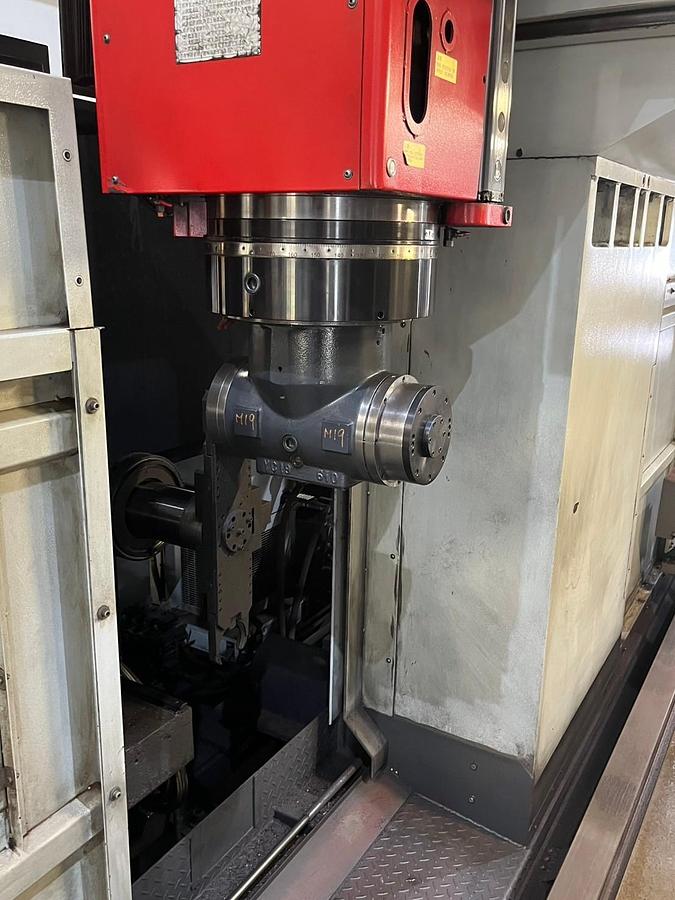

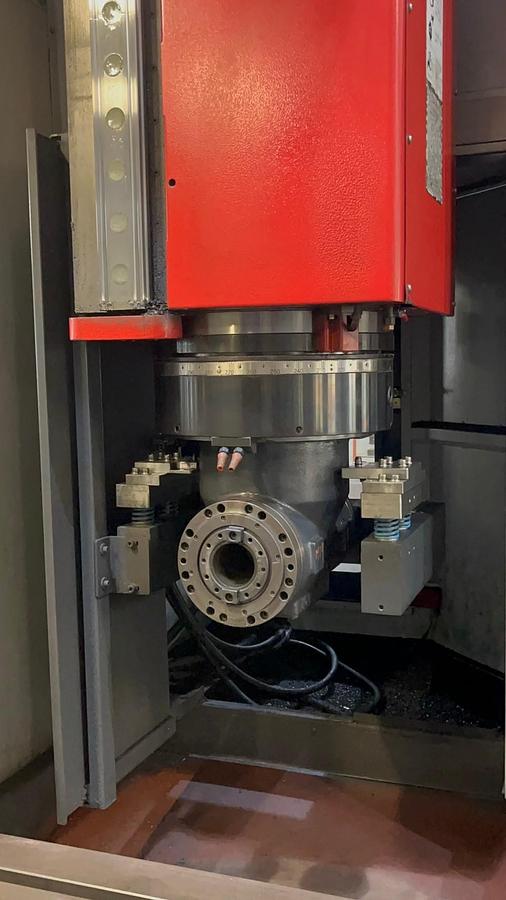

Automatic Right Angle Head (90 degree 3,000 rpm)

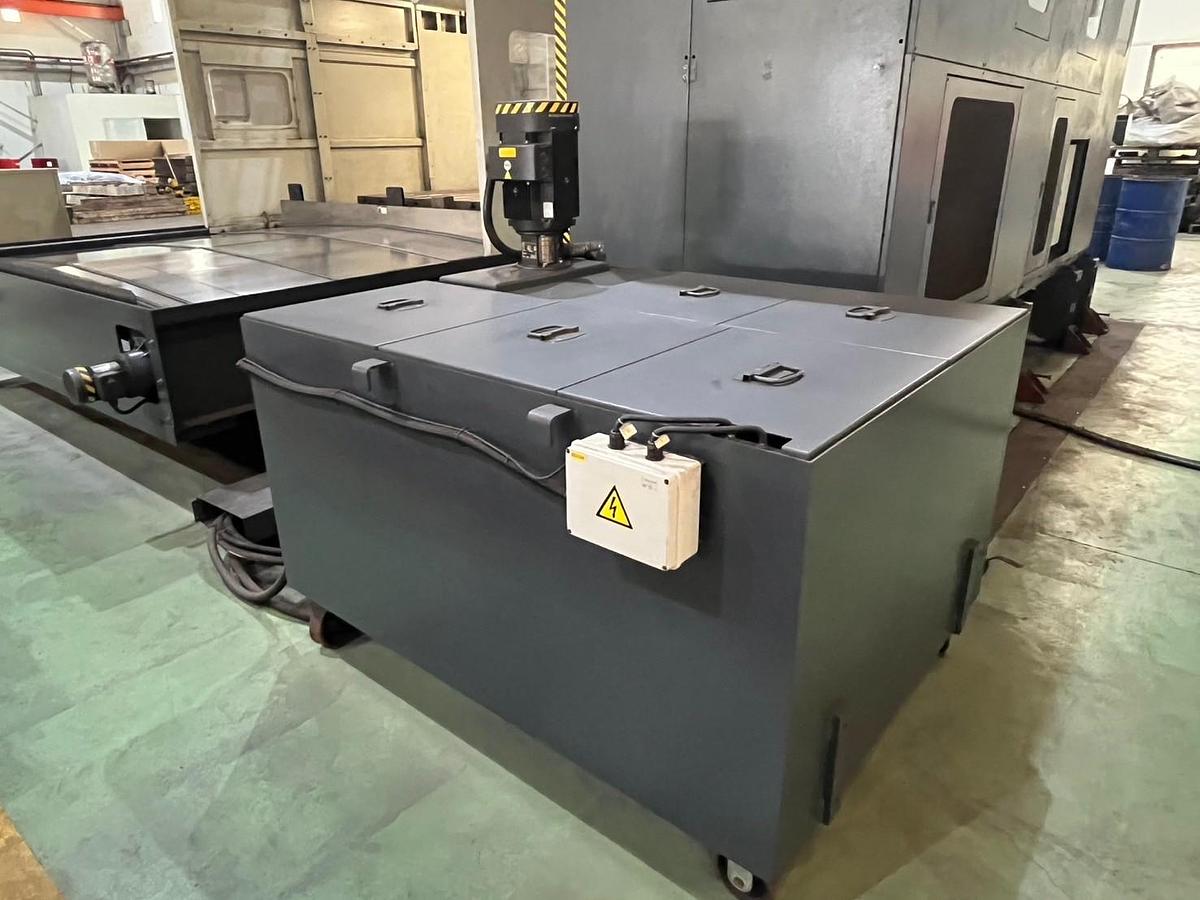

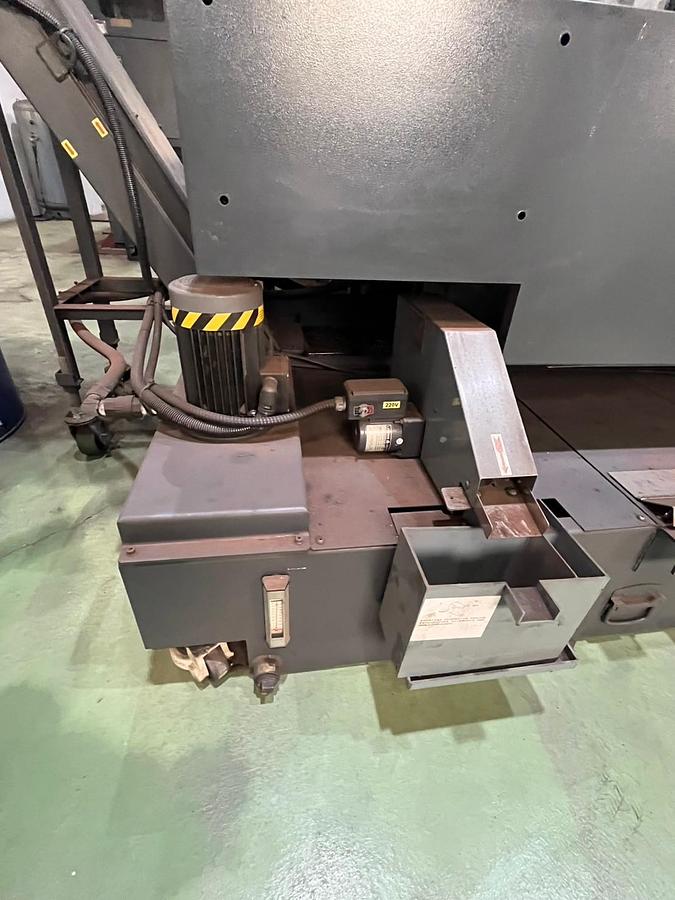

Oil Skimmer
Coolant Thru Spindle 20bar

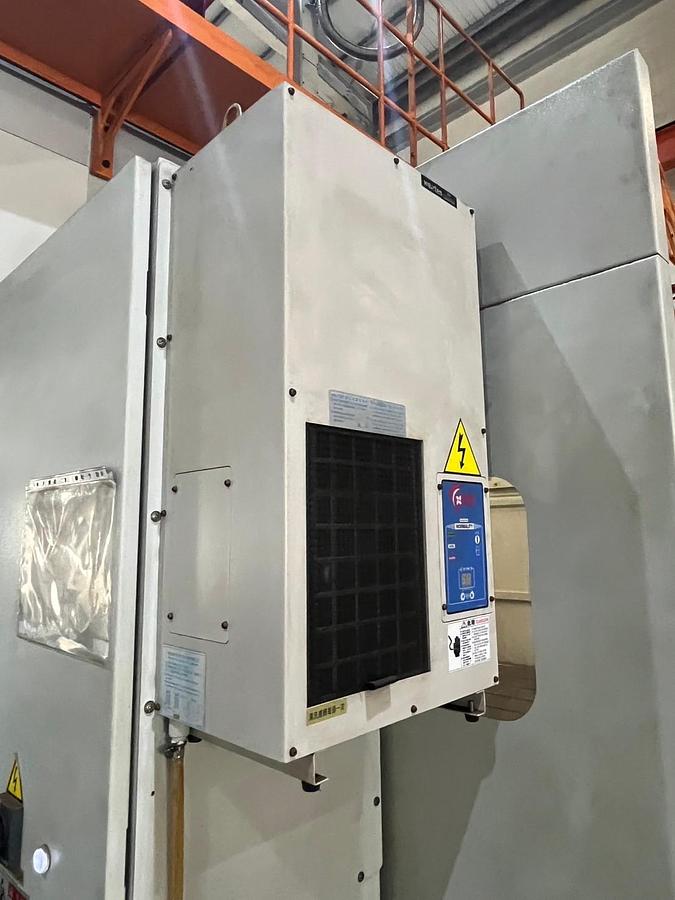

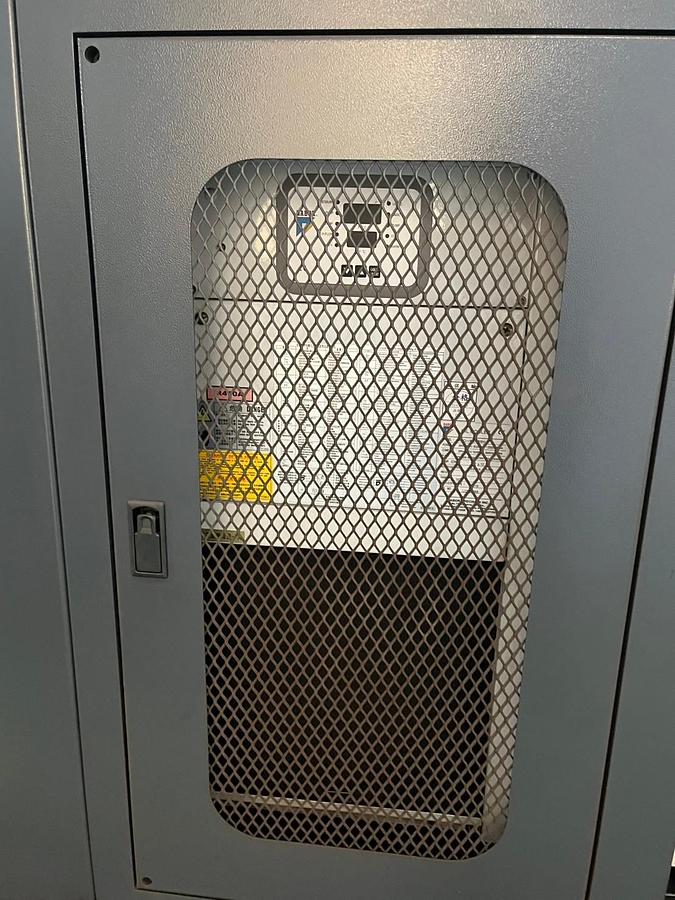

Air Conditioner
Machine Size：10,296 x 6,200 x 6,900 mm
Specifications
| Manufacturer | AWEA |

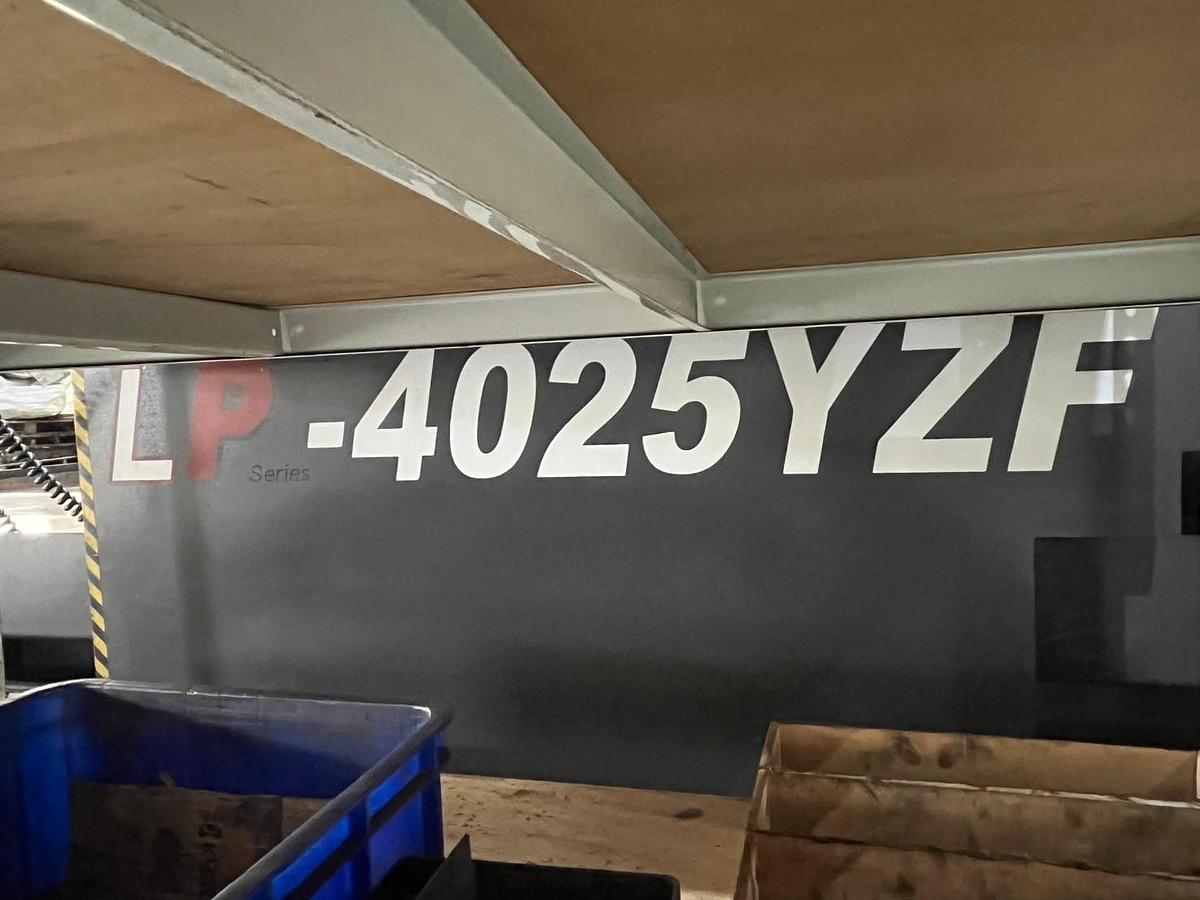

| Model | LP-4025 YZF |
| Year | 2020 |
| Condition | Used |
| Stock Number | 26251 |
| Between columns | 2,700 mm |
| Spindle speeds | 4,000 rpm |
| X axis travel | 4,000 mm |
| Y axis travel | 3,200 mm |
| Z axis travel | 1,400 mm |

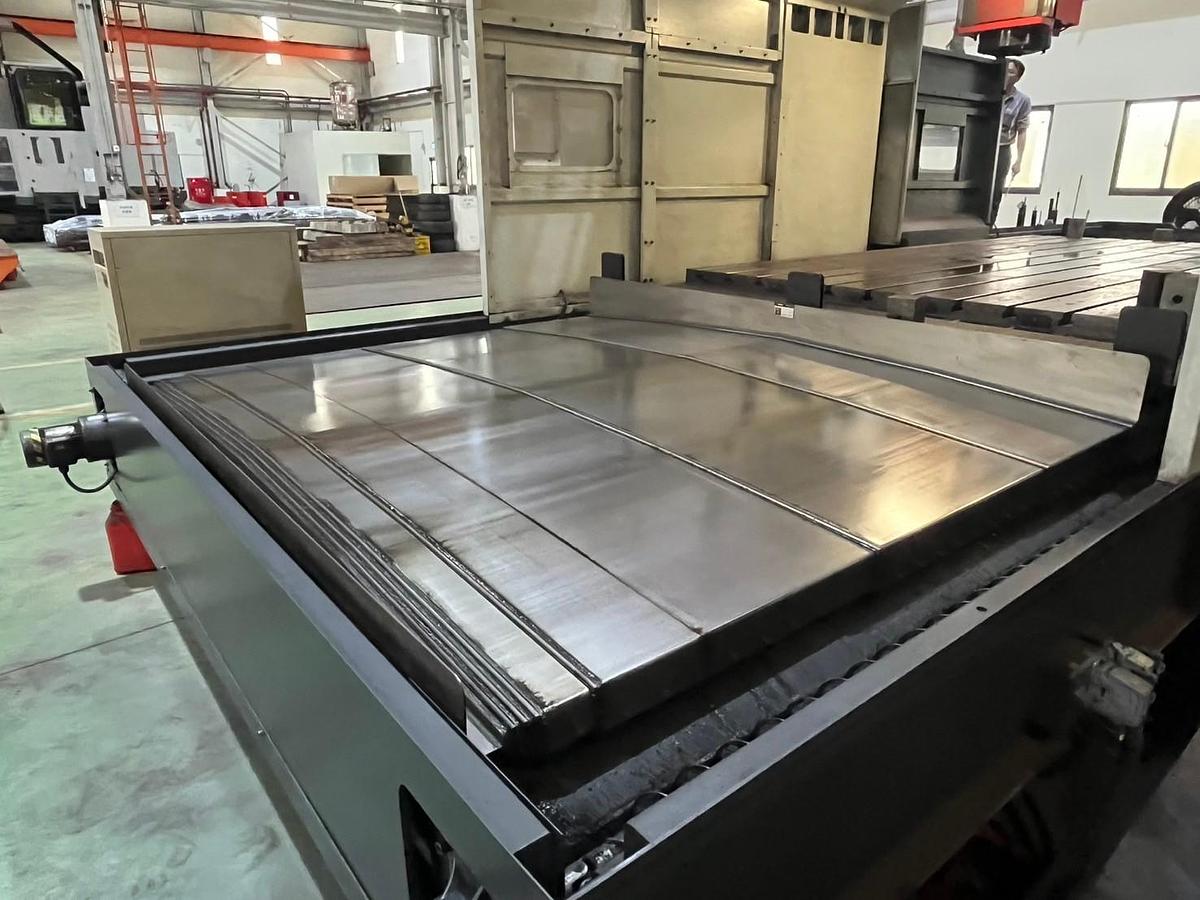

| Table dimensions | 4,020 mm x 2,400 mm |
| Table capacity | 15,000 kg |
| Rapid Feed X/Y/Z | 15,000 mm/min |
| Spindle taper | CAT 50 |
| Distance spindle nose to table | 200 - 1,600 mm |
| Spindle motor | 22/26 KW |
| Machine weight approx. | 44,000 Kg |
