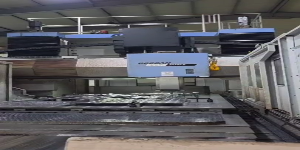

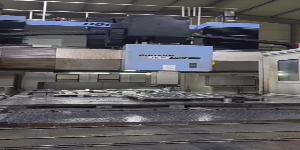

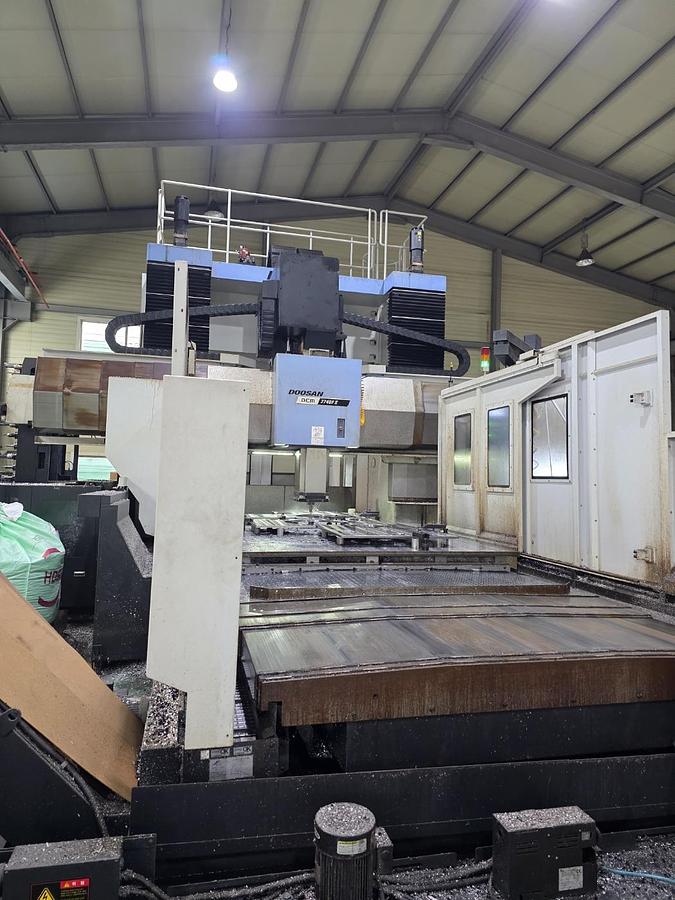

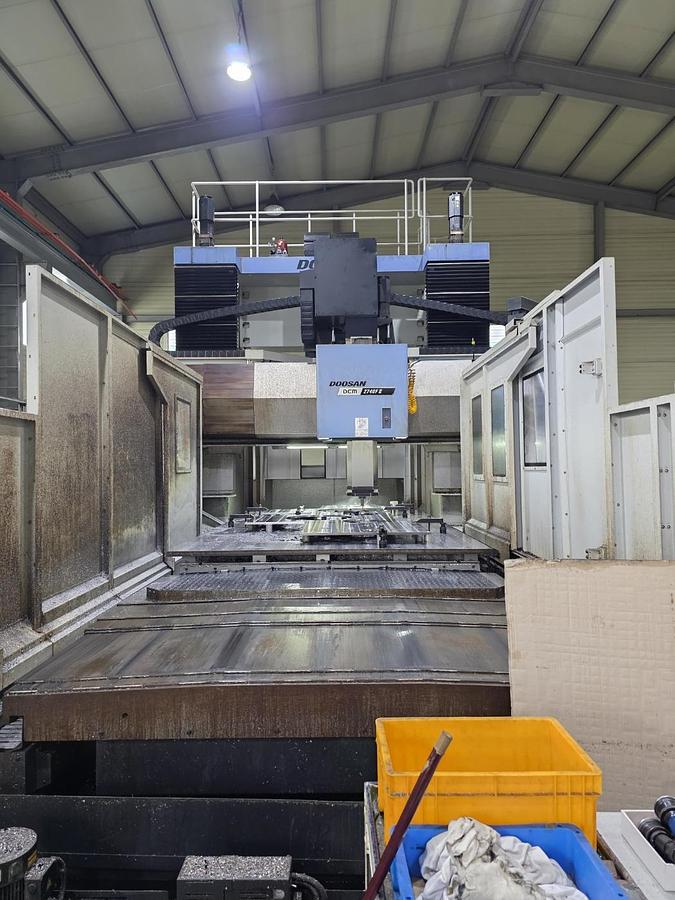

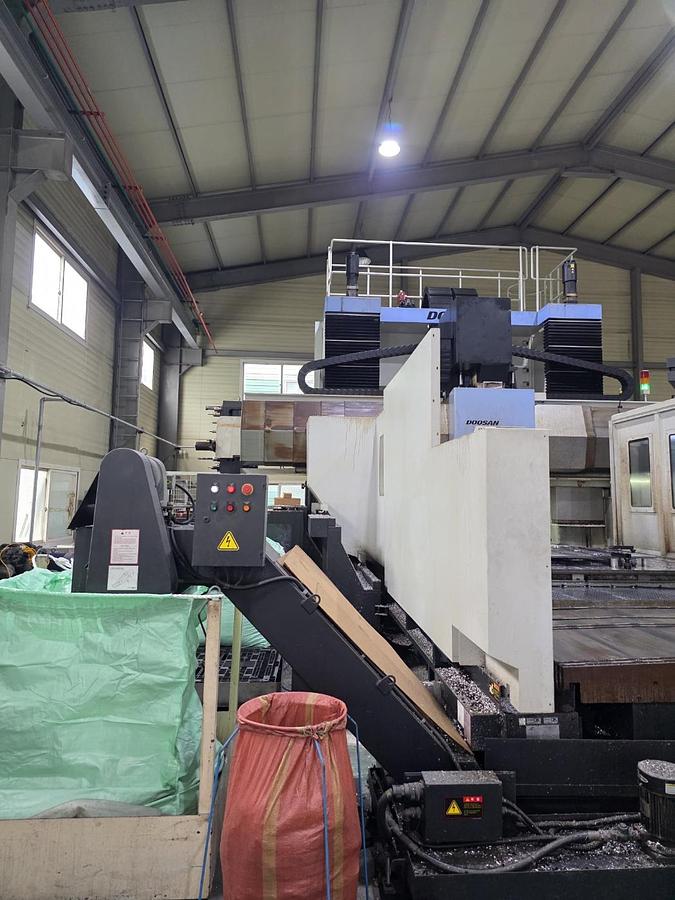

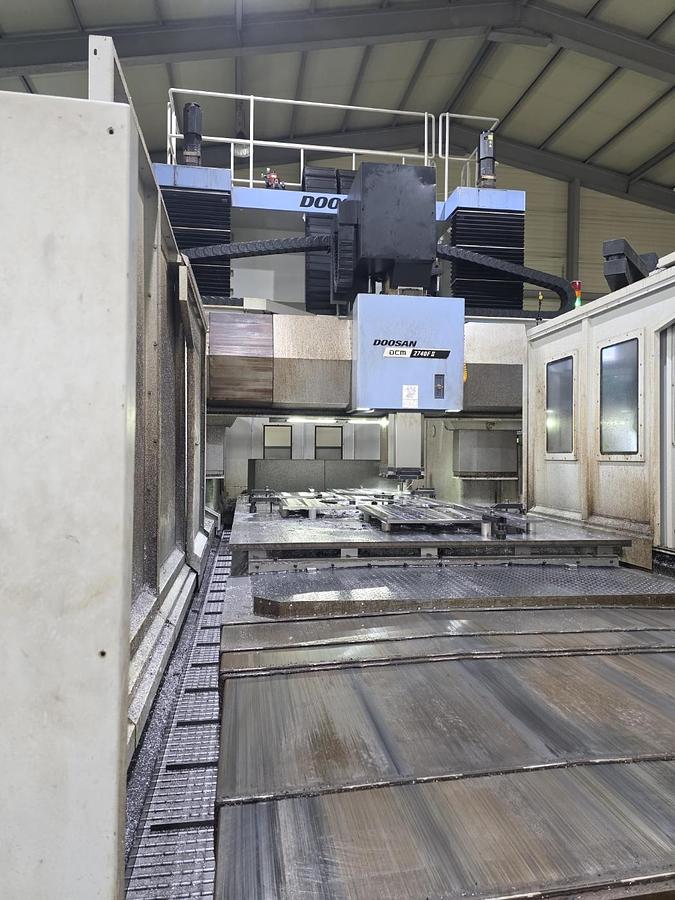

2019 Doosan DCM 2740F II Double Column Bridge Type Multi Machining Center
2019 Doosan DCM 2740F II Double Column Bridge Type Multi Machining Center
Available quantity:1
or
Call 770-509-0744
Description

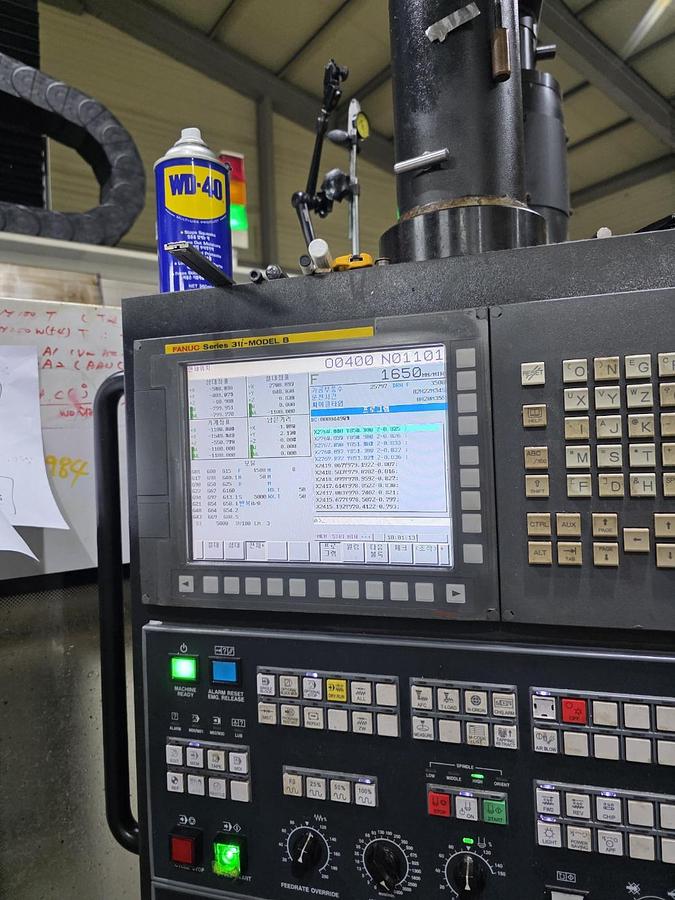

Fanuc 31iB CNC Control

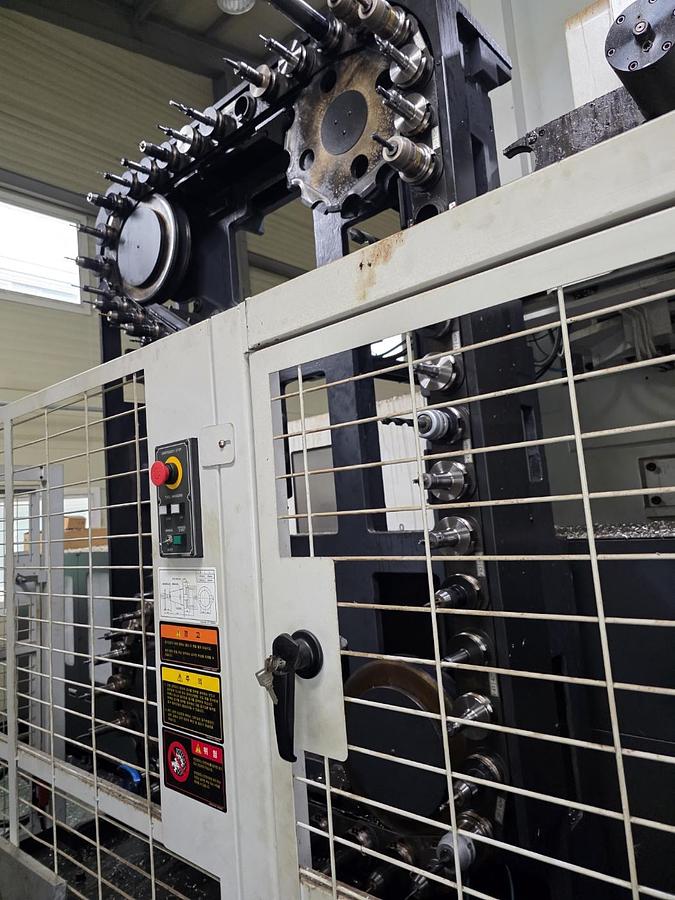

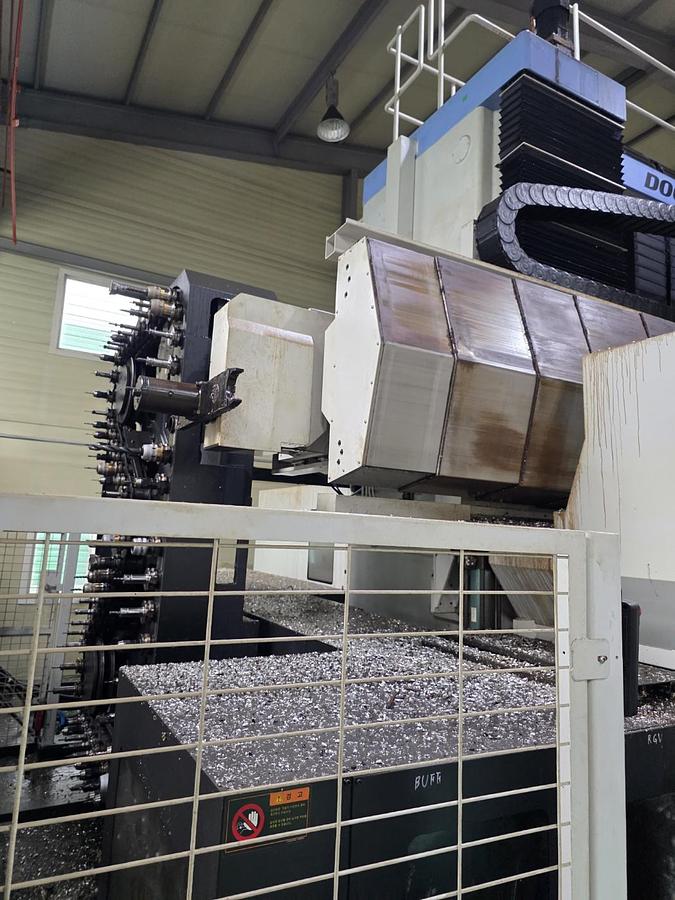

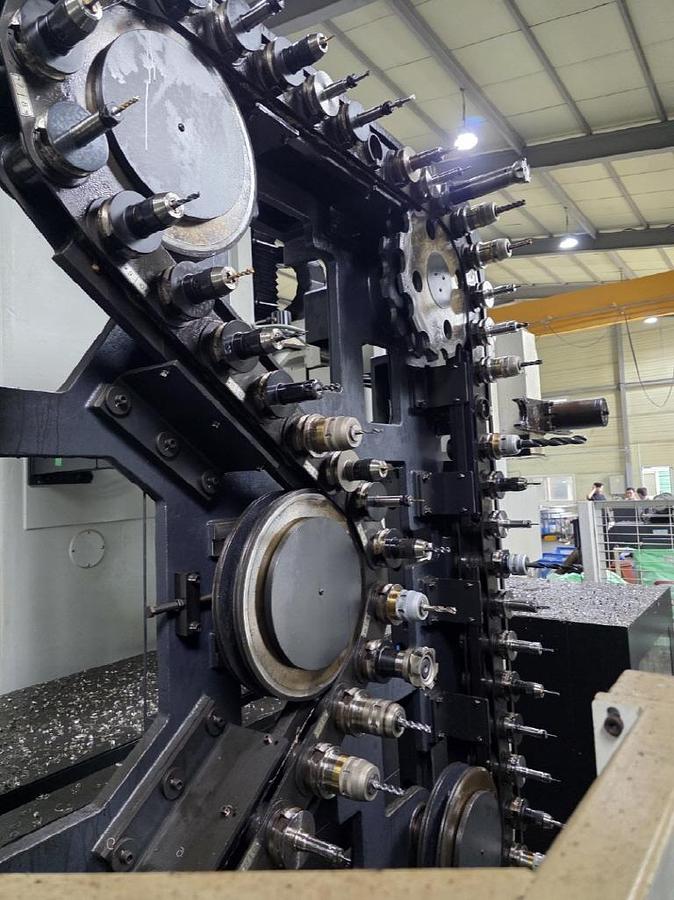

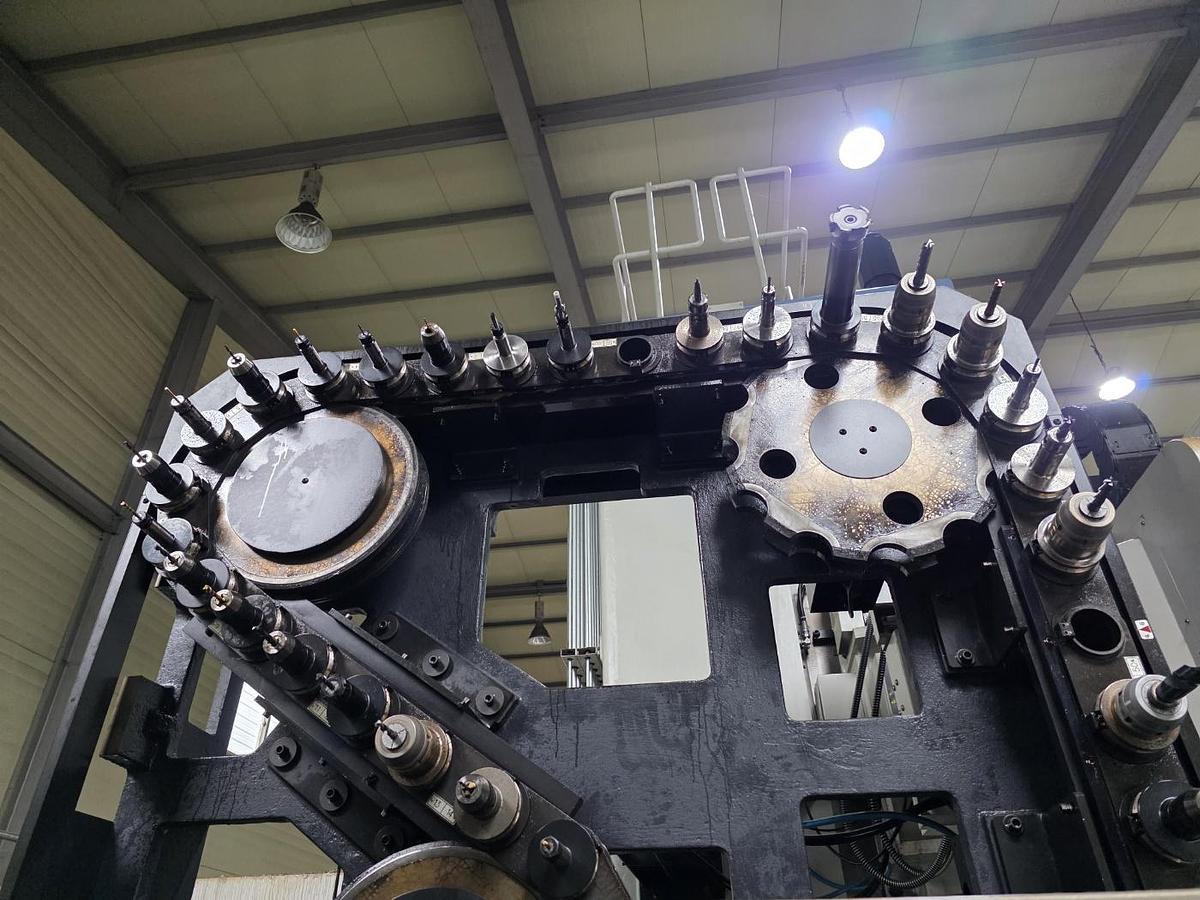

60 Position Automatic Tool Changer
Automatic Attachment Changer
90-Degree Angle Head
Linear Scale for X,Y,Z,W-axes
2 Side Chip conveyors
Splash Guard (Semi Cover)
Auto. Tool length measurement
Specifications
| Manufacturer | Doosan |
| Model | DCM 3780F II |
| Year | 2019 |
| Condition | Used |
| Stock Number | 5654210 |
| Between columns | 2,700 mm |
| Spindle speeds | 6,000 rpm |
| Table to spindle nose | 2,000 mm |
| X axis travel | 4,250 mm |
| Y axis travel | 4,100 mm |
| Z axis travel | 700 mm |
| Table size | 2,200 x 4,100 mm |
| Table capacity | 45 Ton |
| W axis travel | 1,100 mm |
| Z + w axis (ram + crossrail) | 1,800 mm |
| Ram size | 380 x 380 mm |
| Spindle drive motor | 25 / 22 kW |
