Igrek DT 4000 CNC Vertical Milling, Boring & Grinding Machine with Live Spindle & Table C-Axis

Igrek DT 4000 CNC Vertical Milling, Boring & Grinding Machine with Live Spindle & Table C-Axis

or
Call 770-509-0744

Description

NEW MACHINE

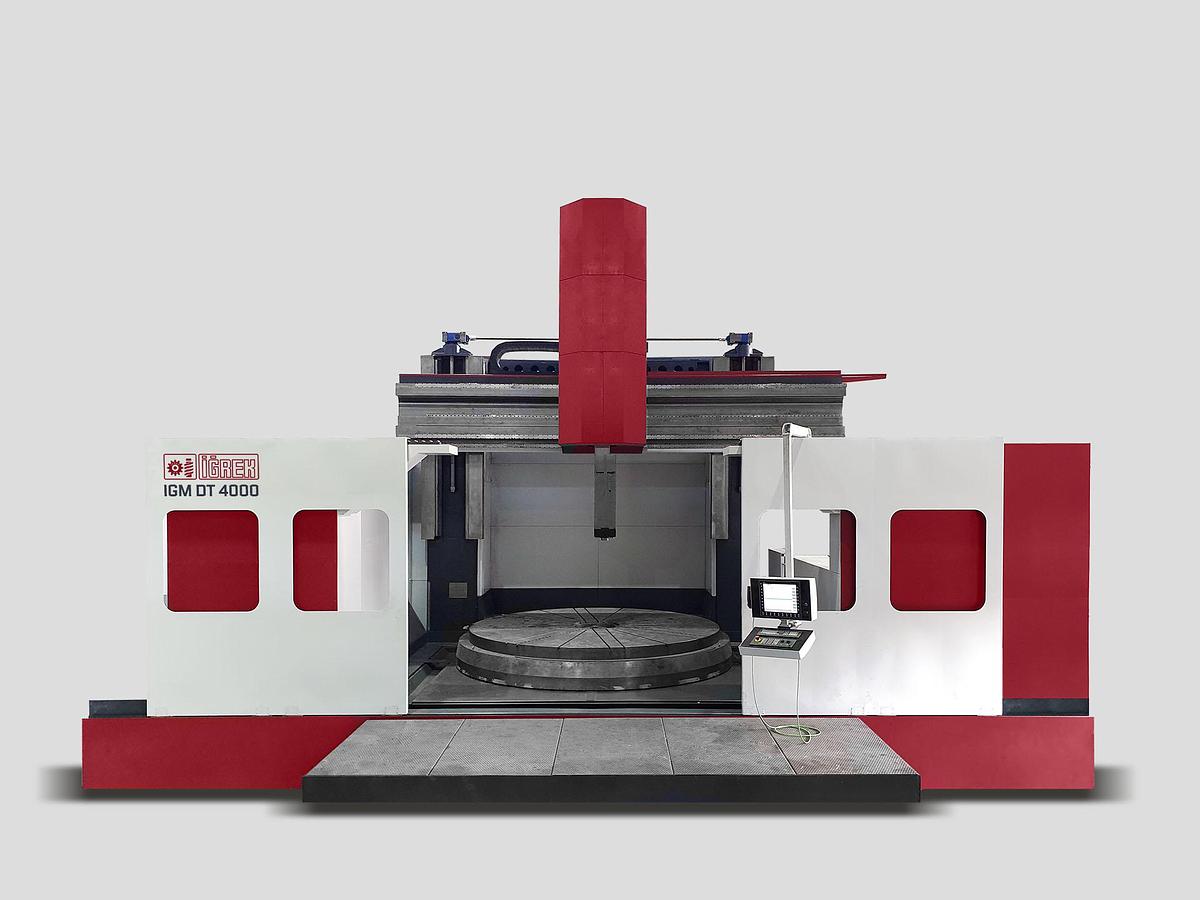

Vertical Lathe with Ø4000 mm Hydrostatic Rotary Table & Moving Traverse


World-class CNC vertical lathe, capable of precision machining for heavy parts with its direct driven, hydrostatic guided rotary table and moving traverse. Milling and hole drilling abilities thanks to live spindle and precision positioning C-Axis.

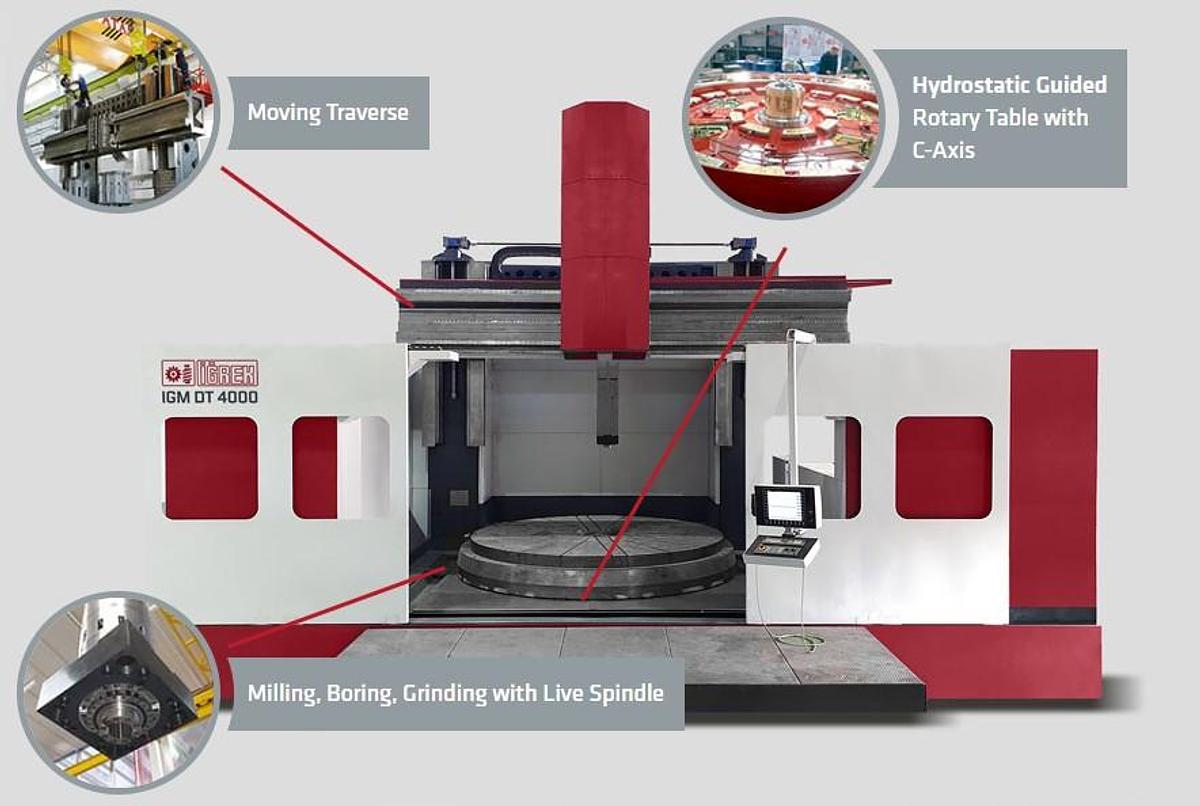

  • Hydrostatic Guided Rotary Table with C-Axis
  • Milling, Boring, Grinding with Live Spindle
  • Moving Traverse
  • Work Load Capacity: 40000 kg



Siemens 840D SL CNC Control

Automatic Tool Changer

Live Spindle with Table C-Axis Positioning

Specifications

ManufacturerIgrek
ModelDT 4000
Year2025
ConditionUsed
Stock Number5654250
Table diameter4,000 mm
Max turning diameter5,000 mm
Max turning height from table2,000 mm
Ram slide stroke2,100 mm
Ram section350 x 350 mm
Vertical travel of moving traverse2,000 mm
Table drive systemSegmented Direct Drive Motors
Table torqueNominal 8,200 Nm - Max 14,400 Nm
Table speed60 rpm
Table workload40,000 kg
Table guide systemHydrostatic Bearing & Guides
Spindle speeds4,000 rpm
Spindle power37 kW
Spindle torque1200 Nm
Tooling taperISO 50
Machine size7,500 x 12,000 x 9,500 mm
Machine weight125,000 kg
