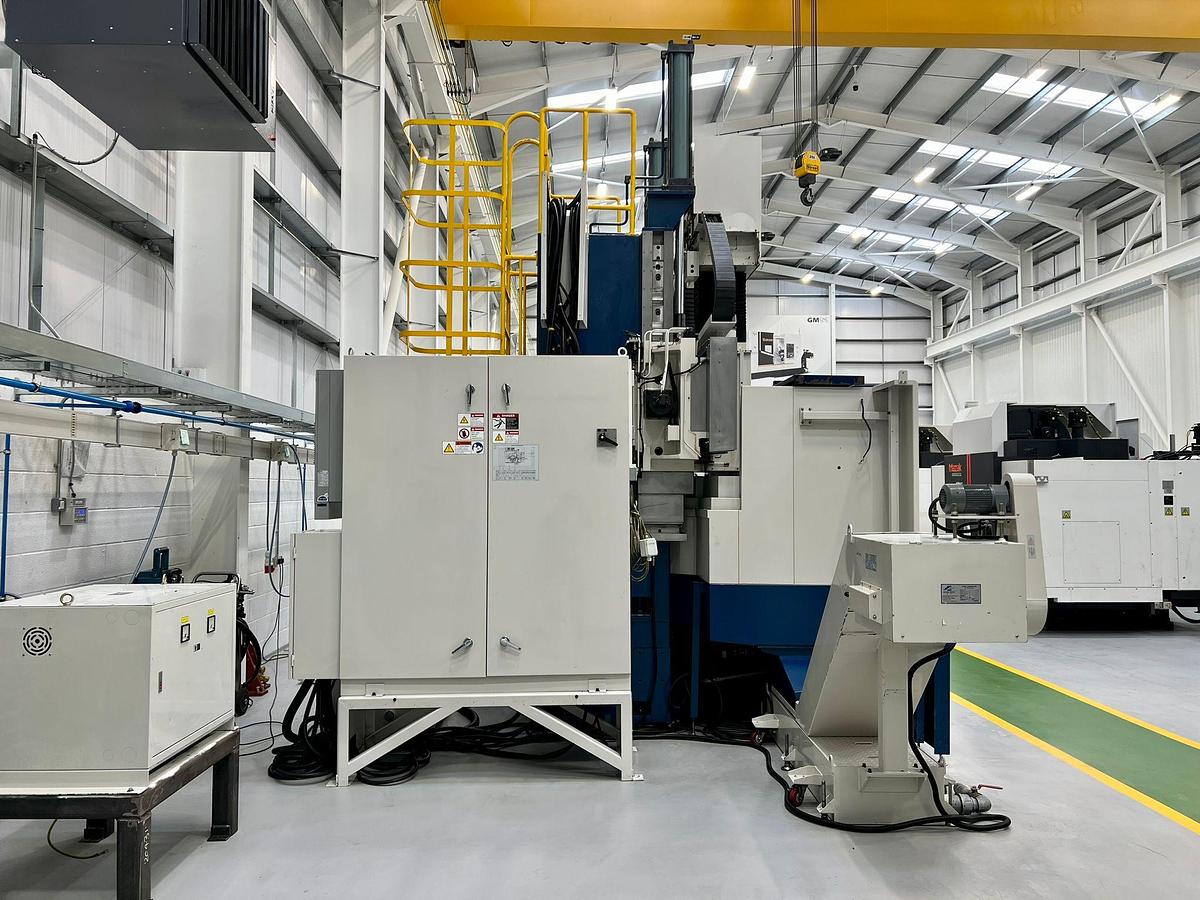

HNK VTC 14/16 CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
HNK VTC 14/16 CNC Vertical Boring & Milling Machine with Live Spindle & Table C-Axis
or
Call 770-509-0744
Description

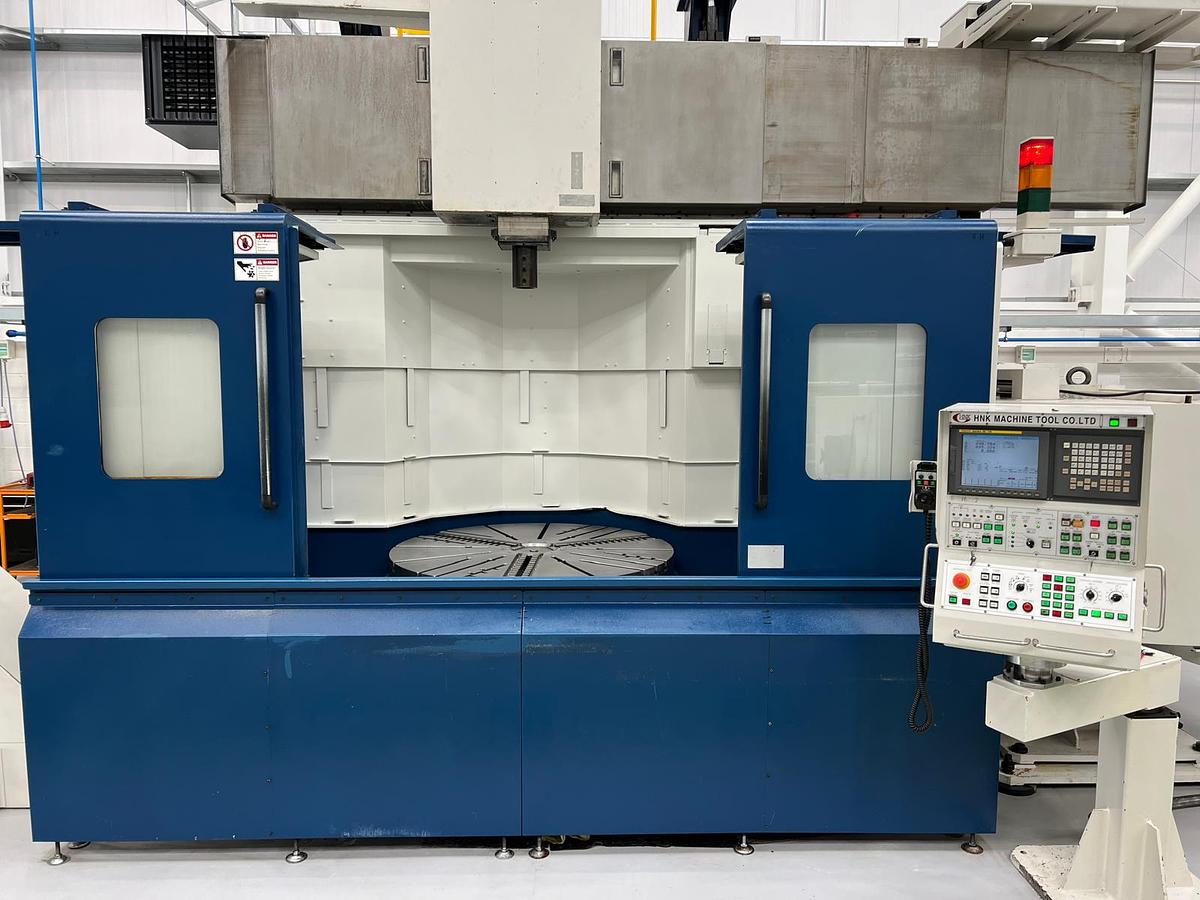

Fanuc 18i-TB CNC Control

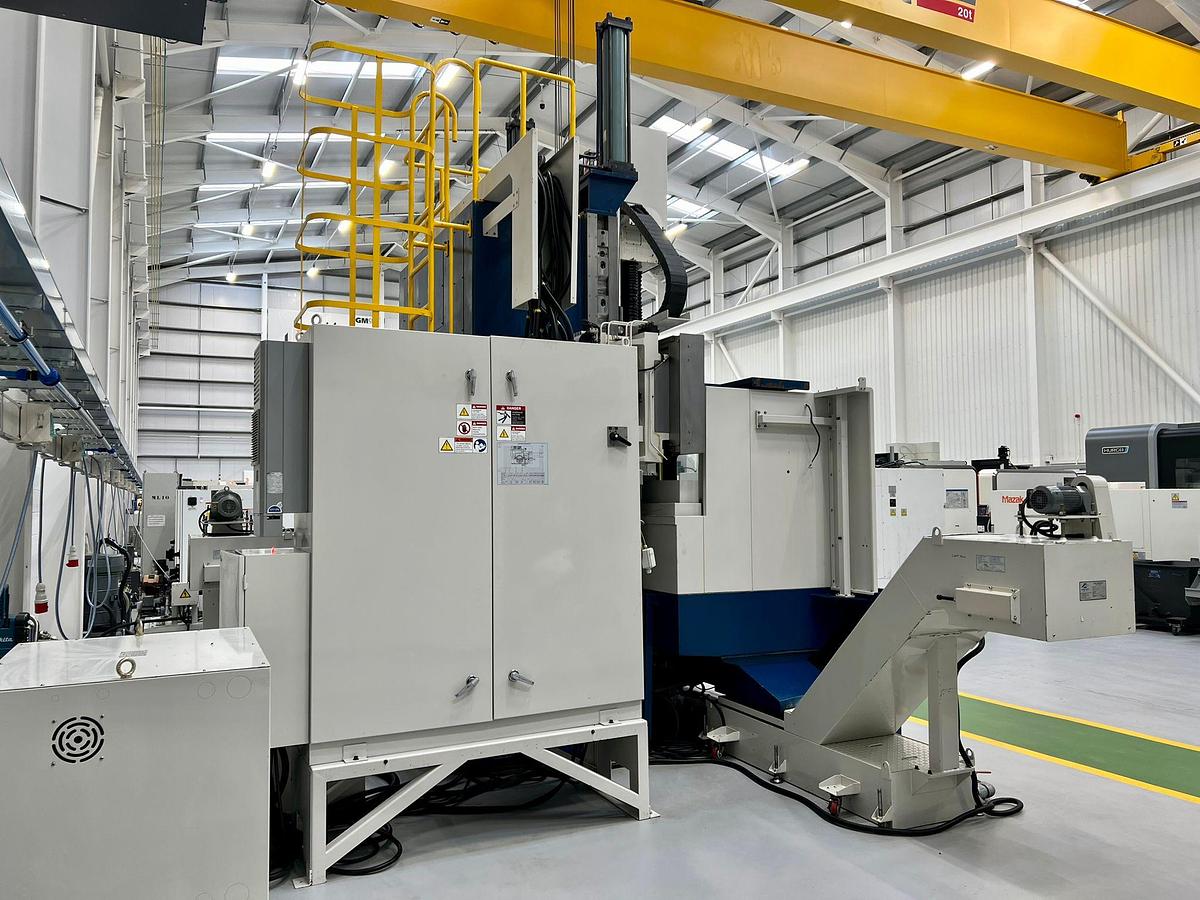

Swarf Conveyor

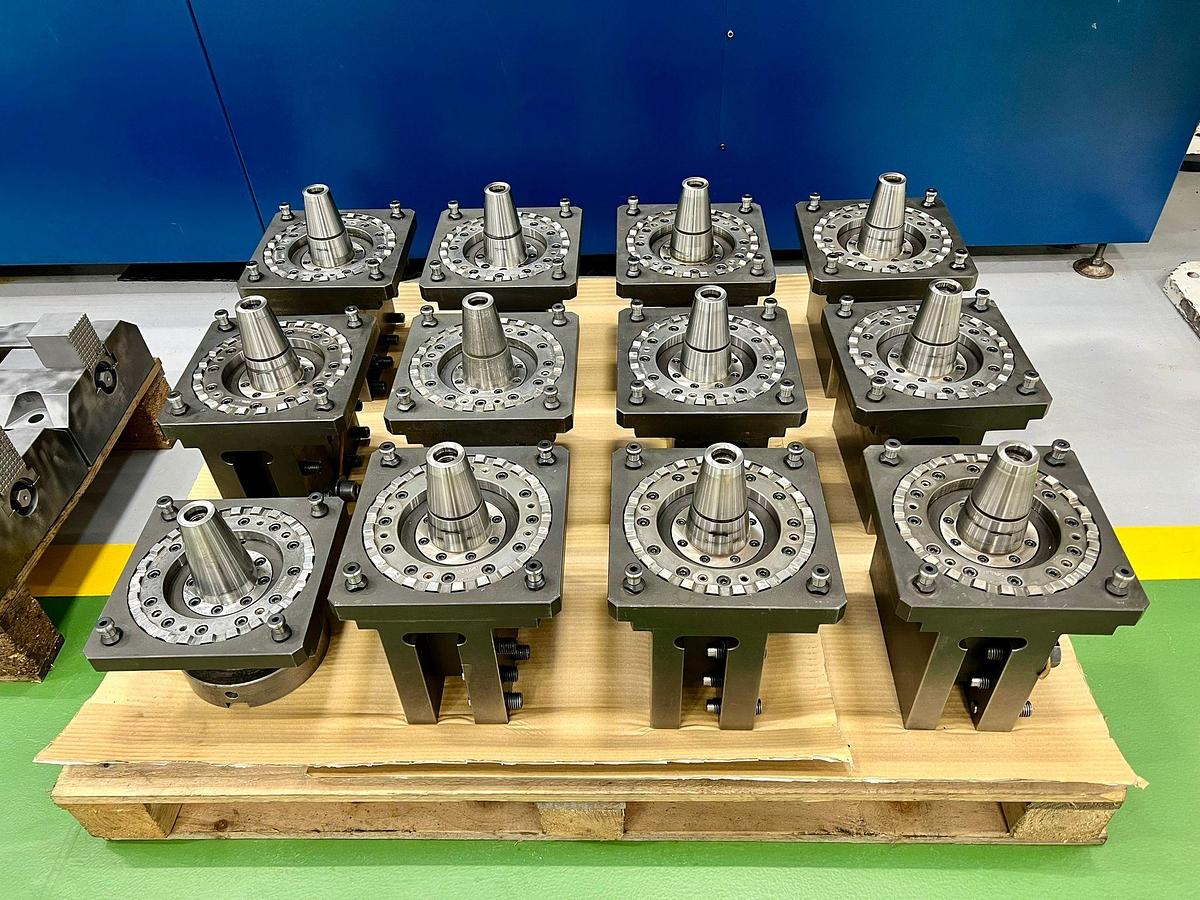

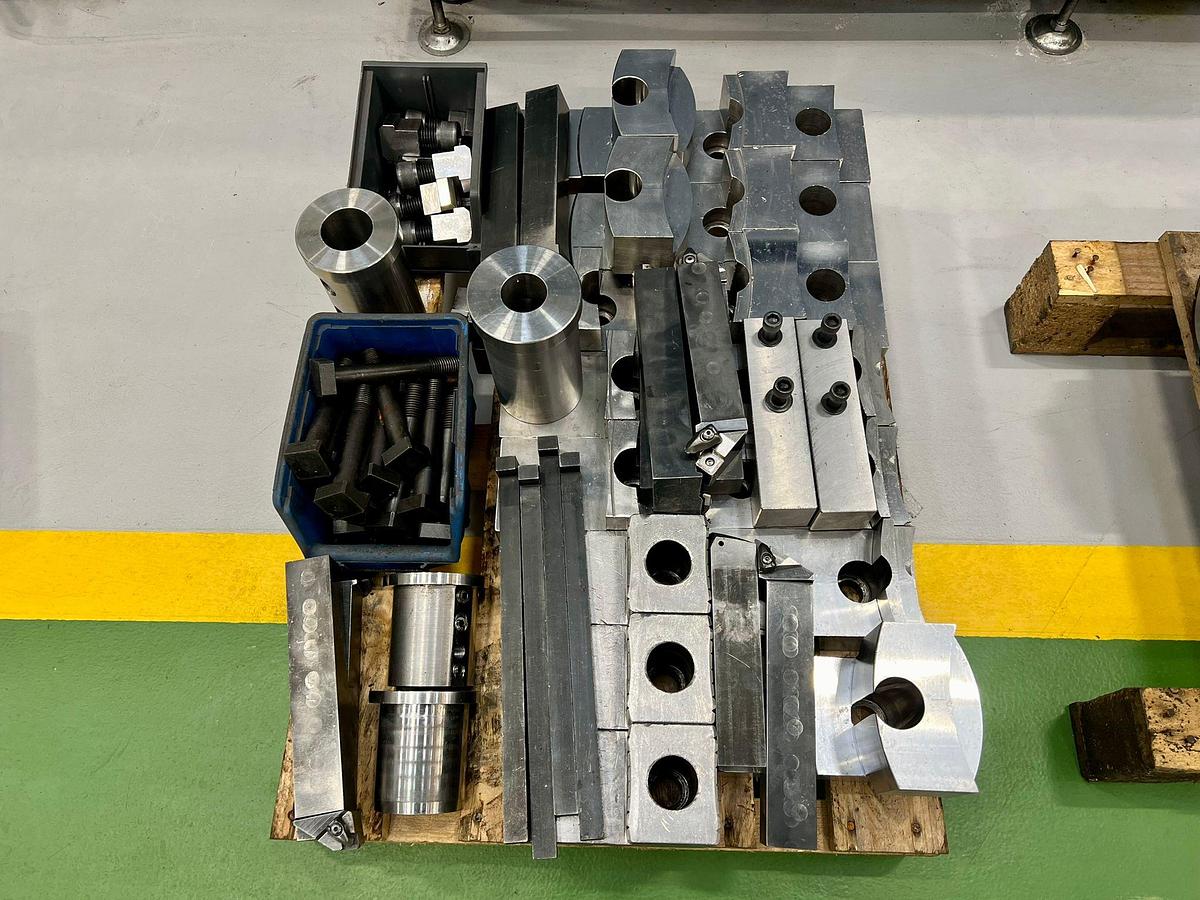

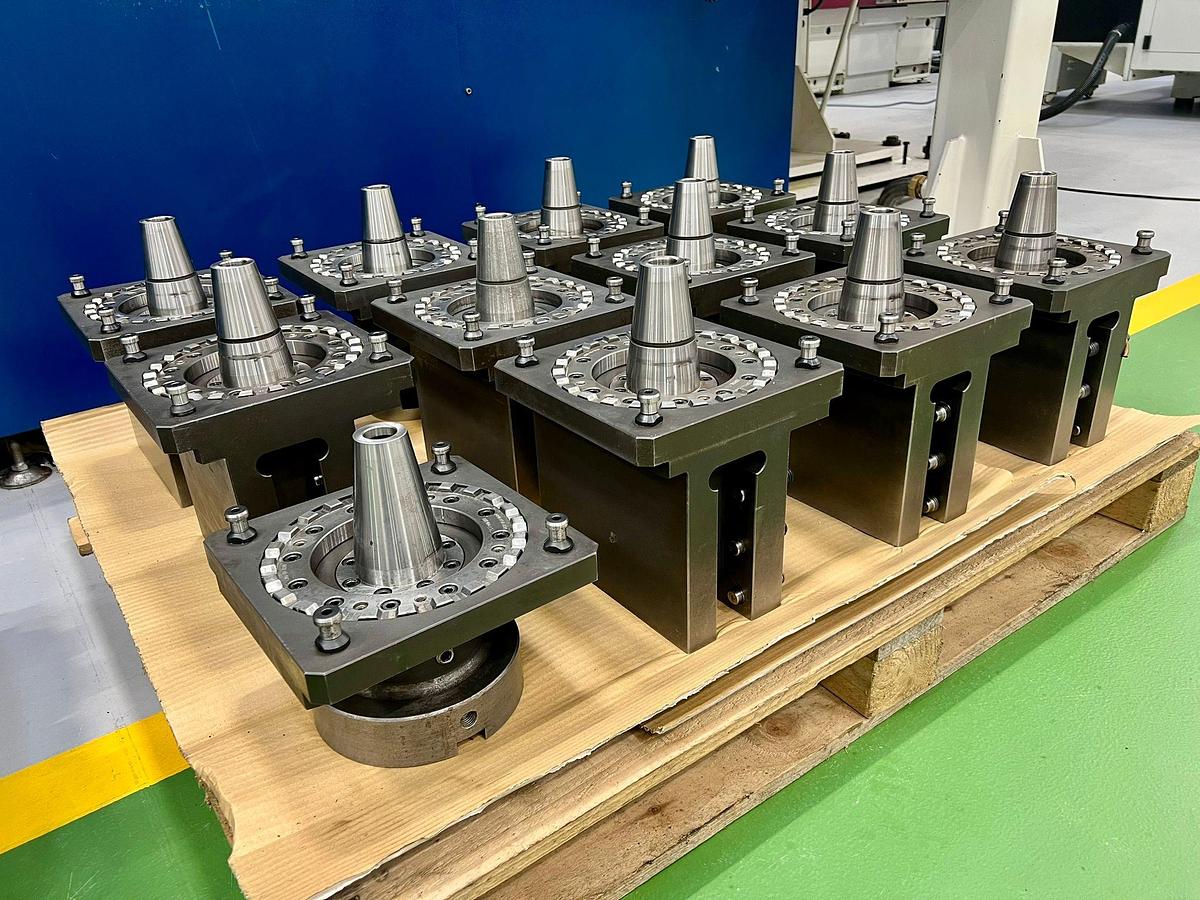

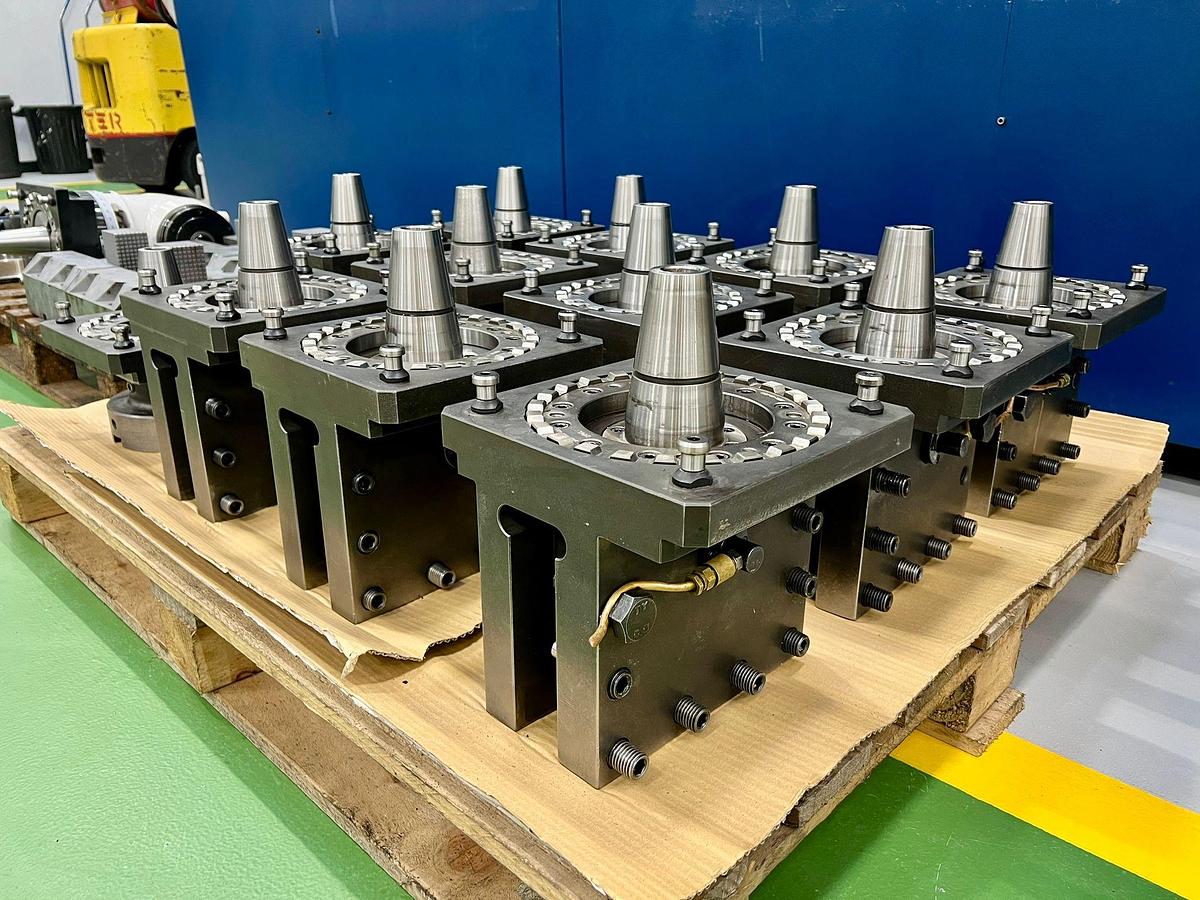

Milling & turning tools

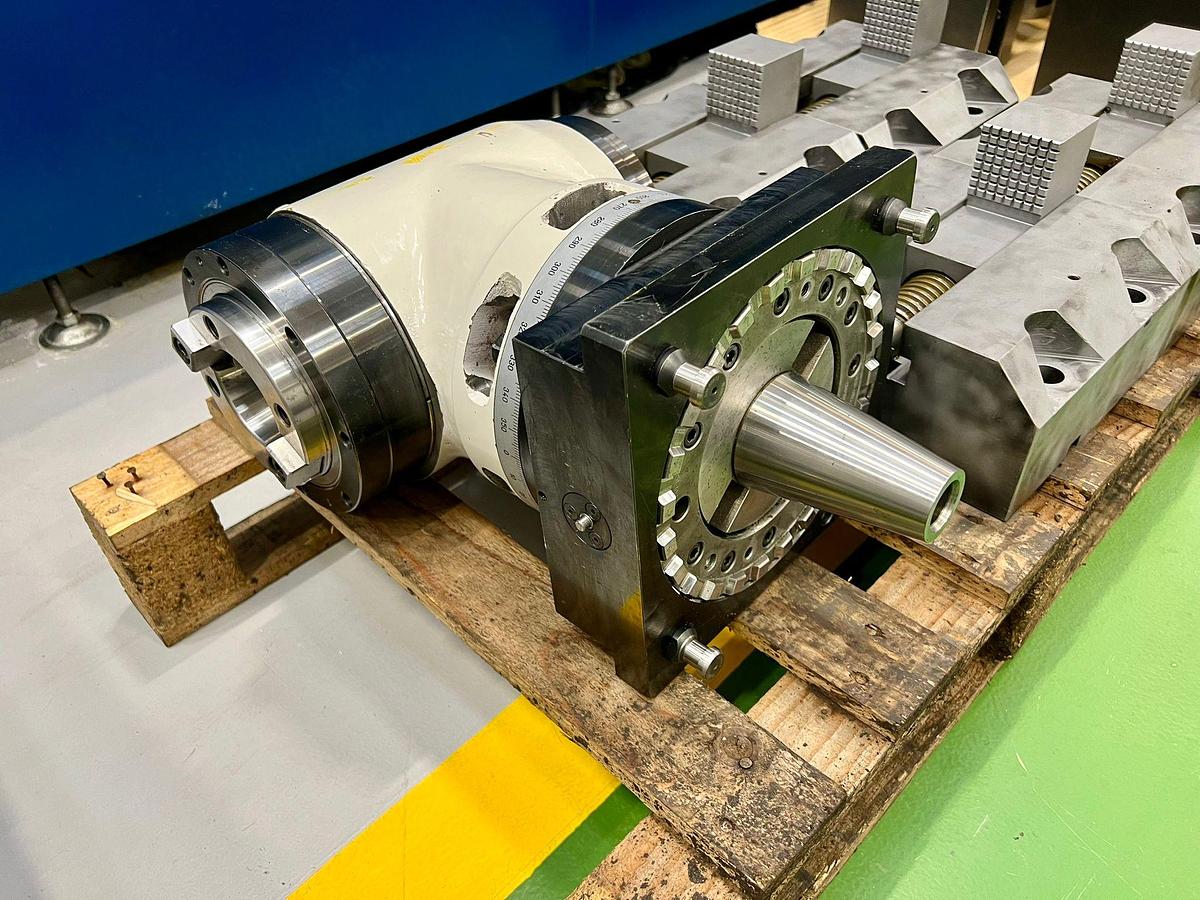

Universal milling attachment

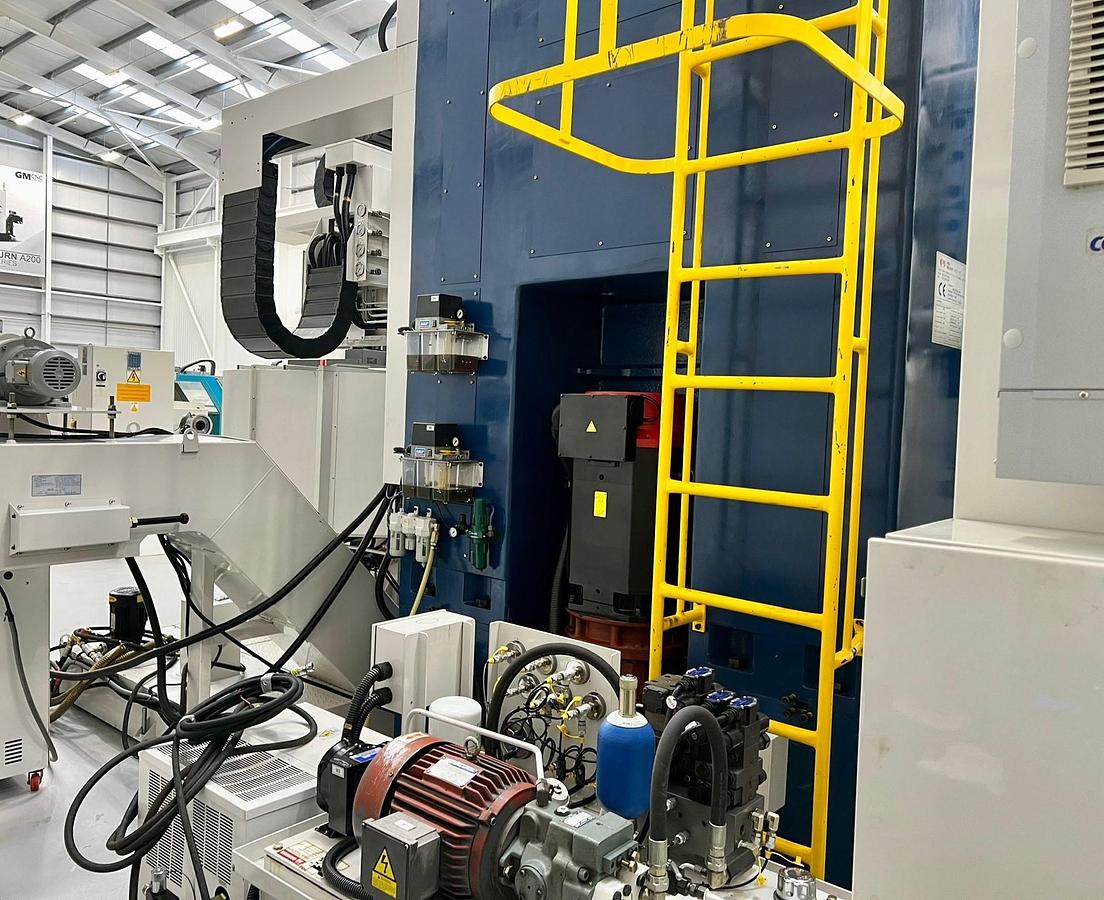

Coolant & filtration unit

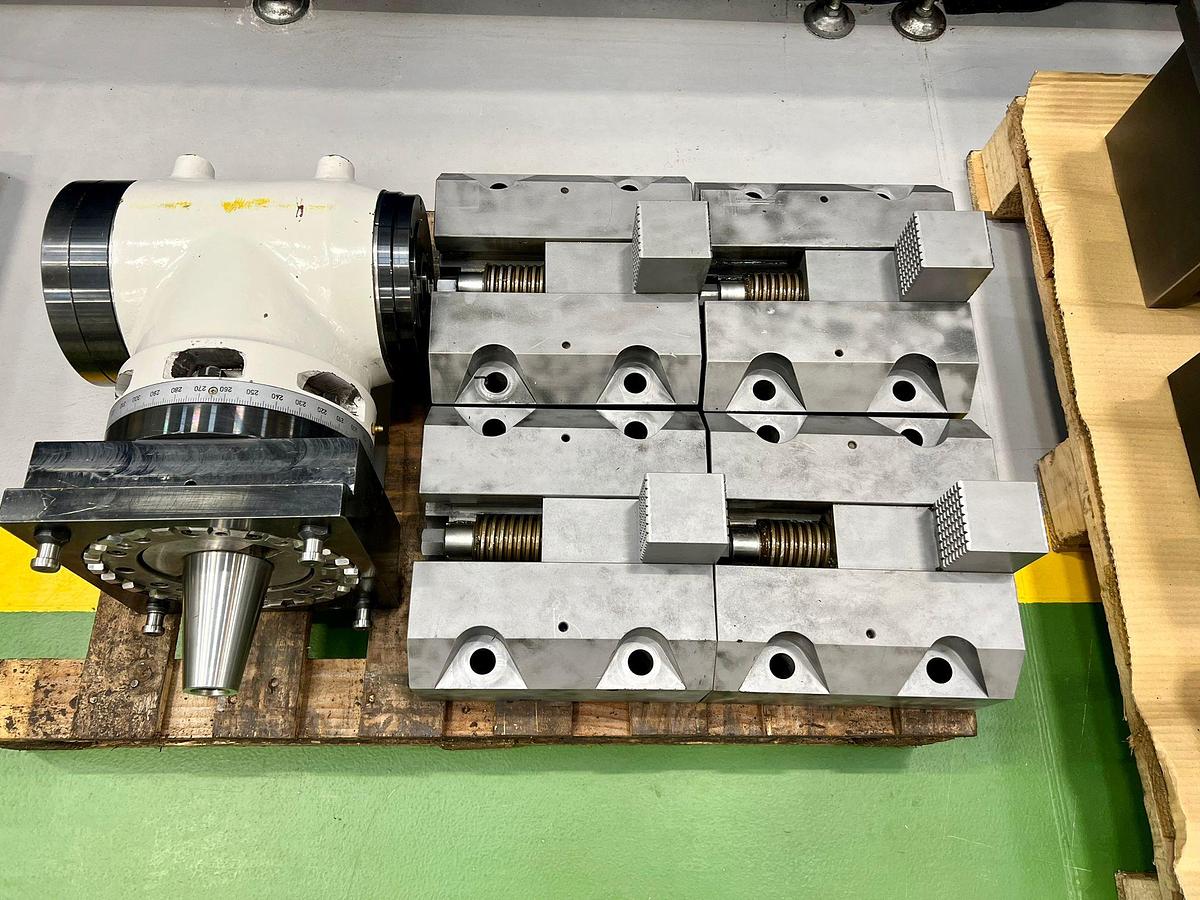

Chuck jaws
3 & 4 Jaw position Powered Hydraulic Chuck
Speeds (low range) 1 – 103.6 rpm
Speeds (high range) 1 – 360.4 rpm
Speed change 2 step/infinite
Chuck support type
Thrust ball bearing - Type 511/600 P5
Balancing type – Hydraulic
Position setting method by hydraulic locating pin
Position setting order by M Code & Switch order
Coolant Pump - 550 L Capacity
Specifications
| Manufacturer | HNK |
| Model | VTC 14/16 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 5654258 |

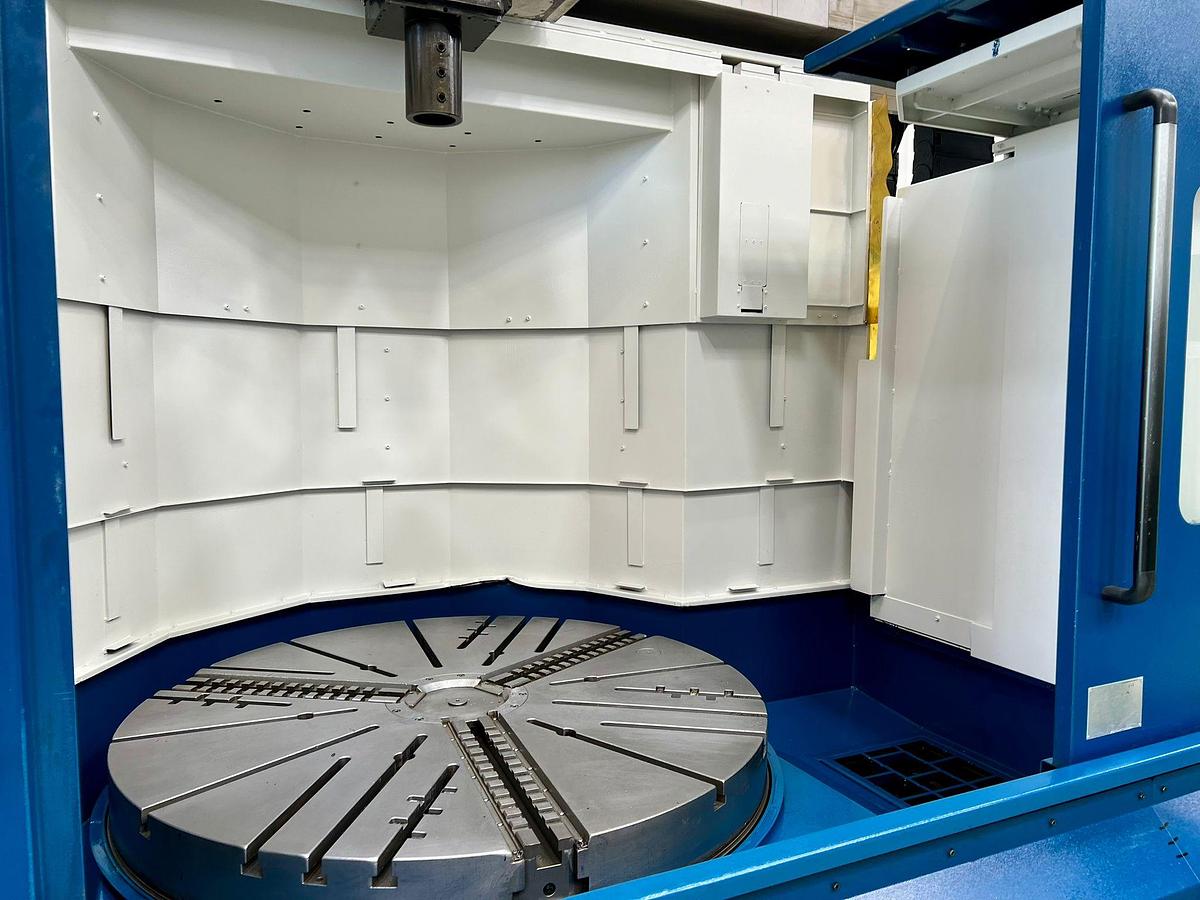

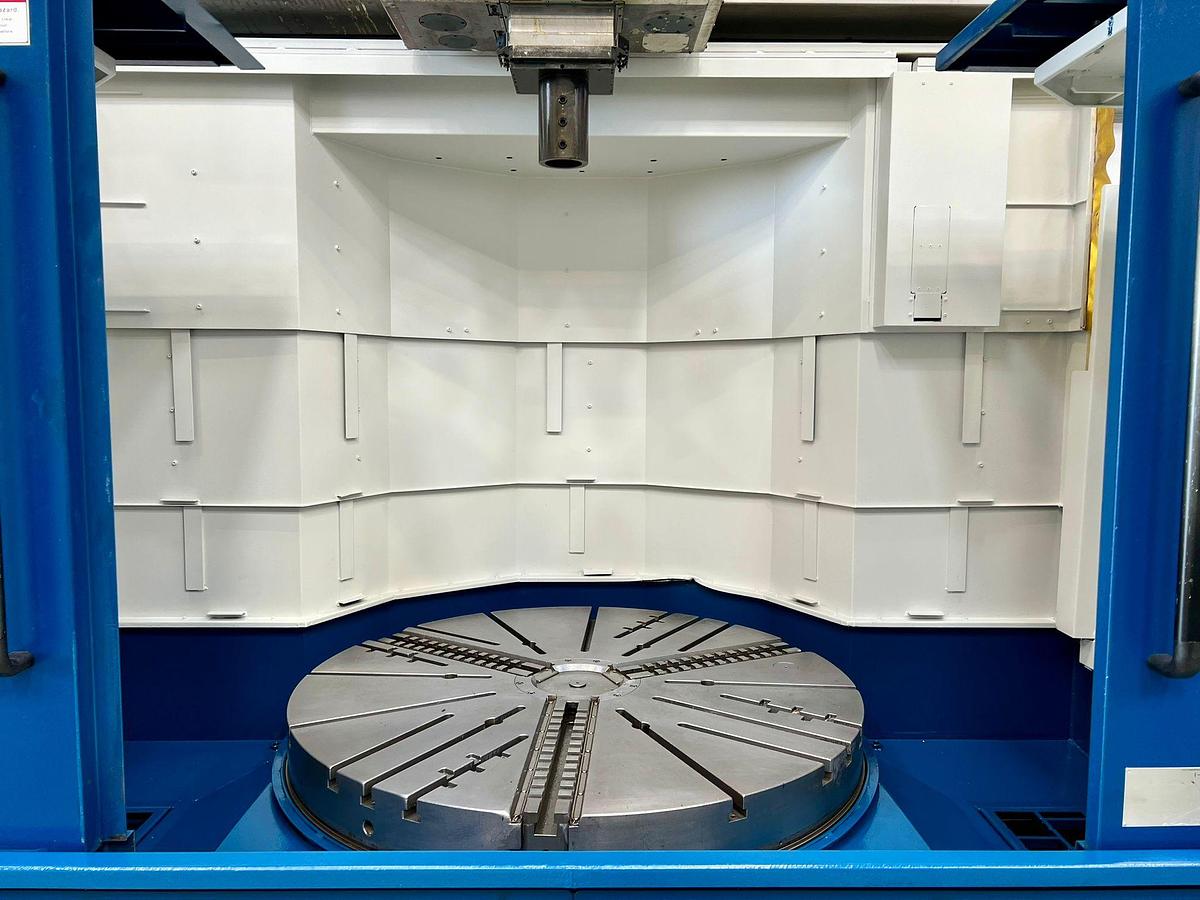

| Table diameter | 1,400 mm |
| Swing | 1,600 mm |
| Chuck surface to toolholder | 1,200 mm |
| Table capacity | 8,000 kg |
| Table turn speed | 360 rpm |
| Live spindle speed | 1,500 rpm |
| Table torque | 1,844 Nm |
| Table power | 55 kW |
| Minimum inside diameter | 350 mm |
| X axis travel | -200 ±970 mm (1,170 mm) |
| Z axis travel | 900 mm |
| W axis travel | 750 mm - 250 mm x 3 steps |
| Live spindle motor | AC 15 / 18.5 kW |
| Spindle taper | ISO 50 - Full Stud BT50 |
| Tool shank size | 40 x 40 mm |

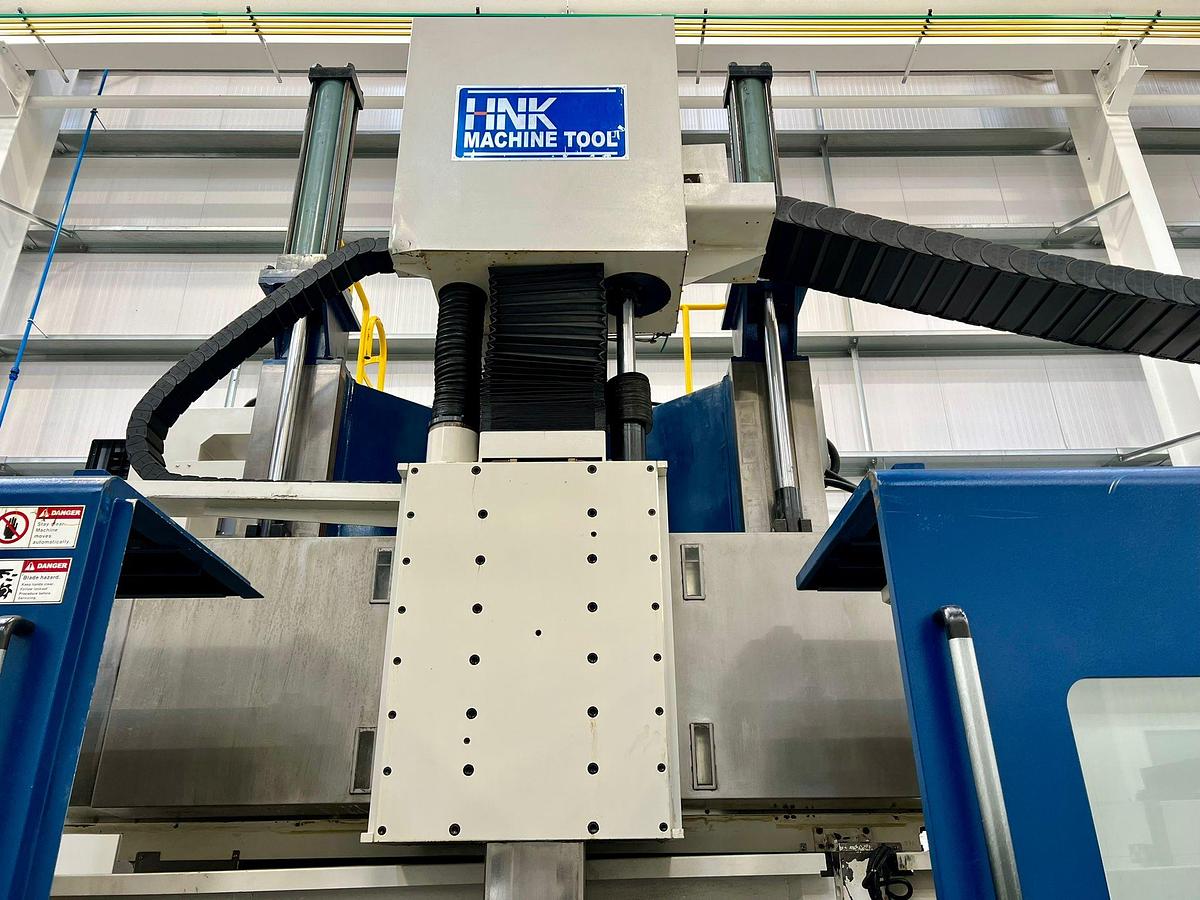

| Ram size | 240 x 240 mm |
| Rapid traverse X/Z | 120 / 100 mm/min |
| Machine dimensions | 7,976 x 4,710 x 5,760 mm |
| Machine weight | 30,000 kg |
