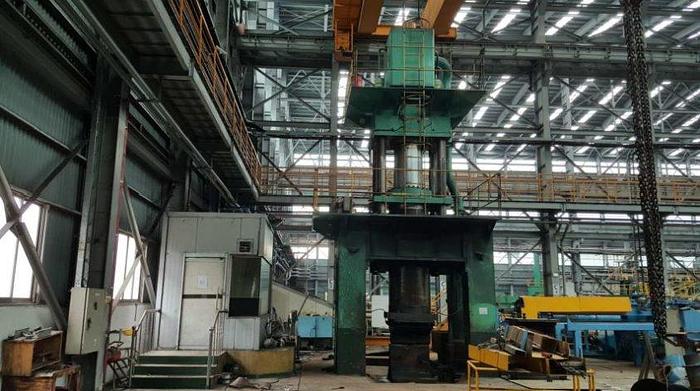

1500 Open Die Free Forging Press
1500 Open Die Free Forging Press
or
Call 770-509-0744
Description

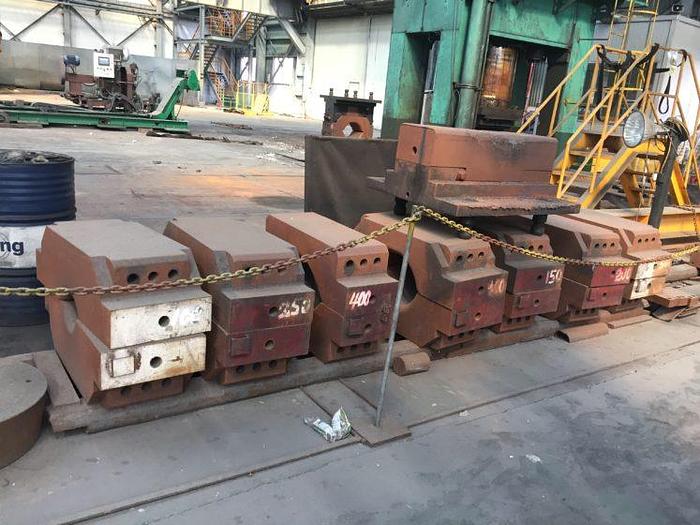

Tool Shifting Device – Stroke 4,000 mm / 157.5″ Top Die Clamping Device – 20 Ton Die Magazine Device – Stroke 3,300 mm / 130″
Specifications
| Condition | Used |
| Stock Number | 10462 |
| Press type | Four Column Push Down Oil Hydraulic System |
| Nominal force (static working pressure of 320 bar) | 1,500 Tons |
| Daylight | 2,250 mm |
| Stroke of movable cross head | 1,500 mm |
| Max working pressure | 300 kg/cm2 |
| Cylinder ram diameter | 1 Set - 800 mm |
| Return cylinder ram diameter | 2 Sets - 135 mm |
| Moving table size (w x l) | 2,000 x 4,000 mm |
| Movable table stroke | 2,000 mm |
| Height above floor / depth | 9,450 mm / 2,540 mm |
| Moving table speed | 50 - 300 mm/sec |
| Moving table power | 60 Ton |
| Moving table cylinder diameter | 1 x 2 Sets - 160 mm |
| Return power | 85 Ton |
| Return stroke | 1,500 mm |
| Approaching speed | 300 mm/sec |
| Forging speed (~150 kg/cm2) | 56 mm/sec |
| Forging speed (150~300 kg/cm2 | 56~20 mm/sec |
| Return speed | 300 mm/sec |
| Hydraulic main pump | 3 Sets Rexroth Plunger Pump A7VO500LRD |
| Electric main motor | 3 Sets 160 kW 440V - 480 kW |
| Main tank volume | 15,000 Liter |
| Aux tank volume | 3,000 Liter |
| Total volume | 1,740 L/min |
| Column type | Straight Side Frame Type |
| Column material | SS400 |
| Column front distance | 2,400 mm |
| Column side distance | 2,000 mm |
| Column fron inside distance | 2,400 mm |
| Column side inside distance | 1,000 mm |
