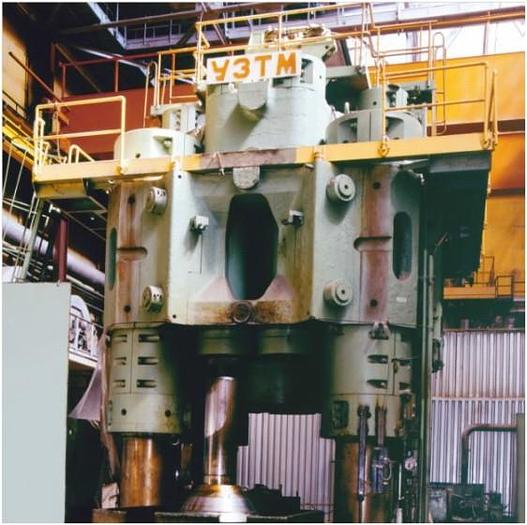

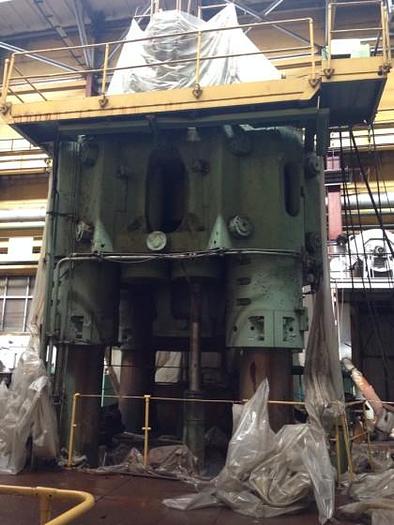

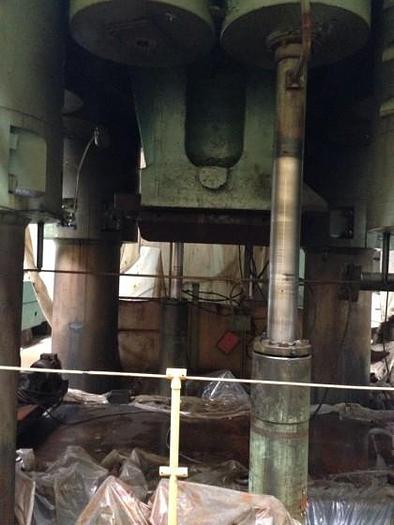

30,000 Ton 4-Column Hydraulic Forging Press
30,000 Ton 4-Column Hydraulic Forging Press
or
Call 770-509-0744
Description

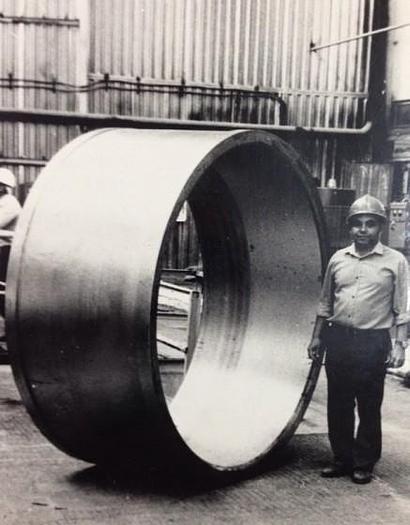

Four Columns Movable Cross Piece & Table Slide Top Tool Grip Devise for Hydraulic Expanding of RINGS up to 2,2240 mm Diameter
Specifications
| Condition | Used |
| Stock Number | 10208 |
| Press force | 30,000 Ton |
| Number of cylinders | 4 |
| Maximum travel of movable cross slide | 1,250 mm |
| Maximum distance between table & crosshead | 4,650 mm |
| Movable cross piece speed up/down | 300 mm/sec |
| Movable cross piece speed working | 30 mm/sec |
| Distance between column axes | 3,500 x 3,500 mm |
| Distance between column working area | 2,600 x 2,600 mm |
| Table dimensions | 2,500 x 3,000 mm |
| Table travel | 3,500 mm |
| Mandreal diameters | 250, 350, 450, 710, 1,300 mm |
| Cone diameters | 750, 850, 1,100, 1,400, 2,100 mm |
| Apex angle | 70 Degree |
| Mandrel spacing | 300 - 1,000 mm |
| Mandrel rotation mechanism | 20 |
| Angle of rotation | 6 Degree - 9 Degree |
| Overall dimensions of press | 16,140 x 19,570 mm |
| Height above floor | 9,290 mm |
| Distance below floor | 9,900 mm |
| Weight of press | 1,660 Ton |
| Total weight | 2,365 Ton/1,660 |
